1. Introducció
This user manual provides essential information for the installation, operation, and maintenance of your SCHOCK Greenwich N-100L Stone Compact Kitchen Sink. Manufactured in Germany, this sink is crafted from high-quality CRISTADUR quartz composite, offering exceptional durability and a modern design. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product.
Figure 1.1: SCHOCK Greenwich N-100L Stone Kitchen Sink
2. Instruccions de seguretat
Always adhere to the following safety guidelines to prevent injury and damage to the product or property.
- Instal·lació professional recomanada: For optimal safety and performance, it is highly recommended that the sink be installed by a qualified professional.
- Manejar amb cura: The sink is made of a robust material, but can be damaged if dropped or subjected to severe impact during handling or installation.
- Productes químics: Avoid using harsh abrasive cleaners, strong acids, or alkalis, as these can damage the sink's surface. Refer to the maintenance section for cleaning instructions.
- Objectes calents: While the CRISTADUR material is heat-resistant, prolonged exposure to extremely hot objects (e.g., pots directly from the stove) should be avoided to prevent potential thermal shock or discoloration. Use a trivet or heat pad.
- Ventilació: Ensure adequate ventilation during installation, especially if using adhesives or sealants.
- Connexions d'aigua: Ensure all water connections are properly sealed to prevent leaks. Check for leaks immediately after installation and periodically thereafter.
3. Contingut del paquet
The SCHOCK Greenwich N-100L Stone Compact Kitchen Sink package typically includes the following components:
- SCHOCK Greenwich N-100L Stone Sink Unit
- Waste Fitting
- Colador de cistella
- Eccentric Control (Comfopush push-button control)
Figure 3.1: Eccentric Control (Comfopush)
4. Guia d'instal·lació
The SCHOCK Greenwich N-100L sink is designed for compact kitchen spaces and typically for undermount installation.
4.1. Comprovacions prèvies a la instal·lació
- Verify that all package contents are present and undamaged.
- Ensure your countertop opening matches the sink dimensions. Refer to the technical drawing for precise measurements.
- Confirm that the cabinet below the sink is suitable for the sink's dimensions and weight.
Figure 4.1: Sink Dimensions and Cut-out Template
4.2. Passos d'instal·lació (generals)
- Preparar el taulell: Ensure the countertop cut-out is clean and smooth.
- Install Faucet and Accessories: Mount the faucet and any other accessories (like soap dispensers) into the pre-drilled holes on the sink. These holes can be easily punched out if not already open.
- Aplicar segellador: Apply a suitable silicone sealant around the rim of the sink or the edge of the countertop opening, as per manufacturer's instructions for undermount sinks.
- Col·locació de la pica: Carefully lower the sink into the countertop opening, ensuring it is properly aligned.
- Assegura la pica: Use mounting clips or brackets (not included, typically supplied with countertop or by installer) to secure the sink firmly to the underside of the countertop. Tighten evenly.
- Connecteu la fontaneria: Attach the waste fitting, basket strainer, and eccentric control mechanism. Connect the drain to your household plumbing system. Ensure all connections are watertight.
- Prova de fuites: Run water into the sink and check all connections for any leaks.
Important: Always refer to the detailed installation instructions provided with your specific sink model or consult a professional installer.

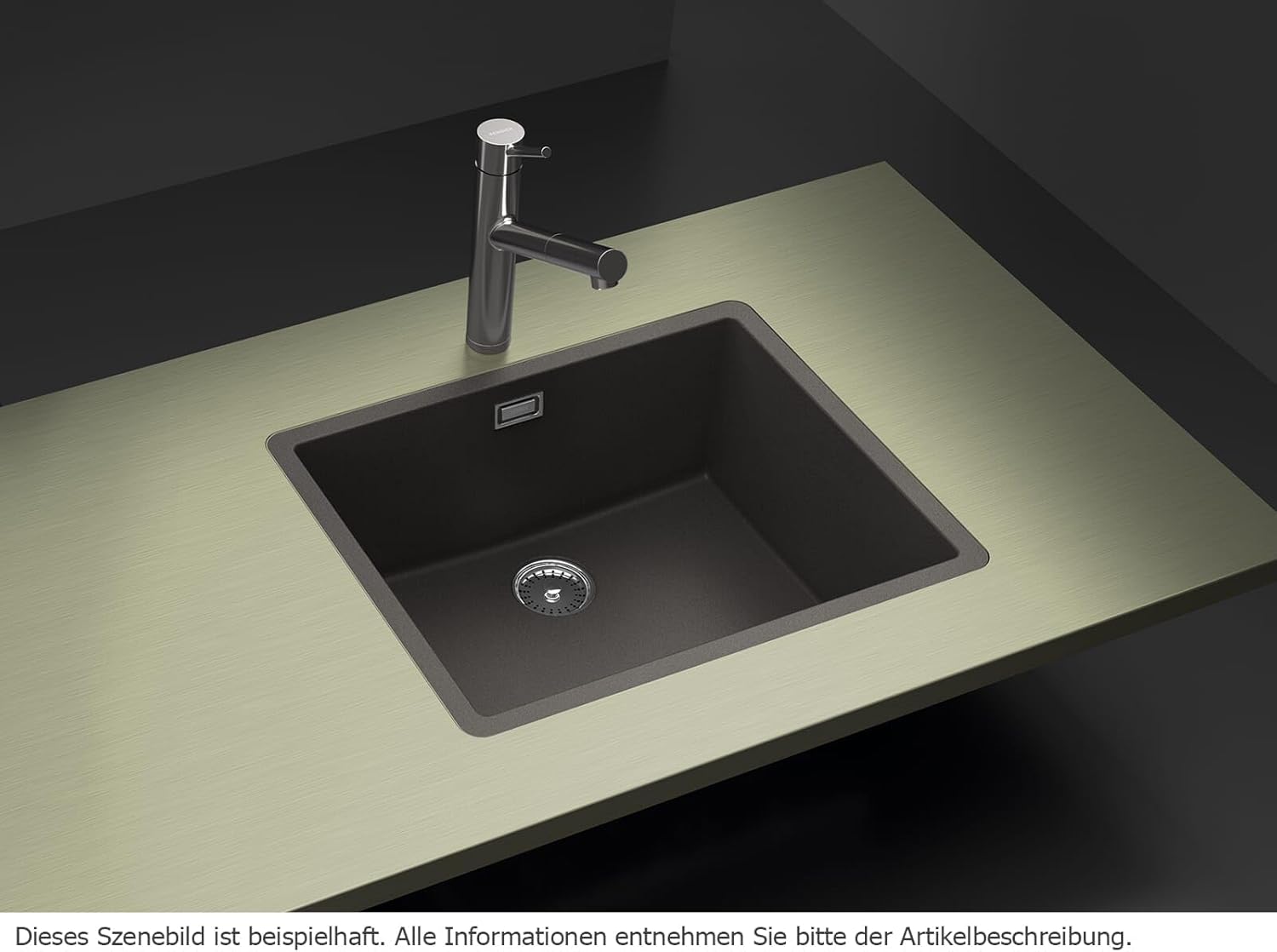

Figura 4.2: Example of an Installed Sink
5. Funcionament
Your SCHOCK Greenwich N-100L sink is designed for everyday kitchen tasks, offering a spacious basin and durable CRISTADUR material.
- Ús general: Use the sink for washing dishes, preparing food, and other standard kitchen activities. The large main basin is suitable for pots and pans.
- Eccentric Control: If your model includes the Comfopush eccentric control, use the push-button mechanism to open and close the drain without reaching into the water.
- CRISTADUR Surface: The smooth, silky surface of the CRISTADUR material is highly resistant to heat, odors, and staining foods. Its water-repellent effect makes cleaning easy.
Figure 5.1: Sink in Use
Figure 5.2: Optional LED Lighting Feature
6. Cura i Manteniment
The CRISTADUR material is designed for easy maintenance and high durability. Follow these guidelines to keep your sink looking new.
- Neteja diària: For everyday cleaning, use a soft sponge or cloth with warm water and a mild dish soap. Rinse thoroughly with clean water and wipe dry to prevent water spots.
- Eliminació de taques: For stubborn stains, a non-abrasive liquid cleaner or a diluted solution of vinegar and water can be used. Apply, let sit for a few minutes, then scrub gently and rinse.
- Eviteu productes químics durs: Do not use abrasive powders, steel wool, strong acids (e.g., drain cleaners containing sulfuric acid), or strong alkalis (e.g., ammonia-based cleaners) on the sink surface. These can damage the CRISTADUR material.
- Prevent Limescale: In areas with hard water, limescale deposits may form. Regular cleaning helps prevent this. For existing limescale, use a descaling agent specifically designed for kitchen surfaces, following its instructions, or a solution of white vinegar.
- Protecció de calor: While heat-resistant, avoid placing extremely hot items directly from the stove or oven onto the sink surface for extended periods. Use a trivet.
7. Solució De Problemes
Aquesta secció tracta problemes comuns que podeu trobar amb la pica de la cuina.
| Problema | Causa possible | Solució |
|---|---|---|
| Water spots/Limescale buildup | Hard water deposits; water not wiped dry. | Wipe sink dry after each use. Use a diluted vinegar solution or commercial descaler for existing buildup. |
| Drenatge lent | Drain clogged with food particles or grease. | Clear the basket strainer. Use a plunger or a mild drain cleaner (ensure it's safe for plumbing). Avoid pouring grease down the drain. |
| Decoloració de la superfície | Exposure to strong staining agents (e.g., coffee, red wine) for prolonged periods; use of improper cleaners. | Clean spills immediately. Use recommended cleaning agents. For persistent stains, a specialized quartz composite cleaner may be needed. |
| Fuites al voltant de les connexions | Loose plumbing connections; worn seals. | Check and tighten all plumbing connections. Replace worn washers or seals. If unsure, consult a plumber. |
8. Especificacions tècniques
Key specifications for the SCHOCK Greenwich N-100L Stone Compact Kitchen Sink:
| Característica | Detall |
|---|---|
| Marca | Schock |
| Número de model | GREN100LASTO |
| Color | Stone (Grey) |
| Material | Granite Quartz Composite (Cristadur) |
| Dimensions del producte (L x A x A) | 55.6 x 45.6 x 29 cm |
| Pes de l'article | 9.5 quilos |
| Tipus d'instal·lació | Menys |
| Tipus de drenatge | Colador de cistella |
Figure 8.1: Available CRISTADUR Colors (Stone is highlighted)
Figure 8.2: Optional Visible Parts Finishes
9. Informació de la garantia
For detailed warranty information regarding your SCHOCK Greenwich N-100L Stone Compact Kitchen Sink, please refer to the warranty card included with your product or visit the official SCHOCK weblloc web. Els termes i condicions de la garantia poden variar segons la regió i el distribuïdor. Conserveu el comprovant de compra per a qualsevol reclamació de garantia.
10. Atenció al client
Should you require further assistance, have questions about installation, operation, or maintenance, or need to report a defect, please contact SCHOCK customer support or your authorized dealer.
- Fabricant Weblloc: Visit the official SCHOCK weblloc web amb informació sobre productes, preguntes freqüents i dades de contacte.
- Distribuïdor Autoritzat: Contact the retailer from whom you purchased the sink for local support and service.
