Krups EA81 Pisa Fully Automatic Espresso Machine User Manual

Introducció

Welcome to the user manual for your new Krups EA81 Pisa Fully Automatic Espresso Machine. This machine is designed to provide a convenient and high-quality coffee experience, from bean to cup. Please read this manual carefully before operating your machine to ensure proper use, optimal performance, and longevity.

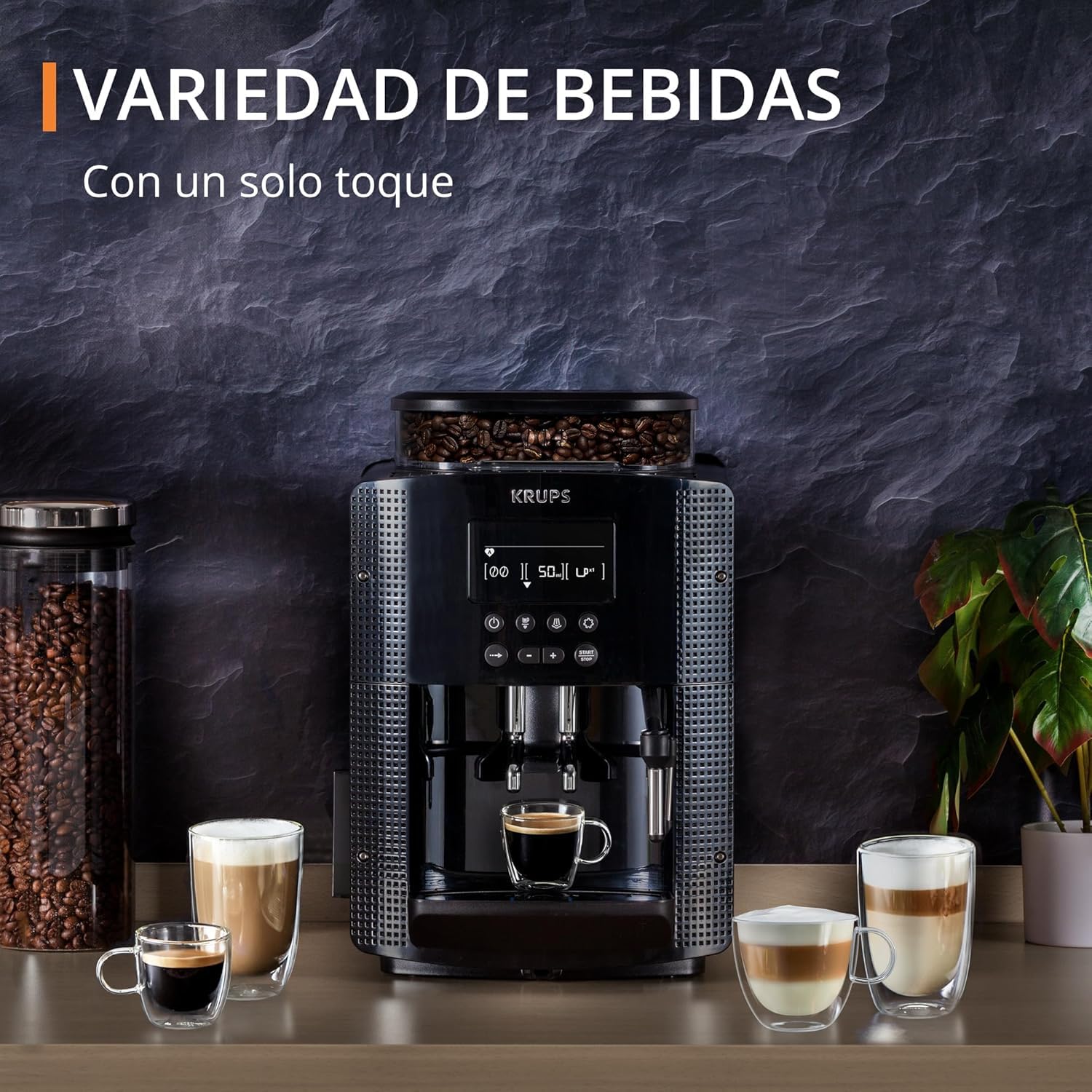

Image: The Krups EA81 Pisa Fully Automatic Espresso Machine, a sleek black unit, is shown on a countertop surrounded by various coffee beverages in clear glass cups, demonstrating its versatility.

Producte acabatview i Característiques clau

The Krups EA81 Pisa is a fully automatic espresso machine equipped with features designed for ease of use and consistent coffee quality.

• Molinet integrat: Features 3 grinding levels for personalized intensity.
• Pantalla digital: Intuitive and easy-to-use interface for selecting drinks and settings.
• Escumador de llet: For preparing creamy and hot milk for lattes and cappuccinos.
• Gran capacitat: 1.7L water tank and 260g bean container.
• Neteja automàtica: Utilizes cleaning tablets for easy maintenance.
• Begudes d'un sol toc: Prepare a variety of drinks with a single touch.
• Two Cups at Once: Option to prepare two cups simultaneously.

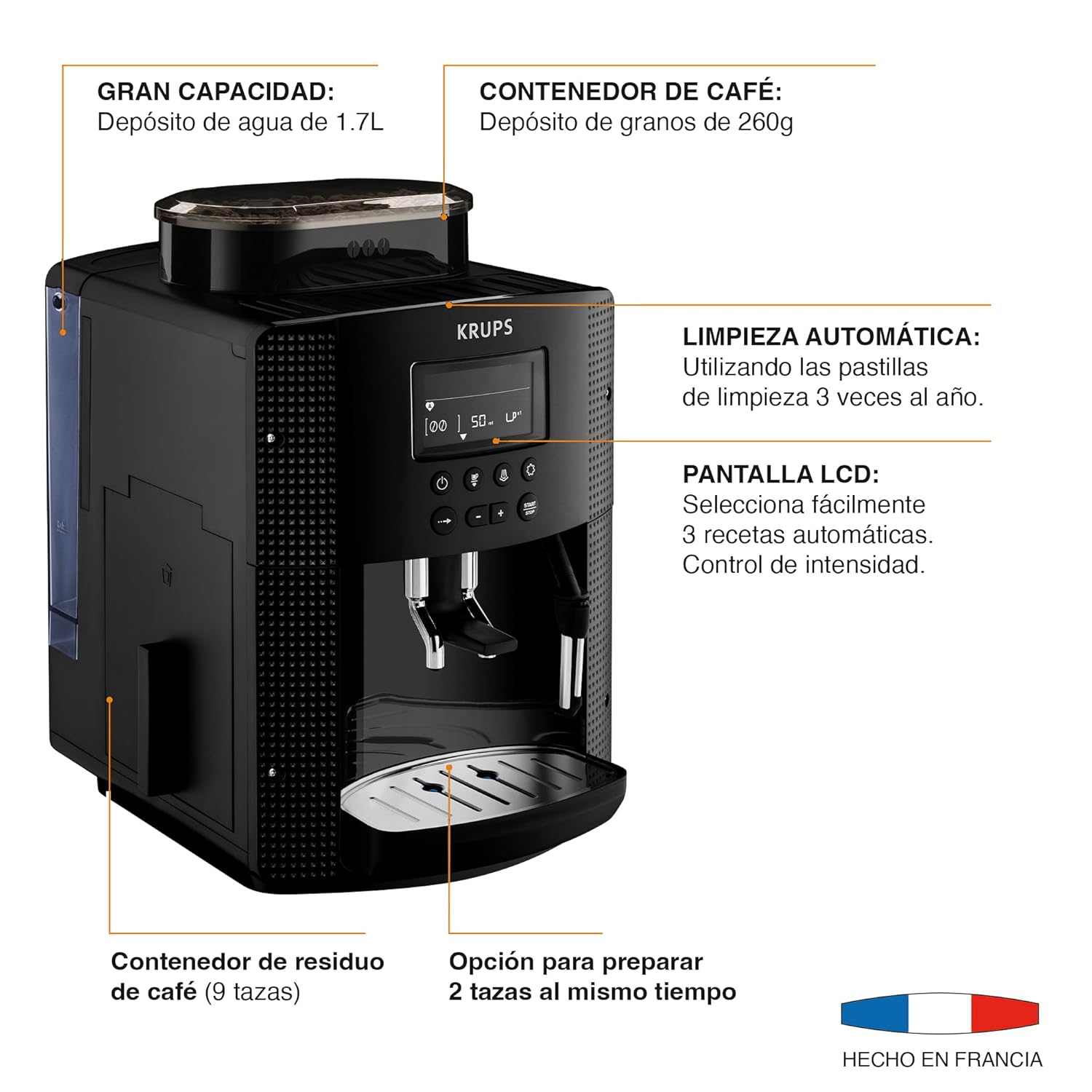

Imatge: Una imatge detallada view of the Krups EA81 machine highlighting its key components: the 1.7L water tank, 260g bean container, automatic cleaning function, LCD screen, coffee residue container (9 cups), and the option to prepare 2 cups at once.

Configuració i primer ús

1. Desembalatge: Carefully remove the machine and all accessories from the packaging. Retain packaging for future transport if needed.
2. Col·locació: Place the machine on a stable, flat, and heat-resistant surface, away from direct sunlight and heat sources. Ensure adequate ventilation around the machine.
3. Dipòsit d'aigua: Remove the water tank from the back of the machine. Rinse it with fresh water and fill it with cold, fresh drinking water up to the MAX level. Reinsert the tank securely.


   Imatge: La part posterior view of the espresso machine, clearly showing the removable water tank for easy filling.
4. Contenidor de mongetes: Open the lid of the bean container located on top of the machine. Fill it with whole coffee beans. Do not use ground coffee, instant coffee, or caramelized beans.


   Imatge: Un costat view of the machine, highlighting the transparent bean hopper filled with coffee beans.

5. Safata de degoteig: Ensure the drip tray and coffee grounds collector are correctly in place.
6. Connexió d'alimentació: Connecteu el cable d'alimentació a una presa elèctrica amb connexió a terra.
7. Cicle d'esbandida inicial: Follow the on-screen instructions for the initial rinse cycle. This primes the system and cleans internal components. Place a large container under the coffee spouts.

Funcionament de la màquina

Elaboració de cafè

Your Krups EA81 Pisa offers a wide variety of coffee beverages.

Image: A circular diagram illustrating 11 different coffee beverages that can be made with the machine, including Ristretto, Espresso, Lungo, Largo, Doppio, Latte Macchiato, Cappuccino, Caffe Latte, Americano, Steamed Milk, and Hot Water. It also notes the ability to make 2 cups at the same time.

1. Activar: Press the power button. The machine will perform a brief self-check.
2. Selecciona una beguda: Use the digital display and control buttons to navigate and select your desired coffee type (e.g., Espresso, Lungo, Americano).


   Image: A close-up of the machine's digital display, showing various icons and settings, indicating an intuitive user interface.

3. Ajustar la configuració (opcional): Depending on the beverage, you may be able to adjust coffee strength or volume.
4. Comença a fer cervesa: Press the Start/Stop button to begin the brewing process.
5. Gaudeix: Your coffee will be dispensed into your cup.

Configuració de mòlta

The integrated grinder allows you to customize the fineness of your coffee grounds, affecting the intensity and flavor of your coffee.

Image: A close-up of the integrated coffee grinder, showing the adjustment knob for selecting one of the three grinding levels to personalize coffee intensity.

• Adjust the grinding knob located inside the bean container.
• Finer grind (smaller number) for stronger, more intense coffee.
• Coarser grind (larger number) for milder coffee.
• Adjust only when the grinder is operating.

Escumat de llet

Use the steam nozzle to froth milk for cappuccinos and lattes.

Image: The milk frother in action, producing creamy, hot milk in a glass mug.

1. Ompliu una gerra amb llet freda (làctica o no làctica).
2. Position the steam nozzle into the milk.
3. Activate the steam function (refer to your machine's display for the specific button).
4. Move the pitcher up and down to create foam.
5. Clean the steam nozzle immediately after use with a damp tela.

Image: A visual guide to various coffee types, including Espresso, Ristretto, Long Coffee, Americano, Cappuccino, Flat White, Latte Macchiato, and Espresso Macchiato. It also provides tips on recommended coffee bean types (light to medium roast, avoid oily) and fresh milk frothing (use cold, fresh milk; clean system frequently).

Manteniment i Neteja

Un manteniment regular garanteix la longevitat i el rendiment òptim de la teva màquina d'espresso.

Neteja diària

• Drip Tray and Coffee Grounds Collector: Buidar i esbandir diàriament.
• Dipòsit d'aigua: Esbandir diàriament i tornar a omplir amb aigua fresca.
• Broquets de cafè: Netegeu amb un anunciamp tela.
• Milk Nozzle: Clean immediately after each use to prevent milk residue buildup.

Cicle de neteja automàtic

The machine features an automatic cleaning program. It is recommended to run this cycle approximately 3 times a year using Krups cleaning tablets. The machine will prompt you when a cleaning cycle is due. Follow the on-screen instructions.

Descalcificació

The machine will indicate when descaling is necessary. Use a descaling solution recommended by Krups and follow the instructions provided on the display. Regular descaling prevents mineral buildup and ensures proper machine function.

Resolució de problemes

If you encounter issues with your machine, refer to the following common problems and solutions.

Especificacions

Garantia i Suport

For warranty claims, technical support, or service, please follow the steps below.

Image: A visual guide outlining the 4-step process for Krups warranty and out-of-warranty service: 1. Contact (phone numbers provided), 2. Locate (service center via QR code), 3. Validate (purchase receipt/warranty), 4. Apply (continue enjoying the product).

1. Contacte: Reach out to Krups customer service.
   • Phone: 55 52 83 93 54, 55 52 83 93 55
   • Contacte en línia: Krups Contact Page
2. Locate Service Center: Find an authorized service center near you.
   • Localitzador de centres de servei: Krups Service Center
3. Validate: Provide your purchase receipt or dated and sealed warranty from the store.
4. Aplicar: Once validated, proceed with the service to continue enjoying your product.

For the most up-to-date information on warranty terms and conditions, please refer to the official Krups website or your product's warranty card.
