Manual d'usuari del cable de connexió USB SENCOR SCO 509-015

Introducció

This manual provides essential information for the proper use and care of your SENCOR SCO 509-015 USB Connection Cable. This cable is designed for reliable data transfer and connection between devices utilizing USB 2.0 Type A and USB 2.0 Type B ports.

Producte acabatview

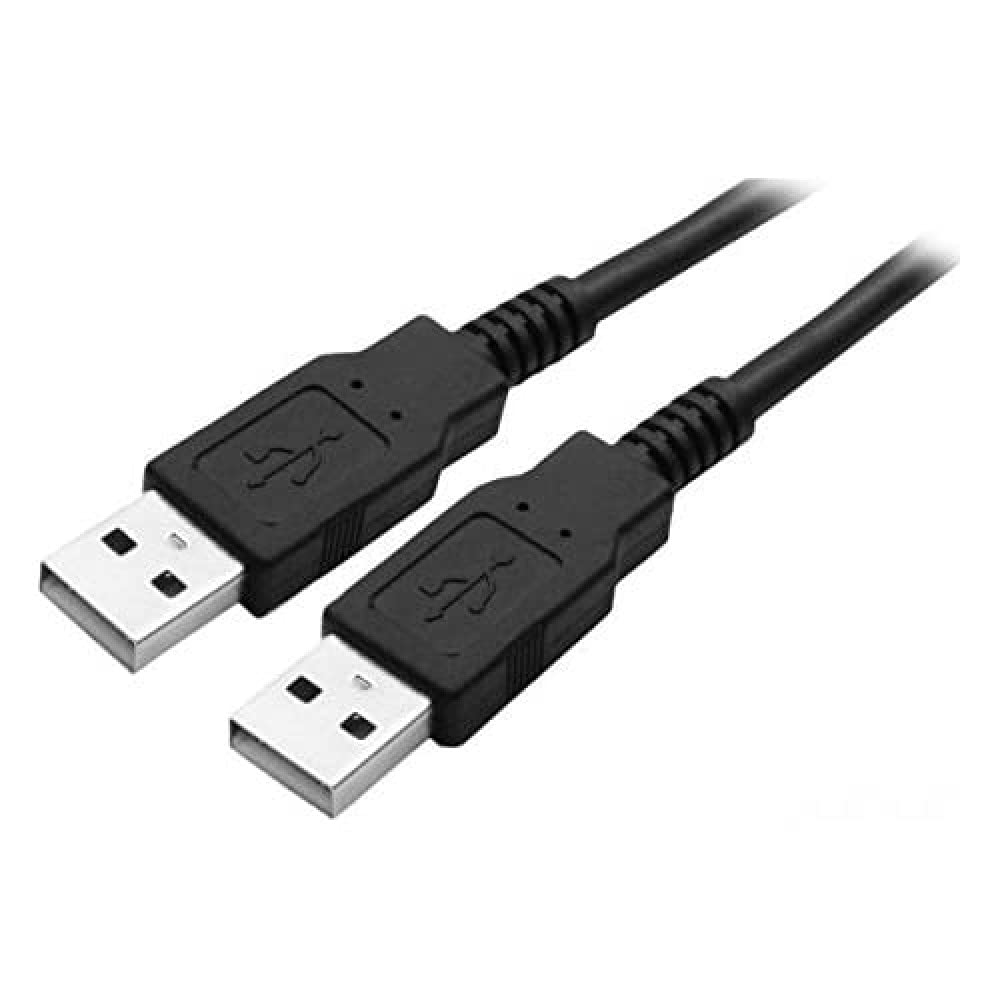

Figure 1: SENCOR SCO 509-015 USB Connection Cable. This image shows the black 1.5-meter cable with two USB 2.0 Type A male connectors, one at each end, typically used for connecting two host devices or for specific data transfer scenarios.

The SENCOR SCO 509-015 is a 1.5-meter USB 2.0 connection cable featuring a Type A Male connector on one end and a Type B Male connector on the other. It is suitable for connecting various peripherals such as printers, scanners, external hard drives, and other devices to a computer or host device.

Configuració

The SENCOR SCO 509-015 USB cable is designed for plug-and-play functionality. No special software or drivers are typically required for basic operation.

1. Identifica els ports: Locate the appropriate USB 2.0 Type A port on your host device (e.g., computer, laptop) and the USB 2.0 Type B port on your peripheral device (e.g., printer, scanner).
2. Connectar el cable: Gently insert the USB 2.0 Type A Male connector of the cable into the Type A port on your host device.
3. Connect Peripheral: Gently insert the USB 2.0 Type B Male connector of the cable into the Type B port on your peripheral device. Ensure both connections are firm and secure.
4. Verifica la connexió: Your operating system should automatically detect the connected device. Refer to your device's manual for specific setup instructions if needed.

En funcionament

Once connected, the SENCOR SCO 509-015 USB cable facilitates data transfer between your host and peripheral devices. The cable supports USB 2.0 specifications, offering data transfer rates up to 480 Mbps.

• Transferència de dades: Use the cable to transfer files, print documents, or perform other functions supported by your connected devices.
• Subministrament d'energia: The cable may also provide power to compatible low-power devices, eliminating the need for a separate power adapter for some peripherals.
• Intercanvi en calent: USB cables are designed for hot-swapping, meaning you can connect or disconnect them while devices are powered on, though it is always recommended to safely eject devices from your operating system before disconnecting to prevent data corruption.

Manteniment

Proper care will extend the life of your SENCOR USB cable.

• Emmagatzematge: Guardeu el cable en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes. Eviteu enrotllar o doblegar el cable bruscament, ja que això pot danyar els cables interns.
• Neteja: Si el cable o els connectors s'embruten, netegeu-los suaument amb un drap suau, sec i sense borrissol. No utilitzeu netejadors líquids ni materials abrasius.
• Manipulació: Always grasp the connector housing when plugging or unplugging the cable, not the cable itself, to prevent strain on the connections.

Resolució de problemes

If you experience issues with your SENCOR USB cable, consider the following:

• No Device Detection:
  • Assegureu-vos que els dos extrems del cable estiguin ben connectats.
  • Try connecting the cable to a different USB port on your host device.
  • Test the cable with another compatible device to rule out a cable fault.
  • Ensure the peripheral device is powered on and functioning correctly.
• Transferència lenta de dades:
  • Verify that both the host and peripheral devices support USB 2.0 for optimal speeds. Connecting to a USB 1.1 port will result in slower transfer rates.
  • Avoid using excessively long USB extension cables, which can degrade signal quality.
• Danys físics: Inspect the cable and connectors for any visible signs of damage, such as frayed wires, bent pins, or cracked housings. Discontinue use if damage is found.

Especificacions

Garantia i Suport

For information regarding warranty coverage and customer support for your SENCOR SCO 509-015 USB Connection Cable, please refer to the documentation provided at the time of purchase or visit the official SENCOR weblloc web. Conserveu el comprovant de compra per a reclamacions de garantia.
