PORTER-CABLE PCC701 20V Max LED Work Light Instruction Manual

Introducció

This manual provides essential instructions for the safe operation, setup, and maintenance of your PORTER-CABLE PCC701 20V Max LED Work Light. Please read this manual thoroughly before using the product and retain it for future reference.

The PORTER-CABLE PCC701 is a versatile LED work light designed for efficient area illumination in various work environments. It features a pivoting head for adjustable light direction and is part of the 20V Max cordless platform, requiring a compatible 20V Max battery (sold separately).

Informació de seguretat

WARNING: To reduce the risk of injury, user must read instruction manual. For household use only.

Always follow basic safety precautions when using electrical tools and equipment to reduce the risk of fire, electric shock, and personal injury.

Llegeix totes les instruccions: Familiarize yourself with the product's operation and safety guidelines.
Compatibilitat de la bateria: Use only with PORTER-CABLE 20V Max Lithium-Ion batteries.
Eviteu l'exposició directa dels ulls: No mireu directament la llum LED.
No submergiu: This product is not water resistant. Avoid exposure to water or wet conditions.
Emmagatzematge: Store the work light in a dry, secure location out of reach of children.
Manteniment: Refer to the maintenance section for proper care.

Contingut del paquet

Your PORTER-CABLE PCC701 20V Max LED Work Light package includes:

(1) PCC701 20V Max LED Work Light (Bare Tool ONLY)
(1) Manual d’instruccions

Nota: La bateria i el carregador es venen per separat.

Components acabatsview

Familiarize yourself with the parts of your PORTER-CABLE PCC701 LED Work Light:

A. LED Light Head: Contains the LED bulb for illumination.
B. Pivoting Mechanism: Allows adjustment of the light head angle.
C. On/Off Switch: Activates and deactivates the light.
D. Battery Interface: Receptacle for 20V Max battery.
E. Handle/Base: Provides a comfortable grip and stable base.

PORTER-CABLE PCC701 20V Max LED Work Light, side view — Figura 1: lateral view of the PORTER-CABLE PCC701 LED Work Light, showing the LED light head, pivoting mechanism, and handle. The PORTER-CABLE logo is visible on the side.

PORTER-CABLE PCC701 20V Max LED Work Light, top view — Figura 2: superior view of the PORTER-CABLE PCC701 LED Work Light, highlighting the red On/Off switch and the LED light head.

Configuració

Instal·lació de la bateria

Assegureu-vos que el llum de treball estigui apagat.
Align the battery (sold separately) with the battery interface on the base of the work light.
Slide the battery into the interface until it clicks securely into place.
To remove the battery, press the battery release button (if present on your battery) and slide the battery out.

PORTER-CABLE PCC701 20V Max LED Work Light with battery removed — Figura 3: View of the PORTER-CABLE PCC701 LED Work Light from the top-front, showing the battery interface where a 20V Max battery would be inserted. The light head is pivoted upwards.

Instruccions de funcionament

Encesa/apagada

Press the red On/Off switch located on the top of the work light to turn the light on. Press the switch again to turn the light off.

Ajust del capçal de llum

The LED light head features a pivoting mechanism, allowing you to adjust the beam direction. Gently pivot the light head to the desired angle to illuminate your work area.

PORTER-CABLE PCC701 20V Max LED Work Light with head pivoted — Figura 4: lateral view of the PORTER-CABLE PCC701 LED Work Light, demonstrating the pivoting head adjusted upwards to direct light. The handle is visible at the rear.

Manteniment

Neteja

Keep the work light clean to ensure proper operation. Use a soft, damp drap per netejar l'exterior. No utilitzeu productes químics agressius ni netejadors abrasius.

Emmagatzematge

When not in use, store the work light in a dry, cool place. Remove the battery if storing for extended periods.

Substitució de bombetes LED

The LED bulb in this unit is designed for long life and is not user-replaceable. If the LED fails, the entire unit may require servicing.

Resolució de problemes

Problema	Causa possible	Solució
La llum no s’encén.	La bateria no està instal·lada correctament.	Ensure the battery is fully seated and clicked into place.
La llum no s’encén.	La bateria està descarregada.	Charge the battery using a compatible PORTER-CABLE 20V Max charger.
La llum és tènue.	La bateria té poca càrrega.	Carregueu la bateria.
La llum parpelleja.	Connexió de bateria solta.	Traieu i torneu a inserir la bateria per garantir una connexió segura.

Especificacions

Característica	Detall
Número de model	PCC701
Voltage	20 V màx
Font d'alimentació	Funciona amb bateria (ió de liti)
Tipus de font de llum	LED
Material	Plàstic
Pes de l'article	5.6 unces (0.16 quilograms)
Dimensions del producte	6 x 2 x 3 polzades
Característica especial	Requires Battery (Sold Separately)
Nivell de resistència a l'aigua	No resistent a l'aigua
Tipus de muntatge	Portàtil
Direcció de la llum	Ajustable

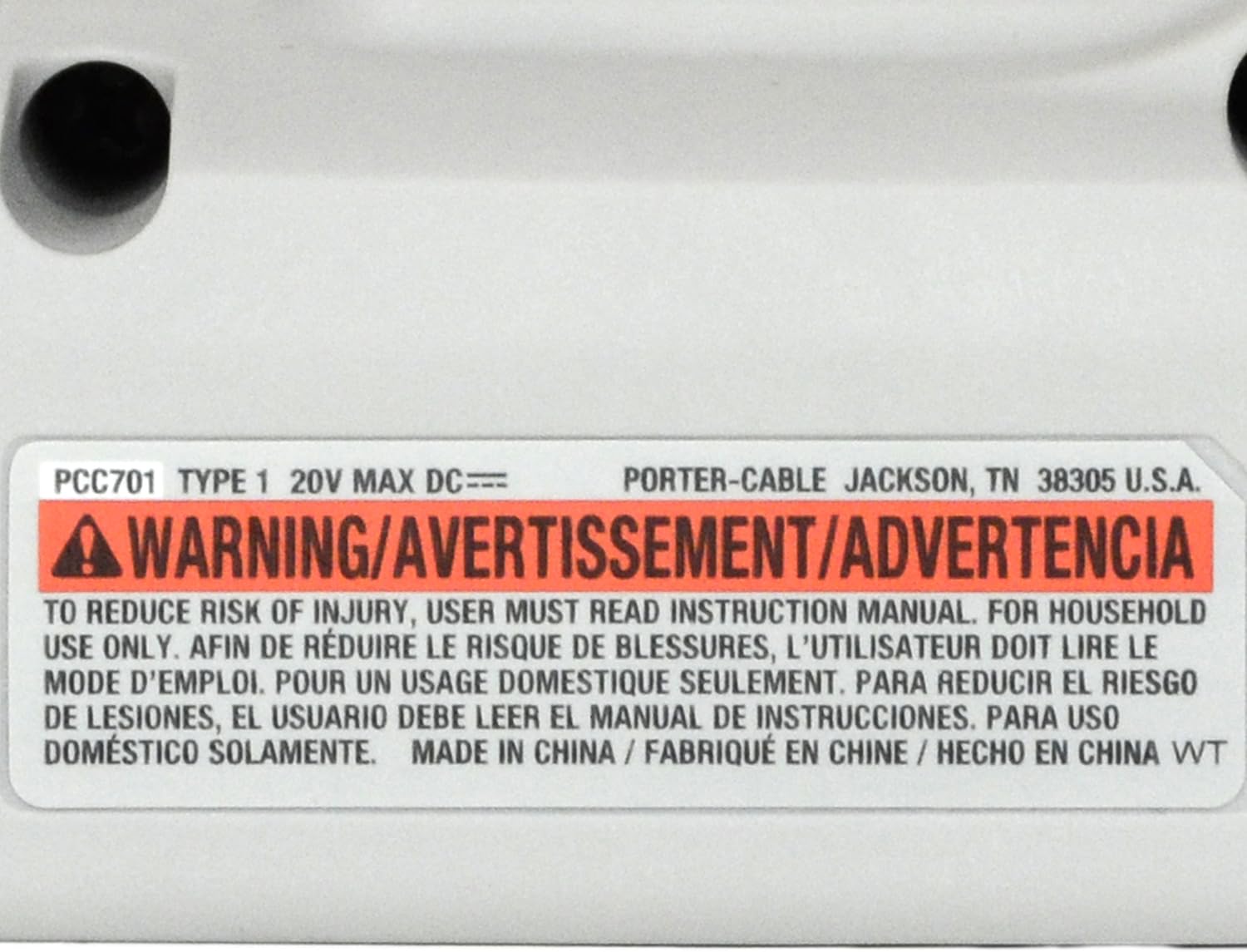

Warning label on the PORTER-CABLE PCC701 20V Max LED Work Light — Figura 5: Primer pla view of the warning label on the PORTER-CABLE PCC701 LED Work Light, indicating model number, voltage, and safety instructions in multiple languages.

Garantia i Suport

Information regarding warranty coverage and customer support for the PORTER-CABLE PCC701 20V Max LED Work Light was not available in the provided product data. Please refer to the official PORTER-CABLE website or contact their customer service for detailed warranty information and support options.

Per obtenir més ajuda, visiteu el lloc web oficial Botiga PORTER-CABLE.
