EXCELVAN WH1281 Wireless Digital Weather Station User Manual

1. Introducció

Thank you for choosing the EXCELVAN WH1281 Wireless Digital Weather Station. This device provides accurate indoor and outdoor temperature and humidity readings, along with a weather forecast display. Please read this manual carefully before use to ensure proper operation and to maximize the lifespan of your product.

2. Components del producte

The EXCELVAN WH1281 Weather Station consists of two main parts:

• Unitat de visualització principal: Displays indoor/outdoor temperature, humidity, time, and weather forecast.
• Sensor exterior sense fil: Measures outdoor temperature and transmits data to the main unit. This sensor is waterproof.

Image 1: Main Display Unit and Wireless Outdoor Sensor. The effective transmission distance between the sensor and the main unit is up to 100 meters in open areas.

Image 2: Separate view of the main display unit and the wireless outdoor temperature sensor.

3. Guia de configuració

3.1 Instal·lació de la bateria

Batteries are not included and must be purchased separately. Both the main unit and the outdoor sensor require batteries for operation.

1. Sensor exterior:
   • Open the battery compartment cover on the back of the outdoor sensor.
   • Introduïu 2 piles AAA d'1.5 V, assegurant-vos de la polaritat correcta (+/-).
   • Tanqueu bé la tapa del compartiment de la bateria.


   Imatge 3: posterior view of the outdoor sensor, indicating the battery compartment and power requirements (2x1.5V AAA batteries).

2. Unitat de visualització principal:
   • Obriu la tapa del compartiment de la bateria a la part posterior de la unitat principal.
   • Insert batteries (typically AAA or AA, refer to the unit's markings for exact type and quantity), ensuring correct polarity (+/-).
   • Tanqueu bé la tapa del compartiment de la bateria.

3.2 Sensor Pairing and Initial Synchronization

For optimal performance, always insert batteries into the outdoor sensor first, then into the main display unit. This ensures proper synchronization.

1. After inserting batteries into both units, the main display unit will automatically search for the outdoor sensor. This process may take a few minutes.
2. Once connected, the outdoor temperature and humidity will appear on the main display. If the connection is not established, try pressing the "CH" button on the main unit to manually search for the sensor, or remove and reinsert batteries in both units.

3.3 Placement of the Outdoor Sensor

To ensure accurate readings and prolong the sensor's life:

• Place the sensor in a shaded area, away from direct sunlight, which can cause artificially high temperature readings.
• Protect the sensor from direct rain and snow, even though it is designed to be waterproof. An overhang or protective cover is recommended.
• Ensure the sensor is within the effective transmission range (up to 100 meters in open air) of the main unit. Walls and other obstructions can reduce this range.

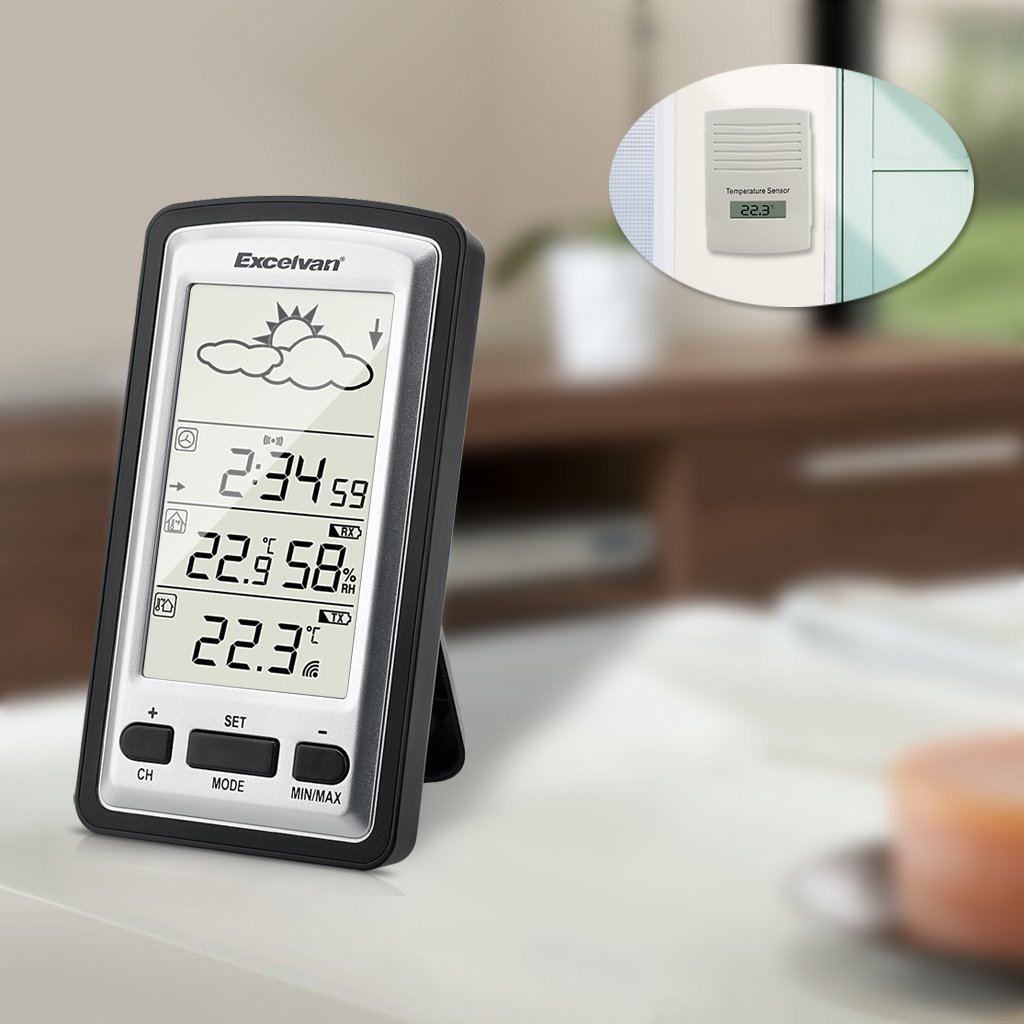

Imatge 4: Ex.ample placement of the outdoor sensor, visible through a window, while the main unit is indoors.

4. Instruccions de funcionament

4.1 Main Display Overview

The main display unit features a clear LED screen showing various environmental data and time information.

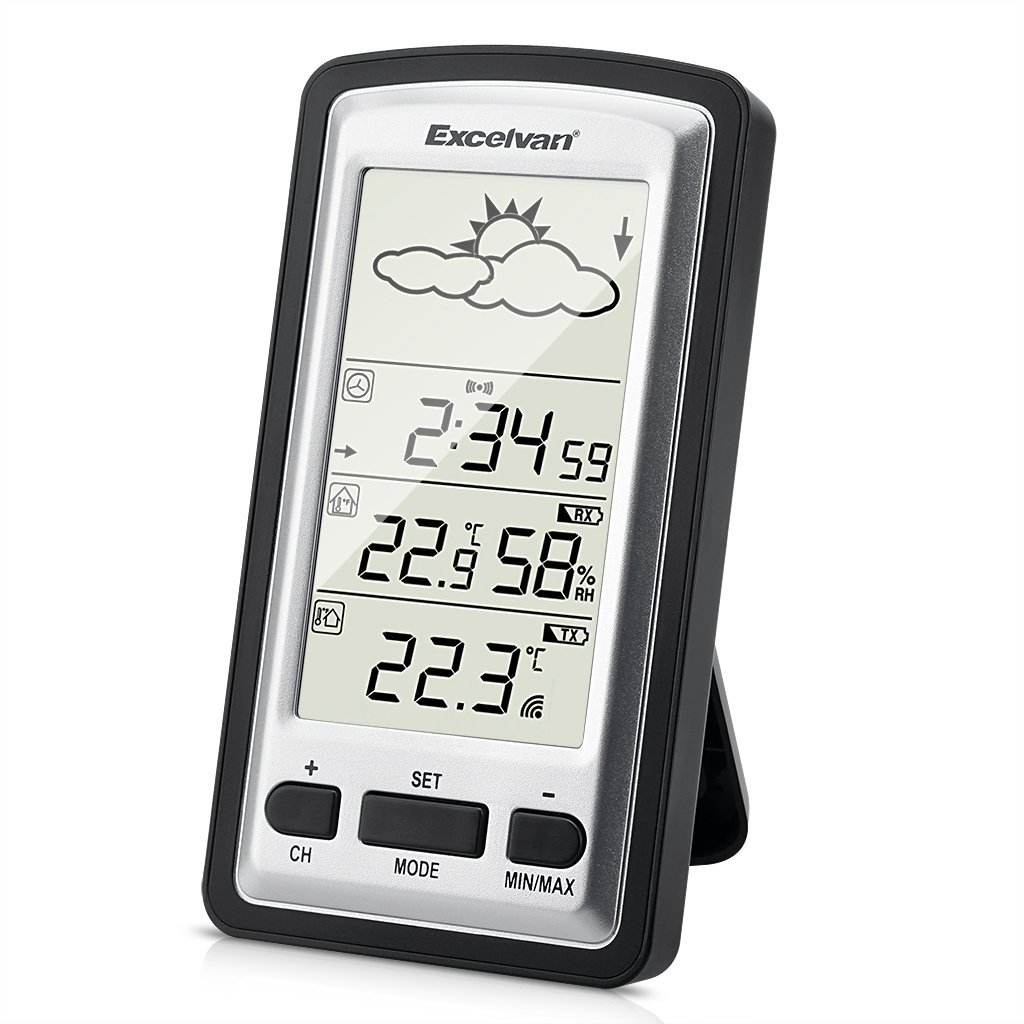

Image 5: Main display unit with active green backlight, showing current time, indoor temperature and humidity, outdoor temperature, and weather forecast icons.

Els elements clau de la visualització inclouen:

• Icones de previsió meteorològica: Sun, clouds, rain, etc., indicating predicted weather trends.
• Visualització de l'hora: Current time in HH:MM format.
• Temperatura i humitat interiors: Current indoor conditions.
• Temperatura exterior: Current temperature from the wireless sensor.
• Indicador de senyal: Shows connection status with the outdoor sensor.

4.2 Funcions dels botons

The main unit has several buttons for configuration and data viewing:

• CH (canal): Used to switch between multiple outdoor sensors (if supported and additional sensors are purchased) or to manually search for the sensor.
• SET: Enters settings mode for time, date, and other parameters. Also confirms settings.
• Mode: Switches between different display modes (e.g., time, alarm).
• MIN / MAX: Displays the minimum and maximum recorded indoor/outdoor temperatures and humidity since the last reset. Press again to cycle through values. Long press to reset MIN/MAX records.
• +/-: Used to adjust values during settings mode or to switch between Celsius (°C) and Fahrenheit (°F) temperature units (often by pressing one of these buttons outside of settings mode).

4.3 Configuració de l'hora i la data

1. Press and hold the "SET" button until the time display starts flashing.
2. Use the "+" or "-" buttons to adjust the hour.
3. Press "SET" to confirm the hour and move to the minute setting.
4. Repetiu el procés per a minuts, any, mes i dia.
5. Press "SET" again to exit the settings mode.

4.4 Selecció de la unitat de temperatura (°C/°F)

Outside of settings mode, press the "+" or "-" button (depending on model, usually "+") to toggle between Celsius (°C) and Fahrenheit (°F) temperature display.

5. Manteniment

• Substitució de la bateria: Replace batteries in both the main unit and the outdoor sensor when the low battery indicator appears on the display. It is recommended to replace all batteries at the same time. For the outdoor sensor, users have reported batteries lasting approximately one year.
• Neteja: Netegeu les unitats amb un drap suauamp tela. No utilitzeu netejadors abrasius ni dissolvents.
• Protecció del sensor: While the outdoor sensor is waterproof, placing it under an eave or protective cover can extend its lifespan and prevent direct exposure to extreme weather conditions.

6. Solució De Problemes

7. Especificacions

8. Garantia i Suport

For warranty information, please refer to the documentation provided with your purchase or contact the retailer. For technical support or further inquiries, please reach out to EXCELVAN customer service or your point of purchase.
