Introducció
This manual provides detailed instructions for the proper use, setup, and maintenance of your Casio G-Shock GG-1000-1ADR watch. Please read this manual thoroughly to ensure optimal performance and longevity of your timepiece. This watch is designed for durability and functionality, featuring analog-digital display, twin sensor capabilities, and robust construction.
Figura 1: Frontal view of the Casio G-Shock GG-1000-1ADR watch, showcasing its black dial, analog and digital displays, and robust casing.
Configuració
Configuració de l'hora inicial
Upon first use or after battery replacement, it is necessary to set the current time and date. The GG-1000-1ADR features both analog and digital time displays. Ensure both are synchronized for accurate timekeeping.
- Enter Timekeeping Mode: Premeu el botó MODE button repeatedly until the timekeeping mode is displayed.
- Ajustar la configuració: Manteniu premuda la AJUSTAR button until the city code starts flashing, indicating the setting mode.
- Select City Code: Utilitza el CERCAR i COMP buttons to select your home city code. This will automatically set the correct time zone.
- Configura l'horari d'estiu (DST): Premeu el botó MODE button to cycle through settings. When DST is flashing, use the CERCAR button to toggle between ON and OFF.
- Establir hora i data: Continueu pressionant el botó MODE button to navigate through hour, minute, year, month, and day settings. Use the CERCAR i COMP botons per ajustar els valors.
- Sortir del mode de configuració: Premeu el botó AJUSTAR botó per desar la configuració i sortir.
Analog Hand Alignment
If the analog hands do not match the digital time, manual adjustment may be required.
- En el mode de mesura del temps, manteniu premuda la tecla AJUSTAR button until the city code flashes.
- Premeu el botó MODE button repeatedly until "0:00" appears and the minute hand starts flashing.
- Utilitza el CERCAR button to advance the minute hand. Hold it down for rapid movement.
- Once the hands are aligned to 12 o'clock, press the AJUSTAR botó per guardar.
Instruccions de funcionament
Navegació en mode
El MODE button (bottom left) cycles through the watch's various functions:
- Mode d'indicació de l'hora: Displays current time, date, and day.
- Mode de brúixola: Activates the digital compass.
- Mode termòmetre: Displays ambient temperature.
- Mode hora mundial: Shows time in various global cities.
- Mode de cronòmetre: Mesura el temps transcorregut.
- Mode de temporitzador de compte enrere: Compta enrere a partir d'un temps preestablert.
- Mode d'alarma: Sets daily alarms.
Ús de la brúixola
To use the digital compass, press the COMP button (top right). The second hand will point north, and the digital display will show the direction and bearing angle.

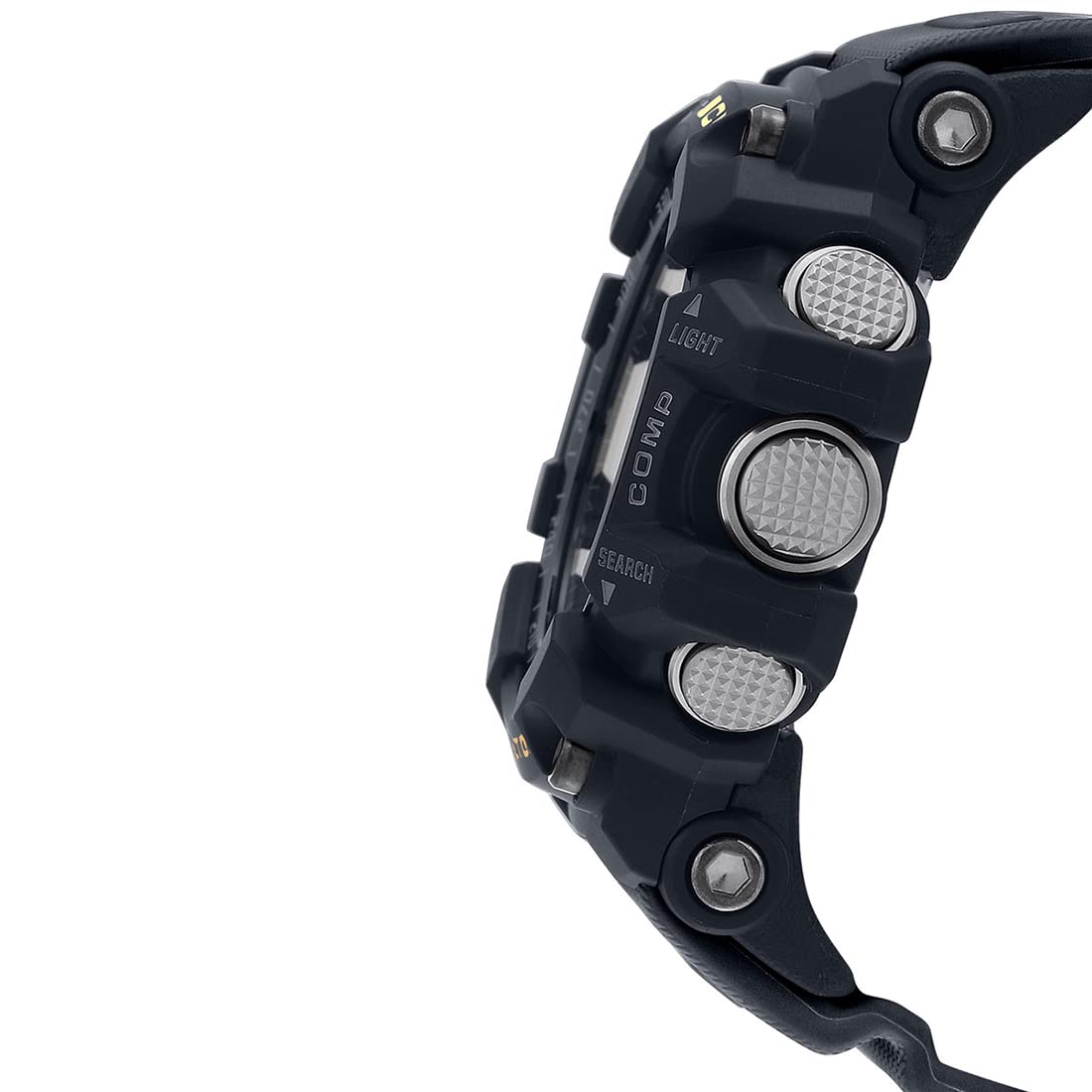

Figura 2: lateral view of the watch, highlighting the prominent buttons for various functions like LIGHT, COMP, and SEARCH.
For accurate readings, ensure the watch is held level. Magnetic interference can affect readings; avoid using near strong magnetic fields.
Mesura de la temperatura
The watch can measure temperature from -10°C to 60°C (14°F to 140°F). To activate, navigate to Thermometer Mode using the MODE button. For accurate ambient temperature readings, remove the watch from your wrist for at least 20-30 minutes to avoid body heat influence.
Il·luminació
Premeu el botó LLUM button (top left) to illuminate the watch face for visibility in low-light conditions. The illumination duration can be adjusted in settings.
Manteniment
Neteja
Regular cleaning helps maintain the appearance and functionality of your watch. Wipe the watch with a soft, dry cloth. For stubborn dirt, use a soft cloth dampEsbandiu amb aigua i un detergent neutre suau i, a continuació, eixugueu. Eviteu utilitzar agents volàtils com ara dissolvent o benzina, ja que poden danyar els components de resina.
Resistència a l'aigua
This watch is water resistant to 200 meters (20 BAR). This means it is suitable for recreational scuba diving. Do not operate buttons while the watch is wet or submerged to prevent water ingress.
Canvi de bateria
The watch is powered by 1 Lithium Metal battery. When the display becomes dim or functions become erratic, it indicates low battery power. Battery replacement should be performed by a qualified technician to ensure proper sealing and water resistance is maintained.
Figura 3: posterior view of the watch, showing the stainless steel case back with water resistance and model engravings.
Resolució de problemes
- Problema: Les agulles analògiques no coincideixen amb l'hora digital.
Solució: Perform analog hand alignment as described in the "Setup" section. Strong impacts or magnetic fields can sometimes cause misalignment.
- Problema: Les lectures de temperatura són inexactes.
Solució: Ensure the watch has been off your wrist for at least 20-30 minutes to allow it to acclimate to ambient temperature. Body heat significantly affects readings.
- Problema: Compass readings are inconsistent or incorrect.
Solució: Calibrate the compass if available (refer to full manual for specific calibration steps, not detailed here). Avoid strong magnetic fields (e.g., speakers, large metal objects) when taking readings. Ensure the watch is held level.
- Problema: La pantalla està tènue o en blanc.
Solució: This typically indicates a low battery. Replace the battery at an authorized service center. If the issue persists after battery replacement, contact customer support.
Especificacions
| Número de model | GG-1000-1A |
| Tipus de visualització | Analògic-Digital |
| Tipus de moviment | Quars |
| Material de la caixa | Resina |
| Material de la banda | Resina |
| Profunditat de resistència a l'aigua | 200 metres (20 BAR) |
| Dimensions de la caixa (L x A x A) | 5.62 x 5.53 x 1.73 cm (56.2 x 55.3 x 17.3 mm) |
| Pes de l'article | 94 g |
| Tipus de bateria | 1 bateria de metall de liti (inclosa) |
| Interval de visualització de temperatura | -10 a 60 °C (14 a 140 °F) |
| Countdown Timer Range | D'1 minut a 60 minuts (increments d'1 minut) |
| País d'origen | Xina |
Figure 4: Visual representation of the watch dimensions (56.2 mm length) compared to a standard credit card (54 mm width).
Garantia i Suport
Your Casio G-Shock GG-1000-1ADR watch comes with a limited warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including coverage duration and what is covered. Typically, the warranty covers manufacturing defects.
For technical support, repairs, or warranty claims, please contact an authorized Casio service center. Do not attempt to open or repair the watch yourself, as this may void the warranty and cause further damage.
Manufacturer: Casio India Co Pvt Ltd, A-41, 1st Floor, MCIE, Mathura Road, New Delhi-110044
Importer: Imported By - Casio India Co Pvt Ltd, A-41, 1st Floor, MCIE, Mathura Road, New Delhi-110044
