Informació important de seguretat
Before operating your new Hisense FC72D7AWD chest freezer, please read this manual thoroughly. It contains important safety information, installation instructions, and operational guidelines to ensure safe and efficient use of the appliance. Keep this manual for future reference.
- Assegureu-vos que el congelador estigui correctament connectat a terra.
- No emmagatzemeu substàncies explosives com ara llaunes d'aerosol amb un propulsor inflamable en aquest aparell.
- Mantenir les obertures de ventilació lliures d'obstruccions.
- No utilitzeu dispositius mecànics o altres mitjans per accelerar el procés de descongelació, diferents dels recomanats pel fabricant.
- No danyeu el circuit de refrigerant.
- No utilitzeu aparells elèctrics dins dels compartiments d'emmagatzematge d'aliments de l'aparell, tret que siguin del tipus recomanat pel fabricant.
Configuració i instal·lació
Desembalatge
Carefully remove all packaging materials, including foam and adhesive tape. Dispose of packaging materials responsibly. Ensure no parts are missing or damaged. It is recommended to keep the packaging materials for potential future transport of the appliance.
Col·locació
Place the freezer on a firm, level surface that can support its weight when fully loaded. Avoid placing the freezer in direct sunlight, near heat sources (e.g., stove, heater), or in extremely cold environments. Ensure adequate air circulation around the unit. Leave at least 4 inches (10 cm) of space at the back and sides for proper ventilation.
This chest freezer is designed for freestanding installation only and should not be recessed or built-in.

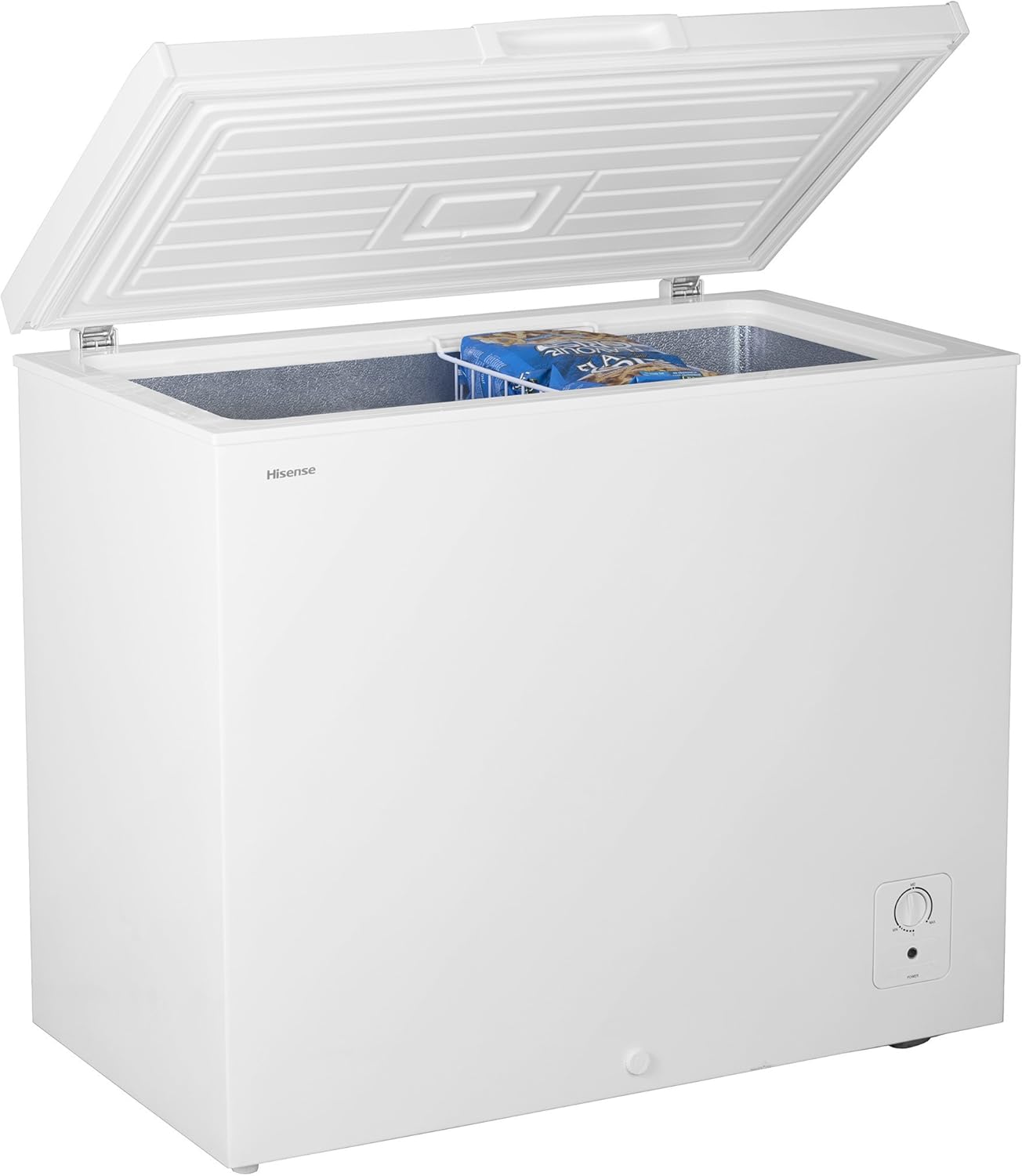

Figure 1: Hisense FC72D7AWD Chest Freezer with the lid open, revealing the interior storage space and a removable wire basket.
Connexió elèctrica
Before plugging in the freezer, allow it to stand upright for at least 2-4 hours. This allows the refrigerant fluids to settle, preventing potential damage to the cooling system. Connect the freezer to a dedicated, grounded 120 Volt, 60 Hz AC outlet. Do not use extension cords or adapter plugs.
Neteja inicial
Before storing food, clean the interior of the freezer with a mild detergent and warm water. Wipe dry thoroughly.
Instruccions de funcionament
Control de temperatura
The temperature control dial is located on the lower right front of the freezer. Turn the dial to adjust the internal temperature. Settings range from 'MIN' (least cold) to 'MAX' (coldest). For general use, a mid-range setting is often sufficient. Allow several hours for the temperature to stabilize after making adjustments.
Figura 2: Frontal view of the Hisense FC72D7AWD Chest Freezer, highlighting the external temperature control dial and power indicator light.
Llum de potència
A power indicator light is located near the temperature control dial. This light illuminates when the freezer is receiving power and operating correctly.
Cistella de filferro
The freezer includes a removable wire basket for organizing smaller items or frequently accessed foods. This helps prevent items from being lost at the bottom of the freezer.
Carregant aliments
For optimal performance, do not overload the freezer. Allow space for air to circulate around items. Avoid placing hot food directly into the freezer; allow it to cool to room temperature first.
Funcionament de baix soroll
The Hisense FC72D7AWD is designed for low noise operation, ensuring minimal disturbance in your home environment.
Manteniment
Descongelació
This is a manual defrost freezer. Defrost when the frost layer reaches approximately 1/4 to 1/2 inch (0.6 to 1.2 cm) thick. To defrost:
- Desendolleu el congelador de la presa de corrent.
- Traieu tots els aliments i guardeu-los en un altre congelador o nevera.
- Open the drain plug located at the bottom front of the freezer and place a shallow pan or towel underneath to collect water.
- Leave the lid open to allow the frost to melt naturally. You can place bowls of hot water inside to speed up the process. Do not use sharp objects to remove ice.
- Un cop descongelat, netegeu i eixugueu bé l'interior abans de tornar-lo a endollar i tornar-hi el menjar.
Figura 3: superior view of the Hisense FC72D7AWD Chest Freezer, illustrating the lid and hinge mechanism.
Neteja
Clean the interior and exterior of the freezer regularly with a mild detergent and warm water. Avoid abrasive cleaners or solvents. Ensure the freezer is unplugged before cleaning.
Cura del cable d'alimentació
Regularly inspect the power cord for any signs of damage. If the power cord is damaged, it must be replaced by the manufacturer or a qualified service agent to avoid a hazard.
Resolució de problemes
If you experience issues with your freezer, consult the following table before contacting service.
| Problema | Causa possible | Solució |
|---|---|---|
| El congelador no funciona. | Sense energia a la unitat. | Check if the power cord is securely plugged into the outlet. Check the circuit breaker or fuse. |
| El congelador no està prou fred. | Temperature control set too warm. Lid not closed properly. Excessive frost build-up. | Adjust the temperature control to a colder setting. Ensure the lid is fully closed. Defrost the freezer if frost is thick. |
| Soroll excessiu. | Freezer is not level. Objects vibrating against the unit. | Ensure the freezer is on a level surface. Move any objects away from the freezer that may be causing vibration. |
| Power light is off. | No power to the unit. Light malfunction. | Check power connection and circuit breaker. If power is present, contact service for light malfunction. |
If the problem persists after checking these solutions, please contact Hisense customer support.
Especificacions
The following table outlines the key specifications for the Hisense FC72D7AWD Chest Freezer:
| Especificació | Detall |
|---|---|
| Número de model | FC72D7AWD |
| Capacitat | 7.2 peus cúbics |
| Dimensions (P x A x A) | 22.7 x 37.2 x 32.6 polzades |
| Pes de l'article | 80.7 lliures |
| Voltage | 120 Volts |
| Tipus d'instal·lació | Autònom |
| Frontisses de portes | A dalt |
| Tipus de prestatge | Filferro |
| Tipus de material | Acer |
| Color | Blanc |
Figure 4: Energy Guide label for the Hisense FC72D7AWD Chest Freezer, detailing estimated annual energy consumption and cost.
Garantia i Suport
Informació de la garantia
This Hisense FC72D7AWD Chest Freezer comes with a 2 anys de garantia. Please refer to the warranty card included with your purchase for specific terms, conditions, and registration details. Keep your proof of purchase for warranty claims.
Atenció al client
For technical assistance, warranty service, or general inquiries, please contact Hisense Customer Support. Contact information can typically be found on the Hisense official website or on the warranty card provided with your appliance.
When contacting support, please have your model number (FC72D7AWD) and serial number ready to expedite service.
