Hisense FC51D7AWD 5.1 cu. ft. Chest Freezer

1. Informació important de seguretat

Read all instructions before using this appliance. Failure to follow these instructions may result in electric shock, fire, or property damage. Keep this manual for future reference.

• Aquest aparell ha d'estar correctament connectat a terra.
• No emmagatzemeu substàncies explosives com ara llaunes d'aerosol amb un propulsor inflamable en aquest aparell.
• No utilitzeu aparells elèctrics dins dels compartiments d'emmagatzematge d'aliments de l'aparell, tret que siguin del tipus recomanat pel fabricant.
• Assegureu-vos que hi hagi una ventilació adequada al voltant de l'aparell. No obstruïu les obertures de ventilació.
• Unplug the freezer before cleaning or performing maintenance.
• Si el cable d'alimentació està danyat, l'ha de substituir el fabricant, el seu agent de servei o persones qualificades de manera similar per evitar perills.

2. Parts i característiques

Familiarize yourself with the components of your Hisense chest freezer.

Figura 2.1: Davant view of the Hisense FC51D7AWD Chest Freezer with the lid open, showing the interior storage space and wire basket.

• Tapa: Top-opening lid for access to the freezer compartment.
• Mànec: Conveniently located on the center of the lid for easy opening.
• Dial de control de temperatura: Located on the lower front panel, used to adjust the internal temperature.
• Llum de potència: An indicator light on the front panel that illuminates when the freezer is receiving power.
• Cistella de filferro: A removable basket for organizing smaller items or frequently accessed foods.
• Tap de drenatge: Located at the bottom of the freezer interior for manual defrosting.

Figura 2.2: Davant view of the Hisense FC51D7AWD Chest Freezer, showing the temperature control dial and power light.

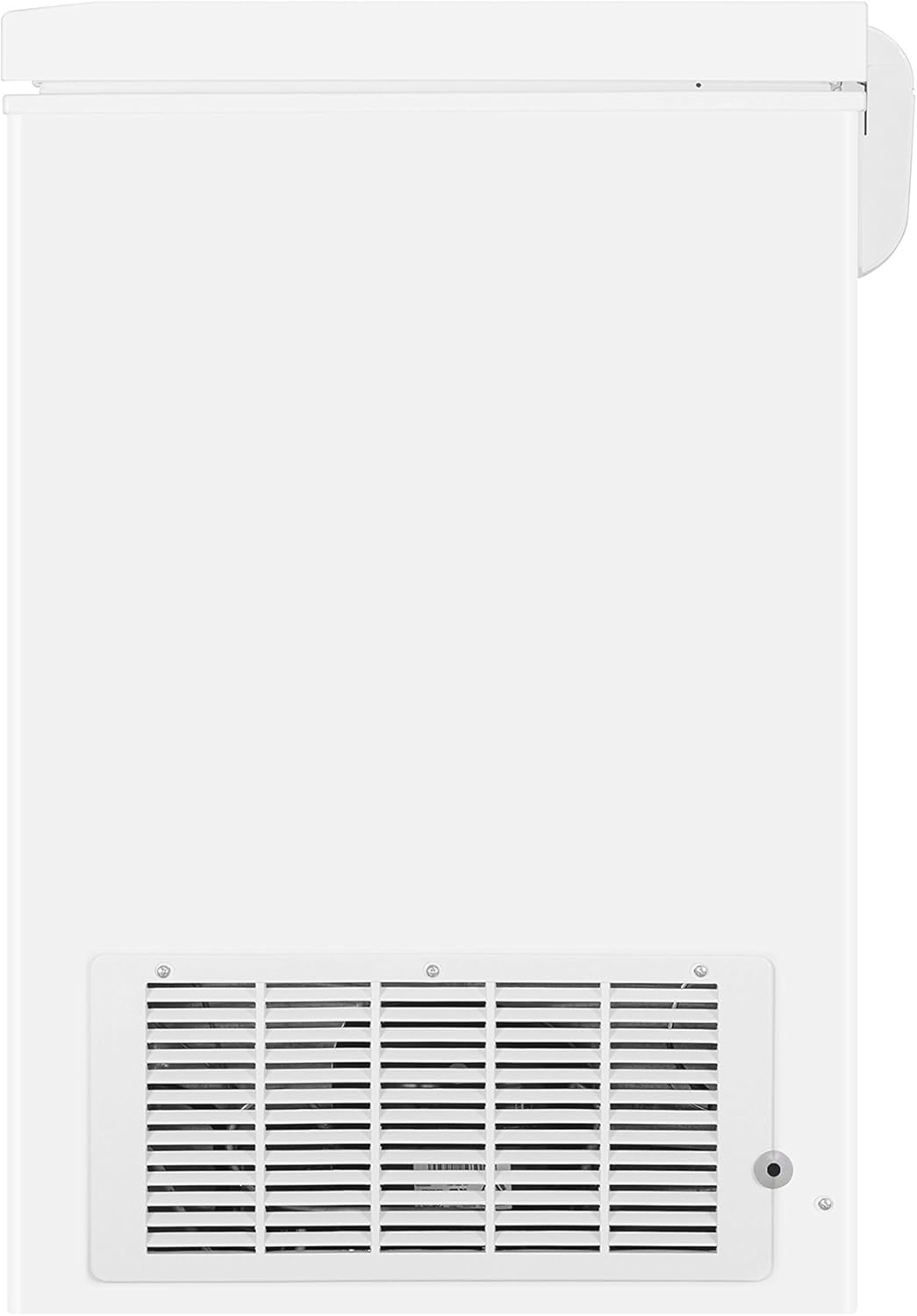

Figura 2.3: posterior view of the Hisense FC51D7AWD Chest Freezer, showing the compressor grille for ventilation.

3. Instruccions de configuració

3.1 Desembalatge

1. Traieu tots els materials d'embalatge, inclosa la base d'escuma i la cinta adhesiva.
2. Inspect the freezer for any damage during transit. Report any damage to your retailer immediately.
3. Remove any internal accessories and wash them with warm water and a mild detergent.

3.2 Requisits d'ubicació

• Col·loqueu el congelador sobre un terra ferm i anivellat que pugui suportar el seu pes quan estigui completament carregat.
• Ensure there is at least 4 inches (10 cm) of space around the sides and back of the freezer for proper air circulation.
• Eviteu la llum solar directa o fonts de calor (per exemple, estufes, calefactors), ja que això augmentarà el consum d'energia.
• Do not install in areas where the temperature may drop below 50°F (10°C) or rise above 100°F (38°C).

3.3 Connexió elèctrica

• This freezer requires a standard 120 Volt, 60 Hz, 15 Amp electrical outlet with a dedicated circuit.
• No utilitzeu cables d'extensió ni endolls adaptadors.
• Deixeu que el congelador estigui dret durant almenys 2-4 hores abans d'endollar-lo. Això permet que el refrigerant s'assenti.

3.4 Operació inicial

1. Plug the freezer into a grounded electrical outlet. The power light will illuminate.
2. Set the temperature control dial to the 'MAX' setting for initial cooling.
3. Allow the freezer to operate for 2-3 hours before placing food inside. This ensures the interior reaches the desired temperature.

4. Instruccions de funcionament

4.1 Control de temperatura

The temperature control dial is located on the front of the freezer. It has settings from 'MIN' to 'MAX' and 'OFF'.

• 'OFF': Turns the freezer off.
• 'MIN': Provides a less cold temperature.
• 'MAX': Provides the coldest temperature.

For general use, a setting between 'MIN' and 'MAX' is recommended. Adjust the dial gradually and allow several hours for the temperature to stabilize before making further adjustments.

Llum de potència 4.2

The power light on the front panel indicates that the freezer is receiving electrical power. If the light is off, check the power connection and circuit breaker.

4.3 Wire Basket Usage

The removable wire basket can be used to store smaller, frequently accessed items, preventing them from being buried at the bottom of the freezer. To remove, simply lift it out of the compartment.

5. Manteniment

5.1 Cleaning the Freezer

Regular cleaning helps maintain efficiency and hygiene.

1. Desendolla sempre el congelador abans de netejar-lo.
2. Wash the interior with a solution of warm water and baking soda (2 tablespoons of baking soda to 1 quart of water).
3. Clean the gasket around the lid with a mild detergent and warm water. Ensure it is dry to prevent mold growth.
4. Netegeu l'exterior amb un drap suau i detergent suau.
5. No utilitzeu productes químics durs, netejadors abrasius o fregalls.

5.2 Descongelació manual

This chest freezer features manual defrost. Defrost when frost buildup reaches approximately 1/4 to 1/2 inch (6-12 mm) thick.

1. Desendolleu el congelador de la presa de corrent.
2. Traieu tots els aliments i guardeu-los en un altre congelador o nevera.
3. Open the lid and place towels on the floor around the freezer to catch melting ice.
4. Locate the drain plug inside the freezer and remove it. Place a shallow pan or tray under the external drain outlet to collect water.
5. Allow the ice to melt naturally. To speed up the process, place bowls of hot water inside the freezer (do not use sharp objects to chip ice).
6. Un cop s'hagi fos tot el gel, netegeu i assequeu bé l'interior.
7. Replace the drain plug, plug in the freezer, and allow it to cool for 2-3 hours before returning food.

5.3 Power Outtage

En cas d'una potènciatage, keep the freezer lid closed. Food will remain frozen for approximately 24 hours if the lid is kept shut. Do not open the lid unnecessarily.

5.4 Moving the Freezer

When moving the freezer, ensure it is empty and defrosted. Secure the lid with tape. Do not tilt the freezer more than 45 degrees to avoid damage to the compressor. Allow it to stand upright for at least 2-4 hours after moving before plugging it in.

6. Guia de resolució de problemes

Review this section before calling for service. It may save you time and expense.

7. Especificacions

Detailed technical specifications for the Hisense FC51D7AWD Chest Freezer.

Figura 7.1: Energy Guide label for the Hisense FC51D7AWD Chest Freezer, showing estimated yearly energy cost and electricity use.

8. Informació de la garantia

This Hisense chest freezer comes with a 2 anys de garantia. Please refer to the warranty card included with your product for full terms and conditions, including coverage details and limitations. Keep your purchase receipt as proof of purchase for warranty claims.

9. Atenció al client

For technical assistance, service inquiries, or to order replacement parts, please contact Hisense customer support. Refer to the contact information provided in your warranty documentation or visit the official Hisense weblloc web per obtenir els detalls d'assistència més actualitzats.

When contacting support, please have your model number (FC51D7AWD) and serial number ready.
