ACI 389054 Window Motor Assembly User Manual

Introducció

This manual provides essential information for the installation, operation, and maintenance of your ACI 389054 Window Motor Assembly. ACI window assemblies are manufactured to meet or exceed original equipment performance, backed by nearly 40 years of excellence in door system components experience. Please read this manual thoroughly before beginning installation to ensure proper function and safety.

Informació de seguretat

ADVERTIMENT: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Always wear appropriate personal protective equipment (PPE) such as gloves and eye protection when handling this product.

• Desconnecteu sempre la bateria del vehicle abans de realitzar qualsevol treball elèctric.
• Ensure the vehicle is stable and secure before working on it.
• Use appropriate tools for installation to prevent damage to the product or vehicle.
• Si no esteu segurs de cap pas, consulteu un tècnic d'automoció qualificat.
• Mantenir els nens i les mascotes lluny de la zona de treball.

Producte acabatview

The ACI 389054 Window Motor Assembly is a direct replacement component designed for seamless integration into your vehicle's window system. It features advanced torque and speed capabilities, a circuit breaker to prevent overheating, and hardened steel gears for durability.

Figura 1: Davant view of the ACI 389054 Window Motor Assembly, showing the motor, cables, and regulator mechanism.

Figura 2: posterior view of the ACI 389054 Window Motor Assembly, highlighting the mounting points and cable routing.

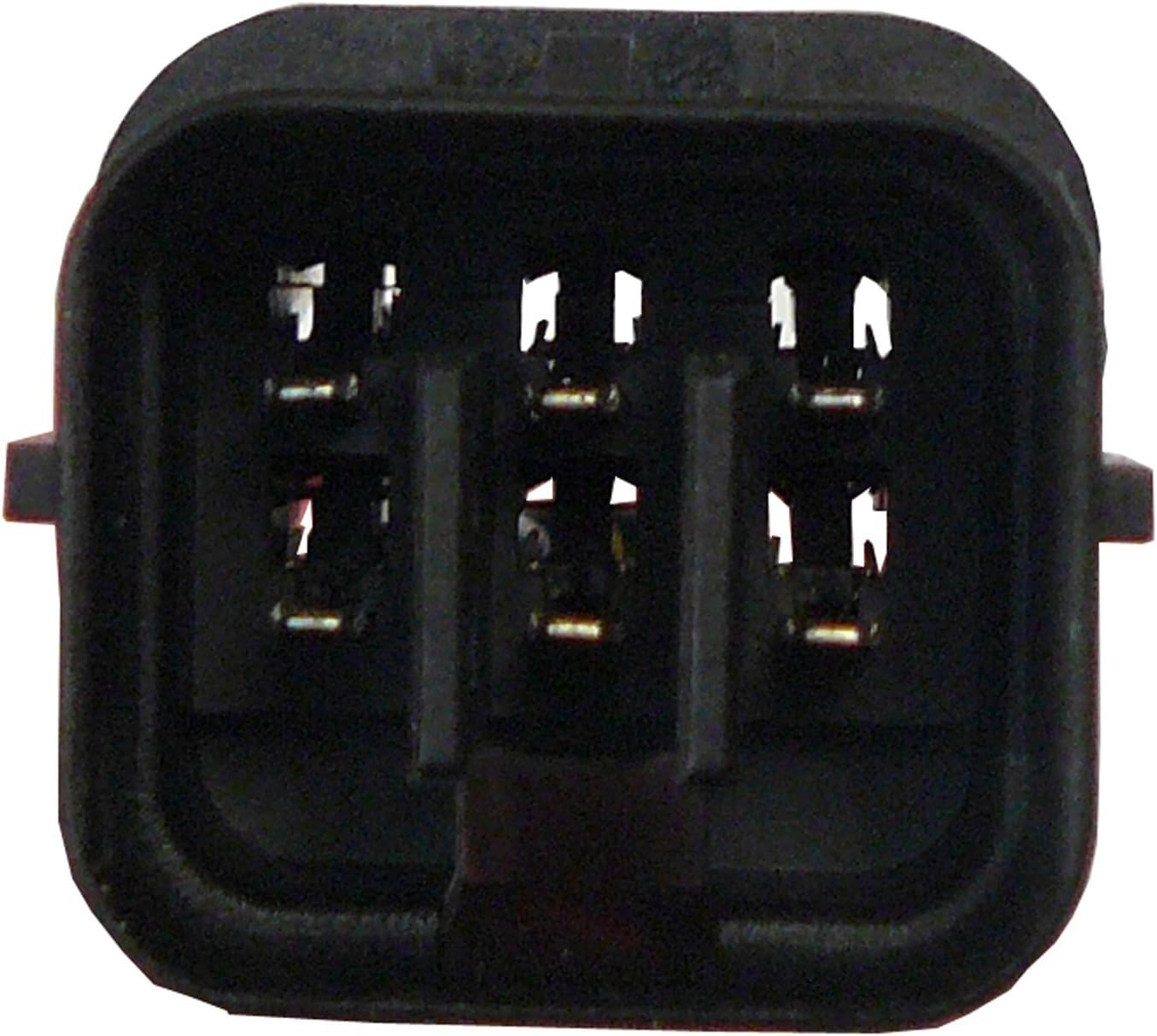

Figura 3: Primer pla view of the electrical connector on the ACI 389054 Window Motor Assembly, showing the pin configuration.

Configuració i instal·lació

Installation of the ACI 389054 Window Motor Assembly requires basic automotive repair knowledge and tools. Refer to your vehicle's specific service manual for detailed instructions on removing door panels and accessing the window regulator assembly.

Eines necessàries:

• Conjunt de claus d'endoll
• Joc de tornavisos (Phillips i de punta plana)
• Eines d'eliminació de panells de guarnició
• Wire Strippers/Crimpers (if wiring repair is needed)
• Guants i ulleres de seguretat

Passos d'instal·lació:

1. Preparar el vehicle: Park the vehicle on a level surface, engage the parking brake, and disconnect the negative terminal of the vehicle's battery.
2. Remove Door Panel: Carefully remove the interior door panel. Refer to your vehicle's service manual for specific fasteners and clips.
3. Access Regulator: Remove any plastic sheeting or sound deadening material to gain access to the window regulator and motor assembly.
4. Desconnecta l'assemblea antiga: Disconnect the electrical connector from the old window motor. Carefully unbolt the old window motor and regulator assembly from the door frame. Support the window glass to prevent it from falling.
5. Remove Glass (if necessary): In some cases, it may be easier to remove the window glass from the regulator channels before removing the assembly.
6. Instal·leu el nou muntatge: Position the new ACI 389054 Window Motor Assembly into the door frame, aligning it with the mounting holes. Secure it with the appropriate bolts, ensuring it is firmly attached.
7. Connect Glass: Reattach the window glass to the new regulator's channels. Ensure the glass moves freely within the channels.
8. Connexió elèctrica: Reconnect the electrical connector to the new window motor.
9. Funcionalitat de prova: Reconnect the vehicle's battery. Before reassembling the door panel, test the window's up and down operation. Ensure smooth movement and proper sealing.
10. Torneu a muntar el panell de la porta: Once functionality is confirmed, reattach any plastic sheeting, and then carefully reinstall the interior door panel, ensuring all clips and fasteners are secure.
11. Comprovació final: Verify all connections are tight and the window operates correctly.

En funcionament

Once installed, the ACI 389054 Window Motor Assembly operates in conjunction with your vehicle's existing window switch. Simply use the window switch to raise or lower the window. The motor is designed for smooth and reliable operation, matching original equipment performance.

Manteniment

The ACI 389054 Window Motor Assembly is designed for long-term, maintenance-free operation. However, to ensure optimal performance of your vehicle's window system:

• Keep window channels clean and free of debris.
• Periodically inspect the window seals for wear or damage.
• Avoid excessive force on the window when operating.
• If the window becomes stiff or noisy, inspect the window channels and regulator for obstructions or wear.

Resolució de problemes

Si els passos de resolució de problemes no resolen el problema, es recomana consultar un tècnic professional de l'automoció.

Especificacions

Garantia i Suport

For warranty information or technical support regarding your ACI 389054 Window Motor Assembly, please contact ACI customer service directly. Refer to the packaging or ACI's official weblloc web per obtenir les dades de contacte més actualitzades.

Note: Warranty may be voided if the product is not installed correctly or is subjected to misuse.
