TP-Link TL-PA9025P AV2000 Powerline Adapter Kit User Manual

1. Producte acabatview

The TP-Link TL-PA9025P AV2000 Powerline Adapter Kit extends your internet connection using your home's existing electrical wiring. It provides high-speed data transfer rates up to 2000 Mbps, ideal for 4K video streaming and online gaming. Each adapter features two Gigabit Ethernet ports for wired connections and an integrated power socket, ensuring no electrical outlet is lost.

Image: Two TP-Link TL-PA9025P AV2000 Powerline adapters, showing the front with integrated power sockets and Ethernet ports.

2. Contingut del paquet

Comproveu que el vostre paquet contingui els elements següents:

• 2 TL-PA9020P Powerline Adapters
• 2 Ethernet Cables (2 meters each)
• 1 Resource CD
• 1 Guia d'instal·lació ràpida

3. Guia de configuració

Setting up your TP-Link TL-PA9025P Powerline Adapter Kit is a simple plug-and-play process. No configuration is typically required.

1. Connecteu el primer adaptador: Plug one TL-PA9025P adapter directly into a wall outlet near your router. Connect it to your router using one of the provided Ethernet cables.
2. Connecteu el segon adaptador: Plug the second TL-PA9025P adapter directly into a wall outlet in another room where you need network access.
3. Connecteu el vostre dispositiu: Connect your internet-compatible device (e.g., PC, Smart TV, game console) to the second Powerline adapter using the other Ethernet cable.

The adapters should automatically pair and establish a network connection. The Powerline LED indicator on both adapters should turn solid green, indicating a successful connection.

Image: Diagram illustrating the three steps of Powerline adapter setup: 1) Connect one adapter to the router, 2) Plug the second adapter into a wall outlet, 3) Connect a device to the second adapter.

Nota important: For optimal performance and to avoid interference, always plug Powerline adapters directly into a wall outlet. Avoid using power strips, extension cords, or surge protectors with Powerline adapters.

Image: Illustration showing how the integrated power socket on the Powerline adapter can be used to power other devices or power strips without losing an outlet.

4. Instruccions de funcionament

High-Speed Network Extension

The TL-PA9025P kit utilizes HomePlug AV2 standard with 2x2 MIMO technology, providing Powerline speeds up to 2000 Mbps. This ensures a stable and fast wired network connection for bandwidth-intensive activities.

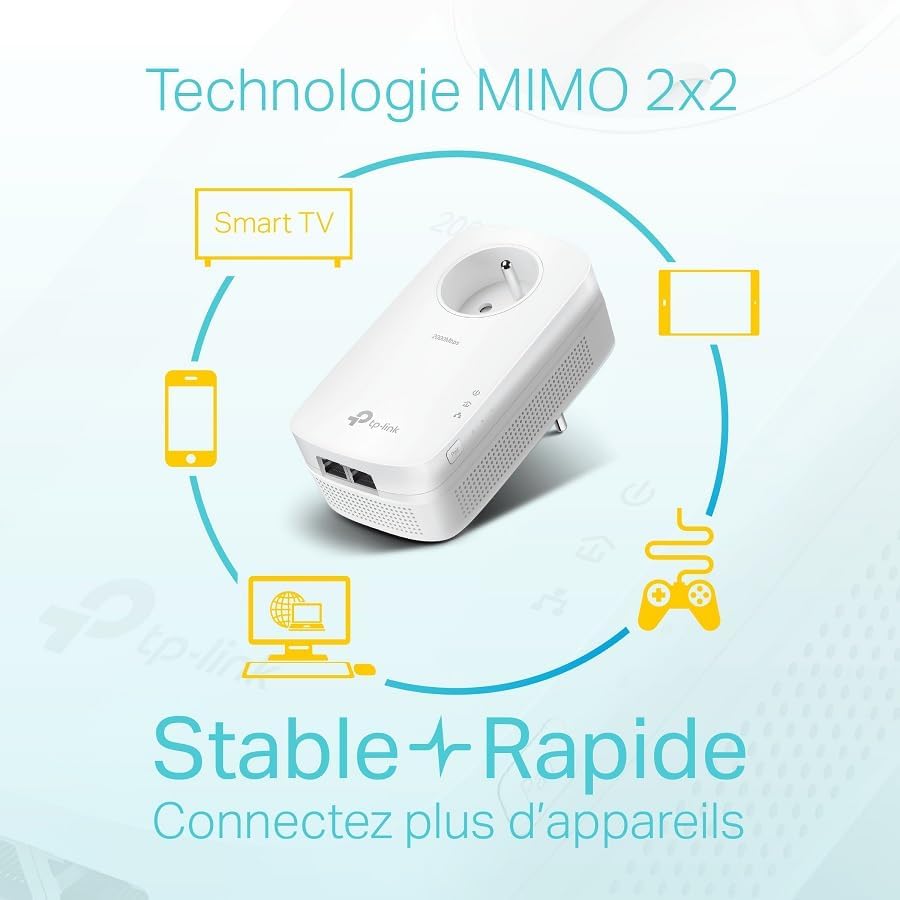

Image: Diagram illustrating MIMO 2x2 technology, showing how it improves range and performance over longer distances and in areas difficult to reach by traditional SISO transmission.

Ports Gigabit Ethernet

Each adapter is equipped with two Gigabit Ethernet ports. These ports allow you to connect multiple wired devices such as PCs, Smart TVs, or game consoles, providing secure, high-speed connections with minimal latency and reduced interference.

Imatge: Primer pla view of the two Gigabit Ethernet ports on a TP-Link Powerline adapter, with icons representing connected devices like a computer, laptop, and game console.

Presa de corrent integrada

The integrated power socket on each adapter allows you to plug in another electrical device or power strip, effectively replacing the wall outlet used by the Powerline adapter. This ensures that no electrical outlet is wasted.

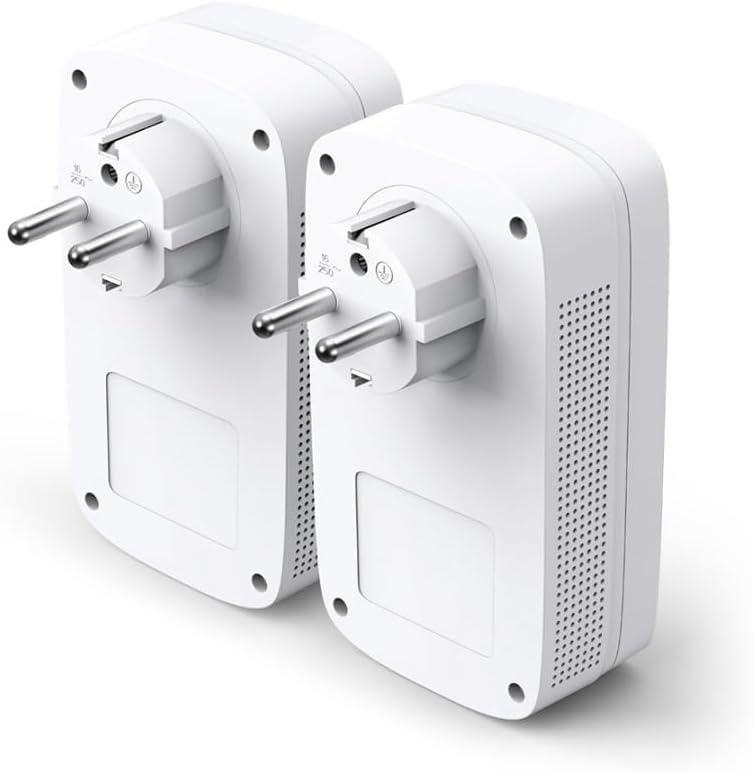

Imatge: Enrere view of two TP-Link TL-PA9025P Powerline adapters, showing the electrical prongs and the integrated power socket.

5. Mode d'estalvi d'energia

The TL-PA9025P features a patented power-saving mode that automatically reduces power consumption by up to 85% when devices are not actively transmitting data. This helps to conserve energy and reduce operational costs.

6. Solució De Problemes

• Sense connexió a la xarxa elèctrica: Ensure both adapters are plugged directly into wall outlets and not into power strips. Check that the Powerline LED on both adapters is solid green. If not, press the Pair button on one adapter for 1 second, then within 2 minutes, press the Pair button on the other adapter for 1 second.
• Velocitat lenta: Powerline performance can be affected by electrical interference. Try plugging the adapters into different wall outlets. Avoid outlets on different electrical circuits if possible. Large appliances (e.g., washing machines, refrigerators) can also cause interference.
• Compatibilitat: While HomePlug AV2 devices are generally compatible, mixing different generations or brands of Powerline adapters may result in reduced performance or connectivity issues. For best results, use adapters from the same kit or compatible TP-Link models.
• Sense accés a Internet: Verify that your router is working correctly and providing internet access. Ensure the Ethernet cables are securely connected between the router and the first adapter, and between your device and the second adapter.

7. Especificacions

8. Garantia i Suport

This product comes with a 2-year warranty. For technical assistance or any questions, please visit the TP-Link France Zoho Desk website to open a support ticket. You can search for "TP-Link France Zoho Desk" on your web navegador.
