Pyle PLCMTRDVR41 Dash Cam Recorder DVR System

1. Introducció

The Pyle PLCMTRDVR41 is a comprehensive DVR video camera system designed for vehicles such as buses, trucks, trailers, vans, RVs, and campers. It features a 7-inch display monitor and a waterproof night vision camera, providing visual assistance for driving and reversing. This system records consistent video footage, automatically overwriting older files when the memory card is full to ensure continuous monitoring.

2. Què hi ha a la caixa

Verifiqueu que tots els components que s'enumeren a continuació s'inclouen al paquet:

• 7'' Display Monitor
• Càmera impermeable
• 50' Video Cables, 4-Pin
• Arnès d'alimentació i cablejat
• Sun Visor Monitor Hood
• Control remot
• Accessoris de muntatge

Figure 2.1: Included components of the PLCMTRDVR41 system.

3. Característiques del producte

• 7-inch Digital LCD Monitor: Provides clear video display with 800 x 480 resolution and adjustable aspect ratios (16:9, 4:3).


Figure 3.1: The 7-inch digital LCD panel with display specifications.

• Waterproof Night Vision Camera: Features marine-grade waterproof housing, an angle-adjustable lens, and built-in night vision LEDs for clear visibility in low-light conditions. Offers a 170-degree wide-angle view.


Figure 3.2: Wide-angle viewing capability of the camera.

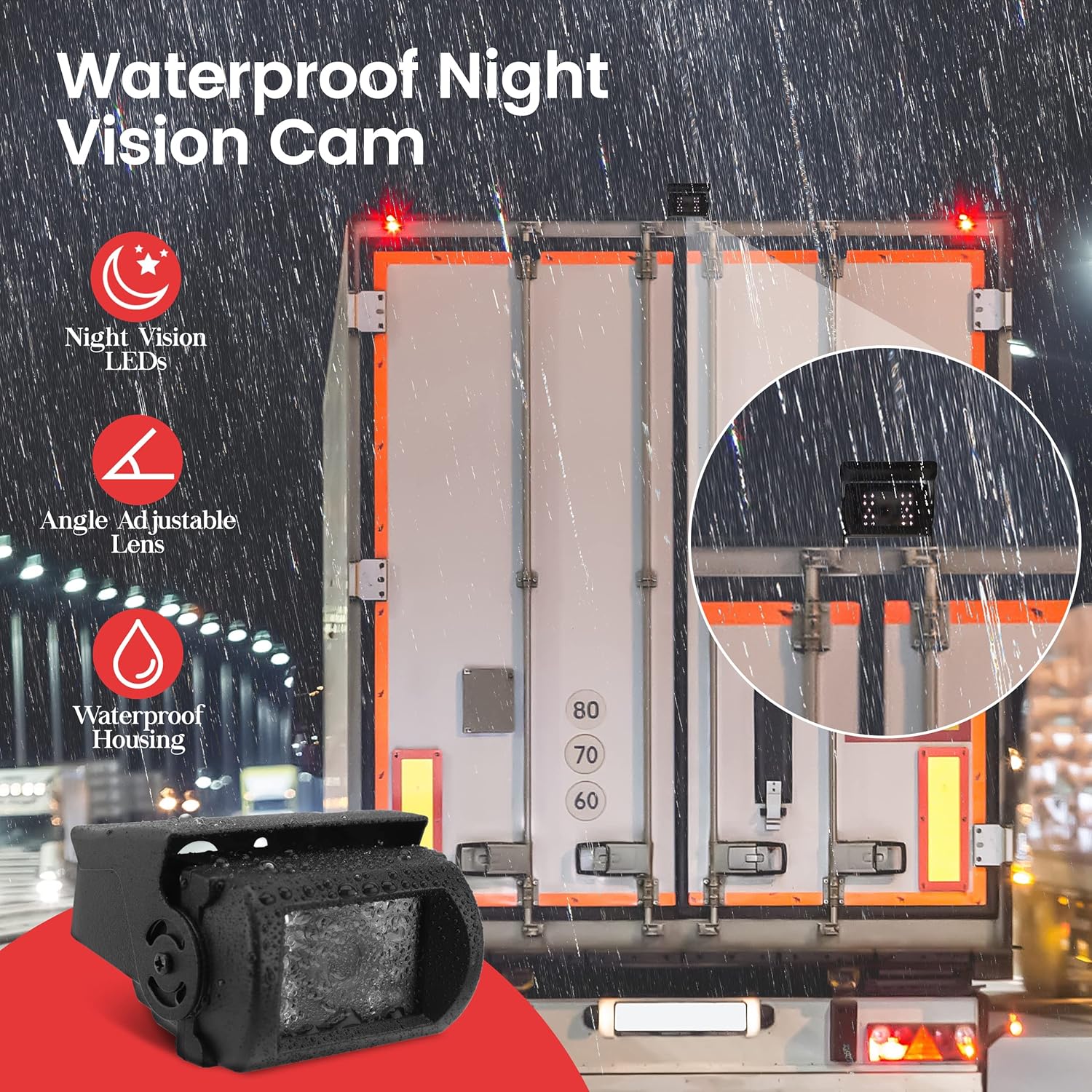

Figure 3.3: The waterproof night vision camera with LED illumination.

• Suport multicanal: Connect up to four cameras (additional cameras sold separately) and view them in single, dual, or quad split-screen modes.


Figure 3.4: Selectable camera view modes on the monitor.

• Enregistrament en bucle: Records continuously, overwriting the oldest unlocked video clips to ensure uninterrupted monitoring. Video clip lengths can be set to 3, 5, or 10 minutes.
• Funcionament automàtic: The system powers on and begins recording automatically when the vehicle's engine starts, and powers off when the engine is turned off.
• Sensor G: Detecta automàticament moviments o impactes sobtats i bloqueja el vídeo actual.tage per evitar que se sobreescrigui.
• Suport de targeta Micro SD: Supports Micro SD cards up to 32GB for video storage.

4. Configuració i instal·lació

Aquesta secció ofereix un finalview of the physical connections and basic wiring for the PLCMTRDVR41 system. For detailed visual instructions, please refer to the official overview video below.

4.1 Monitor Overview

The monitor features a removable sunshade and a 7-inch LCD screen. On the front panel, you will find:

• DVR Indicator Light: Blue indicates power is on; flashing red indicates recording.
• Altaveu: Per a la sortida d'àudio.
• Tecla MENÚ: Pauses recording, navigates back in menus, and accesses playback status.
• CH1 Key: Switches to Channel 1, navigates left in menus.
• CH2 Key: Switches to Channel 2, navigates right in menus.
• Botó d'encesa: Also used to start and stop recording.
• CH3 Key: Switches to Channel 3, navigates down in menus.
• CH4 Key: Switches to Channel 4, navigates up in menus.
• Botó MODE: Changes display modes.

On the back of the unit, you will find an SD card slot, a notch for bracket installation, and a signal lead wire for connection to the wiring harness.

4.2 Connexions de cablejat

Connect the male signal feed end of the monitor to the female end of the wiring harness, ensuring the arrows on both connectors are aligned for proper insertion. Fasten securely.

• Connecteu el cable vermell from the wiring harness to your vehicle's ignition switch or a battery terminal.
• Connecteu el cable negre to a grounding wire.
• Depending on your specific use, connect the fil verd to your reversing gear, the filferro marró for drive, and the blue and gray wires for turning signals (left and right).

4.3 Camera Connections

Connect your camera(s) to the appropriate labeled connections on the wiring harness. Each connection is labeled (e.g., Channel 1, Channel 2, Channel 3, Channel 4). When connecting, ensure to line up the arrows indicated on the sides of the connectors and fasten them tightly.

4.4 Finalització de la instal·lacióview Vídeo

Vídeo 4.1: Un overview of the Pyle PLCMTRDVR41 system components and basic connection steps.

5. Instruccions de funcionament

5.1 Encès/Apagat

The device is designed to power on and begin recording automatically when the vehicle's engine is started. It will power off automatically shortly after the engine is turned off. This automatic feature applies to most vehicles, except those with continuously powered cigarette lighters.

5.2 Enregistrament

The system initiates recording automatically upon power-up. The DVR indicator light will flash red during recording. To manually stop or start recording, press the Power button on the monitor's front panel.

Enregistrament en bucle: When the memory card is full, the system automatically overwrites the oldest unlocked video clips to maintain continuous recording. You can set the length of each video clip to 3, 5, or 10 minutes via the menu settings.

Sensor G: In the event of a sudden impact or collision, the built-in G-sensor will automatically lock the current video file, evitant que se sobreescrigui durant l'enregistrament en bucle.

5.3 Navegació de menús

Use the MENU key to access the system settings. The CH1, CH2, CH3, and CH4 keys also function as navigation buttons (left, right, down, up respectively) within the menu interface. Press the MENU key again to exit the menu or return to the previous screen.

5.4 Canvi de canal

Press the CH1, CH2, CH3, or CH4 buttons on the front panel to switch between individual camera views. Use the MODE button to cycle through different display layouts, including single, dual, and quad split-screen views (if multiple cameras are connected).

5.5 SD Card Usage

The system supports Micro SD cards up to 32GB. It is recommended to format the memory card periodically to maintain optimal performance and prevent data corruption. If the performance of the memory card degrades, consider formatting it or replacing it with a new one.

6. Especificacions

7. Solució De Problemes

If you encounter issues with your Pyle PLCMTRDVR41 system, please refer to the following common troubleshooting steps:

• No Power/Monitor Not Turning On:
  • Check all power connections, ensuring the red wire is connected to a constant or switched 12/24V power source and the black wire is securely grounded.
  • Verify the vehicle's ignition is on if the system is wired to an ignition switch.
• No Image on Monitor/Black Screen:
  • Ensure all camera cables are securely connected to the monitor and the camera itself. Check for proper alignment of arrows on connectors.
  • Confirm the camera is receiving power.
  • Try switching between different channels (CH1-CH4) to see if the issue is specific to one input.
  • Check the MODE setting to ensure it's not in a mode without an active camera feed.
• Blurry or Poor Image Quality:
  • Ensure the camera lens is clean and free from dirt, moisture, or obstructions.
  • Check cable connections for any looseness or damage.
  • Adjust the picture configuration settings (Brightness, Contrast, Saturation) via the monitor's menu.
• Reversed Image (Dashcam):
  • The system may have a setting to flip or mirror the image. Consult the full user manual for specific menu options related to image orientation.
• Unit Locks Up/Freezes:
  • Try performing a soft reset by powering the unit off and on.
  • Ensure the Micro SD card is properly inserted and functioning. A faulty or full SD card can cause system instability. Try formatting the card or using a different one.
• Problemes de gravació:
  • Verifiqueu que hi hagi una targeta Micro SD inserida i que hi hagi prou espai lliure.
  • Format the Micro SD card to resolve potential corruption issues.
  • Check the DVR indicator light to confirm recording status.

8. Garantia i assistència

This product is backed by a limited 1-Year manufacturer warranty. In the event of a defect within the first year of purchase, please contact Pyle customer support for assistance with exchange or repair.

Additionally, if this item fails to meet your expectations, it may be returned for a full refund within the first 30 days of purchase, subject to the retailer's return policy.

For further support, technical assistance, or warranty claims, please visit the official Pyle weblloc o poseu-vos en contacte amb el seu departament d'atenció al client.
