Producte acabatview
The Energizer ENC4A is a fully automatic 4-Amp battery charger and maintainer designed for 6V and 12V lead-acid batteries. It features a 9-step smart charging technology to optimize battery life and an intuitive LCD display for real-time status monitoring. This versatile unit is suitable for a wide range of vehicles and applications, including cars, trucks, motorcycles, ATVs, RVs, and boats.
Imatge: The Energizer ENC4A 4-Amp charger is compatible with various 6V/12V lead-acid batteries found in trucks, RVs, ATVs, cars, motorcycles, and jet skis.
Instruccions de configuració
- Identificar els components: The charger comes with battery clips and O-ring terminals. Choose the appropriate connector for your battery type.
- Connectar a la bateria:
- Ensure the charger is unplugged from the AC outlet before connecting to the battery.
- Connecteu el vermell (+) battery clip or O-ring terminal to the positive (+) terminal of the battery.
- Connecteu el negre (-) battery clip or O-ring terminal to the negative (-) terminal of the battery.
- Assegureu-vos que les connexions siguin segures i no presentin corrosió.
- Connectar-se a l'alimentació: Once the battery connections are secure, plug the charger's AC power cord into a standard 120V AC wall outlet. The LCD display will illuminate, indicating the charger is active.
Imatge: The Energizer ENC4A charger connected to a car battery, showing the red clamp on the positive terminal and the black clamp on the negative terminal. The LCD displays the current battery voltage.
Imatge: Un primer pla view of the Energizer ENC4A charger connected to a car battery within an engine bay, displaying the battery voltage on its LCD screen.
Instruccions de funcionament
The ENC4A charger is fully automatic and utilizes a 9-step smart charging process to efficiently charge and maintain your battery. It automatically detects 6V or 12V batteries and adjusts the amperage rate accordingly.
LCD Display and Modes:
The built-in LCD display provides real-time feedback on the charging process, including battery voltage, charging mode, and error codes. The charger automatically switches between charging and float (maintenance) modes.
- Volum automàtictage Detecció: The charger will automatically detect if the connected battery is 6V or 12V.
- 9-Step Smart Charging: This advanced technology ensures optimal charging, prolonging battery life and preventing overcharging.
- Mode flotant: Once the battery is fully charged, the charger automatically enters float mode, maintaining the battery at an optimal charge without overcharging.
- Mode fred: The display includes icons for cold mode operation, which adjusts voltage for optimal charging in low temperatures.
Imatge: Un detallat view of the Energizer ENC4A charger's LCD display, showing a 14.2V reading, a car icon, a snowflake icon for cold mode, and a full battery indicator. Safety features like overcharge, short circuit, and reverse polarity protection are also highlighted.

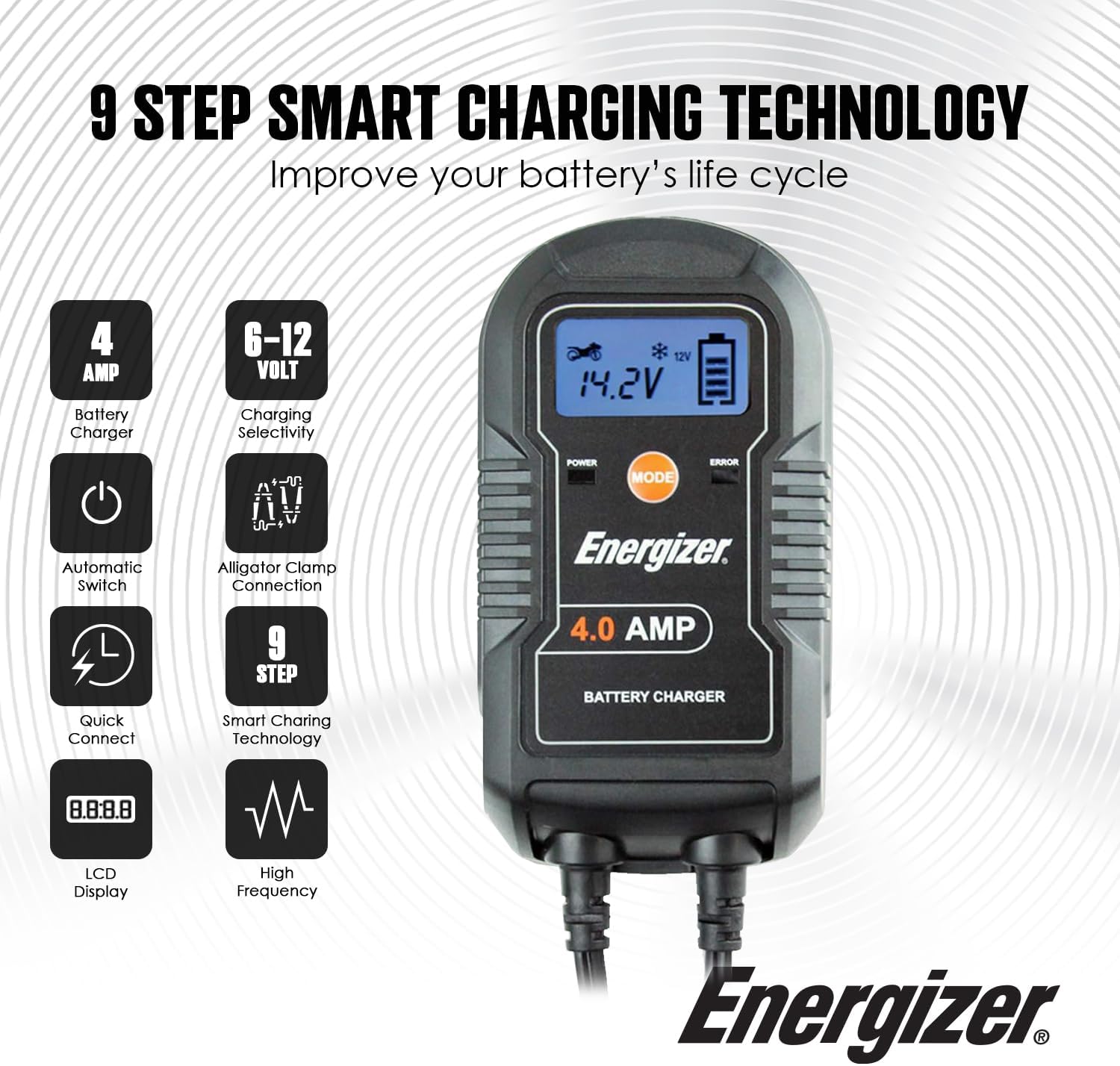

Imatge: The Energizer ENC4A charger with icons illustrating its key features: 4 Amp charging, 6-12 Volt selectivity, automatic switch, alligator clamp connection, 9-step smart charging technology, LCD display, and high-frequency charging.
Official Product Video: Energizer 4amp 6/12v Battery Charger & Maintainer
Descripció del vídeo: Aquest vídeo ofereix una visió concisaview of the Energizer 4-Amp 6V/12V Battery Charger and Maintainer, demonstrating its features and ease of use for various battery types.
Manteniment
The Energizer ENC4A is designed for minimal maintenance due to its fully automatic operation and built-in safety features. However, proper care of the charger and battery connections will ensure optimal performance and longevity.
- Neteja regular: Keep the charger unit and connectors clean and dry. Wipe off any dirt or debris with a soft, dry cloth.
- Inspecció de connexió: Periodically check battery terminals and charger connections for corrosion or damage. Clean terminals as needed to ensure good electrical contact.
- Emmagatzematge: When not in use, store the charger in a cool, dry place. Ensure cables are neatly coiled to prevent damage.
- Desulfació: The 9-step smart charging technology includes a desulfation stage, which can help restore sulfated batteries and extend their lifespan.
Imatge: The Energizer ENC4A charger, emphasizing its fully automatic smart charging capability, which charges the battery when needed and stops when full.
Resolució de problemes
If you encounter issues with your Energizer ENC4A charger, refer to the following common troubleshooting tips:
- El carregador no s'encén:
- Ensure the AC power cord is securely plugged into a live outlet.
- Check the battery connections to ensure they are firm and correctly attached (red to positive, black to negative).
- "E3" Error Code (Overheat):
- If an "E3" code appears, the charger may be overheating. Unplug the charger from the AC outlet and disconnect from the battery. Allow it to cool down for at least 30 seconds before reconnecting.
- Ensure the charger is in a well-ventilated area during operation.
- Display Backlight Turns Off:
- The LCD display backlight is designed to turn off shortly after charging begins to conserve energy. This is normal operation and does not indicate a fault.
- La bateria no es carrega:
- Comproveu que la bateria voltage is not extremely low (below 2V for 6V batteries or 4V for 12V batteries), as the charger may not detect it.
- Check for reverse polarity connections (red to negative, black to positive), which will prevent charging and trigger a safety warning.
- Ensure the battery type is compatible with the charger (lead-acid: WET, MF, AGM, GEL).
Especificacions
| Característica | Detall |
|---|---|
| Marca | Energitzant |
| Model | ENC4A |
| Ampedat | 4 Amps |
| Voltage | 6 Volts / 12 Volts (Auto-detection) |
| Tecnologia de càrrega | 9-Step Smart Charging |
| Mostra | Pantalla LCD |
| Característiques de protecció | Overcharging, Reverse Polarity, Short Circuit |
| Dimensions | 6.1 x 3.1 x 1.8 polzades |
| Pes de l'article | 1 lliures |
| Aprovacions | ETL Approved under UL std 1236 and CSA C22.2 |
Garantia
The Energizer ENC4A 4-Amp 6V/12V Auto Charger includes a five-year repair or replace warranty. Aquesta garantia cobreix els defectes de materials i de mà d'obra en ús normal.
Atenció al client
For specialized customer service and technical support, please contact Energizer via email, phone, or chat. Refer to the product packaging or the official Energizer weblloc web per obtenir la informació de contacte més actualitzada.
Official Product Video: Energizer Battery Charger and Battery Tender
Descripció del vídeo: This video showcases the Energizer Battery Charger and Battery Tender, highlighting its functionality as both a charger and a long-term battery maintainer.
