Producte acabatview
The Schneider Electric Odace Double USB Wall Outlet (Model S530409) is designed to provide convenient USB charging capabilities directly from your wall. This grey aluminum outlet features two USB ports, allowing you to charge multiple devices simultaneously. It is suitable for various residential and commercial applications, offering a clean and integrated charging solution.

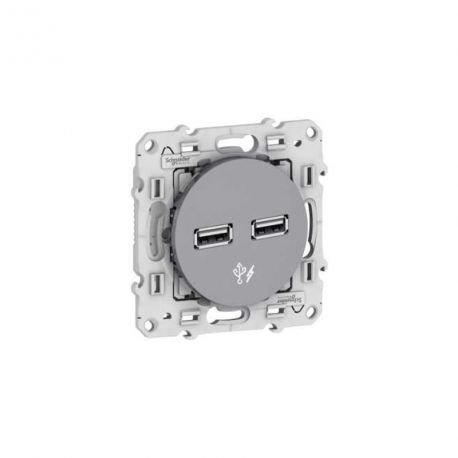

Imatge: Frontal view of the Schneider Electric Odace Double USB Wall Outlet, showcasing its two USB ports and grey aluminum finish.
Informació de seguretat
ADVERTIMENT: Installation should only be performed by a qualified electrician. Disconnect power at the circuit breaker before installation or servicing. Failure to follow these instructions may result in serious injury or death.
- Ensure the power supply is turned off before beginning any installation.
- No supereu les capacitats elèctriques especificades del dispositiu.
- Utilitzeu l'equip de protecció individual (EPI) adequat durant la instal·lació.
- Aquest dispositiu només està dissenyat per a ús interior.
Configuració i instal·lació
- Apagueu l'alimentació: Locate the circuit breaker controlling the outlet where you intend to install the USB wall outlet. Turn off the power to that circuit. Verify power is off using a voltage provador.
- Remove Old Outlet (if applicable): Carefully remove the existing wall plate and unscrew the old outlet from the electrical box. Disconnect the wires, noting their connections (hot, neutral, ground).
- Wire the New Outlet: Connect the wires from the electrical box to the corresponding terminals on the Schneider Electric USB wall outlet. Typically:
- Black or Red wire (Hot) to the brass or dark-colored screw terminal.
- White wire (Neutral) to the silver or light-colored screw terminal.
- Green or bare copper wire (Ground) to the green screw terminal.
- Mount the Outlet: Carefully fold the wires into the electrical box and secure the new USB wall outlet to the box using the provided screws.
- Instal·leu la placa de paret: Attach the decorative wall plate over the installed outlet.
- Restaura l'alimentació: Torneu a encendre l'alimentació al disjuntor.
- Prova: Plug a USB device into the outlet to ensure it charges correctly.
Instruccions de funcionament
The Schneider Electric Odace Double USB Wall Outlet is designed for simple operation. Once installed and powered, it functions as a standard USB charging port.
- Dispositius de càrrega: Insert the USB charging cable of your device into either of the two USB ports on the outlet.
- Càrrega simultània: You can charge two USB-powered devices simultaneously.
- Compatibilitat: The outlet is compatible with most USB-powered devices, including smartphones, tablets, and other small electronics that charge via USB.
- Indicador de càrrega: There is no specific charging indicator light on this model; charging status is typically displayed on your connected device.
Manteniment
The Schneider Electric Odace Double USB Wall Outlet requires minimal maintenance.
- Neteja: To clean the surface of the outlet, wipe with a soft, damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these may damage the finish or internal components. Ensure power is off before cleaning.
- Inspecció: Periodically inspect the outlet for any signs of damage, such as cracks, discoloration, or loose connections. If any damage is observed, disconnect power and have the outlet inspected or replaced by a qualified electrician.
- Sense peces reparables per l'usuari: There are no user-serviceable parts inside this device. Do not attempt to open or repair the unit.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El dispositiu no es carrega. | No hi ha corrent a la presa de corrent. Cable USB defectuós. El dispositiu no és compatible. Circuit sobrecarregat. | Check circuit breaker and ensure it is ON. Prova amb un cable USB diferent. Verify device requires 5V USB charging. Desconnecta els altres dispositius i torna-ho a provar. |
| Càrrega lenta. | Alta demanda d'energia del dispositiu. Using a non-optimal USB cable. | Ensure the device is not drawing more current than the outlet can provide (5V). Use a high-quality USB cable designed for charging. |
| La presa de corrent és càlida. | Funcionament normal sota càrrega. Sobrecàrrega. | Slight warmth is normal during charging. If it's excessively hot, disconnect devices and consult a qualified electrician. |
If troubleshooting steps do not resolve the issue, contact Schneider Electric customer support or a qualified electrician.
Especificacions
- Model: S530409
- Marca: Schneider Electric
- Voltage: 5 Volts (USB Output)
- Total de preses de corrent: 2 (USB Ports)
- Material: Alumini
- Dispositius compatibles: All USB-powered devices
- Dimensions del paquet: 8.27 x 5.91 x 3.94 polzades
- Pes de l'article: 3.53 unces
- País d'origen: Itàlia
- Primer disponible: 5 de desembre de 2023
Garantia i Suport
Per obtenir informació sobre la garantia i assistència tècnica, consulteu el lloc web oficial de Schneider Electric. weblloc web o poseu-vos en contacte amb el seu departament d'atenció al client. Conserveu el comprovant de compra per a reclamacions de garantia.
Schneider Electric Customer Support:
- Visita el lloc web oficial de Schneider Electric weblloc per obtenir les dades de contacte específiques de la vostra regió.
- També poden estar disponibles recursos en línia i preguntes freqüents.
