1. Introducció
Thank you for choosing the Hormann ProMatic Series 4 Garage Door Opener Kit. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new garage door opener. Please read these instructions carefully before beginning installation or operation to ensure proper function and safety.
The ProMatic Series 4 is designed for residential garage doors, offering reliable performance with advanced features such as BiSecur radio technology, soft start and stop, integrated LED lighting, and automatic obstacle detection for enhanced safety.
2. Instruccions de seguretat
ADVERTIMENT: Improper installation or use can lead to serious injury or property damage. Always follow these safety guidelines.
- Ensure the garage door is balanced and in good working condition before installing the opener.
- Installation must be performed by qualified personnel or under the direct supervision of a professional.
- Do not allow children to play with the garage door opener or its controls. Keep remote controls out of reach of children.
- Keep hands and clothing clear of the garage door and opener mechanism when the door is in motion.
- Regularly inspect the garage door opener for signs of wear or damage. Do not operate if damaged.
- In case of power failure, use the emergency release to manually operate the door.
- The automatic obstacle detection system is a safety feature; however, always exercise caution.
3. Configuració i instal·lació
The Hormann ProMatic Series 4 kit requires assembly and careful installation. Refer to the detailed installation guide and wiring diagram included with your product for specific steps.
3.1. Contingut del paquet
Verifiqueu que tots els components siguin presents abans de començar la instal·lació:
- ProMatic Series 4 operator head
- FS 2 guide rail (2 pieces) - Total length 3200 mm

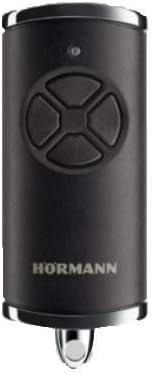

- HSE 4 BS BiSecur 868 MHz hand transmitter (matte black)
- Integrated BiSecur 868 MHz bidirectional receiver
- Emergency release from the inside (K button)
- Connection cable with European plug
- Universal sleeve for sectional doors and mounting hardware
- Installation guide with wiring diagram
3.2. Mounting the Operator Head and Rail
Assemble the two sections of the FS 2 guide rail. Securely mount the rail to the garage ceiling and the operator head to the header above the garage door. Ensure the rail is level and properly aligned with the center of the garage door. The universal sleeve and provided mounting hardware are for attaching the door to the operator's trolley.
3.3. Connexió elèctrica
Connect the operator to a 230 V - 240 V AC power supply using the provided connection cable with a European plug. Ensure the power supply is off during connection. The motor operates at 24 V DC. Refer to the wiring diagram in the installation guide for detailed electrical connections.
3.4. Programming the Hand Transmitter
The HSE 4 BS hand transmitter needs to be programmed to communicate with the integrated BiSecur receiver. Follow the specific programming instructions in your installation guide. This typically involves pressing a button on the operator head and then a button on the hand transmitter to establish a secure connection.
4. Instruccions de funcionament
The ProMatic Series 4 offers convenient and secure operation of your garage door.
4.1. Using the Hand Transmitter
Press the desired button on your HSE 4 BS hand transmitter to open or close the garage door. The BiSecur technology ensures a secure radio signal.
4.2. Smart Control (Optional)
The ProMatic Series 4 is Bluetooth compatible when combined with the optional HET-BLE receiver. This allows for control via a smartphone app, offering additional convenience and monitoring capabilities.
4.3. Key Features During Operation
- Soft Start and Stop: Ensures smooth and quiet operation, reducing wear on the door and opener.
- Integrated LED Garage Lighting: Provides 2 minutes of light after activation.
- Adjustable Partial Opening: Allows the door to open to a specific height for pedestrian access.
- Automatic Obstacle Detection: The door reverses if it encounters an obstacle, enhancing safety.
- Automatic Power Adjustment: Adapts to changing door conditions.
- Security Slide Lock: Provides better protection against forced entry.
5. Manteniment
Regular maintenance ensures the longevity and safe operation of your Hormann ProMatic Series 4 garage door opener.
- Inspecció mensual: Check the garage door balance, springs, cables, rollers, and hinges. Ensure all moving parts are lubricated as per the garage door manufacturer's recommendations.
- Opener Inspection: Inspect the operator head, rail, and mounting hardware for any signs of wear, damage, or loose connections.
- Prova d'inversió de seguretat: Place a 2x4 piece of wood flat on the floor in the path of the door. Close the door. The door should reverse upon contact. If it does not, adjust the force settings or contact service.
- Neteja: Keep the operator head and rail clean from dust and debris.
- Servei professional: It is recommended to have the garage door and opener professionally serviced annually.
6. Solució De Problemes
If you encounter issues with your garage door opener, refer to the following common problems and solutions. For more complex issues, consult the full technical manual or contact customer support.
| Problema | Causa possible | Solució |
|---|---|---|
| Opener does not respond to remote. | Dead battery in hand transmitter, transmitter out of range, or programming issue. | Replace battery, move closer to opener, or re-program transmitter (refer to Section 3.4). |
| Door opens/closes partially then reverses. | Obstacle in door path, force settings too low, or unbalanced door. | Clear obstruction, check door balance, or adjust force settings (consult full manual). |
| La porta no es tanca completament. | Travel limits need adjustment, or an obstruction is present. | Adjust travel limits (consult full manual) or clear obstruction. |
| Sorolls inusuals durant el funcionament. | Lack of lubrication, loose hardware, or worn components. | Lubricate moving parts, tighten hardware, or contact support for inspection. |
| Emergency release is difficult to operate. | Mechanism might be stiff or damaged. | Ensure the door is fully closed before attempting to use the emergency release. Do not force. Contact support if it remains difficult. |
7. Especificacions
| Característica | Detall |
|---|---|
| Número de model | 4512583 |
| Marca | Hormann |
| Amplada màxima de la porta | 5000 mm (for wooden gates up to 3500 mm) |
| Max. Door Leaf Surface Area | 11.25 m² (for wooden gates up to 9 m²) |
| Traction/Push Force | Fins a 600 N |
| Peak Force | Fins a 750 N |
| Velocitat d'obertura | Max. 14 cm/s |
| Motor | 24 V CC |
| Font d'alimentació | 230 V - 240 V AC |
| Consum d'energia | 0.2 kW |
| Potència en espera | < 1 W (ProMatic 4) |
| Material de l'habitatge | Plastic, galvanized steel base |
| Pes | 13.4 kg |
| Color | Negre |
| Muntatge obligatori | Sí |
8. Garantia i Suport
Hormann products are manufactured to high-quality standards. For specific warranty details, please refer to the documentation provided with your purchase. Generally, spare parts availability is guaranteed for 10 years.
If you require technical assistance, have questions about installation, or need to order spare parts, please contact Hormann customer support or your authorized dealer. Ensure you have your model number (4512583) and purchase details ready when contacting support.
For further information, visit the official Hormann website or consult the comprehensive technical manual.
