1. Introducció
The Trend Digital Level Box (Model DLB) is a compact and versatile tool designed for precise angle measurement and setting. It features a magnetic base for secure attachment to metallic surfaces, an LCD display for clear readings, and simple two-button operation. This manual provides essential information for the safe and effective use of your digital level box.
Imatge 1.1: Frontal view of the Trend Digital Level Box, displaying 0.0 degrees on its LCD screen.
2. Informació de seguretat
- Manipuleu sempre el dispositiu amb cura per evitar danys.
- Mantingueu el dispositiu allunyat de camps magnètics forts, ja que poden afectar-ne la precisió.
- No exposeu el dispositiu a temperatures o humitat extremes.
- Assegureu-vos que les piles estiguin inserides correctament d'acord amb les marques de polaritat.
- Traieu les piles si no heu d'utilitzar el dispositiu durant un període prolongat per evitar fuites.
3. Contingut del paquet
Verifiqueu que hi hagi tots els elements en desempaquetar:
- 1 x Trend Digital Level Box (DLB)
- 1 x bateria AAA (inclosa)
Image 3.1: The Digital Level Box shown with its included protective pouch.
4. Característiques del producte
The Trend Digital Level Box offers several key features for accurate and convenient angle measurement:
- Large Back-Lit LCD Screen: Clearly displays the current angle being measured. The screen automatically shuts off after 5 minutes of inactivity to conserve battery life.
- Accurate Surface Angles: Measures angles with an accuracy of ±0.2° and increments of 0.1°.
- Funcionament amb 2 botons: Simple ON/OFF and ZERO buttons for ease of use and calibration.
- Base magnètica: Strong magnets allow the device to securely attach to saw blades, tables, and fences for hands-free measurement.
- Mode relatiu: Measures the difference between two objects or surfaces.
- ABS Mode: Allows an angle to be checked and stored, then a second angle taken from that point.
Image 4.1: Diagram highlighting the main features of the Digital Level Box.
5. Configuració
5.1 Instal·lació de la bateria
- Localitzeu la tapa del compartiment de la bateria a la part posterior de la unitat.
- Feu lliscar o desenganxeu la coberta per obrir-la.
- Inseriu una pila AAA, assegurant-vos de la polaritat correcta (+/-) tal com s'indica a l'interior del compartiment.
- Col·loqueu la coberta del compartiment de la bateria amb seguretat.
5.2 Encès inicial
Premeu el botó ON/OFF botó per encendre el dispositiu. La pantalla LCD s'il·luminarà i mostrarà la lectura actual de l'angle.
6. Instruccions de funcionament
6.1 Encès/Apagat
- Premeu el botó ON/OFF button once to turn the unit on.
- Manteniu premut el botó ON/OFF button for approximately 3 seconds to turn the unit off.
- The unit will automatically power off after 5 minutes of inactivity to save battery life.
6.2 Zero Function (Calibration)
The ZERO function allows you to set a reference point for relative angle measurements or to calibrate the device on a known flat surface.
- Place the Digital Level Box on the surface you wish to use as your reference (e.g., a table saw bed, a workbench).
- Premeu el botó ZERO button. The display will show 0.0°, indicating that this surface is now your reference point.
- Any subsequent measurements will be relative to this zeroed position.
6.3 Lectura de la pantalla
- The LCD displays the angle in degrees (°).
- Arrow indicators on the display will show the direction to raise or lower the surface to achieve a level position.
- The display rotates automatically for easy viewing when the unit is inverted.
Image 6.1: The Digital Level Box measuring an angle on a surface.
7. Aplicacions
The Digital Level Box is ideal for various applications requiring precise angle measurement:
- Setting Saw Blades: Accurately set the angle of table saw blades, miter saw blades, and band saw blades.
- Adjusting Fences: Ensure fences on woodworking machinery are perfectly square or at a specific angle.
- General Leveling: Use for general leveling tasks on workbenches, machinery, or construction projects.
- Checking Bevel Cuts: Verify the angle of bevel cuts on various materials.
Image 7.1: Using the Digital Level Box to set a table saw blade angle.

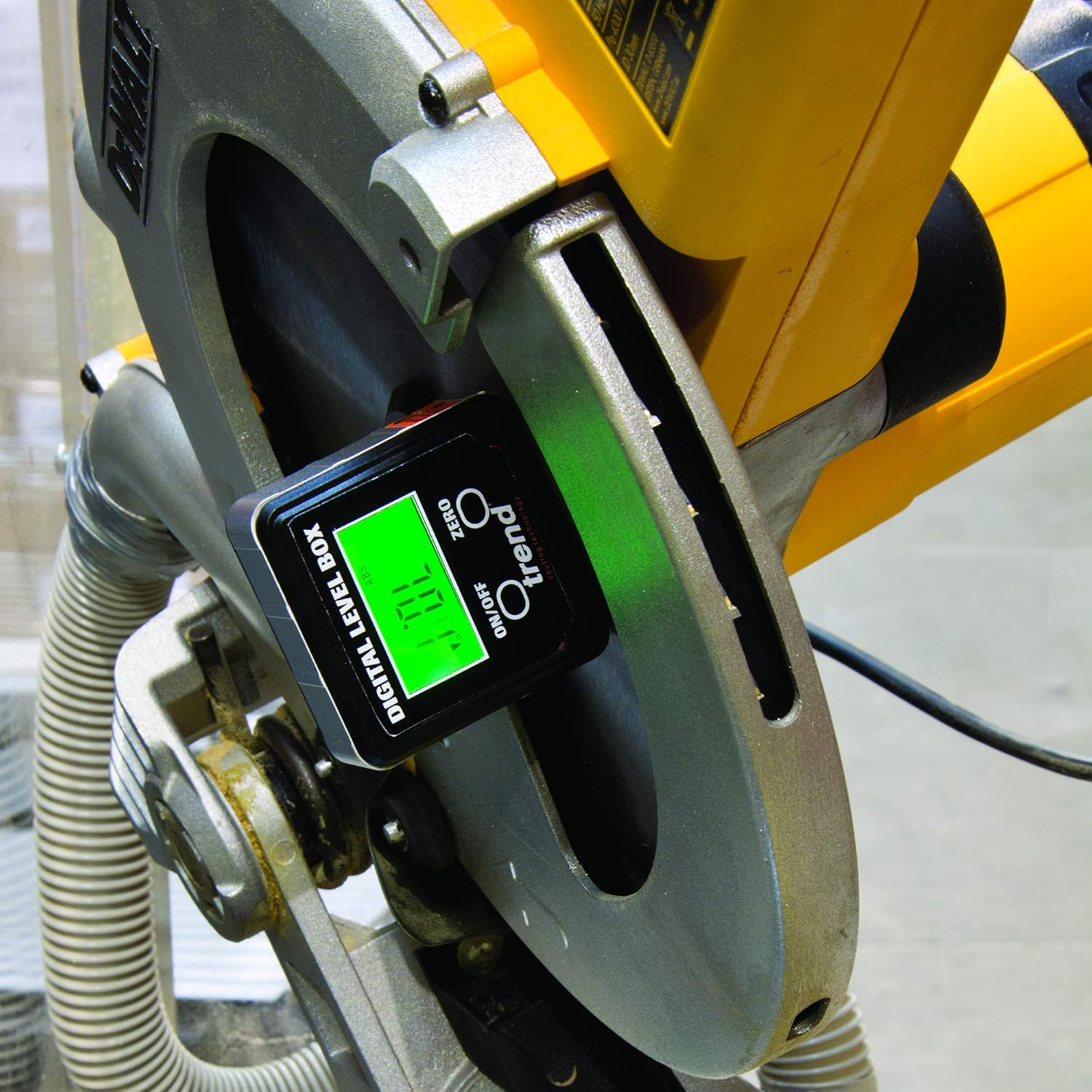

Image 7.2: Using the Digital Level Box to set a miter saw blade angle.
8. Cura i Manteniment
- Neteja: Netegeu el dispositiu amb un drap suau i sec. No utilitzeu productes de neteja abrasius ni dissolvents.
- Emmagatzematge: Store the Digital Level Box in its protective pouch in a dry, dust-free environment when not in use.
- Substitució de la bateria: Replace the AAA battery when the display becomes dim or the unit fails to power on.
- Base magnètica: Keep the magnetic base clean and free of debris to ensure a strong and stable attachment.
9. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no s'encén | Dead battery; Incorrect battery installation | Replace battery; Check battery polarity |
| Lectures inexactes | Needs calibration; Strong magnetic interference | Perform ZERO function on a known flat surface; Move away from strong magnetic fields |
| La pantalla és fosca | Bateria baixa | Substituïu la bateria |
10. Especificacions
| Especificació | Detall |
|---|---|
| Marca | TENDÈNCIA |
| Número de model | DLB |
| Material | Metall |
| Color | Negre |
| Dimensions del producte | 1.1"L x 1.1"W (59mm x 59mm x 28mm) |
| Pes de l'article | 6 unces (170 grams) |
| Precisió | ±0.2° |
| Increments | 0.1° |
| Font d'alimentació | 1 x bateria AAA (inclosa) |
| Apagat automàtic | 5 minuts |
11. Garantia
This product is covered by a one-year manufacturer's warranty. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use.
12. Suport
For further assistance, technical support, or warranty inquiries, please refer to the contact information provided with your product packaging or visit the official TREND weblloc.
