GREENCUT GGT650X-2 Petrol Brushcutter User Manual

1. Introducció

This manual provides essential information for the safe and effective operation, assembly, maintenance, and troubleshooting of your GREENCUT GGT650X-2 65cc 2-stroke petrol brushcutter. Please read these instructions carefully before using the equipment to ensure proper function and user safety. Keep this manual for future reference.

2. Producte acabatview

2.1. Components i característiques

The GREENCUT GGT650X-2 is a powerful and versatile brushcutter designed for various vegetation clearing tasks. It features a robust engine and multiple cutting attachments.

Figura 2.1: global view of the GREENCUT GGT650X-2 petrol brushcutter with its two main cutting attachments and safety harness.

• Motor: 65cc 2-stroke petrol engine, delivering 4.9 horsepower.
• Manillar: Ergonomic double-grip handlebar for enhanced stability and comfort.
• Sistema de tall: Tap'n'Go system for easy accessory replacement.
• Dipòsit de combustible: Capacitat de 1 litres per a un funcionament prolongat.
• Seguretat: Includes a reinforced and padded safety harness.

Figure 2.2: Key features of the GGT650X-2 brushcutter.

2.2. Accessoris inclosos

The GGT650X-2 comes with a variety of cutting attachments to suit different tasks:

Figure 2.3: Included accessories with the GGT650X-2 brushcutter.

• Nylon line head (semi-automatic)
• Aluminum multi-line head
• 2-tooth disc
• 3-tooth disc
• 8-tooth disc
• 40-tooth disc
• Reinforced and padded harness
• Kit d'eines bàsiques

Figure 2.4: 2-wire and 4-wire cutting heads for fine grass.

Figure 2.5: 2 and 3 point blades for tougher vegetation.

3. Instruccions de seguretat

Prioritzeu sempre la seguretat quan feu servir eines elèctriques. Si no seguiu aquestes instruccions, podeu patir lesions greus.

3.1. Pautes generals de seguretat

• Llegiu i enteneu tot el manual abans de l'operació.
• Keep children, bystanders, and pets at a safe distance (at least 15 meters) from the work area.
• Never operate the brushcutter under the influence of alcohol, drugs, or medication that may impair judgment.
• Inspect the work area for debris, rocks, or other objects that could be thrown by the cutting attachment. Remove them before starting.
• No utilitzeu en condicions humides o amb pluja.
• Ensure all guards and safety devices are properly installed and functioning before each use.
• Turn off the engine and disconnect the spark plug before performing any maintenance, cleaning, or when changing accessories.

3.2. Equip de protecció individual (EPI)

Always wear appropriate PPE when operating the brushcutter:

• Protecció ocular: Safety glasses or a face shield to protect against flying debris.
• Protecció auditiva: Protectors o taps per a les orelles per evitar danys auditius causats pel soroll del motor.
• Protecció de les mans: Durable work gloves to protect hands.
• Protecció dels peus: Sturdy, non-slip footwear, preferably with steel toes.
• Protecció corporal: Long pants and long-sleeved shirts to protect skin. Avoid loose clothing that could get caught in moving parts.
• Protecció del cap: A safety helmet is recommended, especially when working near overhead hazards.

4. Muntatge

The brushcutter requires some assembly before its first use. Follow these steps carefully.

4.1. Muntatge del manillar

1. Attach the double-grip handlebar to the main shaft using the provided clamps and bolts. Ensure it is securely fastened and positioned for comfortable operation.
2. Connect the throttle cable and other control wires to the handlebar assembly as per the diagrams in the full manual.

4.2. Guard and Cutting Attachment Installation

1. Mount the safety guard to the lower part of the shaft, ensuring it is firmly attached and provides adequate protection.
2. Select the desired cutting attachment (nylon line head or blade).
3. Install the cutting attachment onto the gearbox spindle, following the specific instructions for each type of attachment. Ensure all nuts and bolts are tightened securely.

4.3. Harness Attachment

1. Attach the reinforced and padded harness to the brushcutter's harness hook.
2. Adjust the harness straps to ensure a comfortable and balanced fit, distributing the weight evenly across your shoulders and back.

Figure 4.1: Key components and controls of the brushcutter.

5. Funcionament

Follow these steps for safe and efficient operation of your GREENCUT GGT650X-2 brushcutter.

5.1. Fuel Mixing

The GGT650X-2 uses a 2-stroke engine and requires a specific fuel mixture.

• Mix unleaded petrol (minimum 95 octane) with high-quality 2-stroke engine oil at the ratio specified in the full manual (typically 25:1 or 40:1, refer to engine specifications for exact ratio).
• Use a clean, approved fuel container for mixing.
• Agiteu bé la barreja abans d'omplir el dipòsit de combustible.
• Always refuel in a well-ventilated area with the engine off and cool. Avoid spilling fuel.

5.2. Arrencada del motor

1. Col·loqueu la desbrossadora sobre una superfície plana i estable.
2. Ensure the cutting attachment is clear of any obstructions.
3. Set the choke lever to the 'START' or 'CLOSED' position (if cold engine).
4. Premeu la bombeta d'encebament diverses vegades fins que el combustible sigui visible.
5. Estireu el cordó d'arrencada amb fermesa i constantment fins que el motor s'encengui (normalment unes quantes estirades).
6. Once the engine fires, move the choke lever to the 'RUN' or 'OPEN' position.
7. Estireu de nou el cordó d'arrencada fins que el motor arrenqui i funcioni suaument.
8. Deixeu que el motor s'escalfi uns instants abans d'actuar amb l'accelerador.

5.3. Aturar el motor

To stop the engine, release the throttle trigger and press the engine stop switch to the 'OFF' position.

5.4. Funcionament de la desbrossadora

Figure 5.1: Proper operation of the brushcutter.

• Always wear the safety harness and adjust it for balance.
• Maintain a firm grip on both handlebars.
• Walk slowly and deliberately, sweeping the cutting attachment across the vegetation.
• Avoid hitting hard objects, as this can damage the cutting attachment and gearbox.
• For dense vegetation, use a gradual cutting motion, working from top to bottom.
• Periodically check the cutting attachment for wear or damage. Replace if necessary.

6. Manteniment

Regular maintenance ensures the longevity and optimal performance of your brushcutter.

6.1. Controls periòdics

• Before each use, check for loose fasteners, damaged parts, or fuel leaks.
• Ensure the cutting attachment is sharp and free from damage.

6.2. Filtre d'aire

• Clean the air filter regularly (every 5-10 hours of operation, or more often in dusty conditions).
• Remove the air filter cover, take out the filter element, and clean it with warm soapy water. Rinse thoroughly and allow to dry completely before reinstallation.

6.3. Bugia

• Inspect the spark plug every 20-30 hours of operation.
• Clean any carbon deposits and adjust the electrode gap if necessary. Replace if worn or fouled.

6.4. Gearbox Lubrication

• The gearbox at the cutting head requires periodic lubrication. Refer to the full manual for the recommended lubricant type and frequency.

6.5. Emmagatzematge

• Before long-term storage, drain the fuel tank and run the engine until it stops to clear the carburetor.
• Clean the brushcutter thoroughly and store it in a dry, well-ventilated area, away from direct sunlight and heat sources.

7. Solució De Problemes

Aquesta secció tracta problemes comuns que podeu trobar amb la vostra desbrossadora.

8. Especificacions

Detailed technical specifications for the GREENCUT GGT650X-2 brushcutter:

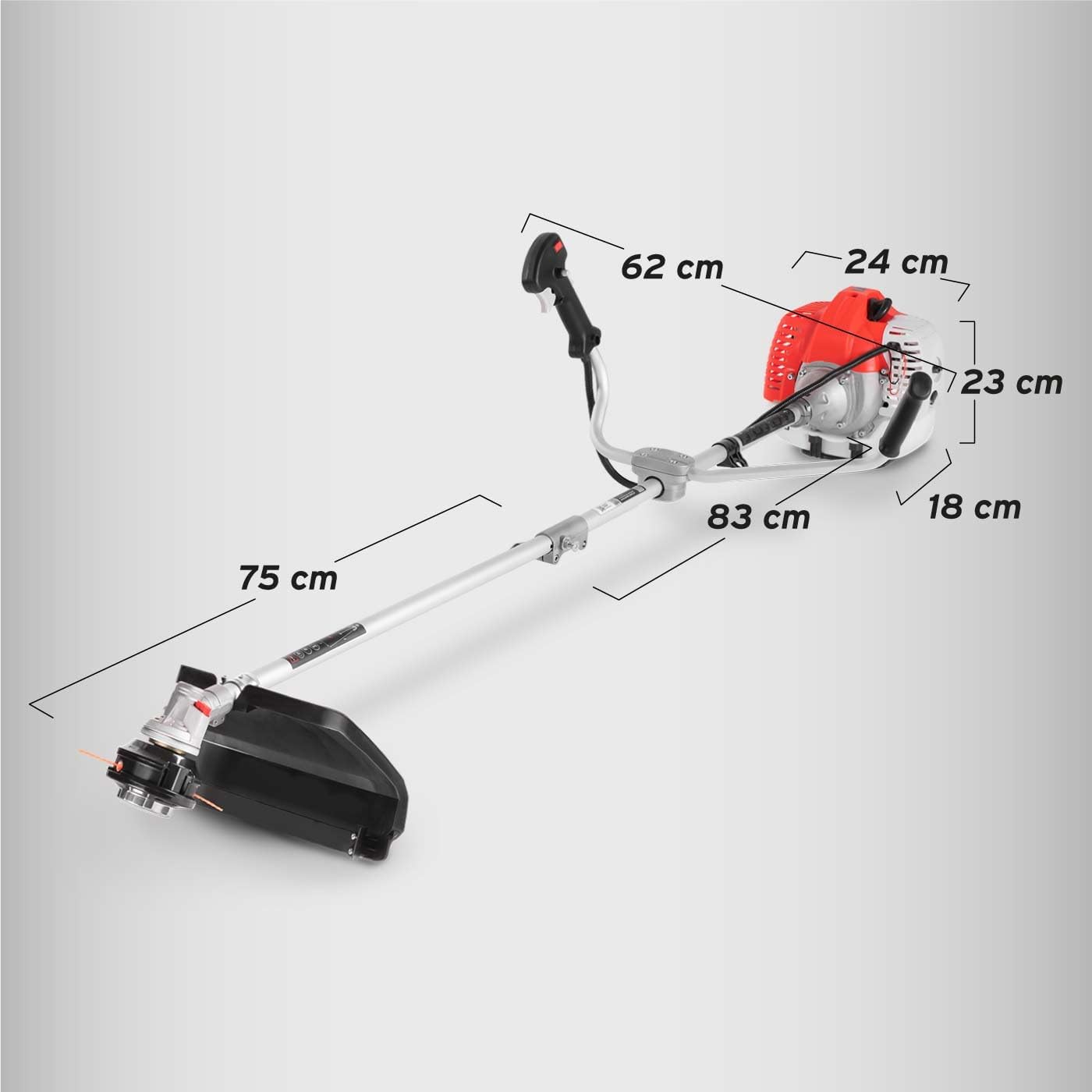

Figure 8.1: GREENCUT GGT650X-2 Dimensions.

9. Garantia i Suport

For warranty information, please refer to the documentation included with your purchase or contact GREENCUT customer service directly. Keep your proof of purchase for any warranty claims.

If you require technical assistance, spare parts, or have questions not covered in this manual, please contact the GREENCUT support team or your authorized dealer. Provide your product model number (GGT650) and serial number (if applicable) when seeking support.
