1. Introducció
This manual provides essential information for the safe and efficient operation of your Empava 24-inch Electric Single Wall Oven. Please read these instructions thoroughly before installation and use, and retain them for future reference. This appliance is designed to offer versatile cooking functions for various culinary needs.
2. Informació important de seguretat
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, burns, or injury. This section outlines critical safety guidelines.
- Seguretat elèctrica: Ensure the oven is properly grounded. Do not operate the oven with a damaged cord or plug. Disconnect power before servicing.
- Seguretat infantil: The oven features a control lockout function to prevent accidental operation by children. Keep children away from the oven during operation and when it is cooling down. The exterior of the oven remains cool to the touch due to triple-layer tempered glass with LOW-EMISSIVITY coating, but caution is still advised.
- Risc de cremades: Use oven mitts when removing items from the hot oven. Do not touch heating elements.
- Ús adequat: Use the oven only for its intended purpose of cooking food. Do not use it for heating a room or drying clothes.
- Materials inflamables: No emmagatzemeu materials inflamables dins o prop del forn.
- Neteja: Always allow the oven to cool before cleaning. Refer to the maintenance section for detailed cleaning instructions.
3. Configuració i instal·lació
Una instal·lació correcta és crucial per al funcionament segur i eficient del forn. Es recomana que la instal·lació la realitzi un tècnic qualificat.
3.1 Desembalatge del forn
Carefully remove all packaging materials, tape, and protective film from the oven. Inspect the oven for any shipping damage. Do not discard packaging until you are satisfied with the product.
3.2 Requisits d'ubicació
The Empava 24-inch Electric Single Wall Oven is designed for built-in installation. Ensure the cabinet opening meets the specified dimensions.

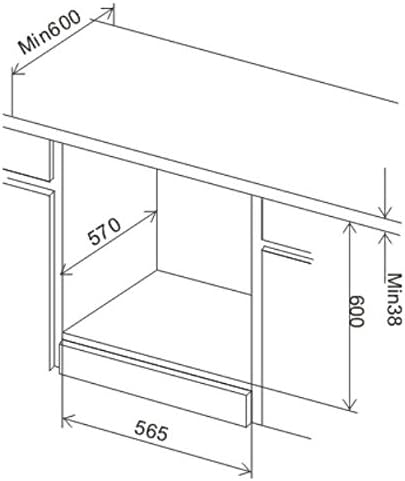

Imatge: Diagram showing the minimum cutout dimensions for installing the Empava 24-inch Electric Single Wall Oven. The diagram indicates a minimum width of 565mm, a minimum depth of 570mm, and a minimum height of 600mm for the cabinet opening.
Imatge: Detailed installation diagram for the Empava 24-inch Single Electric Wall Oven, illustrating oven dimensions (width 23.42 in / 595mm, depth 22.83 in / 580mm, height 23.6 in / 600mm) and recommended cabinet cutout dimensions (width 22.24 in / 565mm, depth 22.44 in / 570mm, height 23.23 in / 590mm).
3.3 Requisits elèctrics
The oven requires a 240 Volts/60Hz electrical supply and a 20 amps breaker. It is UL Certified and includes electrical hard wiring. Consult a qualified electrician for proper wiring and connection to ensure compliance with local codes.
3.4 Passos d'instal·lació
- Prepareu l'obertura de l'armari segons les dimensions especificades.
- Assegureu-vos que el subministrament elèctric estigui apagat a l'interruptor.
- Connect the oven's electrical wiring to the household electrical supply as per local electrical codes.
- Carefully slide the oven into the prepared cabinet opening.
- Secure the oven to the cabinet using the provided screws.
- Restore power and test the oven's functions.
4. Instruccions de funcionament
Your Empava oven features mechanical knob controls for easy selection of cooking functions and temperature settings.
4.1 Tauler de control acabatview
Imatge: Davant view of the Empava 24-inch Electric Single Wall Oven, highlighting the three mechanical control knobs for temperature, function, and timer settings. The oven interior with a rack is visible through the glass door.
The control panel consists of three main mechanical knobs:
- Pom esquerre: Temperature selection (e.g., 150°F to 450°F).
- Pom central: Cooking function selection (e.g., Off, Bake, Broil, Convection Roast, Keep Warm).
- Pom dret: Timer setting (e.g., 0 to 120 minutes).
Imatge: A hand adjusting one of the ergonomic mechanical knobs on the Empava 24-inch Electric Single Wall Oven, demonstrating ease of use.
4.2 funcions de cuina
The oven offers 6 versatile cooking functions:
Imatge: Graphic illustrating the six cooking functions of the Empava 24-inch Electric Single Wall Oven: Preheat, Keep Warm, Bake, Broil, Convection Roast, and Convection Broil, accompanied by images of various cooked dishes.
- Enfornar: Ideal for general baking, such as cakes, cookies, and casseroles.
- A la brasa: For grilling and browning the top surface of food.
- rostit per convecció: Circulates heated air for even roasting of meats and poultry.
- Broquet per convecció: Combines broiling with convection for faster, more even browning.
- Mantenir-se calent: Manté els aliments a la temperatura de servei sense necessitat de coure'ls més.
- Preescalfament: Quickly brings the oven to the desired temperature.
4.3 Using the Oven Racks
The oven features 5 rack positions, allowing flexibility for different dish sizes and cooking needs. A baking tray and rack are included.
Imatge: Interior view of the Empava 24-inch Electric Single Wall Oven, showing the five distinct rack positions for versatile cooking.
Imatge: The included baking tray and wire rack for the Empava 24-inch Electric Single Wall Oven, designed for various cooking applications.
For optimal cooking results, place food on the appropriate rack position. For example, use lower racks for roasting large items and middle racks for baking.
4.4 Cocció per convecció
The powerful convection system circulates heated air throughout the oven, ensuring fast preheating and uniform cooking by eliminating cold spots. This results in evenly baked and roasted dishes.
Imatge: Illustration of the convection fan inside the Empava 24-inch Electric Single Wall Oven, showing how heated air circulates for even cooking.
Imatge: Primer pla view of the interior of the Empava 24-inch Electric Single Wall Oven, showing the top heating elements and the convection fan at the back.
4.5 Llum del forn
The oven is equipped with a warm halogen lamp and an open view oven window, allowing you to monitor your food without opening the door, thus maintaining consistent oven temperature.
Imatge: Close-up of the warm halogen lamp inside the Empava 24-inch Electric Single Wall Oven, providing illumination for viewmenjant menjar.
5. Manteniment i Neteja
Regular cleaning and maintenance will ensure the longevity and optimal performance of your Empava oven.
5.1 Neteja general
The oven features an easy-to-clean stain and heat discoloration resistant surface enamel tank. For minimal cleanup, a quick wipe down at the end of each use cycle is recommended.
- Interior: Allow the oven to cool completely. Use a damp cloth with mild soap and water to wipe down the interior surfaces. For stubborn stains, use a non-abrasive oven cleaner as directed by the product manufacturer.
- Exterior: Clean the stainless steel exterior with a soft cloth and a non-abrasive stainless steel cleaner. Avoid harsh chemicals or abrasive pads that can scratch the surface.
- Porta del forn: Clean the glass door with a glass cleaner. Do not spray cleaner directly onto the door; apply it to a cloth first.
- Bastidors: Oven racks can be cleaned with warm soapy water or in a dishwasher.
Imatge: A person wearing blue gloves cleaning the interior of an oven with a sponge and cleaning solution.
5.2 Substitució de la llum del forn
If the oven light needs replacement, ensure the oven is cool and disconnected from power. Refer to the specific instructions in the full product manual for bulb type and replacement procedure.
6. Solució De Problemes
This section addresses common issues you might encounter with your oven. For problems not listed here, contact customer support.
| Problema | Causa possible | Solució |
|---|---|---|
| El forn no s'encén. | No hi ha subministrament elèctric; s'ha saltat l'interruptor. | Comproveu la connexió d'alimentació i l'interruptor. |
| El forn no escalfa correctament. | Temperatura incorrecta; la porta del forn no està completament tancada. | Verify temperature setting. Ensure door is fully closed. |
| Cocció desigual. | Improper rack position; overcrowding the oven. | Adjust rack position. Avoid placing too many items in the oven at once. |
| Control knobs are loose or markings fading. | Normal wear over time. | Poseu-vos en contacte amb l'atenció al client per obtenir peces de recanvi si cal. |
7. Especificacions del producte
| Característica | Detall |
|---|---|
| Marca | Empava |
| Número de model | 24WOB14 |
| Tipus | Forn elèctric de paret simple |
| Tipus d'instal·lació | Integrat |
| Capacitat | 2.3 peus cúbics |
| Dimensions del producte (L x A x A) | 23.43 polzades x 20.67 polzades x 23.43 polzades |
| Cutout Dimensions (L x D x H) | 22.24 polzades x 22.44 polzades x 23.23 polzades |
| Voltage | 240 volts (CA) |
| Wattage | 2800 watts |
| Ampera requerida | 20 amps breaker |
| Modes de cuina | Convection, Bake, Broil, Roast, Keep Warm, Preheat |
| Característiques especials | Triple layer tempered glass with LOW-EMISSIVITY coating, Open view oven window, Easy-to-clean enamel interior |
| Components inclosos | UL Certified Electrical Hard Wiring |
8. Garantia i Suport
8.1 Garantia del fabricant
This Empava oven comes with a 2-Year US Based Manufacturer WarrantyAquesta garantia cobreix els defectes de materials i de fabricació en condicions d'ús normal. Si us plau, conserveu el comprovant de compra per a reclamacions de garantia.
For detailed warranty terms and conditions, please refer to the warranty card included with your product or visit the official Empava weblloc.
8.2 Atenció al client
If you have any questions, require technical assistance, or need to make a warranty claim, please contact Empava customer support. Contact information can typically be found on the Empava weblloc web o a la documentació que s'inclou amb l'aparell.
També podeu visitar el Empava Store on Amazon per obtenir més informació sobre el producte i recursos d'assistència.
