1. Introducció
Thank you for choosing the Exquisit LTO 1207-15 Top-Loading Washing Machine. This appliance is designed for efficient and convenient laundry care. This manual provides essential information for the safe installation, correct operation, and proper maintenance of your washing machine. Please read it thoroughly before using the appliance and keep it for future reference.
Producte acabatview
The Exquisit LTO 1207-15 is a white, top-loading washing machine with a 7 kg dry laundry capacity. Its freestanding design allows for flexible placement. Key features include:
- Energy efficiency class A+++ for reduced energy consumption.
- Maximum spin speed of 1200 revolutions per minute (rpm) for effective water extraction.
- Integrated display with remaining time indicator for convenience.
- Equipped with a movable frame for easier positioning.

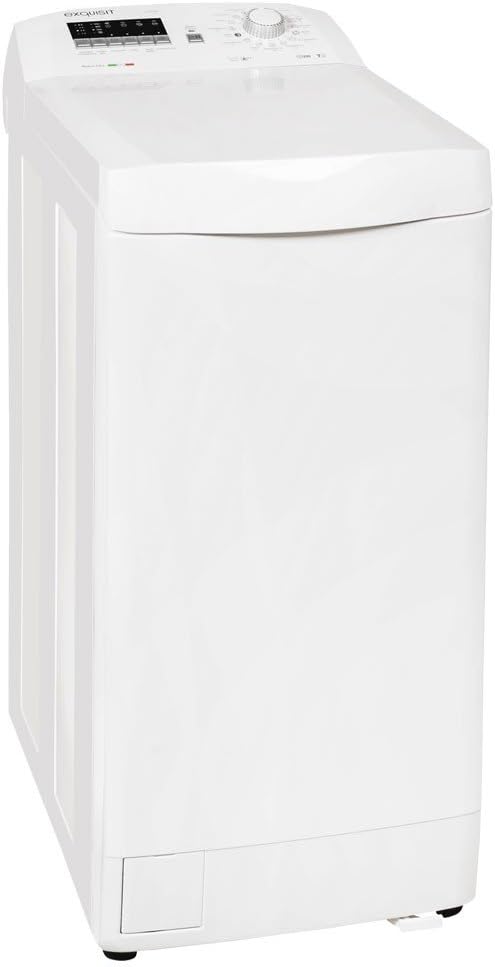

Figura 1: Davant view of the Exquisit LTO 1207-15 Top-Loading Washing Machine. This image shows the appliance in its upright position, highlighting the top-loading lid and the control panel at the top.
2. Informació de seguretat
Always observe the following safety precautions to prevent damage to the appliance or injury to yourself and others.
- Assegureu-vos que l'aparell estigui ben connectat a terra.
- No permeteu que els nens juguin amb la rentadora ni la facin funcionar.
- No forceu mai la porta durant el funcionament.
- Desendolleu l'aparell abans de netejar-lo o fer-ne cap manteniment.
- No instal·leu l'aparell en zones exposades a la llum solar directa ni a temperatures extremes.
- Mantingueu els materials inflamables allunyats de l'aparell.
3. Configuració i instal·lació
Desembalatge
Carefully remove all packaging materials. Inspect the appliance for any damage incurred during transit. Retain packaging materials for potential future transport.
Col·locació
Place the washing machine on a firm, level surface. The appliance features adjustable leveling feet to ensure stability. Use a spirit level to verify the machine is perfectly balanced. The movable frame facilitates easier positioning.
Connexió d'aigua i electricitat
- Connect the water inlet hose to a cold water tap with a 3/4-inch thread. Ensure connections are tight to prevent leaks.
- Position the drain hose into a standpipe or over the edge of a sink, ensuring it is securely fastened to prevent dislodgement during operation.
- Connecteu el cable d'alimentació a una presa de corrent de 240 V amb connexió a terra. No utilitzeu cables d'extensió ni adaptadors.

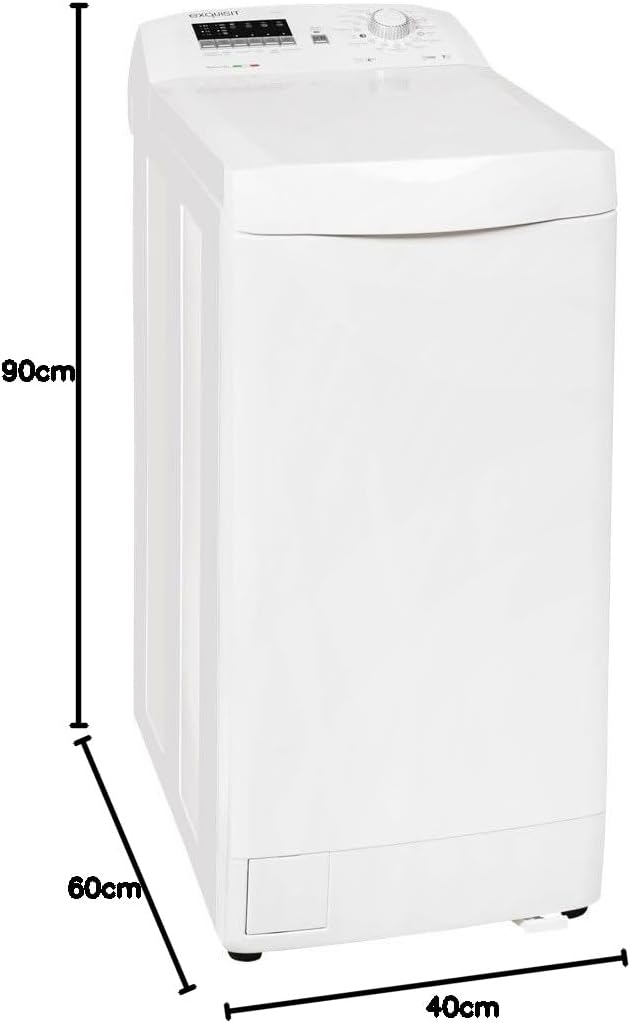

Figura 2: Dimensional diagram of the Exquisit LTO 1207-15 Washing Machine. This image illustrates the height (90 cm), width (40 cm), and depth (60 cm) of the appliance, crucial for installation planning.
4. Tauler de control acabatview
The control panel allows you to select wash programs and adjust settings.
Figura 3: Primer pla view of the Exquisit LTO 1207-15 control panel. This image displays the program selector knob, the digital display, and various function buttons for setting wash parameters.
Elements clau:
- Botó selector de programes: S'utilitza per triar entre 14 programes de rentat disponibles.
- Pantalla digital: Mostra el temps restant, les opcions seleccionades i els codis d'error.
- Botó d'inici/pausa: Initiates or temporarily stops a wash cycle.
- Botó d'inici retardat: Allows setting a delayed start time (1, 2, 4, or 8 hours).
- Botó de temperatura: Adjusts wash water temperature.
- Botó de velocitat de gir: Modifica la velocitat de gir.
5. Instruccions de funcionament
Carregant la bugaderia
Open the top lid and the drum door. Load laundry loosely into the drum, ensuring not to exceed the 7 kg capacity. Close the drum door and the top lid securely.
Afegint detergent
Add the appropriate amount of detergent and fabric softener to the dispenser compartments. Refer to your detergent packaging for recommended dosages.
Selecció de programes
Turn the Program Selector Knob to choose the desired wash program. The display will show the default settings for the selected program.
Ajust de la configuració
Use the dedicated buttons to adjust temperature, spin speed, or activate the delay start function if needed. The delay start function allows you to postpone the wash cycle by 1, 2, 4, or 8 hours.
Inici del cicle de rentat
Premeu el botó Inici/Pausa per iniciar el cicle de rentat. La pantalla mostrarà el temps restant.
Ending the Wash Cycle
Once the cycle is complete, the machine will signal with an audible alert. The display will indicate the end of the cycle. Open the lid and remove your laundry.
6. Programes de rentat
The Exquisit LTO 1207-15 offers 14 different wash programs to suit various fabric types and soil levels. Refer to the program chart below for a general overview. Specific program details can be found in the full manual included with your appliance.
| Programa | Descripció | Ús típic |
|---|---|---|
| Cotó | Per a articles de cotó resistents. | Towels, bed linen, underwear. |
| Sintètics | Per a teixits sintètics o mixtos. | Shirts, blouses, synthetic blends. |
| Delicats | Rentat suau per a peces delicades. | Lingerie, silk, lace. |
| Llana | Special program for woolens. | Wool sweaters, scarves. |
| Rentat ràpid | Short cycle for lightly soiled items. | Lightly worn clothes. |
| Esbandida i centrifuga | Additional rinse and spin cycle. | Hand-washed items, extra rinsing. |
| Només gira | Escorre l'aigua i centrifuga la roba. | Removing excess water. |
7. Manteniment i Neteja
Un manteniment regular garanteix un rendiment òptim i allarga la vida útil de la rentadora.
Neteja de l'exterior
Netegeu les superfícies exteriors amb un damp tela. No utilitzeu netejadors abrasius ni dissolvents.
Neteja del dispensador de detergent
Remove the detergent dispenser drawer and rinse it under running water to remove any residue. Clean the dispenser housing with a brush if necessary.
Neteja del filtre de drenatge
Locate the drain filter, usually at the bottom front of the machine. Place a shallow container underneath to catch any water. Unscrew the filter slowly, allow water to drain, and remove any lint or debris. Clean the filter and screw it back in securely.
Neteja de bidons
Periodically run a maintenance wash cycle (e.g., a hot cotton cycle without laundry and with a descaling agent or washing machine cleaner) to prevent odor and residue buildup.
8. Solució De Problemes
Abans de contactar amb el servei d'atenció al client, consulteu els següents problemes comuns i les seves solucions:
| Problema | Causa possible | Solució |
|---|---|---|
| La màquina no arrenca | Sense corrent, porta no tancada, programa no seleccionat. | Check power supply, ensure door is latched, select a program. |
| L'aigua no omple | Water tap closed, inlet hose kinked, water pressure low. | Open water tap, straighten hose, check water supply. |
| L'aigua no drena | Drain hose kinked, drain filter blocked, pump fault. | Straighten drain hose, clean drain filter. |
| Vibració / soroll excessius | Màquina no anivellada, cargols de transport no retirats, càrrega desigual. | Ajusteu els peus anivelladors, traieu els cargols de transport i redistribuïu la roba. |
| Residus de detergent | Too much detergent, dispenser blocked. | Reduce detergent, clean dispenser. |
9. Especificacions
Technical data for the Exquisit LTO 1207-15 Washing Machine:
- Model: LTO 1207-15
- Marca: Exquisit
- Tipus: Rentadora de càrrega superior
- Capacitat: 7 quilos
- Classe d'eficiència energètica: A+++ (Scale A+++ to D)
- Consum anual d'energia: 158 kWh/year (based on 220 standard wash cycles)
- Consum anual d'aigua: 10340 Liters/year (based on 220 standard wash cycles)
- Velocitat màxima de gir: 1200 rpm
- Noise Level (Wash): 60 dB
- Nivell de soroll (gir): 78 dB
- Dimensions (A x A x P): 90 cm x 40 cm x 60 cm
- Pes: 66 quilos
- Voltage: 240 Volts
- Potència: 2100 W
- Nombre de cicles estàndard: 15
- Característiques especials: Programmable, Adjustable Leveling Feet
Figura 4: Energy label for the Exquisit LTO 1207-15, indicating its A+++ energy efficiency rating, annual energy and water consumption, capacity, and noise levels.
10. Garantia i Suport
This Exquisit LTO 1207-15 washing machine comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details.
For technical support, spare parts, or service inquiries, please contact your retailer or the authorized Exquisit service center. Ensure you have your model number (LTO 1207-15) and purchase date available when contacting support.
Fabricant: Exquisit
