ADT UNIMODE 4520-235 User Manual

1. Introducció

The ADT UNIMODE 4520-235 is a critical component designed for integration into fire safety and alarm systems. This module facilitates reliable communication and connection within the system, ensuring proper functionality and safety. This manual provides detailed instructions for the correct installation, operation, maintenance, and troubleshooting of the 4520-235 module to ensure optimal performance and longevity.

Si us plau, llegiu aquest manual detingudament abans d'intentar qualsevol instal·lació o operació. Conserveu aquest manual per a futures consultes.

2. Configuració i instal·lació

Proper installation of the ADT UNIMODE 4520-235 is essential for its correct operation and system integrity. Ensure all power to the system is disconnected before beginning installation.

2.1. Component Overview

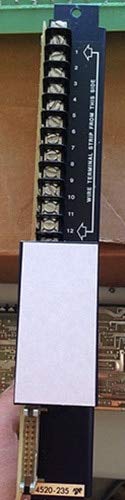

Figure 2.1: ADT UNIMODE 4520-235 Module
This image displays the ADT UNIMODE 4520-235 module. It features a black terminal strip with 12 numbered screw terminals for wire connections, clearly labeled 'WIRE TERMINAL STRIP FROM THIS SIDE'. Below the terminal strip, a white label area is visible, and at the very bottom, a multi-pin connector is present, with the model number '4520-235' printed near it. The module is designed for integration into a larger system, likely for fire alarm or security applications.

2.2. Instruccions de cablejat

The 4520-235 module features a 12-position wire terminal strip for connecting to the system's wiring. Follow these steps for secure and correct wiring:

1. Desconnexió d'alimentació: Before handling the module or any wiring, ensure that all power to the fire alarm control panel and associated circuits is completely disconnected. Verify with a multimeter.
2. Identificar terminals: Refer to the module's terminal strip, which is clearly numbered from 1 to 12. The label "WIRE TERMINAL STRIP FROM THIS SIDE" indicates the correct orientation for wire insertion.
3. Prepareu els cables: Strip approximately 1/4 inch (6mm) of insulation from the end of each wire to be connected. Ensure no stray strands are present.
4. Inserir cables: Loosen the screw terminal for the desired connection point. Insert the prepared wire fully into the terminal opening.
5. Connexions segures: Tighten the screw terminal firmly to secure the wire. Gently tug on the wire to confirm it is held securely and cannot be easily pulled out.
6. Repeat for All Connections: Connect all necessary wires according to your system's wiring diagram, ensuring each wire is connected to its designated terminal.
7. Connector principal: Once all terminal strip wiring is complete, carefully align and insert the multi-pin connector at the bottom of the 4520-235 module into its corresponding receptacle on the main control board or backplane. Ensure it is fully seated.
8. Restauració d'energia: After all connections are verified and secure, restore power to the system. Observe the system for proper initialization and operation.

Caution: Incorrect wiring can lead to system malfunction, damage to the module, or pose a safety hazard. Always consult the complete system wiring diagrams provided by ADT or a qualified technician.

3. Funcionament

The ADT UNIMODE 4520-235 operates automatically as an integral part of the larger fire alarm or security system. Once correctly installed and powered, it functions to facilitate signal transmission and component integration without requiring direct user interaction for its primary function.

Its operational status is typically monitored through the main control panel of the system. Any operational anomalies or fault conditions related to the module will usually be indicated on the main panel's display or through system diagnostics.

4. Manteniment

The ADT UNIMODE 4520-235 module is designed for reliable, low-maintenance operation. Regular maintenance should focus on ensuring its physical integrity and the security of its connections.

• Inspecció visual (anual): Periodically inspect the module for any signs of physical damage, corrosion, or loose connections. Ensure the terminal screws are tight and wires are securely seated.
• Neteja: If dust accumulation is observed, gently clean the module's exterior with a soft, dry cloth. Do not use liquid cleaners or solvents. Ensure power is off before cleaning.
• Prova del sistema: Adhere to the recommended testing schedule for your overall fire alarm or security system. The 4520-235 module's functionality is verified as part of these routine system tests.
• Servei professional: Any internal issues or suspected malfunctions should be addressed by a qualified ADT service technician or authorized professional. Do not attempt to open or repair the module yourself.

5. Solució De Problemes

This section provides guidance for common issues that may arise. For complex problems, contact professional support.

6. Especificacions

Technical specifications for the ADT UNIMODE 4520-235 module:

7. Garantia i Suport

For specific warranty information regarding your ADT UNIMODE 4520-235 module, please refer to the original purchase documentation or contact your ADT service provider. Warranty terms typically cover defects in materials and workmanship under normal use.

Suport tècnic: If you encounter issues that cannot be resolved using the troubleshooting guide, or require professional assistance with installation, maintenance, or repair, please contact ADT customer support or your authorized ADT service technician.

ADT Customer Service: Please refer to the contact information provided with your ADT service agreement or visit the official ADT weblloc web per a les opcions d'assistència més actuals.
