Linksys EA7300 Max-Stream AC1750 Dual-Band Wi-Fi Router User Manual

1. Introducció

This manual provides detailed instructions for the setup, operation, and maintenance of your Linksys EA7300 Max-Stream AC1750 Dual-Band Wi-Fi Router. The EA7300 is designed to deliver high-speed Wi-Fi connectivity, supporting multiple devices simultaneously with its dual-band capabilities and MU-MIMO technology. Please read this manual thoroughly before beginning installation.

Figura 1: Frontal view of the Linksys EA7300 Router, showcasinel seu disseny elegant i les seves tres antenes externes.

2. Contingut del paquet

Comproveu que el vostre paquet contingui els elements següents:

• Linksys EA7300 Max-Stream AC1750 Dual-Band Wi-Fi Router
• Guia d'instal·lació ràpida
• Adaptador d'alimentació
• Cable Ethernet

3. Producte acabatview

3.1 Router Ports and Buttons

Familiarize yourself with the ports and buttons located on the rear panel of your router:

Figure 2: Rear panel of the Linksys EA7300 Router, displaying the USB 3.0 port, Reset button, Internet port, four Gigabit Ethernet LAN ports, and the 12VDC Power port.

• Port USB 3.0: Connect USB storage devices for network sharing.
• Botó de restabliment: Press and hold to restore factory default settings.
• Internet Port (Yellow): Connecteu el vostre mòdem a aquest port mitjançant un cable Ethernet.
• Ethernet Ports 1-4 (Blue): Connect wired devices such as computers, gaming consoles, or network printers.
• 12VDC Power Port: Connecteu l'adaptador d'alimentació inclòs.
• Botó d'encesa: Encén o apaga el router.

3.2 Característiques clau

• Wi-Fi de doble banda: Operates on both 2.4 GHz and 5 GHz frequencies for optimized performance.
• AC1750 Speed: Delivers combined Wi-Fi speeds up to 1.7 Gbps (450 Mbps on 2.4 GHz + 1300 Mbps on 5 GHz).
• Tecnologia MU-MIMO: Provides Wi-Fi to multiple devices simultaneously at the same high speed, reducing buffering.
• Tecnologia de formació de feix: Focuses Wi-Fi signals directly to connected devices for stronger, more reliable connections.
• Ports Gigabit Ethernet: Quatre ports LAN i un port WAN per a connexions per cable d'alta velocitat.
• Port USB 3.0: Per connectar dispositius d'emmagatzematge externs.
• Linksys Smart Wi-Fi App: Enables easy setup and remote management of your home network.

4. Instruccions de configuració

Follow these steps to set up your Linksys EA7300 router:

1. Desempaquetar el router: Remove the router and all accessories from the packaging.
2. Posicioneu el router: Place the router in a central location in your home, away from obstructions and other electronic devices that may cause interference.
3. Connectar-se al mòdem:
   • Desconnecta l'alimentació del mòdem.
   • Connect one end of the included Ethernet cable to the yellow Internet port on the back of your EA7300 router.
   • Connecteu l'altre extrem del cable Ethernet al port Ethernet del mòdem.
   • Reconnect the power to your modem and wait for it to fully boot up (usually indicated by stable lights).
4. Engegueu el router: Connect the power adapter to the 12VDC Power port on the router and plug the other end into a power outlet. Press the Power button if necessary. Wait for the router's indicator lights to stabilize.
5. Connectar un dispositiu:
   • Connexió per cable: Connect an Ethernet cable from one of the blue Ethernet LAN ports on the router to your computer's Ethernet port.
   • Connexió sense fil: On your Wi-Fi enabled device (laptop, smartphone, tablet), search for available Wi-Fi networks. Select the default Linksys network name (SSID) and connect. The default Wi-Fi password can be found on the bottom of your router or in the Quick Install Guide.
6. Inicia l'assistent de configuració: Obre a web browser (Internet Explorer 8+, Safari 5+, Firefox 8, Google Chrome) on the connected device. The Linksys Smart Wi-Fi setup page should automatically appear. Follow the on-screen instructions to complete the setup, including creating a new Wi-Fi name and password, and setting up an administrator password for the router.
7. Linksys App Setup (Optional but Recommended): Download the Linksys Smart Wi-Fi App from your device's app store. Use the app to complete the setup and manage your network.

5. Instruccions de funcionament

5.1 Connexió de dispositius

The EA7300 router provides Wi-Fi coverage up to 1,500 square feet, supporting over 10 wireless devices simultaneously.

Figure 3: Illustration of the Linksys EA7300 providing dual-band Wi-Fi coverage throughout a typical home environment.

Per connectar dispositius:

• Dispositius sense fil: Cerca your custom Wi-Fi network name (SSID) and enter your password.
• Dispositius amb cable: Use an Ethernet cable to connect devices to the blue LAN ports on the router.

5.2 Utilizing Dual-Band and MU-MIMO

The router's dual-band functionality allows for efficient allocation of network traffic, while MU-MIMO ensures multiple devices receive dedicated high-speed connections.

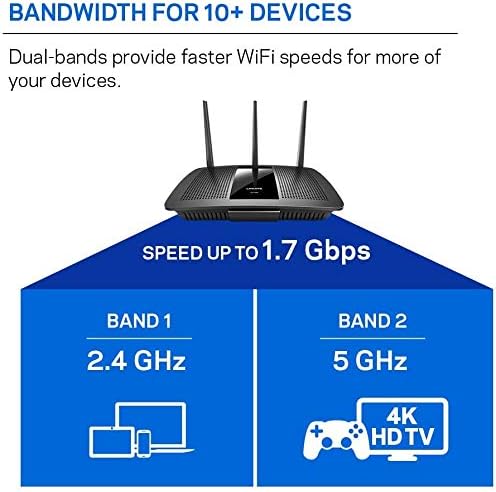

Figure 4: Visual representation of the router's dual-band capabilities, allocating 2.4 GHz for general use and 5 GHz for high-bandwidth activities like 4K HD TV.

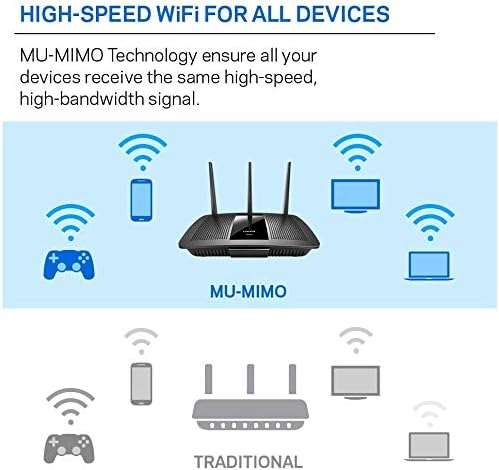

Figure 5: Comparison illustrating how MU-MIMO technology provides simultaneous, dedicated high-speed connections to multiple devices, unlike traditional Wi-Fi.

This technology is particularly beneficial for activities like 4K HD streaming and online gaming, ensuring a smooth experience without buffering.

5.3 Linksys Smart Wi-Fi App

The Linksys Smart Wi-Fi App provides a convenient way to manage your router settings from anywhere. Features include:

• Network setup and management
• Guest access control
• Device prioritization (QoS)
• Controls parentals

Figure 6: A user interacting with the Linksys Smart Wi-Fi App on a smartphone, demonstrating device prioritization settings.

6. Especificacions

7. Manteniment

Per garantir un rendiment òptim i una llarga durada del vostre encaminador:

• Actualitzacions de firmware: Regularly check for and install firmware updates through the Linksys Smart Wi-Fi interface or app. Updates often include performance improvements and security enhancements.
• Neteja física: Keep the router free from dust. Use a soft, dry cloth to clean the exterior. Ensure ventilation openings are not blocked.
• Reiniciar periòdicament: Restarting your router every few weeks can help clear its memory and resolve minor network issues. Unplug the power adapter, wait 10 seconds, then plug it back in.
• Col·locació segura: Ensure the router is placed on a stable surface and is not exposed to extreme temperatures or moisture.

8. Solució De Problemes

If you encounter issues with your Linksys EA7300 router, consider the following troubleshooting steps:

8.1 Sense connexió a Internet

• Comproveu els cables: Assegureu-vos que tots els cables Ethernet estiguin connectats correctament al router i al mòdem.
• Reinicieu els dispositius: Power cycle your modem first, wait for it to fully boot, then power cycle your router. Wait a few minutes, then restart your computer or device.
• Estat del mòdem: Verify that your modem is receiving an internet signal from your Internet Service Provider (ISP). Check the modem's indicator lights or contact your ISP.
• Llums del router: Check the Internet status light on your router. If it's not solid, there might be an issue with the connection to the modem or ISP.

8.2 Slow Wi-Fi Speed or Dropped Connections

• Col·locació del router: Ensure the router is centrally located and not obstructed. Avoid placing it near large metal objects or appliances that emit electromagnetic interference (e.g., microwaves, cordless phones).
• Interferència: Other Wi-Fi networks or devices can cause interference. Try changing your Wi-Fi channel in the router settings.
• Firmware: Assegureu-vos que el firmware del vostre encaminador estigui actualitzat.
• Device Overload: Too many devices actively streaming or downloading can impact performance. Consider using the Linksys Smart Wi-Fi App to prioritize critical devices.
• Separate Wi-Fi Bands: If you experience issues with specific devices, try separating the 2.4 GHz and 5 GHz networks into distinct SSIDs (network names) in your router settings. Connect devices to the appropriate band (5 GHz for faster, closer connections; 2.4 GHz for wider range).

8.3 No puc accedir a la configuració del router

• Adreça IP correcta: Ensure you are typing the correct router IP address (usually 192.168.1.1) into your web navegador.
• Connexió per cable: Try connecting your computer directly to the router with an Ethernet cable.
• Browser Issues: Prova una altra web browser or clear your browser's cache and cookies.
• Restableix l'encaminador: As a last resort, perform a factory reset by pressing and holding the Reset button on the back of the router for 10 seconds. Note that this will erase all custom settings, and you will need to reconfigure the router.

9. Garantia i Suport

The Linksys EA7300 Max-Stream AC1750 Dual-Band Wi-Fi Router comes with an 18-month warranty. For technical support, warranty claims, or additional assistance, please visit the official Linksys support weblloc web o poseu-vos en contacte amb el servei d'atenció al client. Conserveu el rebut de compra per validar la garantia.
