1. Introducció
Thank you for choosing the Senso ActivBuds S-230 Wireless Bluetooth Noise Cancelling Headphones. These headphones are designed to provide high-fidelity audio and a secure, comfortable fit for an active lifestyle. This manual provides essential information on how to set up, operate, maintain, and troubleshoot your device.
Image 1.1: Senso ActivBuds S-230 Wireless Bluetooth Noise Cancelling Headphones.
2. Què hi ha a la caixa
Si us plau, comproveu el contingut del paquet per assegurar-vos que hi hagi tots els elements:
- Senso ActivBuds S-230 Bluetooth Headphones
- Maleta de transport
- Short Micro USB Charging Cable
- 3 Sets of Ear Tips (Small, Medium, Large)
- Clip de gestió de cables
- Manual d'usuari
- Dual Port USB Car Charger (Bonus Item)
- 3ft Charging Cable for Apple (Lightning connector) and Android (Micro USB connector) Devices (Bonus Item)

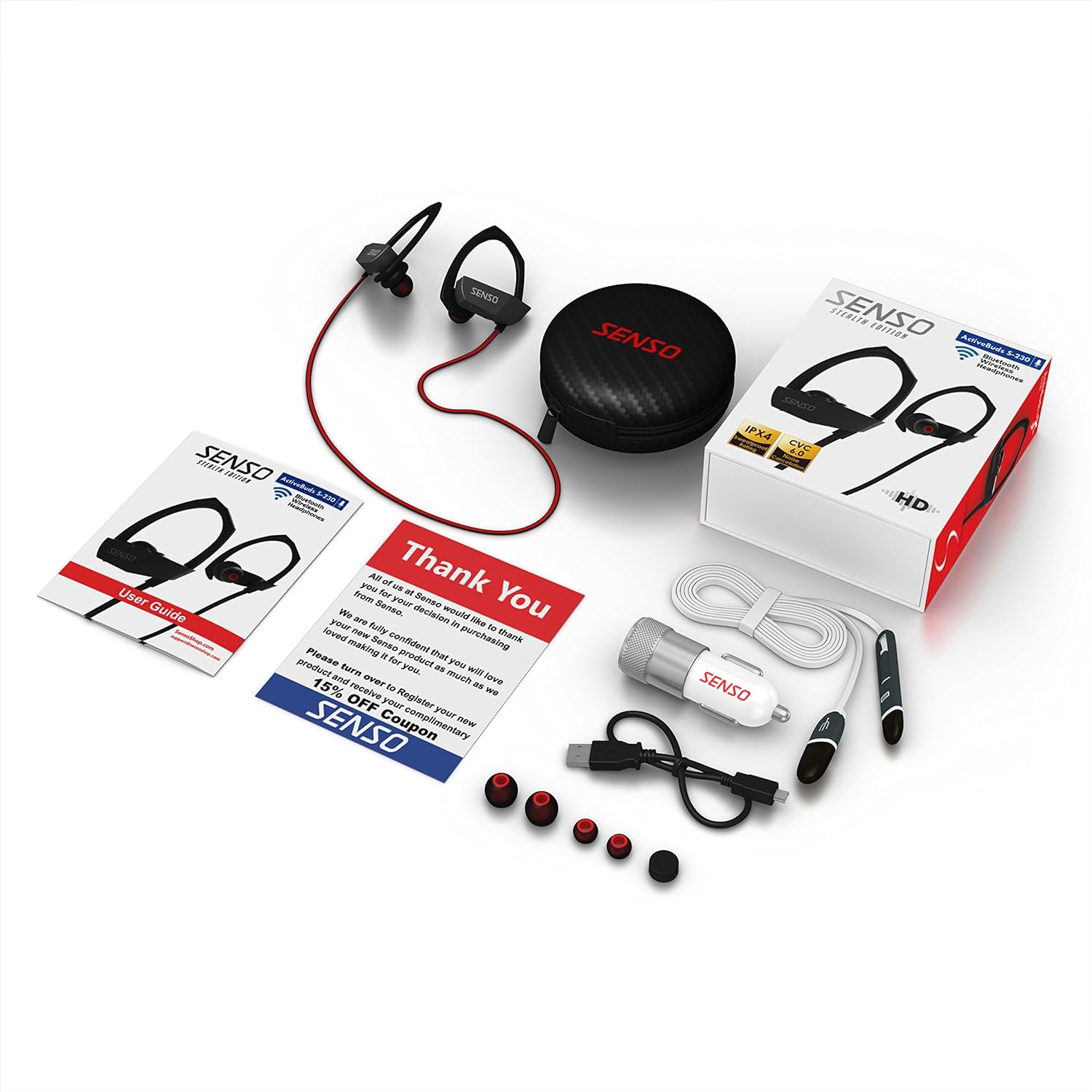

Image 2.1: All items included in the Senso ActivBuds S-230 package.
3. Configuració
3.1 Càrrega dels auriculars
- Connect the short Micro USB charging cable to the charging port on the headphones.
- Connect the other end of the cable to a USB power source (e.g., computer USB port, wall adapter, or the included car charger).
- The LED indicator on the headphones will illuminate during charging.
- Charging typically takes approximately 1.5 hours. The LED indicator will change or turn off once charging is complete.
Assegureu-vos que els auriculars estiguin completament carregats abans del primer ús per a una durada òptima de la bateria.
3.2 Emparellament amb un dispositiu Bluetooth
- Assegureu-vos que els auriculars estiguin apagats.
- Press and hold the Multi-function button (usually the center button on the control panel) for approximately 5-7 seconds until the LED indicator flashes red and blue alternately. This indicates pairing mode.
- On your Bluetooth-enabled device (smartphone, tablet, computer), go to the Bluetooth settings and enable Bluetooth.
- Cerca available devices. You should see "Senso ActivBuds S-230" or a similar name appear in the list.
- Select the headphones from the list to connect. If prompted for a password, enter "0000".
- Once successfully paired, the LED indicator on the headphones will flash blue slowly, and you may hear an audible confirmation.
Els auriculars intentaran tornar a connectar-se automàticament amb l'últim dispositiu emparellat quan s'encenguin.
3.3 Adjusting for a Secure Fit
The ActivBuds S-230 feature an in-ear design with secure over-ear hooks for stability during activity. Experiment with the three included sizes of ear tips (Small, Medium, Large) to find the most comfortable and secure fit that also provides optimal sound isolation.
- Introduïu suaument l'auricular al canal auditiu.
- Position the over-ear hook comfortably around the back of your ear.
- Adjust the cable management clip to secure the cable behind your neck, preventing it from bouncing during movement.
Image 3.1: Proper fit and use of the cable management clip.
4. Instruccions de funcionament
4.1 Encès/Apagat
- Encès: Press and hold the Multi-function button for approximately 3 seconds until the LED flashes blue and you hear an audible prompt.
- Apagar: Press and hold the Multi-function button for approximately 3 seconds until the LED flashes red and you hear an audible prompt.
4.2 Control de reproducció de música
Image 4.1: Control panel on the Senso ActivBuds S-230.
- Reproduir/pausa: Premeu el botó multifunció una vegada.
- Pista següent: Premeu i manteniu premut el botó de pujar el volum (+).
- Pista anterior: Premeu i manteniu premut el botó per baixar el volum (-).
- Pujar el volum: Press the Volume Up (+) button briefly.
- Baixar el volum: Press the Volume Down (-) button briefly.
4.3 Gestió de trucades
- Respondre/Finalitzar la trucada: Premeu el botó multifunció una vegada.
- Rebutja la trucada: Press and hold the Multi-function button for approximately 2 seconds.
- Torna a marcar l'últim número: Premeu dues vegades el botó multifunció.
4.4 Connecting to Two Devices Simultaneously
The ActivBuds S-230 support connecting to two Bluetooth devices at once. Follow these steps:
- Emparelleu els auriculars amb el primer dispositiu tal com es descriu a la secció 3.2.
- Turn off the Bluetooth function on the first device.
- Put the headphones back into pairing mode (red and blue flashing LED).
- Vincula els auriculars amb el segon dispositiu.
- Once the second device is paired, re-enable Bluetooth on the first device. The headphones should automatically connect to both devices.
5. Manteniment
5.1 Neteja
- Regularly clean the ear tips with a soft, dry cloth. For deeper cleaning, remove the ear tips and wash them with mild soap and water, ensuring they are completely dry before reattaching.
- Wipe the headphone body and cable with a soft, slightly damp tela. Eviteu utilitzar productes químics o materials abrasius.
- Assegureu-vos que el port de càrrega estigui lliure de pols i deixalles.
5.2 Emmagatzematge
- When not in use, store the headphones in the provided carrying case to protect them from dust, moisture, and physical damage.
- Store in a cool, dry place, away from extreme temperatures.
5.3 Cura de la bateria
- Avoid fully discharging the battery frequently. Charge the headphones when the low battery indicator appears.
- If storing for an extended period, charge the headphones to about 50% every few months to preserve battery health.
6. Solució De Problemes
If you encounter issues with your Senso ActivBuds S-230, please refer to the following common problems and solutions:
| Problema | Possible solució |
|---|---|
| Els auriculars no s'engeguen. | Assegureu-vos que els auriculars estiguin completament carregats. Connecteu-los a una font d'alimentació i torneu-ho a provar. |
| No es pot emparellar amb un dispositiu Bluetooth. |
|
| Sense so o so baix. |
|
| Intermittent connection or static. |
|
| El micròfon no funciona. |
|
7. Especificacions
Technical specifications for the Senso ActivBuds S-230:
| Característica | Especificació |
|---|---|
| Nom del model | ActivBuds S-230 |
| Especificació de Bluetooth | 4.1+EDR |
| abast sense fils | Fins a 30 peus (10 metres) |
| Classificació de resistència a l'aigua | IPX4 (resistent a la suor) |
| Reducció de soroll | CVC6.0 |
| Tipus de bateria | Polímer d'ions de liti de 85 mAh |
| Port de càrrega | Micro USB |
| Temps de càrrega | Aproximadament 1.5 hores |
| Temps de reproducció | Fins a 8 hores |
| Temps d'espera | Fins a 240 hores |
| Resposta de freqüència | 20 - 22kHz |
| Pes de l'article | Aproximadament 0.001 unces (0.02 grams) |
| Dimensions del producte | 1.93 x 0.51 x 1.85 polzades |
| Característiques especials | Integrated Microphone, Noise Cancellation |
8. Garantia i Suport
8.1 Informació de la garantia
The Senso ActivBuds S-230 headphones come with a 1-year limited warranty from the date of purchase. This warranty covers manufacturing defects. Additionally, a 30-day hassle-free return policy is offered. Please retain your proof of purchase for warranty claims.
8.2 Atenció al client
For any questions, technical assistance, or warranty claims, please contact Senso customer support. Refer to the contact information provided on the product packaging or the official Senso weblloc web per obtenir els canals de suport més actualitzats.
