The STEGO 03500.0-01 is an enclosure receptacle designed for industrial and scientific applications. It is rated for 16A and 250VAC, making it suitable for various electrical systems. This product is part of the SD 035 Series and is ROHS compliant, ensuring adherence to environmental standards. It functions as a plug/receptacle component within electrical enclosures.

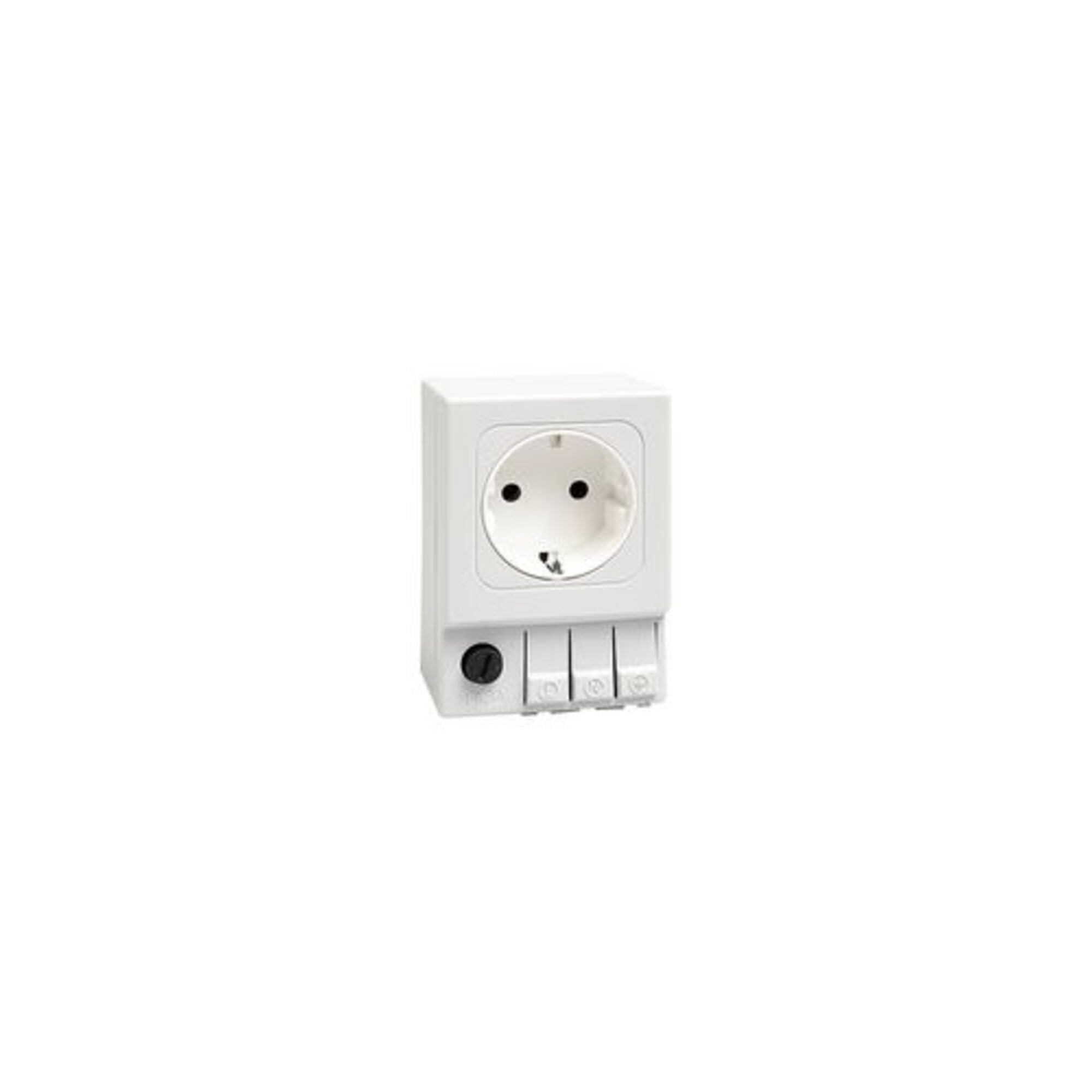

Figure 1: STEGO 03500.0-01 Enclosure Receptacle. This image displays a white rectangular enclosure receptacle with a single European-style outlet at the top and three small switches or terminals positioned along the bottom edge.
Configuració i instal·lació
Proper installation of the STEGO 03500.0-01 Enclosure Receptacle is crucial for safe and efficient operation. It is recommended that installation be performed by a qualified electrician or trained personnel in accordance with all local and national electrical codes.
Precaucions de seguretat:
- Ensure power is disconnected at the main circuit breaker before beginning any installation work.
- Comproveu el voltage and current ratings of the receptacle match the requirements of your application (250V AC, 16A).
- Utilitzeu l'equip de protecció individual (EPI) adequat, com ara guants aïllants i ulleres de seguretat.
- No instal·lar en mullat o damp ubicacions tret que estiguin específicament classificades per a aquests entorns.
Passos d'instal·lació:
- Identify the designated mounting location within the electrical enclosure.
- Securely mount the receptacle using appropriate fasteners. Ensure it is firmly attached to prevent movement.
- Connect the electrical wiring to the designated terminals. Pay close attention to line, neutral, and ground connections as per standard wiring practices. Refer to any specific wiring diagrams provided with the product packaging.
- Comproveu dues vegades que totes les connexions estiguin ben ajustades i que la polaritat sigui correcta.
- Once installation is complete, carefully restore power and test the receptacle's functionality.
Instruccions de funcionament
The STEGO 03500.0-01 Enclosure Receptacle is designed for straightforward operation once correctly installed.
- Dispositius de connexió: Insert the plug of the device you wish to power into the receptacle. Ensure the plug is fully seated.
- Font d'alimentació: The receptacle provides a 250V AC, 16A power supply. Ensure any connected devices do not exceed these ratings to prevent overload.
- Switches/Terminals: The three small switches or terminals at the bottom of the unit may control specific functions or provide additional connection points depending on the exact configuration. Consult your system's wiring diagram for their specific purpose.
- Desconnexió de dispositius: To disconnect a device, firmly grasp the plug and pull it straight out from the receptacle. Do not pull by the cord.
Manteniment
Regular maintenance helps ensure the longevity and safe operation of your STEGO 03500.0-01 Enclosure Receptacle.
- Neteja: Periodically clean the exterior of the receptacle with a dry, lint-free cloth. Do not use abrasive cleaners or solvents. Ensure power is off before cleaning.
- Inspecció: Regularly inspect the receptacle for any signs of damage, such as cracks, discoloration, or loose connections. Check for any unusual odors or sounds during operation.
- Integritat de la connexió: Periodically check the tightness of all electrical connections. Loose connections can lead to overheating and potential hazards.
- Condicions ambientals: Assegureu-vos que l'entorn de funcionament es mantingui dins dels rangs de temperatura i humitat especificats per evitar el desgast prematur o avaries.
If any damage or malfunction is observed, disconnect power immediately and arrange for inspection and repair by a qualified professional.
Resolució de problemes
This section provides basic troubleshooting steps for common issues. For complex problems, contact qualified service personnel.
| Problema | Causa possible | Solució |
|---|---|---|
| No power from receptacle |
|
|
| Sobreescalfament o olor de cremada |
|
|
Especificacions
| Atribut | Valor |
|---|---|
| Marca | STEGO |
| Número de model | 03500.0-01 |
| Voltage Classificació | 250 V AC |
| Valoració actual | 16A |
| Gamma de productes | Sèrie SD 035 |
| Compleix RoHS | Sí |
| Categoria | Electrical Products, Plug/Receptacle |
| Dimensions del producte | 2 x 3 x 2 polzades; 8 unces |
| Data de primera disponibilitat | 4 de juliol de 2023 |
Garantia i Suport
For specific warranty information regarding the STEGO 03500.0-01 Enclosure Receptacle, please refer to the documentation included with your purchase or contact STEGO directly. General return policies may apply as per the retailer's terms.
For technical support, product inquiries, or to report issues, please visit the official STEGO weblloc web o poseu-vos en contacte amb el seu departament d'atenció al client. També podeu visitar el STEGO Store on Amazon per a més informació.
