1. Introducció
The Jebao FA-3000 Submersible Fountain Pump is designed for various water garden applications including hydroponics, aquaponics, waterfalls, and fish ponds. It features energy-efficient magnetic drive technology and a fixed ceramic shaft rotor for quiet and durable operation. This versatile pump is suitable for creating dynamic water displays and circulating water in filtration systems.
2. Instruccions de seguretat
- Always ensure the pump is completely submerged in water when operating. Running the pump dry can cause damage.
- No connecteu a cap voltage other than that specified on the pump's label (120V, 60Hz).
- No bombeu líquids inflamables.
- The maximum operation depth is 1.5 meters (approximately 4.9 feet).
- If the power cord is damaged, the appliance should be discarded. Do not attempt to repair.
- The pump is not intended for use by young children or individuals without supervision.
- Always disconnect the pump from the electrical outlet before cleaning, maintenance, or handling.
3. Contingut del paquet
Verifiqueu que tots els elements siguin presents al paquet:
- Jebao FA-3000 Submersible Fountain Pump
- Multiple outlet adapters for various hose sizes
- Manual d'instruccions
Figure 1: Jebao FA-3000 Submersible Fountain Pump and accessories.
4. Configuració
- Choose an Adapter: Select the appropriate outlet adapter for your tubing size. The pump comes with multiple adapters to fit various hose diameters. Screw the chosen adapter onto the pump's outlet.
- Connexió de tubs: Attach your flexible tubing securely to the selected adapter. Ensure a tight fit to prevent leaks.
- Col·locació: Place the pump in the desired location within your water feature. The pump is equipped with suction cups on its base to secure it to a smooth surface, such as the bottom or side of a pond or fountain basin. Ensure the pump is fully submerged in water.
- Ajustar el cabal: The pump features an adjustable flow control dial. Rotate the dial to increase or decrease the water flow as needed for your specific application.
- Connexió d'alimentació: Route the power cord to a grounded electrical outlet. Ensure the cord is not kinked or damaged.
Figure 2: Pump with various hose adapters for flexible tubing connections.

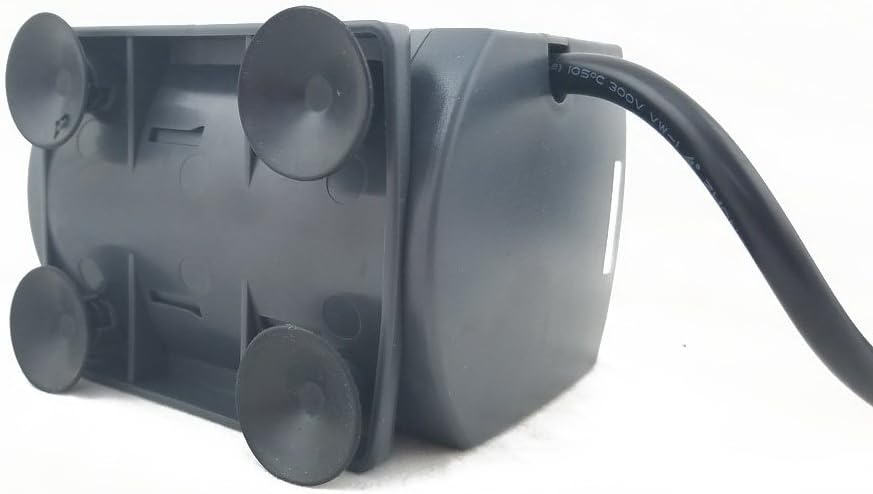

Figure 3: Suction cups on the pump's base for stable installation.
Figure 4: Adjustable flow control dial on the side of the pump.
5. Instruccions de funcionament
Once the pump is properly installed and submerged, plug the power cord into a grounded electrical outlet. The pump will begin operating immediately. Adjust the flow rate as desired using the control dial.
To stop operation, simply unplug the pump from the electrical outlet.
6. Manteniment i neteja
The Jebao submersible pumps do not require lubrication or special maintenance. However, regular cleaning is essential for the longevity of the pump and the cleanliness of the water. It is recommended to clean the pump every 2 weeks.
- Traieu la bomba: Disconnect the pump from the electrical outlet and remove it from the water feature.
- Traieu el filtre: Pull off the filter cover. A slim object may be necessary to pry it off if it's tightly sealed.
- Remove the gland: Place your fingernail underneath the small lip located on the narrow side of the gland and pull it out.
- Remove the rotor: Once the gland is removed, carefully remove the rotor. The rotor is held in place by a magnet; gently insert a fingernail or other slim object underneath the plastic blade and lift it out.
- Netegeu les peces: Once completely disassembled, clean all parts with soap and warm water. Use a cotton swab or bottle brush to clean inside the pump's cavity and remove any buildup. For added disinfecting or hard water removal, clean the pump with white vinegar.
- Torneu a muntar: Once the parts are clean and well-rinsed, reassemble the pump in reverse order: a) Install the rotor, b) Install the gland, c) Install the filter cover.
Notes importants:
- Cleaning frequency depends on the conditions under which the pump is used.
- Periodically change water to prevent it from becoming stagnant or forming microorganisms.
- Do not allow the pump to freeze in winter. Remove the pump from a pond or fountain and store it in a frost-free place.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La bomba no funciona | Clogged impeller/rotor, power circuit issue | Clean the pump and impeller. Check the power circuit. |
| No or poor performance | Clogged discharge hose, foreign matter in impeller, low water level | Clean hose. Remove foreign matter from impeller. Add sufficient water. |
| Soroll anormal | Impeller clogged, air in the pump housing | Clean the impeller assembly. Remove air by tilting the pump. |
| La bomba no s'atura | Alimentació contínua | Desendolleu la bomba de la font d'alimentació. |
8. Especificacions
- Model: FA-3000
- Marca: Jebao
- Cabal màxim: 720 GPH (galons per hora)
- Capçalera màxima: 9.2 peus
- Potència: 55W
- Voltage: 120 V, 60 Hz, 0.9 A
- Dimensions (L x A x A): 8 x 6 x 5 polzades
- Pes de l'article: 3 lliures
- Font d'alimentació: Elèctric amb cable
- Estil: Submergible
- Tipus de rotor: Fixed ceramic shaft
- Tipus de conducció: Oil-free magnetic drive
- UPC: 651046601357
Figure 5: Jebao FA-3000 product packaging with specifications.
9. Garantia i assistència
This product comes with a one-year warranty covering defects in materials or workmanship. The warranty is not valid if the pump is improperly used, neglected, or lacks maintenance.
If the pump fails due to a manufacturing fault within the warranty period, it will be replaced free of charge. This warranty excludes the filter and rotor, which may require annual replacement due to normal wear and tear.
For support or warranty claims, please contact Jebao customer service.
