The YARDMAX YS0552 5 Ton Electric Log Splitter is designed for efficient and simple log splitting. This high-powered, yet lightweight and maneuverable electric log splitter provides the necessary force for various log splitting tasks, offering a clean and convenient operation.
Figura 1: global view of the YARDMAX YS0552 Electric Log Splitter, showcasing its orange frame, grey splitting mechanism, and integrated stand with wheels.
Característiques clau
- Powerful 5-Ton RAM Force: Provides sufficient power for effective log splitting.
- Included Stand and Log Tray: Enhances user comfort and efficiency by raising the working height and providing a convenient area for split logs.
- Two-Handed Operation: Designed for enhanced operator safety.
- Capacitat del registre: Accommodates logs up to 20.5 inches in length and 10 inches in diameter.
- Short Cylinder Cycle Time: Features a rapid 16-second cycle time for quick operation.
- Stroke Limiter: Allows adjustment of the ram's return stroke for shorter logs, improving efficiency.
Muntatge i muntatge
The YARDMAX YS0552 log splitter requires some assembly before first use. It is recommended to have assistance during assembly due to the weight of certain components, particularly when attaching the stand.
- Desembalatge: Traieu amb cura tots els components de l'embalatge. Inspeccioneu-ho per veure si hi ha danys durant l'enviament.
- Muntatge de l'estand: Attach the metal stand components to the main log splitter unit. Ensure all bolts are securely fastened. Some users have noted that aligning bolt holes can be challenging and may require minor adjustments or the use of straps to pull components into place.
- Log Tray Installation: Secure the log tray to the designated area on the splitter.
- Bleed Screw: Locate and open the hydraulic bleed screw before operation. This is crucial for proper hydraulic system function and must be closed after use for transport or storage.
- Connexió d'alimentació: Connect the log splitter to a suitable power outlet. Ensure the extension cord, if used, is of appropriate gauge (e.g., 12-gauge for 15-amp engine) to prevent power loss or overheating.
Figura 2: posterior view of the log splitter, illustrating the sturdy metal stand and wheels for portability. The stand elevates the splitter to a comfortable working height.
Instruccions de funcionament
Always wear appropriate personal protective equipment (PPE) including safety glasses, gloves, and sturdy footwear when operating the log splitter.
- Preparació: Ensure the log splitter is on a stable, level surface. Open the hydraulic bleed screw.
- Col·locació del registre: Place a log onto the splitting bed, ensuring it is centered against the wedge. The log capacity is 20.5 inches in length and 10 inches in diameter. Logs should be cut straight to prevent sliding.
- Two-Handed Operation: To initiate the splitting action, simultaneously engage both control levers. This two-handed design is a safety feature to keep hands away from the splitting wedge.
- Divisió: The ram will extend, pushing the log against the wedge. The cycle time is approximately 16 seconds.
- Ram Return: Release the control levers to allow the ram to return to its starting position.
- Stroke Limiter (Optional): For shorter logs, adjust the stroke limiter to reduce the ram's return distance, speeding up the process.
- Repetiu: Continue splitting logs as needed.

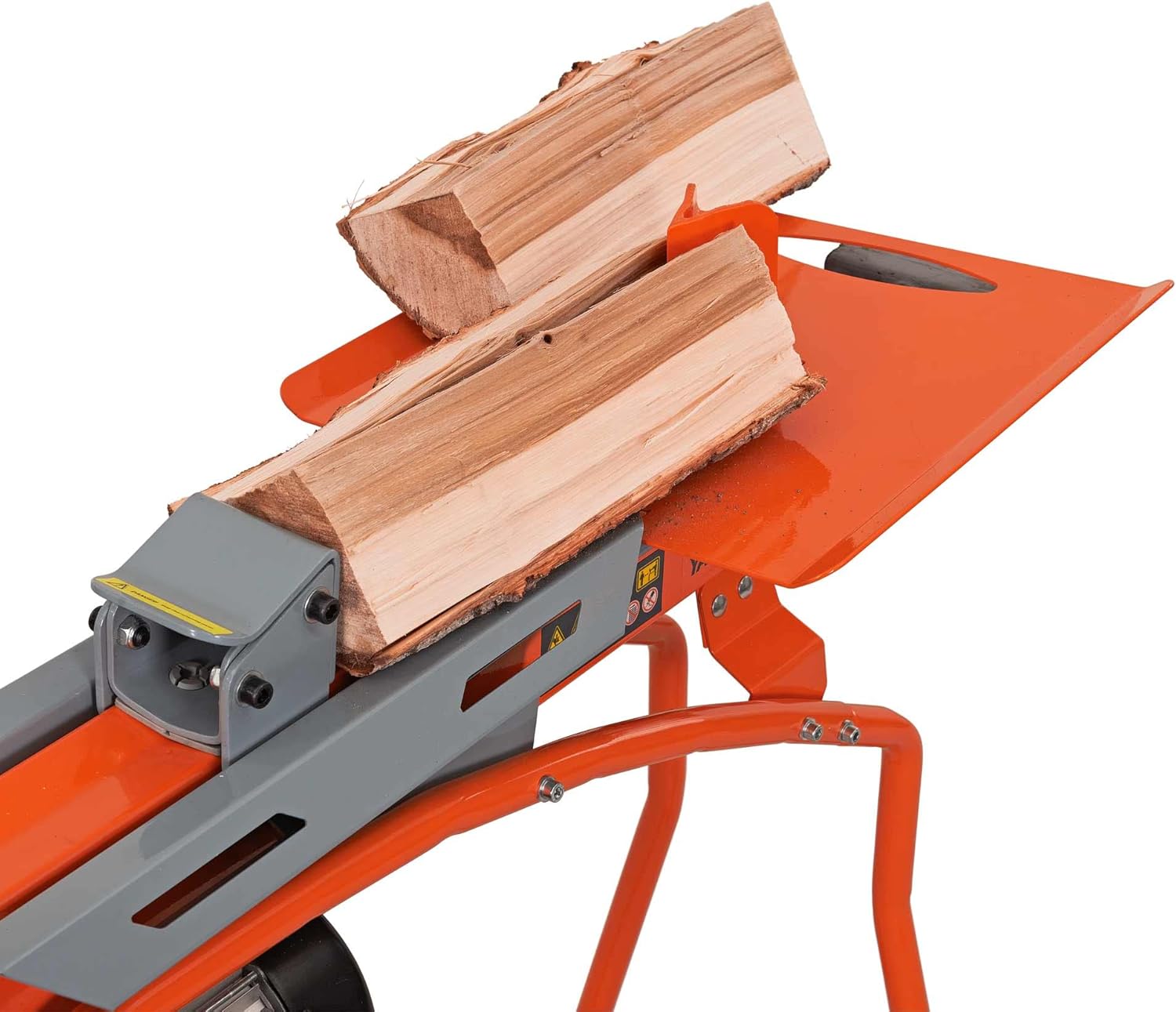

Figure 3: A log being split by the machine, demonstrating the wedge and ram mechanism in action. The log tray is visible, designed to catch split pieces.
Video 1: Official YARDMAX demonstration of the YS0552 Electric Log Splitter in operation, highlighting its ease of use and efficiency in splitting various log sizes.
Manteniment
Regular maintenance ensures the longevity and safe operation of your log splitter.
- Comprovació del fluid hidràulic: Periodically check the hydraulic fluid level. If a minor leak is observed (as noted by some users), topping off the fluid once at the start of the splitting season may be sufficient. Refer to the full user manual for specific fluid type and capacity.
- Neteja: After each use, clean wood debris from the splitting bed, ram, and motor area.
- Inspecció: Inspeccioneu regularment tots els cargols, femelles i peces mòbils per comprovar si estan ben ajustades i desgastades. Estrenyeu qualsevol element de fixació solt.
- Emmagatzematge: When not in use, store the log splitter in a dry, protected area. Close the hydraulic bleed screw before moving or storing the unit.
Resolució de problemes
Aquesta secció tracta els problemes habituals que podeu trobar amb el vostre tallador de llenya.
| Problema | Causa possible | Solució |
|---|---|---|
| Log splitter not operating. | No power, hydraulic bleed screw closed, or safety levers not engaged simultaneously. | Check power connection. Open hydraulic bleed screw. Ensure both control levers are pressed at the same time. |
| Ram not extending fully or with reduced force. | Low hydraulic fluid, air in the hydraulic system, or log exceeding capacity. | Check and top off hydraulic fluid. Ensure bleed screw is open during operation. Do not attempt to split logs larger than specified capacity. |
| Difficulty during assembly (e.g., aligning holes). | Manufacturing tolerances or component weight. | Seek assistance for assembly. Use clamps or straps to temporarily align components if needed. |
| Fuita de fluid hidràulic. | Loose fittings or worn seals. | Check all hydraulic connections for tightness. If persistent, consult the full user manual or contact YARDMAX customer support. |
For more detailed troubleshooting, refer to the complete User Manual available for download.
Especificacions
- Fabricant: YARDMAX
- Número de peça: YS0552
- Pes de l'article: Approximately 1 pound (Note: This seems to be a placeholder or incorrect value from the source data, actual weight of log splitter is significantly higher).
- Dimensions del paquet: 40 x 8 x 5 polzades
- Número de model de l'article: YS0552
- Quantitat de paquet d'articles: 1
- Sistema de mesura: US
- Batteries Included/Required: No
- Data de primera disponibilitat: 31 d'agost de 2016
Garantia i Suport
YARDMAX products are known for their quality craftsmanship and metal parts. While specific warranty details are not provided in the immediate product description, YARDMAX typically offers a 2-Year Limited Warranty on their equipment. For precise warranty terms, service, or technical support, please refer to the official YARDMAX weblloc web o el manual d'usuari complet.
Additional support documents, including the full User Manual and Installation Manual, are available in PDF format. It is highly recommended to consult these documents for comprehensive information regarding safety, operation, and maintenance.
- Manual d'usuari oficial (PDF): Descarrega aquí
- Manual d'instal·lació oficial (PDF): Descarrega aquí
