HP AP-314 IEEE 802.11ac Wireless Access Point (JW795A) User Manual

1. Introducció

This manual provides comprehensive instructions for the installation, operation, and maintenance of the HP AP-314 IEEE 802.11ac Wireless Access Point, model JW795A. The Aruba 310 Series access points are designed to deliver high performance and an optimal user experience for mobile and IoT devices in dense office environments.

Key features of this device include:

• Wireless transmission speed: 2.10 Gbit/s
• Number of network (RJ-45) Ports: 1
• MU-MIMO capability for efficient multi-user communication
• Advanced client match radio management
• Integrated Aruba Beacon technologies

2. Informació de seguretat

Please read all safety instructions before installing or operating this device. Failure to follow these instructions may result in injury or damage to the product.

• Ensure the device is installed in a well-ventilated area.
• Use only the power adapter supplied with the device (if applicable).
• No exposeu el dispositiu a l'aigua ni a una humitat excessiva.
• Eviteu col·locar el dispositiu a prop de fonts de calor o sota la llum solar directa.
• Aquest producte només està pensat per a ús interior.

3. Què hi ha a la caixa

Upon unpacking, verify that the following item is included:

• Access Point (HP AP-314)
• (Note: Power adapter and mounting hardware may be sold separately or included depending on the specific package.)

4. Producte acabatview

The HP AP-314 is a high-performance wireless access point designed for robust network connectivity. It features a compact, discreet design suitable for various indoor environments.

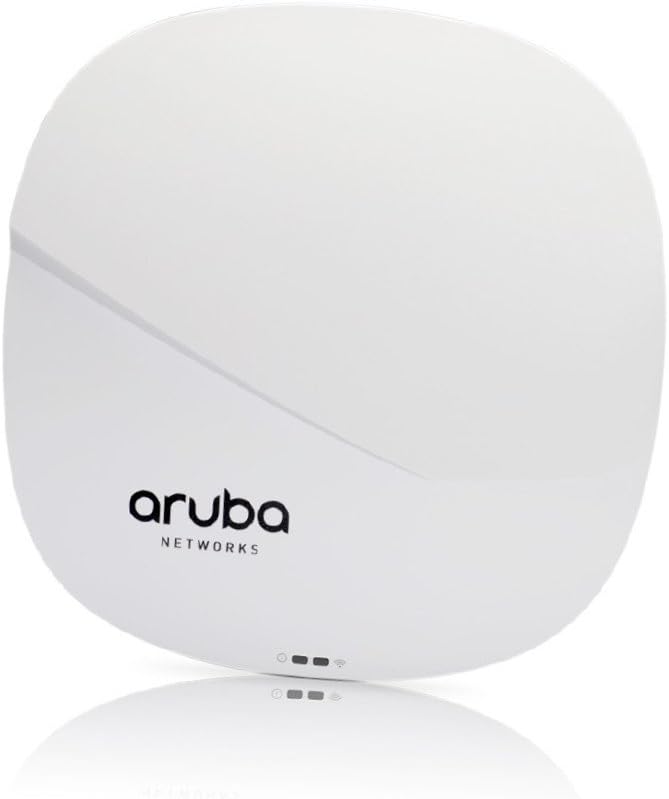

Figure 1: HP AP-314 Wireless Access Point Front View
The image displays the front of the HP AP-314 Wireless Access Point. It is a white, square-shaped device with rounded corners. The 'aruba NETWORKS' logo is prominently displayed in black text. Below the logo, three small indicator lights are visible, suggesting power, network activity, and wireless status.

4.1 Components i indicadors

• LED d'estat: Indicate power, network connectivity, and wireless activity. Refer to the device's quick start guide or full technical documentation for specific LED patterns and their meanings.
• Port Ethernet (RJ-45): For connecting to the wired network and receiving Power over Ethernet (PoE) if supported.
• Port USB: For potential future expansion or specific configurations.

5. Configuració

5.1 Muntatge del punt d'accés

The AP-314 can be mounted on a ceiling or wall. Specific mounting hardware (not always included) is required. Ensure the mounting location allows for optimal wireless coverage and is away from obstructions.

1. Seleccioneu un lloc de muntatge adequat.
2. Secure the mounting bracket (if applicable) to the chosen surface using appropriate screws.
3. Attach the access point to the mounting bracket, ensuring it clicks securely into place.

5.2 Connecting to the Network and Power

1. Connect an Ethernet cable from your network switch (preferably a PoE-enabled switch) to the RJ-45 port on the access point.
2. If not using PoE, connect a compatible power adapter (sold separately) to the device's power input and then to a power outlet.
3. Once powered, the status LEDs will illuminate, indicating the boot-up process.

5.3 Configuració inicial

La configuració inicial normalment implica accedir al dispositiu web interface or using a network management system (e.g., Aruba Central or a local controller). Refer to the Aruba documentation for detailed configuration steps specific to your network environment.

• Connect a computer to the same network segment as the access point.
• Determine the IP address of the access point (e.g., via DHCP server logs or a discovery tool).
• Obre a web browser and navigate to the access point's IP address.
• Log in using the default credentials (refer to Aruba documentation for defaults).
• Configure wireless networks (SSIDs), security settings, and other network parameters as required.

6. Instruccions de funcionament

Once configured, the HP AP-314 operates autonomously to provide wireless network access. Users can connect to the configured SSIDs using their wireless-enabled devices.

6.1 Connecting to the Wireless Network

1. On your wireless device (laptop, smartphone, tablet), scan for available Wi-Fi networks.
2. Select the SSID (network name) you configured for the AP-314.
3. Enter the network password or security key if prompted.
4. Your device should now be connected to the wireless network.

6.2 Monitorització i gestió

The access point's status can be monitored via its web interface or through your network management system. This allows for checking connected clients, network traffic, and device health.

7. Manteniment

7.1 actualitzacions de microprogramari

Regularly check for and apply firmware updates to ensure optimal performance, security, and access to new features. Firmware updates are typically available from the HP/Aruba support weblloc.

7.2 Neteja

Clean the exterior of the access point with a soft, dry cloth. Do not use liquid cleaners or aerosols directly on the device.

7.3 Col·locació òptima

Ensure the access point remains in an optimal location, free from new obstructions that could degrade wireless signal quality.

8. Solució De Problemes

9. Especificacions

10. Garantia i Suport

For warranty information, technical support, and additional resources, please refer to the official HP or Aruba Networks website. You can typically find detailed documentation, FAQs, and contact information for customer service there.

Ensure you have your product model number (JW795A) and serial number ready when contacting support.
