Introducció
The MXR M290 Phase 95 Mini Guitar Effects Pedal combines two classic MXR phaser circuits, the Phase 45 and Phase 90, into a compact enclosure. This pedal offers versatile phasing effects, ranging from subtle two-stage modulation to more pronounced four-stage sweeps. It is designed for guitarists seeking a space-saving solution without compromising on tonal quality.
Producte acabatview
Característiques clau
- Combines MXR's iconic Phase 45 and Phase 90 circuits in a single mini housing.
- Compact design, approximately half the footprint of a standard MXR pedal.
- 45/90 Switch toggles between two-stage and four-stage phasing.
- Script switch toggles between modern and vintage style phasing.
- Features a single Speed control for adjusting the effect rate.
Controls i connexions
The Phase 95 features a straightforward control layout for ease of use:
- Controlador de VELOCITAT: Adjusts the rate of the phasinefecte g.
- 45/90 Switch: Selects between the subtle two-stage Phase 45 effect and the more intense four-stage Phase 90 effect.
- Script Switch: Toggles between modern phasing (with feedback, accentuated swoosh) and vintage phasing (without feedback, lusher, more subdued sound).
- Jack d'ENTRADA: Connect your instrument cable here.
- Presa de SORTIDA: Connecta't al teu amplifier or next pedal in the signal chain.
- Entrada d'alimentació de 9V: Connect a 9-volt DC power adapter (not included).
Imatge: Frontal view of the MXR M290 Phase 95 pedal, showing the Speed knob, 45/90 switch, Script switch, and footswitch.
Imatge: Lateral view of the MXR M290 Phase 95 pedal, highlighting the input jack.

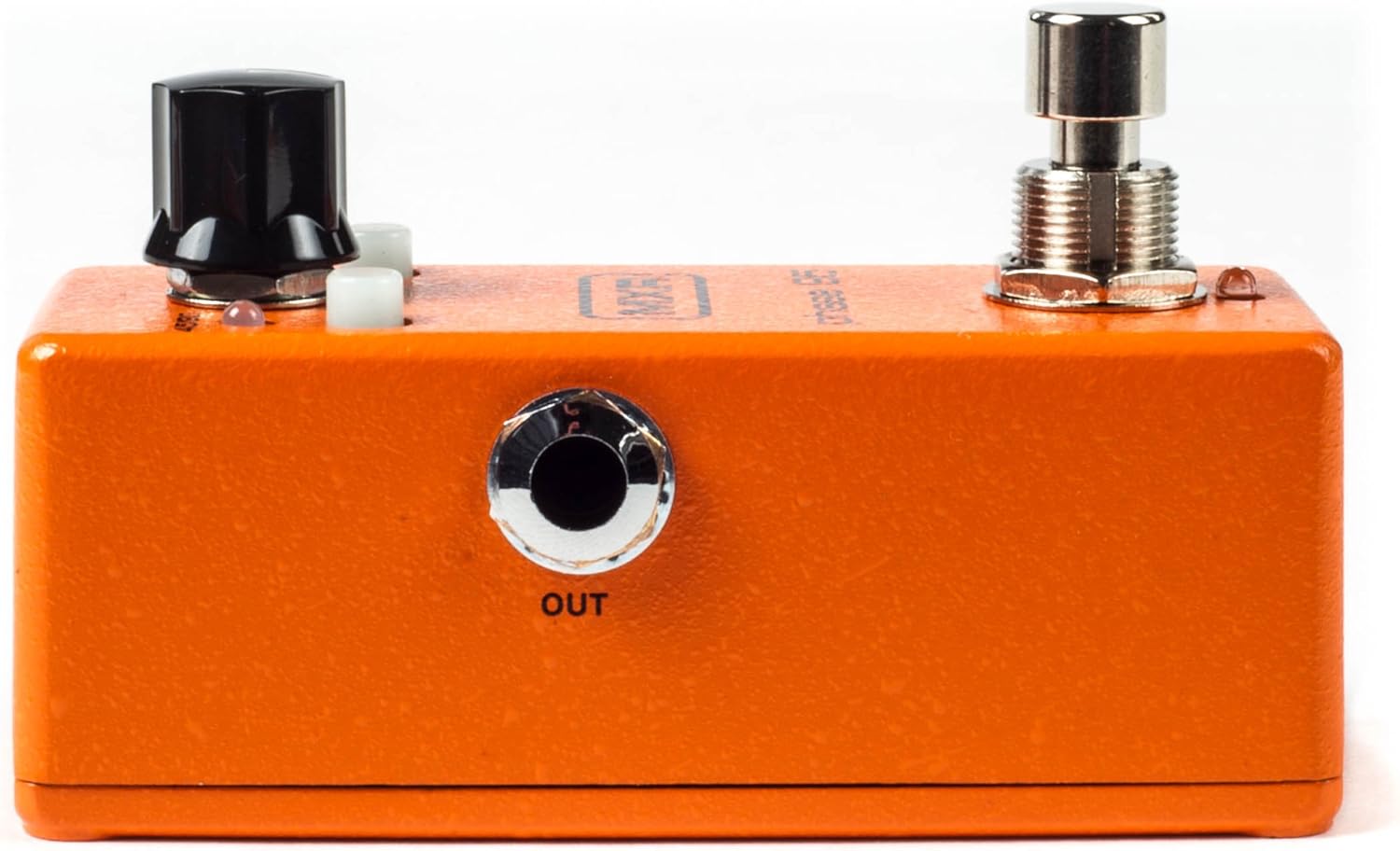

Imatge: Lateral view of the MXR M290 Phase 95 pedal, highlighting the output jack.
Imatge: Part posterior view of the MXR M290 Phase 95 pedal, showing the 9V DC power input.
Configuració
Requisits d'alimentació
The MXR M290 Phase 95 requires a 9-volt DC power supply (center-negative). This pedal does not operate on batteries. Ensure your power supply meets these specifications to prevent damage to the unit.
Connectant el pedal
- Connecteu la vostra guitarra al ENTRADA jack of the Phase 95 using a standard instrument cable.
- Connecteu el SORTIDA jack of the Phase 95 to your amplifier's input or the next pedal in your signal chain.
- Connect a 9-volt DC (center-negative) power adapter to the Entrada d'alimentació de 9 V jack.
- Assegureu-vos que totes les connexions estiguin segures abans d'encendre el vostre ampmés viu.
Instruccions de funcionament
Activating the Effect
To engage or bypass the phasing effect, press the footswitch located at the bottom of the pedal. An LED indicator will illuminate when the effect is active.
Control de velocitat
Gira el VELOCITAT knob clockwise to increase the rate of the phase sweep, and counter-clockwise to decrease it. Experiment with different settings to find the desired modulation speed.
Interruptor 45/90
Premeu el botó 45/90 switch to toggle between the two available phasing modes:
- Phase 45 Mode: Provides a subtle, two-stage phasing effect, ideal for adding gentle movement to your tone.
- Phase 90 Mode: Delivers a more pronounced, four-stage phasing effect, known for its classic, swirling sound.
Script Switch
Premeu el botó Guió switch to alternate between two distinct phasing styles:
- Modern Style (Script OFF): This is the default setting. It includes feedback in the circuit, creating a slightly more accentuated "swoosh" and light harmonic distortion.
- Vintage Style (Script ON): This setting removes feedback from the circuit, resulting in a lusher, more subdued sound with higher headroom and greater clarity, reminiscent of older phaser units.
Manteniment
- Neteja: Feu servir un drap suau i sec per netejar l'exterior del pedal. Eviteu productes de neteja o dissolvents abrasius.
- Emmagatzematge: Guardeu el pedal en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes quan no l'utilitzeu.
- Font d'alimentació: Always use a regulated 9-volt DC (center-negative) power supply to ensure optimal performance and prevent damage. Disconnect power when the pedal is not in use for extended periods.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| No fa so quan s'acciona el pedal. | Incorrect power supply, faulty cables, incorrect connections. | Verify power supply is 9V DC center-negative. Check all cables for damage and ensure they are securely connected to the correct input/output jacks. |
| Effect is weak or inconsistent. | Low power, incorrect settings. | Ensure power supply provides sufficient current. Adjust the SPEED knob and experiment with the 45/90 and Script switches. |
| Soroll o brunzit no desitjat. | Ground loop, noisy power supply, interference. | Use a high-quality, isolated power supply. Ensure all cables are shielded. Try moving the pedal away from other electronic devices. |
Especificacions
- Número de model:
- M290
- Dimensions (L x A x A):
- 3.6 x 1.5 x 1.5 polzades (aproximadament)
- Pes de l'article:
- 5 unces (aproximadament 141 grams)
- Requisit d'energia:
- 9V DC, center-negative (adapter not included)
- Format del senyal:
- Analògic
- Interfície de maquinari:
- Connectors d'àudio de 1/4 de polzada
- Material del cos:
- Metall
Garantia i Suport
This product is covered by the manufacturer's limited warranty. For specific warranty terms, registration, or technical support, please refer to the documentation included with your purchase or visit the official MXR weblloc web. La informació de contacte del servei d'atenció al client normalment està disponible al lloc web del fabricant. weblloc.
