Introducció
This instruction manual provides comprehensive guidance for the installation, operation, and maintenance of your Schulte Alexa Style 2.0 Corner Entry Shower Enclosure. Designed for optimal splash protection and ease of use, this 4-part shower cabin features 5 mm safety glass with a Fixil coating and an aluminum frame. Please read this manual thoroughly before beginning assembly to ensure proper installation and long-term satisfaction.
Figure 1: The Schulte Alexa Style 2.0 Corner Entry Shower Enclosure, showcasing its modern design and clear glass panels.
Configuració i instal·lació
The Schulte Alexa Style 2.0 shower enclosure requires assembly. Detailed and illustrated instructions are included with the product to facilitate the process. It is highly recommended that dues persones perform the assembly to ensure safety and proper handling of the glass components.
Components inclosos:
- 1 x Shower Enclosure (glass panels and frame profiles)
- 1 x Printed Assembly Manual
- 1 x Accessory Set (handles, seals, etc.)
- 1 x Mounting Material (drills and screws for concrete and masonry)
Notes d'instal·lació:
- This shower enclosure is designed for installation on either a shower tray or directly on tiles.
- The design allows for 18 mm wall compensation per side, which accommodates installation even on slightly uneven walls.
- Ensure all surfaces are clean and level before beginning installation.
- Carefully follow the step-by-step instructions provided in the separate assembly manual for precise alignment and sealing.
Figura 2: Example of the aluminum profile, designed for stability and wall compensation.
Figure 3: The ergonomically designed handles included in the accessory set.
Funcionament
The Schulte Alexa Style 2.0 features wide-opening sliding doors, providing a maximum entry width for comfortable access to the shower area. The 5 mm thick safety glass (ESG) ensures optimal splash protection during showering.
Funcionament de la porta:
- Gently slide the doors along their tracks to open and close.
- Avoid forcing the doors, as this can damage the rollers or tracks.
- Ensure the doors are fully closed before showering to prevent water leakage.
Figure 4: The clear safety glass panel, providing an open and modern aesthetic.
Manteniment
Regular cleaning and maintenance will preserve the appearance and functionality of your shower enclosure. The glass panels are treated with a special Fixil glass seal, which significantly reduces water spotting and makes cleaning easier.
Recomanacions de neteja:
- For daily cleaning, use a soft cloth and mild, non-abrasive cleaning agents.
- Avoid using harsh chemicals, abrasive sponges, or scouring powders, as these can damage the Fixil coating and aluminum profiles.
- After each use, it is recommended to wipe down the glass panels with a squeegee or soft cloth to minimize water residue.
- Periodically check the seals for any signs of wear or damage and replace them if necessary to maintain water tightness.

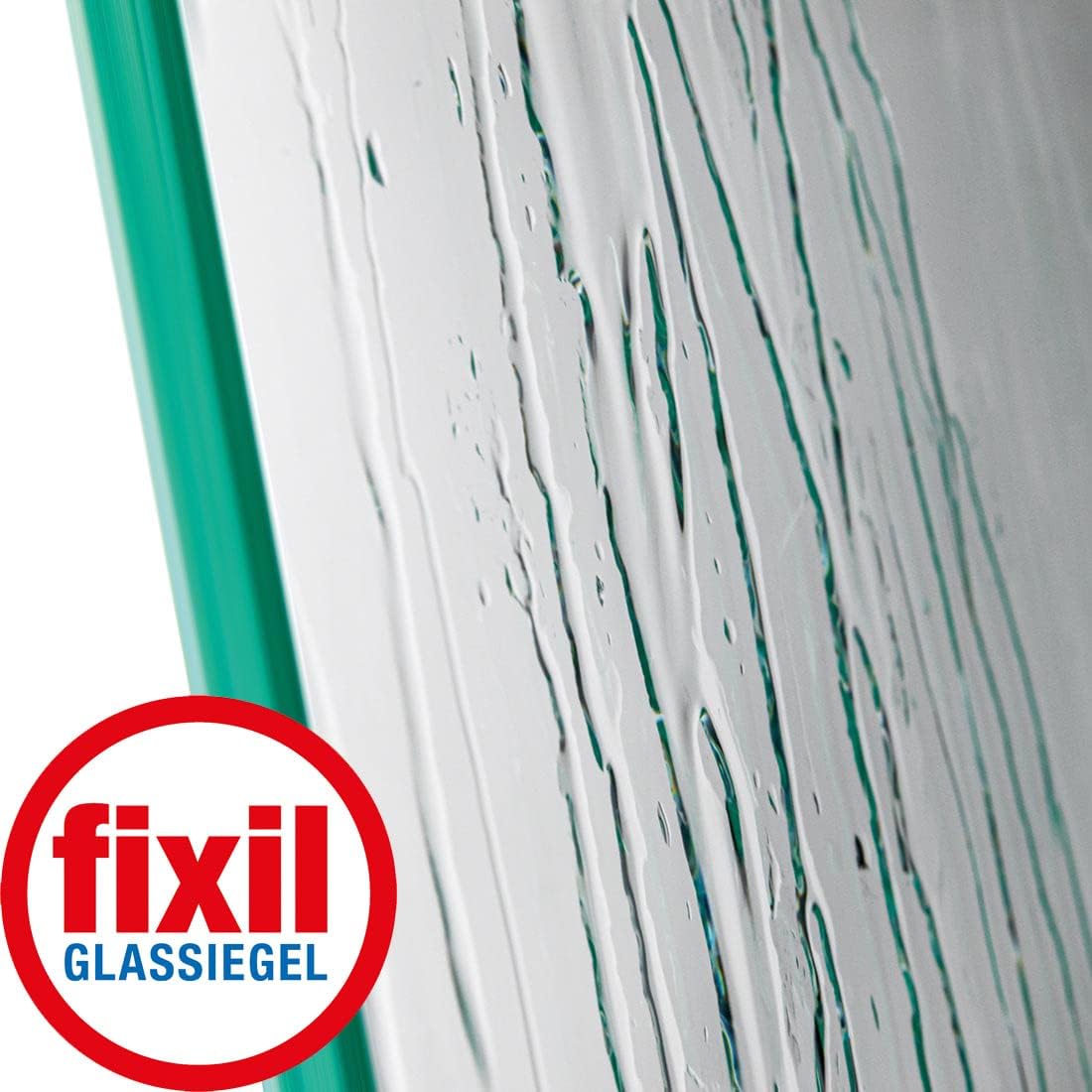

Figure 5: The Fixil glass seal (left) and a visual representation of how water beads on Fixil-coated glass, preventing stubborn water spots (right).
Figure 6: The "Easy to Clean" feature highlights the low-maintenance nature of the Fixil coating.
Resolució de problemes
This section addresses common issues you might encounter with your shower enclosure. For problems not listed here, please consult the manufacturer's support channels.
| Problema | Causa possible | Solució |
|---|---|---|
| Water leakage from doors/seals | Improper seal installation, worn seals, misaligned doors. | Ensure seals are correctly seated and not damaged. Check door alignment and adjust if necessary according to the assembly manual. Replace worn seals. |
| Doors do not slide smoothly | Dirty tracks, damaged rollers, misaligned tracks. | Clean tracks thoroughly. Inspect rollers for damage and replace if needed. Verify track alignment. |
| Glass appears cloudy or stained | Hard water deposits, improper cleaning agents. | Use recommended mild cleaning agents. For stubborn deposits, specialized glass cleaners for shower enclosures can be used, ensuring they are safe for Fixil coating. Regular wiping after use helps prevent buildup. |
Especificacions
| Característica | Detall |
|---|---|
| Marca | Schulte |
| Nom del model | Alexa Style 2.0 |
| Número de model | EP326006 01 500 (Part Number: 4061164996833) |
| Dimensions (L x A x A) | 90 x 90 x 192 cm |
| Dimensions del producte (embalatge) | 5 x 90 x 192 cm |
| Pes de l'article | 23 kg |
| Material | Aluminum, Tempered Safety Glass (ESG) |
| Gruix del vidre | 5 mm |
| Revestiment de vidre | Fixil Glass Seal |
| Color | Aluminum (profiles) / Clear (glass) |
| Nombre de portes | 4 (sliding doors) |
| Nombre de panells | 4 |
| Tipus d'instal·lació | Corner Entry (for shower tray or tile installation) |
| Muntatge obligatori | Sí |
| Origen | Fabricat a Alemanya |
Figure 7: Indication of product origin: Made in Germany.
Garantia i Suport
For information regarding the product warranty, please refer to the warranty card included with your purchase or contact your retailer directly. Warranty terms may vary based on region and purchase date.
For technical support, spare parts, or further assistance, please contact Schulte customer service through their official website or the contact information provided in the original packaging. Always provide your model number (EP326006 01 500 or 4061164996833) when seeking support.
Figura 8: Una vista aèria view of the Schulte manufacturing facility, emphasizing the brand's commitment to quality production.
Figure 9: The Schulte brand logo, representing their long-standing experience in quality shower products.
