Panasonic NC-BG3000 Electric Pump Thermo Pot User Manual

1. Introducció

Gràcies per la compraasing the Panasonic NC-BG3000 Electric Pump Thermo Pot. This appliance is designed to boil water and keep it warm efficiently, featuring a 3.0L capacity and a 220V 700W power rating. It incorporates VIP (Vacuum Insulation Panel) technology for energy saving and a Binchotan-carbon fluoride coating for far-infrared emission. This manual provides essential information for safe and effective use, including setup, operation, maintenance, and troubleshooting.

Please read this manual thoroughly before using the appliance and keep it for future reference.

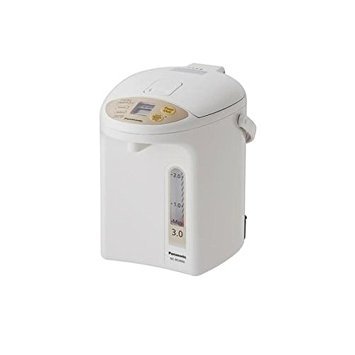

Imatge 1.1: Frontal view of the Panasonic NC-BG3000 Electric Pump Thermo Pot. This image displays the main body of the thermo pot, typically showing the control panel, dispensing spout, and handle. The white finish of the appliance is visible.

2. Importants precaucions de seguretat

To prevent personal injury, electric shock, fire, or damage to the appliance, always observe the following safety precautions:

• This appliance operates on 220-240 Volts. Do not use it in regions with different voltage standards (e.g., USA or Canada).
• No submergiu l'aparell, el cable d'alimentació ni l'endoll en aigua ni en altres líquids.
• Always place the thermo pot on a stable, flat, heat-resistant surface, away from edges.
• Keep out of reach of children. Hot water and steam can cause severe burns.
• Do not open the lid while water is boiling or dispensing.
• Assegureu-vos que la tapa estigui ben tancada abans de fer funcionar.
• No ompliu massa el dipòsit d'aigua més enllà de la línia d'ompliment màxim.
• Desendolleu l'aparell de la presa de corrent quan no l'utilitzeu i abans de netejar-lo.
• No feu funcionar l'aparell si el cable d'alimentació o l'endoll estan danyats, o si l'aparell no funciona correctament o ha estat danyat de qualsevol manera.
• Use only genuine Panasonic replacement parts and accessories.

3. Identificació de peces

Familiarize yourself with the components of your thermo pot:

• Tapa: Covers the water tank, includes steam vent.
• Mànec: For carrying the appliance.
• Tauler de control: Contains buttons for various functions (e.g., Boil, Keep Warm, Dispense, Slow Drip).
• Indicador de nivell d'aigua: Shows the current water volume inside.
• Broc dispensador: Where hot water is dispensed.
• Inner Pot (Water Tank): Fluoride-coated with Binchotan-carbon for heating water.
• Power Cord Inlet: For connecting the detachable power cord.
• Base: Provides stability and houses heating elements.

4. Configuració i primer ús

Before using your thermo pot for the first time, follow these steps:

1. Desembalar: Carefully remove the thermo pot and all accessories from the packaging. Retain packaging for future transport if needed.
2. Neteja: Wash the inner pot and lid with warm water and a mild detergent. Rinse thoroughly and wipe dry. Do not use abrasive cleaners or scourers.
3. Col·locació: Place the thermo pot on a stable, level, heat-resistant surface, ensuring adequate ventilation around the unit.
4. Omplir aigua: Open the lid and fill the inner pot with fresh water up to the 'MAX' fill line. Do not overfill.
5. Tanca la tapa: Securely close the lid until it clicks into place.
6. Connectar l'alimentació: Insert the power cord into the appliance's power inlet, then plug the other end into a grounded 220-240V AC power outlet.
7. Initial Boil: Press the 'Boil' button. Allow the water to boil completely, then dispense and discard this first batch of hot water. This cleans the internal components and removes any manufacturing residues.

5. Instruccions de funcionament

5.1 Aigua bullint

1. Ensure the thermo pot is filled with water and the lid is closed.
2. Connecteu l'aparell a una presa de corrent adequada.
3. Press the 'Boil' button. The indicator light will illuminate, and the boiling process will begin.
4. Once boiling is complete, the appliance will automatically switch to the 'Keep Warm' mode.

5.2 Funció Mantenir Calent

The thermo pot automatically maintains the water at a warm temperature after boiling. The VIP (Vacuum Insulation Panel) technology helps save energy during this process.

• To select a specific keep warm temperature (if available on your model), refer to the control panel buttons and follow the instructions.
• The Binchotan-carbon coating helps maintain water quality during the keep warm period.

5.3 Dispensació d'aigua

Per dispensar aigua calenta:

1. Col·loqueu una tassa o un recipient sota el broc dispensador.
2. Press and hold the 'Dispense' button. Water will flow from the spout.
3. Deixeu anar el botó per aturar la dispensació.

5.4 Slow Drip Feature (for Drip-Brewed Coffee)

This feature allows for a slower, controlled dispense, ideal for drip-brewed coffee:

1. Prepare your coffee dripper and cup.
2. Press the 'Slow Drip' button. The indicator light will confirm activation.
3. Press and hold the 'Dispense' button. Water will be dispensed at a reduced flow rate.
4. Deixeu anar el botó per aturar la dispensació.
5. Press the 'Slow Drip' button again to deactivate the feature.

6. Manteniment i Neteja

Regular cleaning ensures optimal performance and longevity of your thermo pot.

6.1 Neteja diària

1. Desconnectar: Desconnecteu sempre l'aparell i deixeu-lo refredar completament abans de netejar-lo.
2. Exterior: Netegeu l'exterior amb un suau, damp tela. No utilitzeu netejadors abrasius ni dissolvents.
3. Pot interior: Empty any remaining water. Wipe the inside of the inner pot with a soft sponge or cloth. For stubborn stains, use a mild detergent and rinse thoroughly.
4. Tapa: The lid may be detachable for easier cleaning. Wash with warm, soapy water, rinse, and dry completely before reattaching.

6.2 Descaling (Monthly or as needed)

Mineral deposits (limescale) can build up over time, affecting performance. Descale your thermo pot regularly:

1. Fill the inner pot with water and add a descaling agent suitable for electric kettles/thermo pots (e.g., citric acid solution) according to the descaler's instructions.
2. Press the 'Boil' button and allow the solution to boil.
3. Let the solution sit for the recommended time (usually 30-60 minutes).
4. Dispense and discard the descaling solution.
5. Rinse the inner pot thoroughly several times with fresh water to remove any residue. Boil fresh water once or twice and discard before normal use.

7. Solució De Problemes

If you encounter issues with your thermo pot, refer to the following table:

Si el problema persisteix després de provar aquestes solucions, poseu-vos en contacte amb el servei d'atenció al client de Panasonic.

8. Especificacions

9. Garantia i Suport

This Panasonic appliance comes with a standard manufacturer's warranty. Please refer to the warranty card included with your product for specific terms, conditions, and duration. Keep your purchase receipt as proof of purchase.

For technical assistance, spare parts, or warranty claims, please contact Panasonic customer support in your region. You can find contact information on the official Panasonic weblloc web o a la documentació que s'inclou amb el producte.

Atenció al client de Panasonic: www.panasonic.com
