1. Producte acabatview

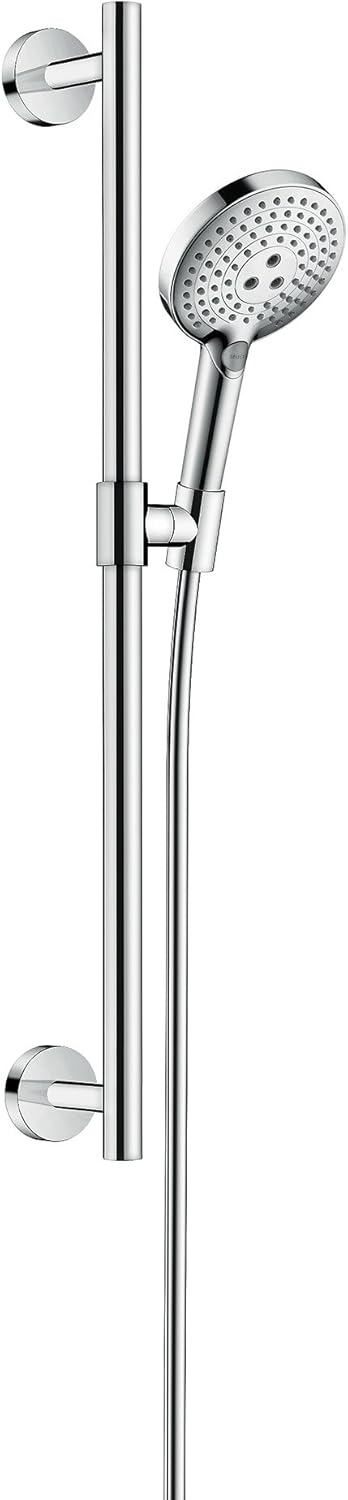

The hansgrohe Raindance Select S Shower Set 120 3jet with a 65 cm shower rail is designed to provide a versatile and comfortable showering experience. This set includes a hand shower, a 0.65 m shower rail, a shower holder, and an anti-kink shower hose (1.60 m). It features three distinct spray patterns and QuickClean technology for easy maintenance.
Les característiques clau inclouen:
- Three Spray Patterns: Rain, RainAir (rain jet enriched with air), and WhirlAir (massage spray).
- Botó de selecció: Easily switch between spray modes with a comfortable button.
- Tecnologia QuickClean: Simple removal of limescale from flexible silicone nozzles.
- Adjustable Shower Holder: 90° position adjustable slider, pivots left and right, up and down.
- Anti-Kink Shower Hose: Prevents hose tangling.
Image 1.1: The hansgrohe Raindance Select S Hand Shower, showcasing its sleek design and the 'Select' button.
Image 1.2: The 'Quality Made by hansgrohe' emblem, signifying the brand's commitment to product excellence.
2. Configuració i instal·lació
This section provides general guidance for installing your hansgrohe Raindance Select S Shower Set. For detailed, step-by-step instructions, please refer to the installation guide provided with your product packaging. Professional installation is recommended.
2.1 Components inclosos
- Hand shower (120 mm)
- Shower rail (0.65 m)
- Porta-dutxa
- Anti-kink shower hose (1.60 m)
2.2 Requisits d'instal·lació
- Suitable for high pressure only.
- Operating pressure: minimum 1 bar / maximum 6 bar.
- Instal·lació de muntatge a la paret.
2.3 General Installation Steps (Consult full guide for details)
- Prepareu l'àrea d'instal·lació: Ensure the water supply is turned off. Clear the wall where the shower rail will be mounted.
- Mount the Shower Rail: Position the shower rail on the wall according to the desired height. Mark the drilling points for the wall supports. Drill holes and insert appropriate wall plugs. Secure the wall supports using screws.
- Attach the Shower Hose: Connect one end of the anti-kink shower hose to the hand shower and the other end to your water outlet. Ensure all connections are hand-tightened and then secured with a wrench, being careful not to overtighten.
- Install the Hand Shower: Place the hand shower into the adjustable shower holder on the rail.
- Prova de fuites: Obriu el subministrament d'aigua i comproveu si hi ha fuites a totes les connexions.
Image 2.1: Technical drawing illustrating the dimensions and mounting points for the shower set components. All measurements are in millimeters.
3. Instruccions de funcionament
The hansgrohe Raindance Select S Hand Shower offers three distinct spray patterns, easily switchable with the integrated Select button.
3.1 Changing Spray Patterns
To change the spray pattern, simply press the 'Select' button located on the shower head handle. Each press will cycle through the available spray types:
- Pluja: A powerful, invigorating rain spray.
- RainAir: A soft, air-enriched rain spray for a gentle sensation.
- WhirlAir: A concentrated, rotating massage spray for targeted relief.
Image 3.1: Visual representation of the three spray patterns: Rain, RainAir, and WhirlAir, demonstrating their unique water distribution.
3.2 Adjusting Shower Holder
The shower holder on the rail can be adjusted to your preferred height and angle. It pivots left and right, and up and down, allowing for flexible positioning of the hand shower.
3.3 Official Product Video: Spray Patterns and QuickClean
Video 3.1: This video demonstrates the three spray patterns (Rain, RainAir, WhirlAir) of the hansgrohe Raindance Select S hand shower and showcases the QuickClean feature for easy limescale removal.
4. Manteniment
Regular cleaning and maintenance will ensure the longevity and optimal performance of your hansgrohe shower set.
4.1 QuickClean Technology
The shower head is equipped with hansgrohe's QuickClean technology. This allows for easy removal of limescale deposits from the flexible silicone nozzles. Simply rub your fingertips over the nozzles to dislodge any buildup. This should be done regularly to maintain consistent spray performance.
4.2 Neteja general
- Use only mild cleaning agents and a soft cloth.
- Avoid abrasive cleaners, scouring pads, or solvents, as these can damage the chrome finish.
- Esbandiu bé amb aigua neta després de la neteja i eixugueu amb un drap suau per evitar taques d'aigua.
5. Solució De Problemes
If you encounter issues with your shower set, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| Cabal d'aigua reduït o polvorització desigual. | Acumulació de calç als broquets. | Use QuickClean technology: rub silicone nozzles with your fingers to remove limescale. |
| Fuita d'aigua per les connexions. | Connexions soltes o segells danyats. | Ensure all connections are tightened properly. Check and replace any worn-out washers or seals. |
| Difficulty switching spray modes. | Mineral deposits around the Select button mechanism. | Clean the shower head thoroughly, paying attention to the Select button area. |
| Shower holder not staying in position. | Worn internal mechanism or insufficient tightening. | Ensure the shower holder is properly secured to the rail. If the issue persists, contact customer support. |
If the problem persists after attempting these solutions, please contact hansgrohe customer support.
6. Especificacions
| Característica | Detall |
|---|---|
| Marca | hansgrohe |
| Número de model | 26320000 |
| Dimensions del producte | 13.23 x 5.87 x 27.56 polzades |
| Pes de l'article | 4.62 lliures (2.1 quilograms) |
| Color | Chrome |
| Material | Llautó |
| Tipus d'acabat | Matt |
| Nombre de nanses | 1 |
| Tipus de muntatge | Muntatge de paret |
| Mida del capçal de dutxa | 120 mm |
| Shower Bar Width | 25 mm |
| Shower Rail Length | 0.65 m |
| Caudal màxim | 16 l/min a 3 bar |
| Pressió de funcionament | Mín. 1 bar / Màx. 6 bar |
7. Garantia i Suport
hansgrohe stands behind the quality of its products.
7.1 Garantia del producte
This hansgrohe shower set comes with a 5 any de garantia, ensuring peace of mind regarding manufacturing defects and material quality.
Image 7.1: The 5 Years Warranty badge, indicating the product's coverage period.
7.2 Disponibilitat de peces de recanvi
hansgrohe guarantees 15 years of spare parts availability, ensuring that components for your shower set will be available for an extended period, facilitating repairs and maintenance.
7.3 Atenció al client
For further assistance, technical support, or warranty claims, please visit the official hansgrohe weblloc web o poseu-vos en contacte amb el seu departament d'atenció al client. També podeu visitar el Botiga Hansgrohe a Amazon per obtenir més informació sobre el producte.
