Apollo 1600 Double Residential Swing Automatic Gate Opener

1. Introducció

This manual provides detailed instructions for the installation, operation, and maintenance of the Apollo 1600 Double Residential Swing Automatic Gate Opener. This system is designed for residential, farm, ranch, and light commercial applications, capable of operating swing gates up to 16 feet in length and 600 pounds per gate leaf. Please read this manual thoroughly before installation and operation to ensure proper function and safety.

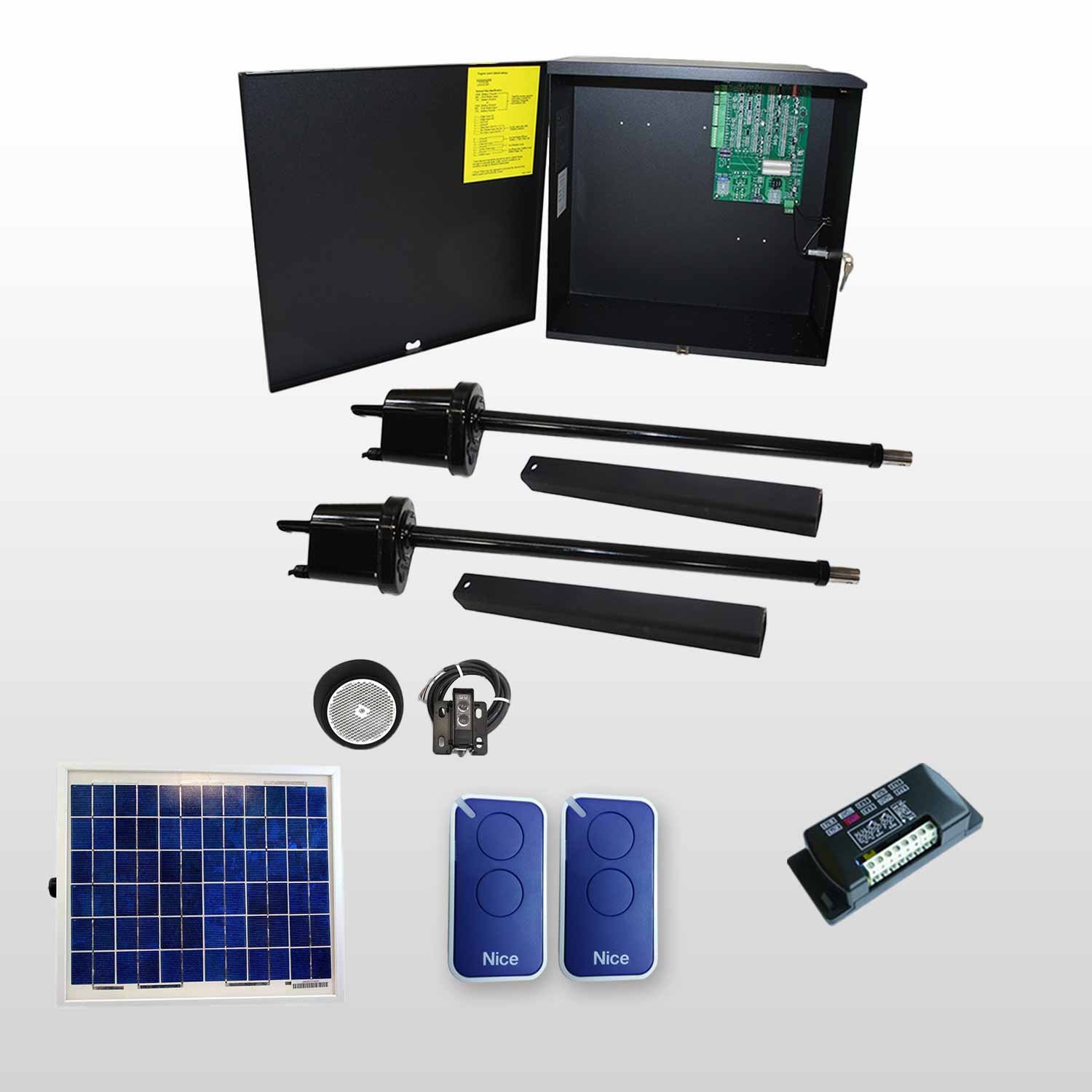

Imatge 1.1: acabatview of the Apollo 1600 Double Residential Swing Automatic Gate Opener system. This image displays the main components including the control box, two gate opener arms, and a solar panel.

2. Informació de seguretat

ADVERTIMENT: Failure to follow these safety instructions may result in serious injury or death. Always exercise caution when installing, operating, or maintaining the gate opener system.

• Llegiu i enteneu totes les instruccions abans de la instal·lació i l'ús.
• Keep the gate area clear of obstructions and personnel, especially children, during gate operation.
• Do not allow children to operate the gate opener or play near the gate.
• Ensure all safety devices, such as photo cells, are properly installed and functioning. Per UL325-2016, all gate operators sold in the USA after February 2016 require a monitored safety photo cell to prevent accidental crushing or entrapment.
• Disconnect power to the gate opener before performing any service or maintenance.
• Only use replacement parts specified by the manufacturer.
• Do not attempt to repair the control board or motor components unless qualified.

3. Contingut del paquet

Verifiqueu que tots els components que s'enumeren a continuació siguin presents al vostre paquet:

• Control box with 636 control board
• Two gate opener arms (models 416 and 416X)
• 318N Receiver (433.92 MHz)
• Two remote controls (INTI2 433.92 MHz)
• Solar Panel (5 Watt, 12 Volt)
• Photo Cell / Photo Eye with Reflector (UL325-2016 compliant)

4. Configuració i instal·lació

This section outlines the general steps for installing your Apollo 1600 gate opener. Refer to the detailed diagrams in the full installation guide for specific measurements and wiring schematics.

1. Muntatge de la caixa de control: Select a suitable location near the gate, ensuring it is protected from direct weather and easily accessible for wiring. Securely mount the control box to a post or wall.
2. Installing Gate Opener Arms: Attach the two gate opener arms (actuators) to each gate leaf and the gate post according to the provided instructions. Ensure proper alignment and pivot points for smooth gate movement.
3. Cablejat del sistema: Connect the gate opener arms, solar panel, receiver, and photo cell to the 636 control board within the control box. Follow the wiring diagram carefully, paying attention to polarity and terminal assignments. Ensure all connections are secure and weatherproof.
4. Instal·lació de panells solars: Mount the 5 Watt, 12 Volt solar panel in a location that receives maximum direct sunlight throughout the day. Connect it to the designated terminals on the control board.
5. Photo Cell Installation: Install the photo cell and its reflector across the gate opening at the recommended height to detect obstructions. This is a critical safety device required for UL325 compliance. Test its functionality thoroughly after installation.
6. Connexió d'alimentació: Connect the system to a suitable power source. The system can be powered by the solar panel with a battery (not included) or an AC trickle charger (not included).

5. Instruccions de funcionament

Once installed and powered, the Apollo 1600 gate opener is ready for operation.

1. Vinculació de control remot: Follow the instructions provided with the 318N Receiver and INTI2 remote controls to pair them with your control board. This typically involves pressing a learn button on the receiver and then a button on the remote.
2. Funcionament bàsic: Pressing a paired remote control button will initiate the gate opening or closing cycle. The gate will open or close in approximately 15 seconds per direction.
3. Automatic Close Timer: The 636 control board features an adjustable automatic close timer. Refer to the control board manual for instructions on how to set the desired delay before the gate automatically closes after opening.
4. Parada de seguretat: If the photo cell beam is interrupted during the closing cycle, the gate will stop and reverse to the open position. During the opening cycle, an obstruction will cause the gate to stop.

6. Manteniment

Un manteniment regular garanteix la longevitat i el funcionament fiable del sistema d'obertura de portes.

• Inspecció mensual: Check the gate hinges and hardware for wear or damage. Ensure the gate moves freely without binding when disconnected from the opener arms.
• Actuator Arms: Inspect the actuator arms for any signs of damage, corrosion, or loose mounting hardware. Keep the moving parts clean.
• Photo Cell: Keep the photo cell lenses and reflector clean and free of dirt, spiderwebs, or obstructions. Test its functionality regularly.
• Caixa de control: Ensure the control box is sealed and free from moisture or insect intrusion. Check wiring connections for tightness.
• Font d'alimentació: If using a battery, check its charge level periodically. Ensure the solar panel is clean and free of debris for optimal charging.

7. Solució De Problemes

Consulteu la taula següent per veure els problemes habituals i les seves possibles solucions.

8. Especificacions

9. Garantia i Suport

Specific warranty information for the Apollo 1600 Double Residential Swing Automatic Gate Opener is not provided in the available product data. Please refer to your purchase documentation or contact the retailer/manufacturer directly for warranty details and technical support.

No official product videos were found in the provided data. For visual guides or further assistance, please check the manufacturer's official weblloc o poseu-vos en contacte amb el seu servei d'atenció al client.
