Introducció
The Kramer VM-214DT is a high-performance 4K UHD distribution amplifier designed for HDMI and HDBaseT signals. This device efficiently reclocks and equalizes incoming signals, then distributes them to four identical HDBaseT outputs and a single looping HDMI output. It supports video resolutions up to 4K@60Hz (4:2:0) UHD, ensuring high-quality signal transmission. The VM-214DT also offers versatile control options and advanced audio de-embedding capabilities, making it suitable for various professional audio-visual installations.

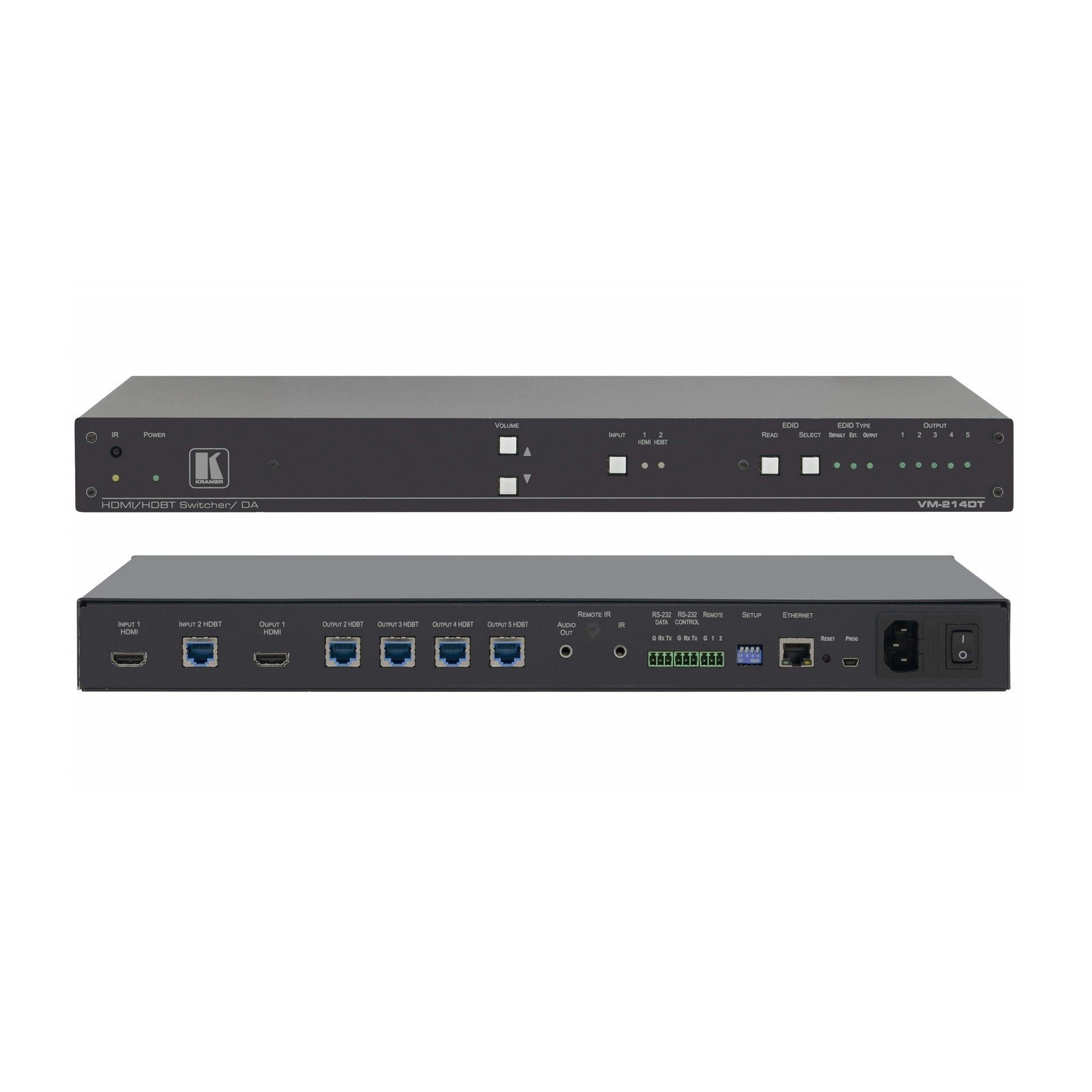

Figura 1: Frontal view of the Kramer VM-214DT distribution amplifier, showing input and output ports.
Instruccions de configuració
Follow these steps to properly set up your Kramer VM-214DT distribution ampmés viu.
Contingut del paquet
Comproveu que el vostre paquet contingui els elements següents:
- Kramer VM-214DT unit
- Adaptador de corrent
- Rack ears (if applicable)
- Guia d'inici ràpid
Connexió del dispositiu
- Apagar: Ensure all devices, including the VM-214DT, are powered off before making any connections.
- Font de connexió: Connect your HDMI source (e.g., Blu-ray player, computer) to the HDMI input port on the VM-214DT using a high-quality HDMI cable.
- Connecta les pantalles: Connect your HDBaseT receivers (connected to displays) to the four HDBaseT output ports on the VM-214DT using CatX cables. For the looping HDMI output, connect it to an additional HDMI display or another distribution device.
- Connectar l'alimentació: Connect the power adapter to the VM-214DT and then plug it into a power outlet.
- Encès: Power on the VM-214DT, followed by your source devices and displays.
Instruccions de funcionament
This section details the basic operation and advanced features of the VM-214DT.
Funcionament bàsic
- Distribució del senyal: Once connected and powered on, the VM-214DT automatically detects the input signal and distributes it to all connected HDBaseT and HDMI outputs.
- Indicadors LED: Observe the LED indicators on the front panel for status information regarding power, input signal presence, and output link status. Refer to the full manual for detailed LED descriptions.
Funcions avançades
- Compatibilitat amb 4K UHD: The device supports resolutions up to 4K@60Hz (4:2:0) UHD. Ensure your source and displays are compatible for optimal performance.
- Desinserció d'àudio: The VM-214DT includes audio de-embedding capabilities. Consult the full product manual for instructions on configuring and utilizing this feature.
- Opcions de control: The unit offers various control options, which may include RS-232 or Ethernet. Refer to the comprehensive manual for detailed control protocols and commands.
Manteniment
Proper maintenance ensures the longevity and optimal performance of your VM-214DT.
- Neteja: Disconnect power before cleaning. Use a soft, dry cloth to wipe the exterior of the unit. Do not use liquid or aerosol cleaners.
- Ventilació: Assegureu-vos que la unitat tingui una ventilació adequada. No bloquegeu les obertures de ventilació.
- Emmagatzematge: Guardeu el dispositiu en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes quan no l'utilitzeu durant períodes prolongats.
Resolució de problemes
This section provides solutions to common issues you might encounter with the VM-214DT.
| Problema | Causa possible | Solució |
|---|---|---|
| No video output on displays. | Loose cable connections, incorrect input selection on display, power issue, incompatible resolution. | Check all HDMI and HDBaseT cable connections. Ensure displays are set to the correct input. Verify the VM-214DT is powered on. Confirm source resolution is supported by displays. |
| Intermittent video signal. | Poor quality cables, cable length exceeding limits, interference. | Use high-quality, certified HDMI and CatX cables. Ensure cable lengths are within HDBaseT specifications. Check for potential sources of electromagnetic interference. |
| Sense àudio. | Audio settings on source/display, de-embedding configuration. | Verify audio output settings on the source device. Check audio input settings on the display/receiver. If using audio de-embedding, ensure it is configured correctly. |
Especificacions tècniques
| Número de model | VM-214DT |
| Marca | Kramer |
| Descripció del producte | 2x1:4 4K UHD HDMI HDBaseT Distribution Ampmés viu |
| Resolucions suportades | Up to 4K@60Hz (4:2:0) UHD |
| Entrades | 1x HDMI |
| Sortides | 4x HDBaseT, 1x Looping HDMI |
| Tipus de connector | HDMI |
| Dispositius compatibles | Television, HDMI sources, HDBaseT receivers |
| Dimensions del producte (L x A x A) | 25 x 6 x 9 polzades |
| Pes de l'article | 9 lliures |
| Potència de sortidatage | 400 watts |
| UPC | 642892778843 |
| ASIN | B01MQA05W |
| Data de primera disponibilitat | 27 d'octubre de 2016 |
Informació de la garantia
Kramer products are designed for reliability and performance. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Kramer weblloc. La cobertura de la garantia normalment inclou defectes de materials i de fabricació en condicions d'ús normal.
Atenció al client
If you encounter any issues or have questions regarding your Kramer VM-214DT, please contact Kramer customer support. You can find contact information, FAQs, and additional resources on the official Kramer website. Please have your model number (VM-214DT) and serial number ready when contacting support.
Per a més ajuda, visiteu: www.kramerav.com
