1. Producte acabatview
The MSI H270 TOMAHAWK ARCTIC is an ATX motherboard designed to support 7th and 6th Generation Intel Core, Pentium, and Celeron processors for the LGA 1151 socket. It features DDR4 Boost with Steel Armor for enhanced memory performance and durability, and is Virtual Reality Ready. The motherboard incorporates Mystic Light Sync for customizable lighting effects, allowing users to personalize their system's aesthetics.
Figure 1.1: MSI H270 TOMAHAWK ARCTIC Motherboard and Packaging.

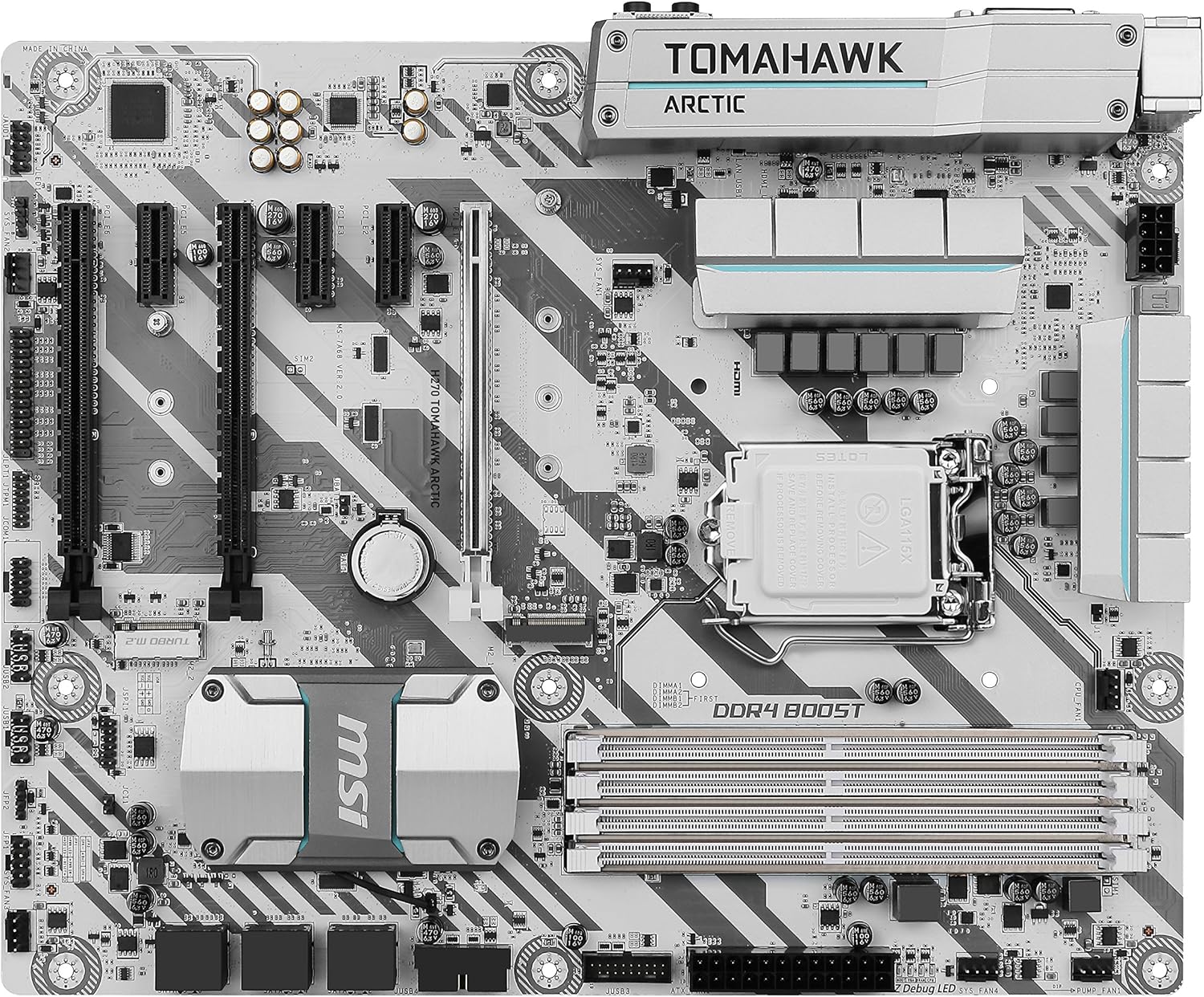

Figura 1.2: De dalt a baix view of the MSI H270 TOMAHAWK ARCTIC Motherboard, showcasing the CPU socket, DDR4 memory slots, and PCIe slots.
2. Configuració i instal·lació
This section provides general guidelines for installing your MSI H270 TOMAHAWK ARCTIC motherboard and its components. Always refer to the detailed instructions provided in your motherboard's physical manual for specific steps and safety precautions.
2.1. Què hi ha a la caixa
- Placa base
- Cables i connectors
- Guia de configuració ràpida
2.2. Instal·lació de la CPU
Ensure your CPU is compatible with the LGA 1151 socket. Carefully align the CPU with the socket, ensuring the gold triangle on the CPU matches the indicator on the socket. Gently lower the CPU into place without forcing it. Close the load plate and secure the lever.
2.3. Instal·lació de memòria (RAM)
The motherboard supports DDR4 memory. Open the clips on both ends of the DIMM slots. Align the memory module with the slot key and press firmly on both ends until the clips snap into place. For optimal performance, install memory modules in the recommended dual-channel configuration as per your detailed manual.
2.4. Instal·lació de la placa base a la caixa
Install the I/O shield into your computer case. Carefully place the motherboard into the case, aligning the screw holes with the standoffs. Secure the motherboard with screws. Connect the necessary power cables from your power supply to the motherboard (24-pin ATX power and 8-pin CPU power).
2.5. Connexió de perifèrics
Connect your storage devices (SATA drives, M.2 SSDs), graphics card(s) to the PCIe slots, and other expansion cards. Utilize the various USB ports (including USB 3.0) and video outputs (HDMI, DVI) on the rear I/O panel for your display and external devices.
Figure 2.1: Rear I/O panel of the MSI H270 TOMAHAWK ARCTIC Motherboard, showing various connectivity options including USB, HDMI, and audio ports.
3. Instruccions de funcionament
3.1. Arrencada inicial i configuració de la BIOS/UEFI
Upon first power-on, your system will typically enter the BIOS/UEFI setup utility. Here, you can configure boot order, system time, and other essential settings. Press the designated key (usually DEL or F2) during startup to access the BIOS/UEFI.
3.2. Mystic Light Sync
The MSI H270 TOMAHAWK ARCTIC supports Mystic Light Sync. This feature allows you to customize the RGB lighting on your motherboard and compatible peripherals. Install the MSI Mystic Light software from the official MSI website to control and synchronize lighting effects.
4. Manteniment
Un manteniment regular garanteix la longevitat i el rendiment òptim de la placa base.
- Neteja: Netegeu periòdicament la pols de la placa base i dels ventiladors de la caixa amb aire comprimit. Assegureu-vos que el sistema estigui apagat i desendollat abans de netejar-lo.
- Actualitzacions de la BIOS: Keep your BIOS updated to benefit from performance improvements, bug fixes, and compatibility enhancements. Refer to the MSI support weblloc web per obtenir les versions més recents de la BIOS i els procediments d'actualització.
- Gestió de cables: Ensure cables are neatly routed to improve airflow and prevent obstruction of components.
5. Solució De Problemes
Si teniu problemes amb la placa base, tingueu en compte els passos habituals següents per resoldre problemes:
- Sense alimentació/Sense arrencada: Double-check all power connections (24-pin ATX, 8-pin CPU, GPU power). Ensure the power supply is switched on.
- Sense pantalla: Verify that your monitor is connected to the correct video output on your graphics card or motherboard. Reseat your graphics card and RAM modules.
- Inestabilitat del sistema: This can often be caused by incompatible or improperly seated RAM. Test memory modules individually. Ensure CPU cooler is properly installed.
- Restabliment de la BIOS: If you experience issues after changing BIOS settings, you can reset the BIOS to default settings by clearing the CMOS. Refer to your manual for the specific jumper location or battery removal method.
6. Especificacions
| Característica | Detall |
|---|---|
| Marca | MSI |
| Sèrie | H270 TOMAHAWK ARCTIC |
| Nom del model | H270 TOMAHAWK ARCTIC |
| Socket de CPU | LGA 1151 |
| Processadors compatibles | Intel Celeron, Intel Pentium, 7th/6th Gen Intel Core |
| Tipus de xipset | Intel H270 |
| Tecnologia de memòria RAM | SDRAM (DDR4) |
| Capacitat d'emmagatzematge de memòria | 64 GB (màx.) |
| Nombre de ports USB 2.0 | 4 |
| Plataforma | Windows 10 |
| Pes de l'article | 3.2 lliures |
| Dimensions del producte | 13.8 x 10.7 x 3.6 polzades |
7. Recursos addicionals
MSI Gaming Motherboard Features Overview
Aquest vídeo ofereix una visió generalview of key features found in MSI Gaming motherboards, such as Steel Armor, Audio Boost, Core Boost, and BIOS Flashback+. While it may feature a different MSI model, the highlighted technologies are common across MSI's gaming motherboard lineup, including the H270 TOMAHAWK ARCTIC.
8. Garantia i Suport
For detailed warranty information, technical support, and driver downloads, please visit the official MSI weblloc. També podeu trobar preguntes freqüents i fòrums de la comunitat per obtenir ajuda addicional.
Fabricant: MSI Computer
Data de primera disponibilitat: 5 de gener de 2017
