Introducció
The Nobsound NS-10G is a compact yet powerful Bluetooth 5.0 2-channel power amplifier designed for home audio systems. It delivers 50W x 2 output, suitable for 3-8 inch speakers, and supports multiple audio inputs including AUX, Bluetooth, and USB. This manual provides detailed instructions for setup, operation, and maintenance to ensure optimal performance and longevity of your device.

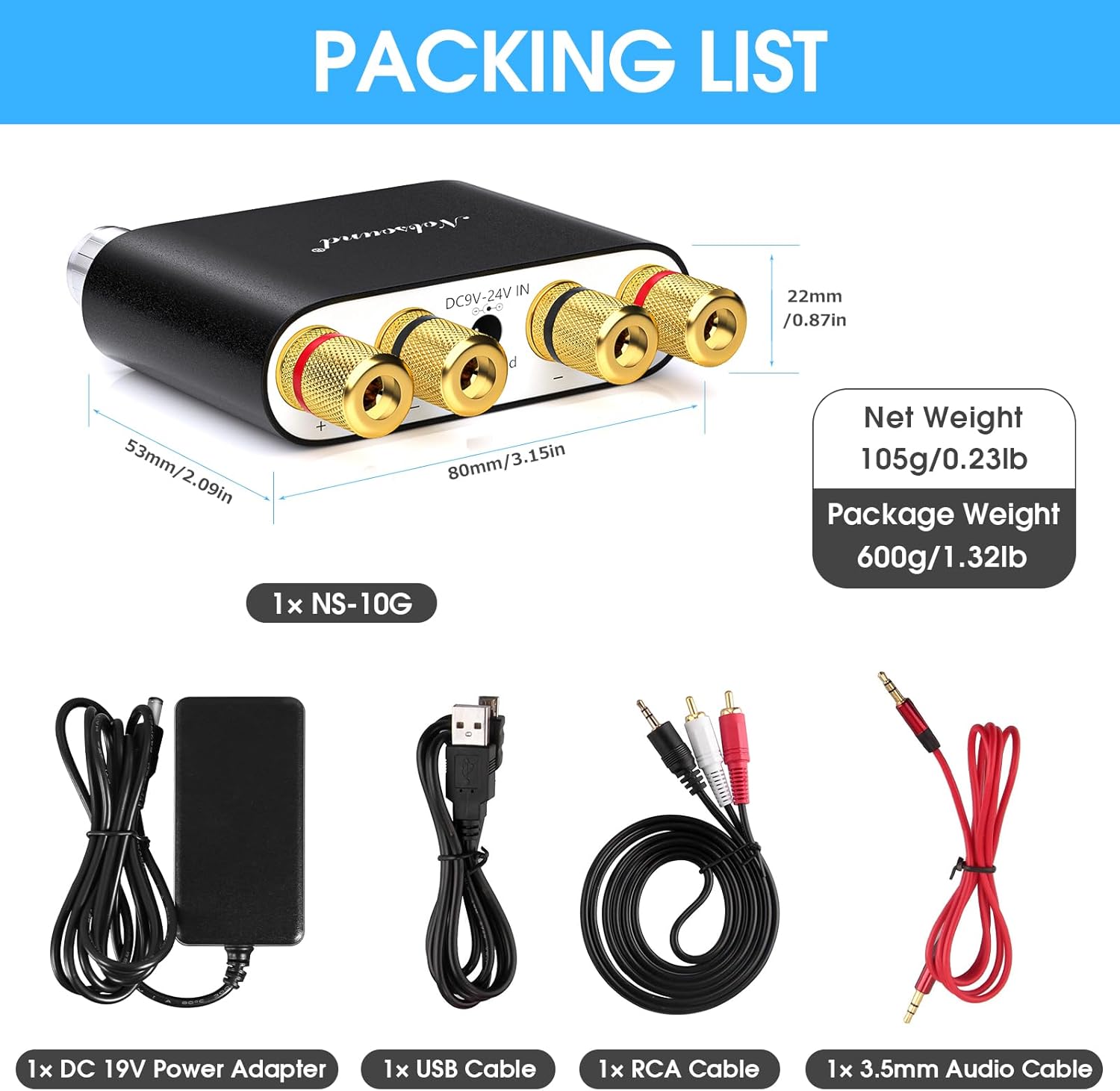

Què hi ha a la caixa
- 1 × Ampmés viu
- 1 × adaptador de corrent
- 1 × 3.5mm+RCA+USB Cable
- 1 × manual
Característiques
- NS-10G is the upgrade version of our popular NS-01G. It is a 100W Bluetooth power amplifier for 3~8 inch 2.0CH home speakers.
- Support AUX / Bluetooth / USB inputs from various audio devices like phone, TV, Blu-ray player, PC computer, CD player and so on.
- Bluetooth 5.0 can ensure stable wireless transmission (around 30ft). USB port can be used as a computer sound card. No driver needed and easy use.
- With Bass/Mode key. Short press to conveniently switch among different inputs. Long press to choose different sound effects (in Bluetooth mode).
- Super mini size with powerful drive. Clear HiFi sound with no background noise.
Especificacions
| Especificació | Valor |
|---|---|
| Marca | Nobsound |
| Número de model | DZ027 |
| Potència de sortida | 100 watts (50 W x 2) |
| Nombre de canals | 2 |
| Voltage | 12 volts (CC) |
| Subministrament mínim Voltage | 9 volts (CC) |
| Volum de subministrament màximtage | 24 volts (CC) |
| Corrent de subministrament | 5 Amps |
| Pes de l'article | 1.1 lliures |
| Dimensions del paquet | 6.69 x 5.75 x 2.52 polzades |
| Tipus de muntatge | Muntatge en superfície |
Configuració
1. Desembalatge i inspecció
Carefully remove all components from the packaging. Inspect the amplifier and accessories for any signs of damage. If any items are missing or damaged, contact customer support immediately.
2. Connexió dels altaveus
Connect your passive speakers to the speaker terminals on the rear of the NS-10G amplifier. Ensure correct polarity: connect the positive (+) terminal of the amplifier to the positive (+) terminal of the speaker, and the negative (-) terminal of the amplifier to the negative (-) terminal of the speaker. Use appropriate gauge speaker wire for optimal performance.
3. Connexió de fonts d'àudio
The NS-10G supports multiple audio input methods:
- Entrada AUX: Connect your audio device (e.g., smartphone, CD player, TV) to the 3.5mm AUX input jack on the front panel using the provided 3.5mm audio cable.
- Entrada USB: Connecteu el amplifier to your computer's USB port using the provided USB cable. The amplifier will function as an external sound card, requiring no additional drivers.
- Entrada Bluetooth: For wireless connection, ensure no other wired inputs are active. The amplifier will automatically enter Bluetooth pairing mode when selected.
4. Potència de connexió
Connect the provided power adapter to the DC 9V-24V IN port on the rear of the amplifier, then plug the adapter into a suitable power outlet. The power indicator light will illuminate.
Instruccions de funcionament
1. Encendre/apagar
Long press the power button (marked with a power symbol and play/pause icon) on the front panel to turn the ampmés viu encès o apagat.
2. Selecció d'entrada
Short press the "BASS/M" button on the front panel to cycle through the available input modes: AUX, USB, and Bluetooth.
3. Control de volum
Rotate the large knob on the front panel clockwise to increase volume and counter-clockwise to decrease volume.
4. Emparellament Bluetooth
When Bluetooth mode is selected, the amplifier will automatically enter pairing mode. On your audio device (e.g., smartphone), search for "Nobsound NS-10G" in the Bluetooth settings and connect. A confirmation sound will indicate successful pairing.
5. Bass Sound Effect
While in Bluetooth mode, long press the "BASS/M" button to toggle different bass sound effects. This feature is only available in Bluetooth input mode.
Manteniment
- Neteja: Utilitzeu un drap suau i sec per netejar l'exterior amplifier. Do not use liquid cleaners or abrasive materials, as they may damage the finish or internal components.
- Ventilació: Assegureu-vos el amplifier is placed in a well-ventilated area to prevent overheating. Do not block any ventilation openings.
- Emmagatzematge: When not in use for extended periods, disconnect the power adapter and store the ampGuardar en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- Gestió de cables: Periodically check all connected cables for wear and tear. Replace any damaged cables to prevent signal loss or potential hazards.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Sense sortida de so. |
|
|
| Problemes de connexió Bluetooth. |
|
|
| Distorsió o mala qualitat del so. |
|
|
Vídeo oficial del producte
Aquest vídeo ofereix una visió generalview of the Nobsound NS-10G Mini Bluetooth 5.0 Digital Ampvidador, espectacleasing its design and features. (Source: DoukAudio, Seller)
Garantia i Suport
Nobsound products typically come with a standard manufacturer's warranty. For specific warranty details, technical support, or service inquiries, please refer to the warranty card included in your product packaging or visit the official Nobsound weblloc web. També podeu contactar directament amb el venedor per obtenir ajuda.
Per obtenir més assistència i informació sobre el producte, visiteu Botiga Nobsound a Amazon.
