The Jebao SW4 Propeller Water Pump is a high-performance wave maker designed for aquariums, offering adjustable flow rates and multiple operating modes. It features a silent design, a wireless controller, and a magnetic mount for easy installation. This unit is suitable for both freshwater and saltwater environments, enhancing water circulation and oxygenation.
Característiques clau
- Adjustable Flow Rates: Offers 8 different flow rates from 132 to 1000 GPH.
- Controlador sense fil: Includes a wireless controller for easy adjustment and master/slave pump connection.
- APEX System Compatibility: Features a 0-10V Input Port for integration with APEX systems.
- Funcionament silenciós: Engineered for quiet performance, minimizing disturbance to the aquarium environment.
- One-Touch Feed Mode: Temporarily slows the pump for 10 minutes to facilitate feeding.
- Night Sensor: Automatically detects low light conditions and reduces pump activity.
- Construcció duradora: Equipped with a ceramic shaft for extended lifespan and reliability.
- Eficient energètic: Delivers powerful water flow with low energy consumption.
- Muntatge magnètic: Provides secure and flexible placement within the aquarium.
Contingut del paquet
Please ensure all items are present upon unpacking:
- 1x Jebao SW4 Propeller Water Pump
- 1 x Controlador sense fil
- Adaptador de CA 1x
- 1x Magnet Mount
Image: The complete package contents including the Jebao SW4 pump, wireless controller, and AC adapter.
Image: The retail packaging for the Jebao SW4 Propeller Pump.
Instruccions de configuració
- Desembalatge: Traieu amb cura tots els components de l'embalatge. Inspeccioneu-ho per veure si hi ha algun dany.
- Connexió de components:
- Connect the wave maker pump to the controller. Ensure the waterproof connectors are aligned correctly and securely fastened by twisting the locking ring. Incorrect connection may prevent proper operation.
- Connect the AC adapter to the controller.
- Plug the AC adapter into a suitable power outlet.
- Muntatge magnètic:
- Place the wave maker pump inside the aquarium at the desired location. Ensure the pump is fully submerged.
- Position the external magnet mount on the outside of the aquarium glass, directly opposite the pump. The strong magnetic force will secure the pump in place.
- Adjust the pump's position as needed by sliding the external magnet.

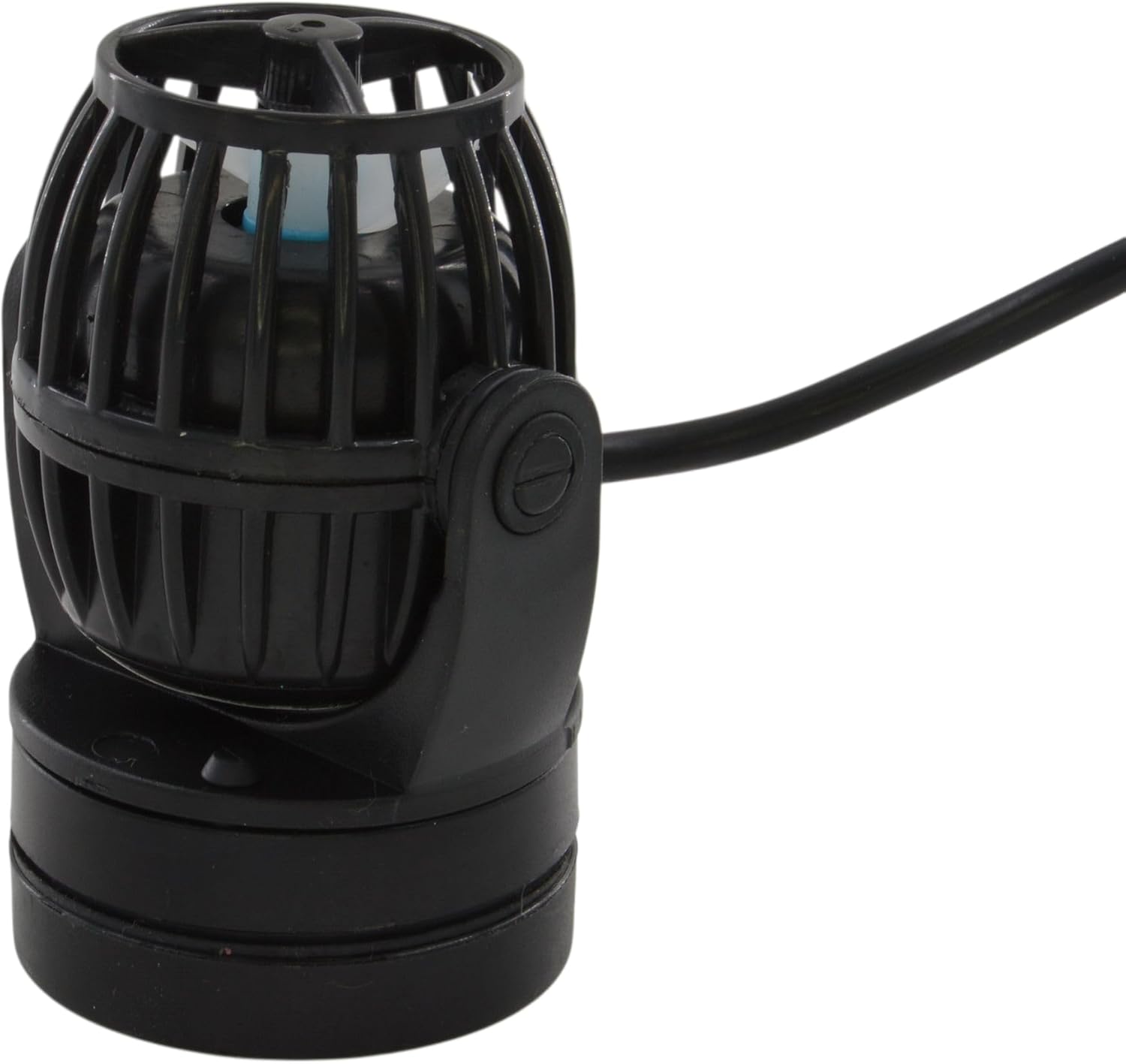

Imatge: Un costat view of the Jebao SW4 Propeller Water Pump, showing its compact design and the magnetic mounting mechanism for secure placement.
Guia de vídeo de configuració
Video: An unboxing and initial setup guide for the Jebao SW4 wave maker, demonstrating component connection and magnetic mounting.
Instruccions de funcionament
The wireless controller provides comprehensive control over the wave maker's functions.
- Encès/apagat: Press the power button on the controller to turn the pump on or off.
- Ajust del cabal: Use the speed adjustment dial or dedicated buttons on the controller to select one of the 8 available flow rates (132-1000 GPH).
- Modes de funcionament: The controller offers various wave patterns and modes to simulate natural water movement:
- Constant Flow Mode: Provides a steady, continuous water flow.
- Mode de pols: Creates intermittent pulses of water flow.
- Mode d'ona sinusoïdal: Generates a smooth, oscillating wave pattern.
- Mode aleatori: Produces unpredictable and varied flow patterns.
- Mode invers: Changes the direction of water flow.
- Mode d'alimentació: Press the "Feed" button to activate the one-touch feed mode. The pump will slow down for 10 minutes to allow fish to feed without food being swept away. After 10 minutes, it will automatically resume its previous operating mode.
- Night Sensor: The integrated night sensor automatically detects when tank lights are off and slows the pump to a gentler flow, simulating natural nighttime conditions.
- Master/Slave Control: For setups with multiple pumps, the wireless controller can connect pumps in a master/slave configuration, allowing synchronized operation and coordinated wave patterns.
Operation Video Guides
Video: Demonstrates the general operation and features of a quiet and powerful aquarium wave maker, including various modes and settings.
Vídeo: Proporciona una visió detalladaview of an aquarium wave maker pump with its controller, showcasing different modes and functionalities.
Manteniment
Regular cleaning is essential for optimal performance and longevity of your Jebao SW4 wave maker.
- Desmuntatge: Unplug the pump from the power source. Carefully remove the pump from the aquarium.
- Cleaning the Impeller: Open the protective shell of the wave maker to access the impeller. Remove any debris, algae, or foreign objects that may have accumulated around the impeller. A soft brush can be used for thorough cleaning.
- Remuntatge: Once clean, reassemble the pump components, ensuring all parts are securely in place.
- Col·locació: Reinstall the pump in the aquarium using the magnetic mount and reconnect the power.
Imatge: Un primer pla view of the Jebao SW4 Propeller Water Pump's impeller, highlighting the area that requires regular cleaning to prevent blockages and maintain efficiency.
Resolució de problemes
- Pump Not Operating:
- Comproveu totes les connexions d'alimentació per assegurar-vos que estiguin ben fixades.
- Verify the AC adapter is plugged into a working power outlet.
- Ensure the pump is correctly connected to the controller.
- Inspect the impeller for any blockages or debris. Clean if necessary.
- Reduced Flow/Weak Performance:
- Clean the impeller and protective cage as described in the Maintenance section.
- Check for any obstructions in the water flow path.
- Ensure the selected flow rate on the controller is appropriate.
- Soroll inusual:
- Remove the pump and inspect the impeller for any foreign objects or damage.
- Ensure the pump is securely mounted and not vibrating against the aquarium glass.
- Check for air bubbles trapped within the pump housing.
- Mal funcionament del controlador:
- Ensure the controller is receiving power.
- Try resetting the controller by unplugging and replugging the power.
- Refer to the specific controller instructions for advanced troubleshooting.
Especificacions tècniques
| Atribut | Detall |
|---|---|
| Marca | Jebao |
| Model | SW-4 |
| Material | Polipropilè (PP) |
| Color | Negre |
| Font d'alimentació | AC Powered (via included adapter) |
| Pes de l'article | 1.3 lliures |
| Dimensions del producte | 6.5 x 6.5 x 3.75 polzades |
| Caudal màxim | 16.66 Gallons Per Minute (approx. 1000 GPH) |
| Wattage | 10.00 W |
| Usos específics | Indoor Aquarium |
Image: The Jebao SW4 Propeller Water Pump showing its model number and other technical details on the label.
Garantia i Suport
This Jebao SW4 Propeller Water Pump comes with a 180 dies de garantia des de la data de compra. Conserveu el vostre comprovant de compra per a qualsevol reclamació de garantia.
For technical assistance, troubleshooting, or to make a warranty claim, please contact Jebao customer support. Contact information can typically be found on the product packaging or the official Jebao weblloc.
