Manual d'instruccions de la bateria infantil Fame Elias de 5 peces

Introducció

This manual provides essential information for the assembly, operation, and maintenance of your Fame Elias 5-Piece Children's Drum Kit. Designed for children aged approximately 3-6 years, this kit offers a complete drumming experience scaled for younger players. Please read these instructions carefully before use to ensure proper setup and to maximize the lifespan of your instrument. Keep this manual for future reference.

Contingut del paquet

Your Fame Elias 5-Piece Drum Kit package includes the following components:

• 16" Bass Drum
• 10" Snare Drum
• 8" Tom-Tom
• 10" Tom-Tom
• 12" Floor Tom
• 12" Crash Cymbal (Brass)
• 10" Hi-Hat Cymbals (Brass pair)
• Bass Drum Pedal (Foot Machine with felt beater)
• Snare Stand
• Hi-Hat Stand
• Suport de plats
• Drum Throne (height-adjustable)
• Pair of Drumsticks
• Maquinari i eines de muntatge

Figure 1: Complete Fame Elias 5-Piece Drum Kit with blue sparkle finish, including drums, cymbals, and hardware.

Muntatge i muntatge

1. Desembalatge i inspecció

   Carefully remove all components from the packaging. Inspect each part for any signs of damage. If any parts are missing or damaged, please contact your retailer immediately.

2. Assembling the Bass Drum

   Attach the bass drum legs and the bass drum pedal. Ensure the pedal is securely fastened to the bass drum hoop. The bass drum features a robust plastic tensioning band for tuning.

3. Setting Up the Snare Drum

   Place the 10" snare drum on its dedicated snare stand. Adjust the height and angle for comfortable playing. The snare drum uses flanged steel bands for tuning.



   Figure 2: Detail of the snare drum mechanism, showing the snare wires and tensioning system for precise tuning.

4. Mounting the Tom-Toms and Floor Tom

   Attach the 8" and 10" tom-toms using the provided tom holders. Position them for optimal reach. The 12" floor tom should be placed on its own legs. All tom-toms are tuned using flanged steel bands. The tom holders feature a filter with a tooth segment for secure grip and flexible adjustment.

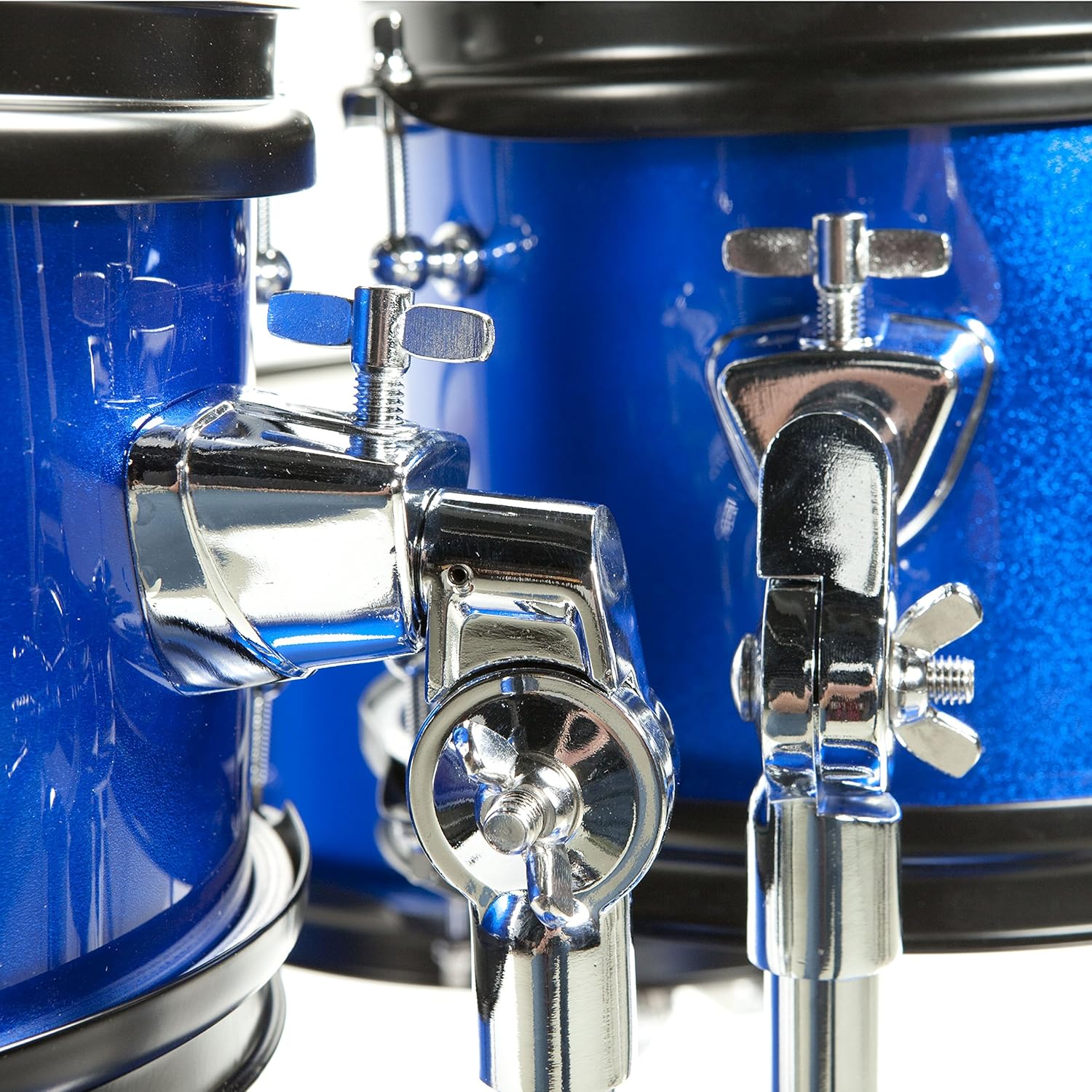

   Figura 3: Primer pla view of the tom-tom mounting hardware, illustrating the chrome-plated brackets and adjustment points.

5. Cymbal Setup

   Assemble the cymbal stand for the 12" crash cymbal and the hi-hat stand for the 10" hi-hat cymbals. Adjust their height and angle. Both cymbal stands feature a filter with a tooth segment for secure grip and flexible adjustment.

6. Drum Throne Adjustment

   Assemble the drum throne. Adjust its height using the hole rod mechanism to a comfortable playing position. The height can be adjusted from 33 cm to 42 cm, suitable for various age groups within the recommended range.

Operating Your Drum Kit

Tuning the Drums

The tom-toms and snare drum are tuned using the flanged steel bands. The bass drum uses a robust plastic tensioning band. Adjust the tension evenly around the drumhead for the desired pitch and resonance. Experiment with different tensions to find your preferred sound.

Tècniques de joc

Use the included drumsticks to strike the drumheads and cymbals. Practice basic rhythms and techniques. The bass drum pedal operates with a felt beater, similar in construction to pedals found on adult drum kits.

Manteniment i cura

• Neteja: Wipe down drum shells and hardware with a soft, dry cloth. Avoid abrasive cleaners that may damage the sparkle finish or chrome plating. The black powder-coated steel tension bands should also be cleaned gently.

• Drumheads: Periodically check drumheads for wear and tear. Replace them as needed to maintain optimal sound quality.

• Maquinari: Ensure all nuts, bolts, and clamps are tightened securely. Lubricate moving parts of pedals and stands if they become stiff.

• Emmagatzematge: Store the drum kit in a dry, temperature-controlled environment to prevent damage from humidity or extreme temperatures.

Resolució de problemes

• Qualitat de so baixa: Check drumhead tension. Ensure drumheads are not damaged. Verify all components are securely assembled.

• Maquinari solt: Tighten all wing nuts and bolts on stands and mounts. Refer to the assembly section for proper tightening procedures.

• Squeaky Pedal: Apply a small amount of lubricant to the moving parts of the bass drum pedal.

Especificacions

Garantia i Suport

For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official Fame weblloc web. Conserveu el comprovant de compra per a qualsevol reclamació de garantia.

For further assistance, please contact Fame customer service via their official weblloc: www.fame-music.de
