Introducció
This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of the Danco Hydroclean HC660 HydroClean Fill Valve. Please read these instructions carefully before beginning installation to ensure proper function and longevity of the product.

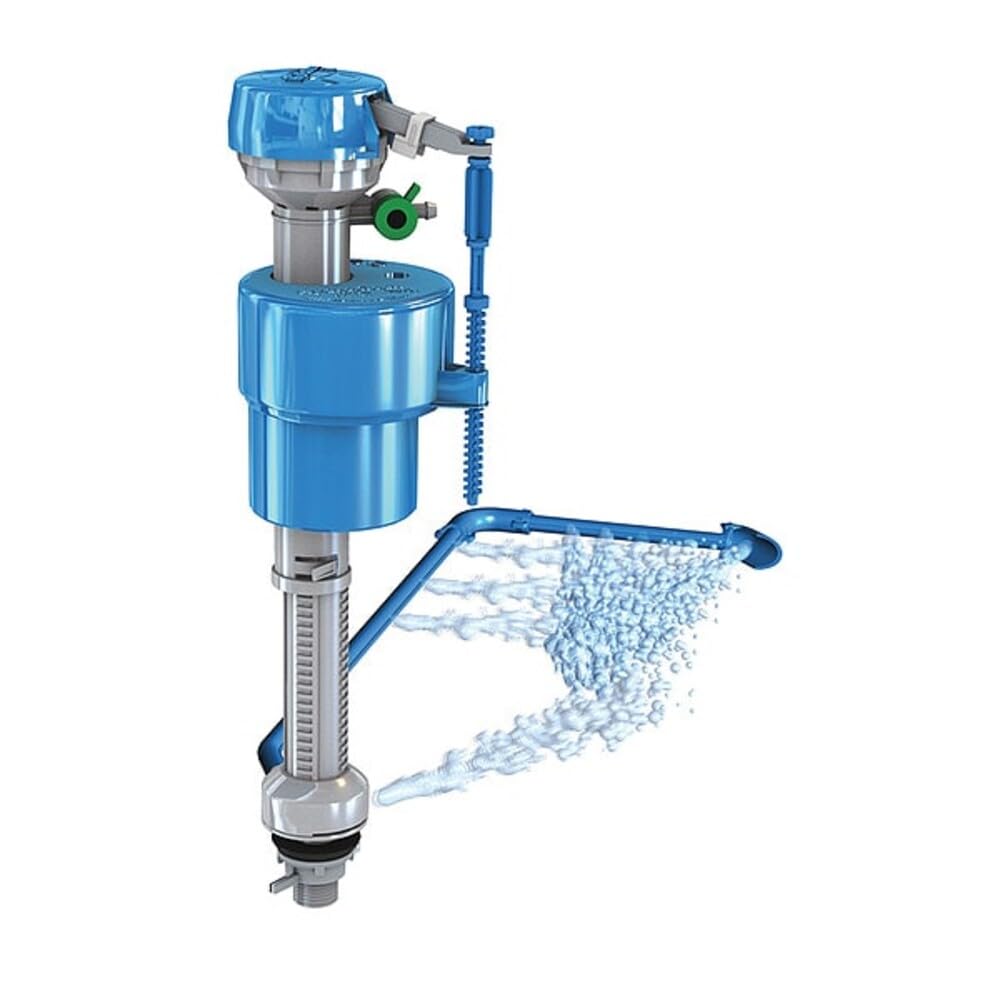

Image: The Danco Hydroclean HC660 HydroClean Fill Valve, a water-saving toilet fill valve designed for efficient toilet tank refilling. The image shows the complete valve assembly, including the float, shank, and water inlet connection.
Configuració i instal·lació
Before you begin, ensure you have the necessary tools: adjustable wrench, sponge, and bucket.
- Tanqueu el subministrament d'aigua: Locate the water supply valve at the base of the toilet and turn it clockwise until the water flow stops completely.
- Flush Toilet: Flush the toilet to drain most of the water from the tank. Use a sponge to remove any remaining water.
- Disconnect Water Supply Line: Unscrew the water supply line from the bottom of the old fill valve. A bucket may be needed to catch any residual water.
- Treure la vàlvula d'ompliment antiga: Loosen the lock nut on the underside of the toilet tank that secures the old fill valve. Remove the old fill valve from the tank.
- Instal·leu una nova vàlvula d'ompliment: Insert the Danco Hydroclean HC660 fill valve into the hole at the bottom of the toilet tank. Ensure the shank washer is properly seated.
- Vàlvula d'ompliment segura: From the underside of the tank, hand-tighten the new lock nut onto the fill valve shank. Do not overtighten.
- Connecteu la línia de subministrament d'aigua: Reconnect the water supply line to the new fill valve's shank. Hand-tighten, then use an adjustable wrench for a final quarter-turn. Do not overtighten.
- Attach Refill Tube: Connect the refill tube from the fill valve to the overflow pipe in the toilet tank. Ensure it is securely attached and positioned above the water level.
- Activeu el subministrament d'aigua: Gireu lentament la vàlvula de subministrament d'aigua en sentit antihorari per restablir el flux d'aigua al dipòsit del vàter. Comproveu si hi ha fuites.
- Ajustar el nivell de l'aigua: The Hydroclean HC660 allows for water level adjustment. Refer to the "Operating" section for instructions on how to set the desired water level.
Instruccions de funcionament
The Danco Hydroclean HC660 fill valve is designed to efficiently refill your toilet tank after each flush and automatically shut off when the desired water level is reached.
Ajust del nivell de l'aigua:
To adjust the water level in the toilet tank:
- Locate the water level adjustment mechanism on the fill valve. This typically involves a float or a screw adjustment.
- For most Hydroclean models, gently twist the top cap or slide the float mechanism up or down to raise or lower the water level.
- Flush the toilet after each adjustment to observe the new water level. Repeat until the desired water level is achieved, typically about 1 inch below the top of the overflow pipe.
Manteniment
Regular maintenance ensures optimal performance and extends the life of your Danco Hydroclean HC660 fill valve.
Neteja de la vàlvula d'ompliment:
Over time, mineral deposits or debris can affect the valve's operation. To clean:
- Tanqueu el subministrament d'aigua al vàter.
- Feu servir la cadena del vàter per buidar el dipòsit.
- Carefully remove the top cap of the fill valve (refer to specific model instructions if needed).
- Inspect the rubber seal (diaphragm) and the valve seat for any debris or mineral buildup.
- Rinse components under clean water. Use a soft brush if necessary to remove stubborn deposits. Avoid harsh chemicals.
- Reassemble the valve, ensuring all parts are correctly seated.
- Turn on the water supply and check for proper operation and leaks.
Comprovació de fuites:
Periodically check for leaks around the base of the fill valve and the water supply line connection. Tighten connections if necessary, but do not overtighten.
Resolució de problemes
Refer to the following common issues and solutions for your Danco Hydroclean HC660 fill valve.
| Problema | Causa possible | Solució |
|---|---|---|
| Toilet runs constantly or cycles on and off. | Water level too high, worn flapper, debris in fill valve. | Adjust water level (see "Operating" section). Inspect and replace flapper if worn. Clean fill valve (see "Maintenance" section). |
| Toilet fills slowly or not at all. | Partially closed water supply valve, clogged fill valve inlet, low water pressure. | Ensure water supply valve is fully open. Clean fill valve inlet screen. Check household water pressure. |
| Water leaks from base of fill valve. | Loose lock nut, damaged shank washer, improper installation. | Tighten lock nut (do not overtighten). Inspect and replace shank washer if damaged. Reinstall valve ensuring proper seating. |
Especificacions
- Número de model: HC660
- Marca: Danco
- Material: Plàstic
- Dimensions de l'article (L x A x A): 3 x 3.25 x 12.75 polzades
- Pes de l'article: 14.4 unces
- Mida del fil: 7/8 polzada
- Tipus de fil: NPT
- Tipus de vàlvula: Vàlvula de flotació
- UPC: 188670000015
- Fabricant: DANCO INC
- Especificació complerta: WaterSense
Informació de la garantia
Specific warranty details for the Danco Hydroclean HC660 HydroClean Fill Valve are typically provided with the product packaging or can be found on the official Danco website. Please retain your proof of purchase for warranty claims. For the most current and detailed warranty information, please visit the manufacturer's official weblloc o poseu-vos en contacte amb el seu servei d'atenció al client.
Atenció al client
If you encounter any issues not covered in this manual or require further assistance, please contact Danco customer service. You can typically find contact information on the product packaging or on the official Danco weblloc.
Danco Oficial Weblloc: www.danco.com
