AEG BPB331020M Built-in Oven User Manual

1. Introducció

This manual provides essential information for the safe and efficient operation of your new AEG BPB331020M built-in electric oven. Please read these instructions carefully before installation, first use, and maintenance. Keep this manual for future reference.

2. Informació important de seguretat

Seguiu sempre les següents pautes de seguretat per evitar lesions o danys a l'aparell:

• Ensure the oven is correctly installed by a qualified professional according to local regulations.
• Do not allow children to operate or play with the oven. Keep packaging materials away from children.
• El forn s'escalfa durant el funcionament. Eviteu tocar els elements calefactors o les superfícies interiors. Feu servir guants de forn.
• Never use water to extinguish oil or grease fires. Smother the flames with a lid or fire blanket.
• No emmagatzemeu materials inflamables dins o prop del forn.
• Desconnecteu l'aparell de la xarxa elèctrica abans de netejar-lo o fer-ne el manteniment.
• Ensure proper ventilation during and after use, especially when using pyrolytic cleaning.

3. Producte acabatview

The AEG BPB331020M is a 71-liter built-in electric oven featuring multiple cooking functions and a pyrolytic self-cleaning system. It is designed for integration into kitchen cabinetry.

Figura 3.1: Frontal view of the AEG BPB331020M built-in oven, showcasinel seu acabat d'acer inoxidable i el panell de control integrat.

3.1 Tauler de control

The control panel consists of a digital display, rotary knobs for function and temperature selection, and touch controls for various settings including the timer.

Figure 3.2: The oven's control panel with digital display, rotary selectors, and touch buttons, shown above the oven door with food cooking inside.

4. Instal·lació i configuració

Installation should only be performed by a qualified technician. Ensure the appliance is disconnected from the power supply before beginning installation.

4.1 Dimensions and Cabinet Requirements

Refer to the diagram below for precise dimensions and required cabinet cut-out sizes for proper integration.

Figure 4.1: Technical drawing illustrating the required installation dimensions for the AEG BPB331020M oven, including width, height, and depth measurements for the appliance and cabinet opening.

• Dimensions del producte (A x A x P): 59.4 cm x 59.5 cm x 56.7 cm
• Required Niche Dimensions (H x W x D): Minimum 59 cm x Minimum 56 cm x Minimum 55 cm

4.2 Connexió elèctrica

Connect the oven to a properly grounded electrical outlet. The appliance requires a 3500 W power supply. Consult an electrician if unsure.

5. Instruccions de funcionament

5.1 Primer ús

1. Abans del primer ús, netegeu l'interior del forn amb aiguaamp drap i detergent suau.
2. Heat the empty oven for approximately one hour at 200°C (400°F) to burn off any manufacturing residues. Ensure good ventilation during this process.
3. Set the current time on the display using the touch controls.

5.2 funcions de cuina

El forn ofereix diverses funcions de cocció per adaptar-se a diferents plats:

• Cocció per convecció: Uses a fan to circulate hot air, ensuring even cooking and browning. Ideal for baking multiple dishes simultaneously.
• Grill: For browning and crisping the surface of food.
• Oven Defrost Function: Descongela suaument els aliments congelats.
• Programes automàtics: The oven includes 8 pre-set automatic programs for common dishes.

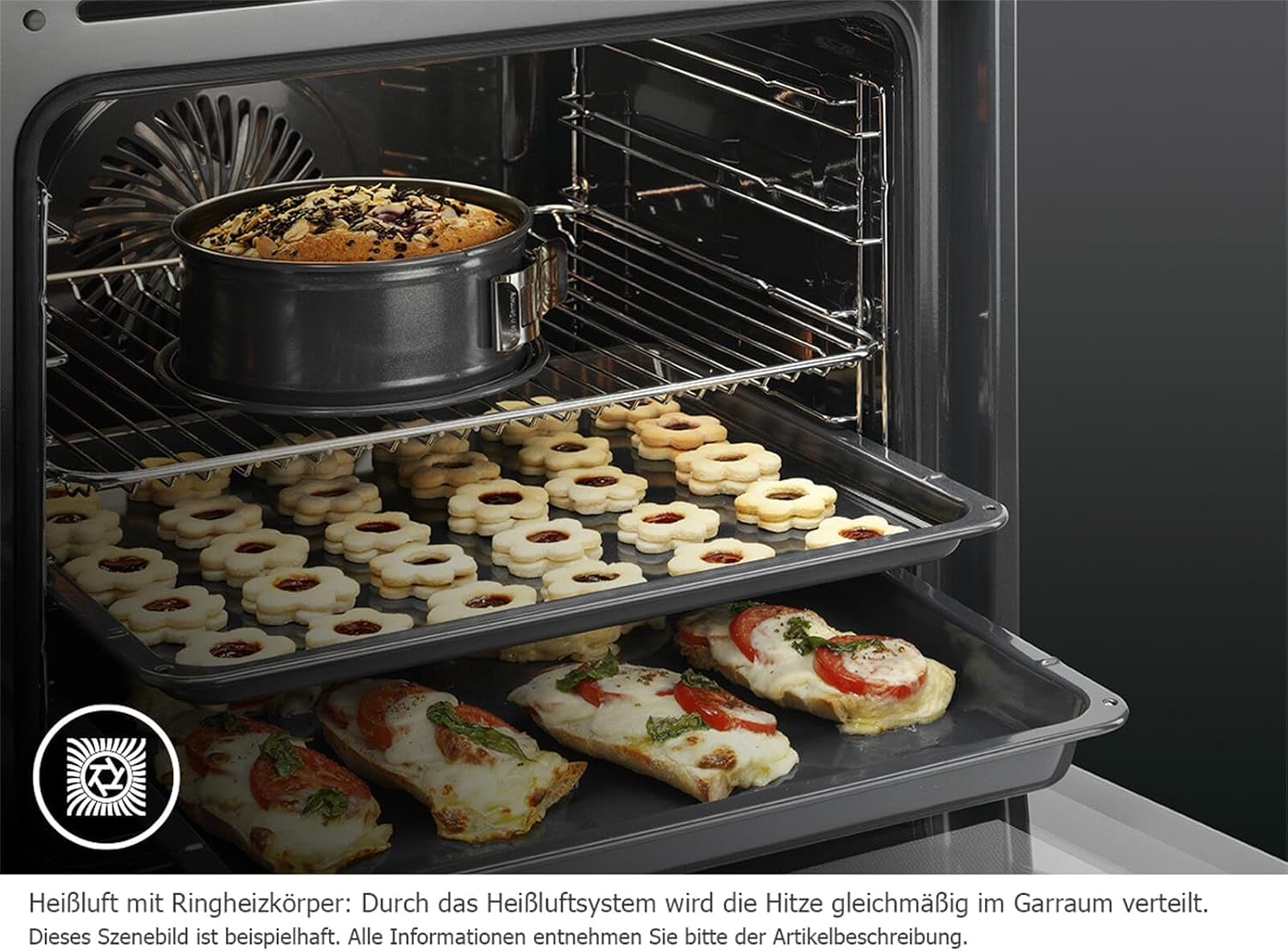

Figure 5.1: The oven interior demonstrating multiple dishes cooking simultaneously on different rack levels, highlighting the convection cooking capability.

5.3 Configuració de la temperatura i el temps

1. Turn the function rotary knob to select the desired cooking mode.
2. Turn the temperature rotary knob to set the desired temperature. The display will show the selected temperature.
3. Use the touch controls to set the cooking duration or timer functions (e.g., start time, end time, minute minder).
4. The oven will automatically switch off when the set cooking time has elapsed.

6. Manteniment i Neteja

6.1 Autoneteja pirolítica

The oven features a pyrolytic self-cleaning function that burns off food residues at high temperatures, turning them into ash. This ash can then be easily wiped away.

1. Remove all accessories (racks, trays) from the oven before starting the pyrolytic cycle.
2. Netegeu qualsevol vessament gran o restes soltes.
3. Select the pyrolytic cleaning function from the control panel and follow the on-screen instructions.
4. Ensure the kitchen is well-ventilated during and after the cycle.
5. Once the oven has cooled, wipe away the ash with a damp tela.

Figure 6.1: A visual comparison showing the oven interior before and after a pyrolytic self-cleaning cycle, illustrating the effectiveness of the cleaning function.

6.2 Neteja general

For regular cleaning, use a soft cloth and mild detergent. Avoid abrasive cleaners or scouring pads that can damage surfaces.

• Netegeu l'exterior amb anunciamp drap i assecar bé.
• El vidre de la porta del forn es pot netejar amb un netejador de vidres.
• Les peces extraïbles com ara les reixetes i les safates es poden rentar amb aigua tèbia i sabó.

7. Solució De Problemes

Abans de contactar amb el servei d'atenció al client, consulteu els següents problemes i solucions habituals:

8. Especificacions tècniques

9. Garantia i atenció al client

Your AEG BPB331020M oven comes with a manufacturer's warranty. Please refer to the warranty card provided with your appliance for specific terms and conditions. For technical assistance, spare parts, or to schedule a service appointment, please contact AEG customer support through their official weblloc web o les dades de contacte que es proporcionen a la documentació de compra.
