Manual d'usuari del xassís mATX Chieftec CI-01B-OP

1. Introducció

This manual provides comprehensive instructions for the installation, operation, and maintenance of the Chieftec CI-01B-OP mATX Chasis. This chassis is designed for micro-ATX systems, offering a compact yet versatile solution for PC builders. Please read this manual thoroughly before beginning any installation.

This image displays the Chieftec CI-01B-OP mATX Chasis from a front-side angle, highlighting its black finish and honeycomb mesh front panel design.

2. Contingut del paquet

Please verify that all items listed below are present in your package before proceeding with installation. If any items are missing or damaged, contact your retailer.

• Chieftec CI-01B-OP mATX Chasis
• Conjunt de cargols de muntatge
• Filtre de pols
• HDD rails
• Instruccions de muntatge (aquest manual)

3. Característiques clau

The Chieftec CI-01B-OP mATX Chasis offers several features designed for ease of use and performance:

• Factor de forma: Compact mATX cube design.
• Panell frontal: Honeycomb stamped mesh for optimized airflow.
• Ports d'E/S frontals: 2x USB 3.0, 1x USB 2.0, Mic-in, Audio-out (AZALIA / HD-Audio).
• Baies en cotxe: 1x 5.25" external, 2x 3.5" internal, 3x 2.5" internal.
• VGA Card Support: Maximum length of 320mm.
• CPU Cooler Support: Maximum height of 150mm.
• Material: Durable 0.6mm thick metal construction.

This image shows a close-up of the top panel of the chassis, detailing the integrated USB 3.0, USB 2.0, microphone, and audio ports.

4. Configuració i instal·lació

Follow these steps for proper component installation. Ensure the system is powered off and unplugged from the wall outlet before beginning any installation to prevent electric shock or damage to components.

4.1. Preparing the Chasis

Remove the side panels and any necessary covers to access the interior. Refer to the chassis diagram for panel removal instructions.

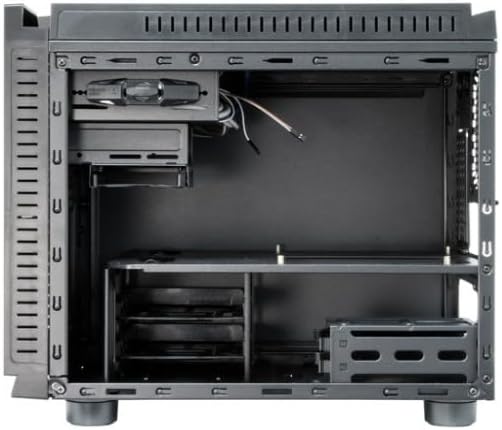

Aquesta imatge proporciona una imatge interna view of the chassis, showing the motherboard tray, drive bays, and general component layout.

4.2. Instal·lació de la placa base

1. Install the I/O shield into the rear opening of the chassis.
2. Align your micro-ATX motherboard with the pre-installed standoffs inside the chassis.
3. Fixeu la placa base amb els cargols proporcionats. No els estrenyeu massa.

4.3. Instal·lació de la font d'alimentació (PSU)

1. Mount the PSU in its designated area, typically at the rear bottom of the chassis.
2. Fixeu la font d'alimentació amb cargols des de la part posterior del xassís.

4.4. Instal·lació de la unitat

• Discs durs de 3.5 polzades: Attach the provided HDD rails to your 3.5" hard drives and slide them into the internal 3.5" drive bays until they click into place.
• 2.5" SSDs/HDDs: Secure 2.5" solid-state drives or hard drives into the dedicated 2.5" bays using screws.
• 5.25" ODD: Install 5.25" optical drives into the external bay from the front and secure them with screws or tool-less mechanisms if available.

4.5. Instal·lació de la targeta gràfica (VGA)

1. Remove the necessary expansion slot covers at the rear of the chassis.
2. Insert the graphics card into the appropriate PCIe slot on the motherboard.
3. Secure the graphics card with a screw or latch. Ensure the card's length does not exceed 320mm.

4.6. Instal·lació del refrigerador de CPU

Install your CPU cooler according to its manufacturer's instructions. Ensure the cooler's height does not exceed 150mm to allow the side panel to close properly.

4.7. Gestió de cables

Route power and data cables neatly behind the motherboard tray or through designated cutouts. This improves airflow and maintains a clean interior aesthetic.

This image shows the chassis with its top and side panels opened, revealing the internal structure and providing a clear view of the space available for component installation and cable routing.

4.8. Connecting Front Panel Cables

Connect the front panel USB 3.0, USB 2.0, audio, power switch, reset switch, and LED cables to the corresponding headers on your motherboard. Refer to your motherboard manual for specific header locations and pin assignments.

5. Funcionament

Once all components are securely installed and connected, carefully close and secure the chassis panels. Connect the power cable to the PSU and an electrical outlet. Press the power button on the front panel to start your system.

6. Manteniment

Regular maintenance helps ensure optimal performance and longevity of your chassis and its components.

• Filtres de pols: Periodically clean the dust filters (e.g., front mesh, bottom PSU filter) to maintain good airflow and prevent dust buildup inside the system. Dust can impede cooling efficiency.
• Neteja interior: Use compressed air to remove dust from internal components and fans. Ensure the system is powered off and unplugged before cleaning. Avoid using liquid cleaners inside the chassis.
• Neteja exterior: Netegeu les superfícies exteriors amb un drap suau i lleugeramentamp tela. Eviteu utilitzar productes químics o materials abrasius que puguin danyar l'acabat.

7. Solució De Problemes

This section addresses common issues you might encounter during or after installation.

• System does not power on:

  Check all power connections, including the PSU to the wall outlet, the 24-pin ATX power cable and 8-pin CPU power cable from the PSU to the motherboard, and the front panel power switch cable to the motherboard header. Ensure the PSU switch is in the 'ON' position.

• Sense sortida de pantalla:

  Ensure the graphics card is properly seated in its PCIe slot and connected to auxiliary power (if required). Verify the monitor cable is securely connected to the graphics card and the monitor is powered on and set to the correct input.
• Fans are not spinning:

  Check all fan connections to the motherboard or any fan controller. Ensure power cables are properly connected to the fans.

• Front USB ports not working:

  Verify that the front panel USB cables (USB 3.0 and USB 2.0) are correctly connected to the corresponding USB headers on your motherboard.

8. Especificacions tècniques

9. Garantia i Suport

For detailed warranty information, technical support, or service inquiries, please refer to the official Chieftec website or contact your local retailer where the product was purchased. Please retain your proof of purchase for any warranty claims.

Official Chieftec Weblloc: https://www.chieftec.eu
