Marcy Olympic Weight Bench MWB-4491 Instruction Manual

1. Producte acabatview

The Marcy Olympic Weight Bench MWB-4491 is designed for comprehensive home fitness training. Constructed from a durable 14-gauge steel tube with powder coating, this ergonomically designed bench press facilitates a full-body workout. It is ideal for training your chest, shoulders, core, and both upper and lower limbs.

Característiques principals:

• Premium Workout Bench: Made of 14-gauge steel tube reinforced with powder coating for durability.
• Banc de peses ajustable: Features a 5-position adjustable back pad and seat for customized workout positions, allowing incline, decline, or flat training.
• Multifunction Bench Press Set: Includes an adjustable barbell crutch designed to strengthen arms, accommodating a 7-foot barbell.
• Workout Benches For Home: An all-in-one gym equipment piece for training chest, arms, legs, and core.
• Gym Bench: Ergonomically designed seating with high-density foam for back comfort and durability.

Figure 1.1: The Marcy Olympic Weight Bench MWB-4491, showcasing its robust design and integrated leg developer.

2. Muntatge i muntatge

Before beginning assembly, ensure all components are present and undamaged. Refer to the official Manual d'instal·lació (PDF) for detailed, step-by-step instructions and diagrams. Assembly typically requires basic tools and can be completed by one or two individuals.

Passos clau del muntatge:

1. Desembaleu tots els components i verifiqueu-los amb la llista de peces del manual.
2. Attach the main frame components, ensuring all bolts are securely tightened.
3. Install the adjustable back pad and seat, confirming smooth adjustment mechanisms.
4. Assemble the leg developer attachment, including the foam rollers and weight post.
5. Secure the barbell crutch supports to the main frame.
6. Perform a stability check to ensure the bench is firm and level before use.

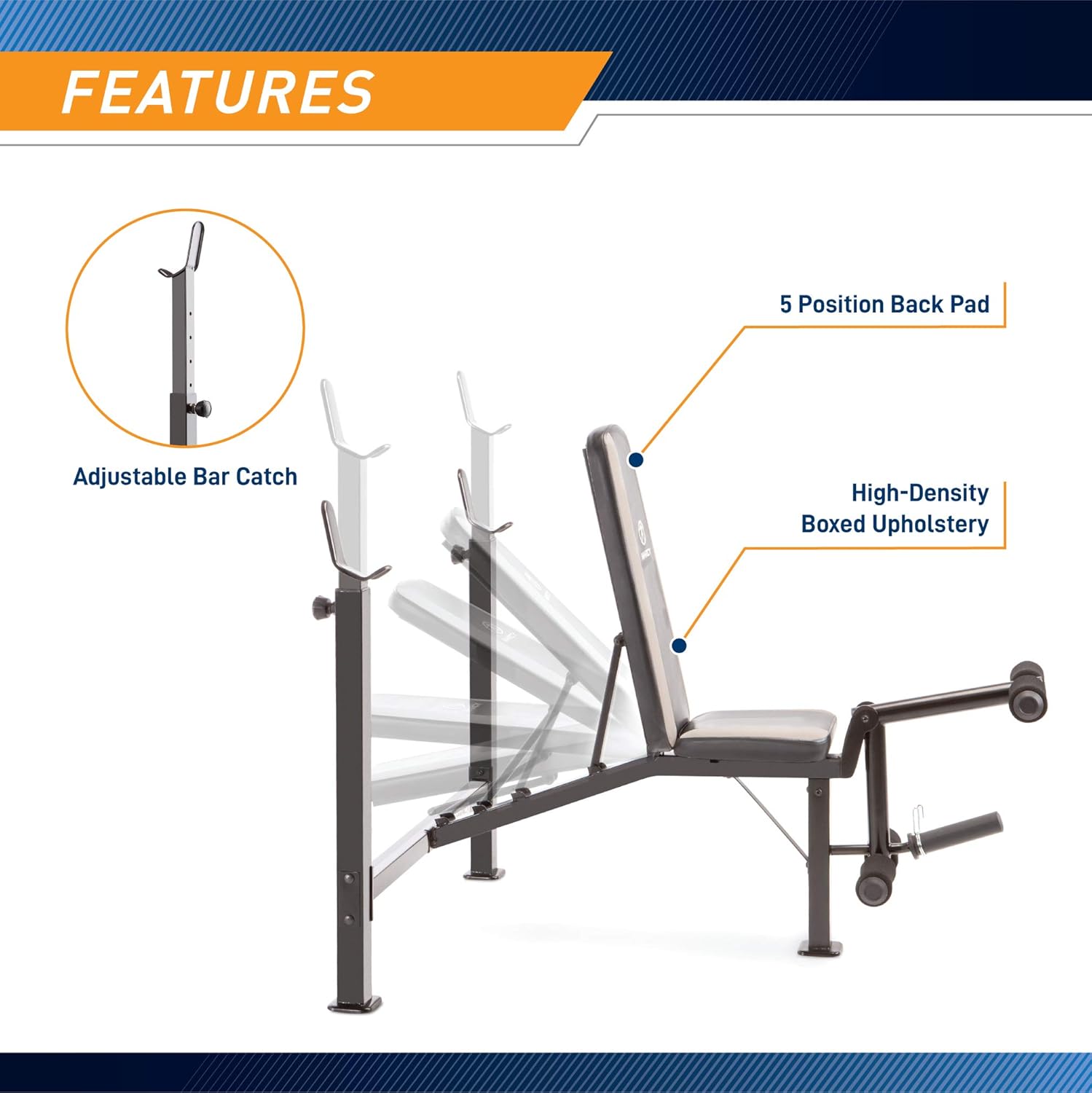

Figure 2.1: Illustration of the adjustable bar catch and 5-position back pad, highlighting key features for setup.

Figura 2.2: Detallada view of the leg developer, showing the high-density contoured foam rollers and the 2-inch Olympic weight post.

3. Instruccions de funcionament

The Marcy Olympic Weight Bench offers versatile workout options. Always ensure the bench is on a stable, level surface before beginning any exercise. Adjustments should be made carefully and securely locked into place.

Adjusting the Back Pad and Seat:

The back pad and seat can be adjusted to 5 different positions (incline, decline, and flat) to target various muscle groups. To adjust, locate the adjustment pin or lever beneath the back pad/seat, pull it out, reposition the pad to the desired angle, and release the pin to lock it securely. Always double-check that the pin is fully engaged before use.

Using the Leg Developer:

The integrated leg developer allows for leg extensions and leg curls. Load Olympic-sized weight plates onto the 2-inch weight post. Secure plates with a collar. For leg extensions, sit on the bench with your shins under the top foam rollers and your knees aligned with the pivot point. Extend your legs upwards. For leg curls, lie face down on the bench with your Achilles tendons under the lower foam rollers. Curl les cames cap amunt.

Figure 3.1: Demonstrating a leg extension exercise using the integrated leg developer. Weights are not included.

Figure 3.2: Demonstrating a leg curl exercise, targeting hamstrings with the leg developer. Weights are not included.

Barbell Crutch Usage:

The adjustable barbell crutch is designed to hold a 7-foot Olympic barbell. Ensure the barbell is centered and securely seated on the crutch before and after each set. Adjust the height of the crutch to match your exercise and comfort level.

4. Cura i Manteniment

Regular maintenance ensures the longevity and safe operation of your Marcy Olympic Weight Bench.

• Neteja: Netegeu la tapisseria i el marc amb anunciamp cloth after each use to remove sweat and dirt. Use mild soap and water for deeper cleaning, avoiding harsh chemicals.
• Inspeccions: Periodically check all nuts, bolts, and moving parts for tightness. Tighten any loose fasteners to prevent wobbling or instability.
• Cura de la tapisseria: Inspect the upholstery for any tears or excessive wear. Address minor damage promptly to prevent further deterioration.
• Emmagatzematge: Store the bench in a dry, temperate environment away from direct sunlight or extreme temperatures to prevent material degradation.

5. Solució De Problemes

If you encounter any issues with your Marcy Olympic Weight Bench, refer to the following common troubleshooting tips:

• Oscil·lacions del banc: Ensure the bench is on a flat, level surface. Check and tighten all assembly bolts and nuts.
• Adjustment Pin Sticks: Apply a small amount of silicone lubricant to the adjustment pin and its housing. Ensure no debris is obstructing the mechanism.
• Leg Developer Movement is Not Smooth: Check the pivot points for any obstructions or loose connections. Ensure the weight post is clear and weights are properly loaded.
• Sorolls inusuals: Inspect all connection points for loose hardware. Lubricate any moving parts that may be causing friction.

For issues not covered here, please contact Marcy customer support.

6. Especificacions del producte

Figure 6.1: Visual representation of the Marcy Olympic Weight Bench's dimensions and weight capacity.

7. Garantia i Suport

The Marcy Olympic Weight Bench MWB-4491 comes with a Garantia del fabricant de 2 anysAquesta garantia cobreix els defectes de materials i de fabricació en condicions d'ús i manteniment normals.

Atenció al client:

For warranty claims, technical assistance, or any product-related inquiries, please contact Marcy customer support. Refer to the contact information provided on your warranty card or the official Marcy weblloc.

Un addicional Manual d'usuari (PDF) is available for further reference.
