Introducció
This manual provides essential information for the installation, operation, and maintenance of the Norton 5721 Powered Door Operator, model 5730RFX689 531. This automatic, hydraulic door operator is designed for heavy-duty performance in both interior and exterior applications. It is electronically controlled, non-handed, and meets ANSI A156.19 standards, ensuring ADA compliance.

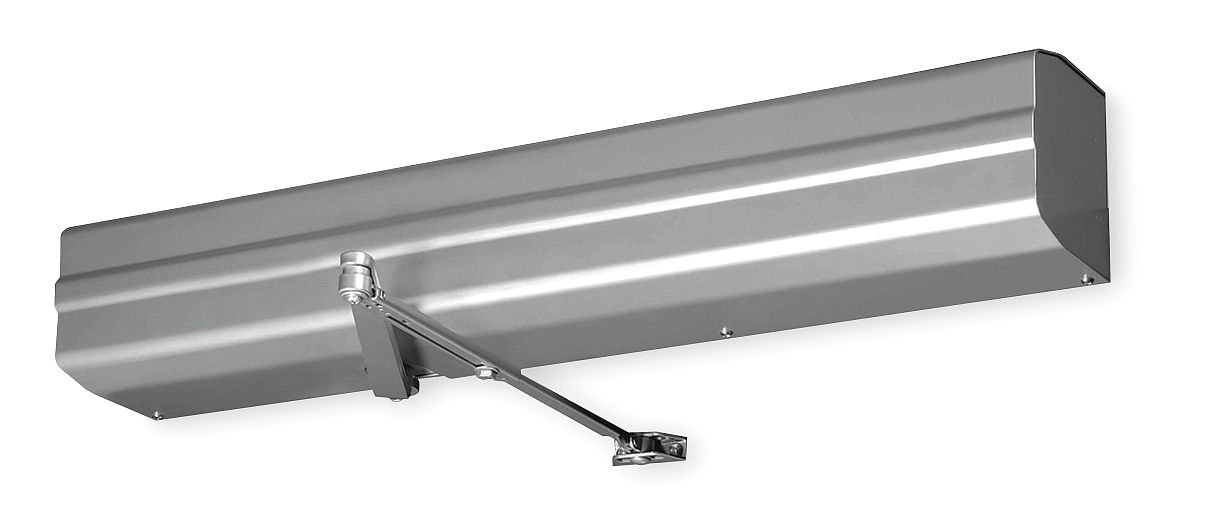

Image showing the main unit of the Norton 5721 Powered Door Operator, typically mounted above a door frame.
Configuració i instal·lació
Proper installation is crucial for the safe and efficient operation of the Norton 5721 Powered Door Operator. It is highly recommended that installation be performed by a qualified professional.
Consideracions clau per a la instal·lació:
- Estil de muntatge: The operator features a regular mounting style, suitable for push-side applications.
- Tipus de braç: Utilizes a slide track arm for smooth door operation.
- Compatibilitat de la porta: Designed for exterior doors up to 48 inches in width.
- Dimensions de l'habitatge: The operator housing measures approximately 5-1/4 inches in height, 29 inches in length, and 4-5/8 inches in depth. Ensure adequate space above the door frame for proper fitment.
- Maquinari: All necessary hardware for installation is included.
- Connexió elèctrica: This is an electronically controlled unit and requires a stable power supply. Consult local electrical codes and a certified electrician for wiring.
Instruccions de funcionament
The Norton 5721 Powered Door Operator provides automatic and controlled door movement, enhancing accessibility and convenience.
Funcionament bàsic:
- Funció automàtica: The operator is designed to open and close the door automatically upon activation by an external signal (e.g., push button, motion sensor, access control system).
- Control hidràulic: The hydraulic mechanism ensures smooth and controlled door opening and closing speeds, preventing abrupt movements.
- Control electrònic: The electronic system manages the door's cycle, including hold-open time, closing speed, and safety features.
- Compliment de l'ADA: The operator is configured to meet ADA requirements for opening force and closing speed, ensuring accessibility for all users.
Refer to the specific control panel or activation device manual for detailed programming and adjustment procedures.
Manteniment
Regular maintenance helps ensure the longevity and reliable performance of your Norton 5721 Powered Door Operator.
Calendari de manteniment recomanat:
- Inspecció mensual:
- Check for any unusual noises during operation.
- Inspect the arm and slide track for wear, damage, or obstructions.
- Verify that all mounting screws are tight.
- Clean the exterior of the housing with a soft, damp tela. Eviteu els netejadors abrasius.
- Quarterly Inspection:
- Check the door's opening and closing speeds. Adjust if necessary according to manufacturer guidelines.
- Inspect electrical connections for any signs of wear or corrosion (ensure power is off before inspection).
- Ensure safety sensors (if installed) are clean and functioning correctly.
- Servei professional anual: It is recommended to have the unit inspected and serviced annually by a qualified door technician to ensure optimal performance and safety.
Do not attempt to repair internal hydraulic or electronic components yourself. Contact a qualified technician for service.
Resolució de problemes
This section addresses common issues you might encounter with your door operator. For complex problems, contact a professional technician.
Problemes comuns i solucions:
- Door Not Opening/Closing:
- Check if the power supply to the unit is active.
- Ensure the activation device (e.g., push button) is functioning.
- Inspect for any physical obstructions preventing door movement.
- Door Opens/Closes Too Slowly or Quickly:
- The speed settings may need adjustment. Refer to the control unit's specific instructions or contact a technician.
- Sorolls inusuals durant el funcionament:
- Could indicate wear in the arm, track, or internal components. Inspect for loose parts or debris. If noise persists, professional inspection is required.
- Door Stops Mid-Cycle:
- Comproveu si hi ha obstruccions.
- Safety sensors might be triggered. Ensure sensors are clean and aligned.
- Could indicate an electrical or internal component issue.
Always disconnect power before performing any inspection or maintenance that involves touching electrical components.
Especificacions
| Característica | Detall |
|---|---|
| Fabricant | NORTON DOOR CLOSERS |
| Número de model | 5730RFX689 531 |
| Número de part | 5721XRF1X689X574 |
| Pes de l'article | 31 lliures |
| Dimensions del producte | 42 x 9.1 x 11.2 polzades |
| Material | Alumini, Acer |
| Quantitat de paquet d'articles | 1 |
| Components inclosos | Maquinari |
| Closer Series | Norton 5721 |
| Closer Performance | Heavy Duty |
| Closer Type | Electronically Controlled, Hydraulic |
| Entrega | Sense mà |
| Estil de muntatge | Regular, Stop (Push) Side |
| Tipus de braç | Pista de diapositives |
| Normes | ANSI A156.19, ADA Compliant |
| Exterior Door Width (Max) | 48 polzades |
| Alçada de l'habitatge | 5-1/4 polzades |
| Longitud de l'habitatge | 29 polzades |
| Profunditat de l'habitatge | 4-5/8 polzades |
Informació de la garantia
According to the product information, this Norton 5721 Powered Door Operator is sold with Sense garantia. Please verify warranty terms with your point of purchase or the manufacturer directly for any specific conditions that may apply.
