Producte acabatview
The Square D by Schneider Electric HOM250GFICP is a Homeline 50-Amp Two-Pole Ground Fault Circuit Interrupter (GFCI) circuit breaker. It is designed to provide protection against ground faults, which can cause electrical shock or fire. This breaker is suitable for use in Homeline load centers and is rated for 120/240 V~ applications.

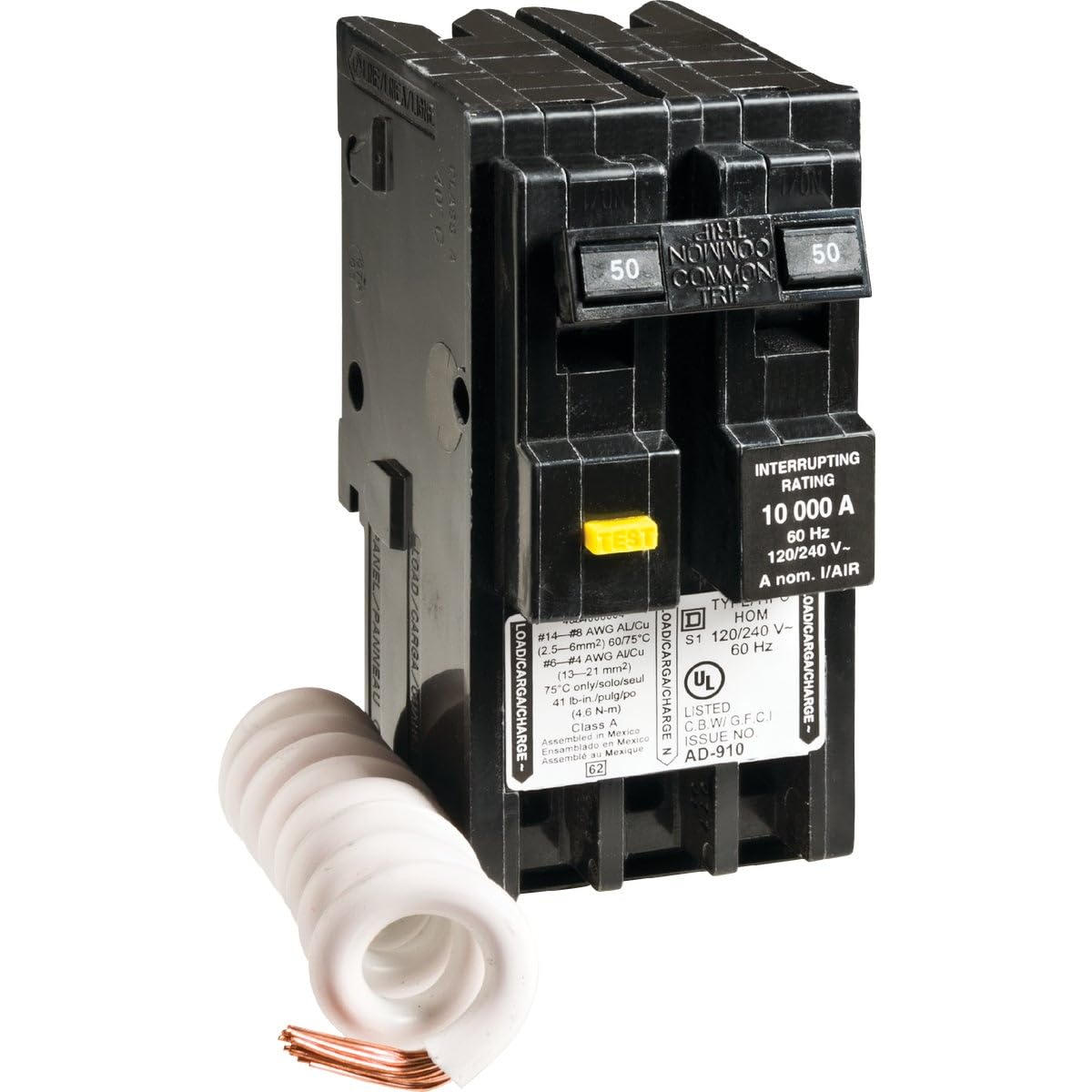

Figure 1: Square D HOM250GFICP 50-Amp Two-Pole GFCI Circuit Breaker. This image shows the black circuit breaker with two poles, each rated 50 amps. A yellow 'TEST' button is visible on the front. The breaker also displays interrupting rating of 10,000 A and voltage qualificacions.
Informació de seguretat
ADVERTIMENT: Risk of electric shock or fire. Installation and servicing must be performed by qualified electrical personnel only. Disconnect power before working on or near electrical equipment. Always follow local electrical codes and regulations.
- Ensure the main power supply to the load center is turned OFF before installation or maintenance.
- Verifiqueu el voltagEls valors nominals de e i de corrent de l'interruptor automàtic coincideixen amb els requisits de l'aplicació.
- Do not use if the product appears damaged.
- This GFCI circuit breaker is designed to protect against ground faults. It does not protect against overloads or short circuits, which are handled by the circuit breaker's primary function.
Configuració i instal·lació
This section provides general guidelines for installing the HOM250GFICP GFCI circuit breaker. Refer to the specific wiring diagram of your Homeline load center for detailed instructions.
- Desconnexió d'alimentació: Turn off the main power to the electrical panel at the utility meter or main disconnect. Verify power is off using a voltage provador.
- Accés al panell: Traieu la coberta del quadre elèctric.
- Instal·lació del trencador:
- Locate an available space in the Homeline load center.
- Hook the rear of the breaker onto the bus bar clips in the panel.
- Press the front of the breaker firmly until it snaps into place.
- Connexions de cablejat:
- Connect the load wires (hot wires) to the appropriate terminals on the breaker. The breaker is a two-pole device, so connect both hot wires from the circuit.
- Connect the neutral wire from the circuit to the pigtail neutral wire of the GFCI breaker. This pigtail neutral wire must then be connected to the neutral bar in the load center.
- Ensure all connections are tight and secure. Refer to the wire gauge specifications on the breaker label: #14-#8 AWG AL/Cu (2.5-6mm²) 60/75°C and #6-#4 AWG Al/Cu (13-21 mm²). Torque terminals to 41 lb-in. (4.6 N-m).
- Remuntatge del panell: Substituïu la coberta del quadre elèctric.
- Restauració d'energia: Torneu a encendre l'alimentació principal.
Instruccions de funcionament
The HOM250GFICP GFCI circuit breaker operates like a standard circuit breaker with added ground fault protection.
- Posició ON: Push the breaker handle fully to the "ON" position to supply power to the circuit.
- Posició OFF: Push the breaker handle fully to the "OFF" position to disconnect power from the circuit.
- Posició DISPARADA: If a ground fault occurs, the breaker handle will move to a center "TRIPPED" position. To reset, push the handle fully to the "OFF" position, then push it to the "ON" position.
- Botó TEST: The yellow "TEST" button is used to verify the GFCI function. Pressing this button should cause the breaker to trip immediately. If it does not trip, the GFCI is not functioning correctly and should be replaced.
Manteniment
Regular testing of the GFCI circuit breaker is crucial to ensure its proper operation and continued safety.
- Prova mensual: Press the yellow "TEST" button on the face of the breaker. The breaker should trip immediately, moving to the center "TRIPPED" position.
- Reset After Test: After testing, reset the breaker by pushing the handle fully to the "OFF" position, then to the "ON" position.
- Failure to Trip: If the breaker does not trip when the "TEST" button is pressed, or if it fails to reset, it indicates a malfunction. The breaker must be replaced immediately by qualified personnel.
- Neteja: Keep the area around the circuit breaker clean and free from dust and debris. Do not use liquids for cleaning inside the electrical panel.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El trencador es desplaça amb freqüència. | Ground fault in the circuit, overloaded circuit, faulty appliance, or faulty breaker. |
|
| L'interruptor no salta quan es prem el botó TEST. | Mecanisme GFCI defectuós. | The GFCI breaker is defective and must be replaced immediately by qualified personnel. |
| L'interruptor no es reiniciarà. | Persistent ground fault, short circuit, or internal breaker damage. |
|
Especificacions
| Característica | Detall |
|---|---|
| Número de model | HOM250GFICP |
| Marca | Schneider Electric (Quadrat D) |
| Valoració actual | 50 Amps |
| Nombre de pols | 2 |
| Voltage Classificació | 120/240 V~ |
| Freqüència | 60 Hz |
| Tipus d'interruptor | GFCI (interruptor de circuit de falla a terra) |
| Tipus de muntatge | Homeline load center |
| Interrupció de la qualificació | 10,000 A |
| Compatibilitat de cables | #14-#8 AWG AL/Cu (2.5-6mm²) 60/75°C; #6-#4 AWG Al/Cu (13-21 mm²) |
| Dimensions del producte | 30 x 8 x 6 inches; 0.16 ounces (as per product data) |
| Fabricant | Plaça D |
Informació de la garantia
Specific warranty details for Square D by Schneider Electric products can typically be found on the manufacturer's official website or included with the product packaging. For warranty claims or inquiries, please refer to the contact information provided in the Support section.
Suport i Contacte
For technical assistance, product support, or warranty inquiries, please contact Schneider Electric directly:
- Oficial Weblloc: www.se.com/us/en/ (Schneider Electric USA)
- Atenció al client: Consulteu la secció "Contacteu-nos" a la seva pàgina oficial weblloc web per a números de telèfon i opcions d'assistència en línia.
- Documentació del producte: Additional documentation and FAQs may be available on the Schneider Electric support portal.
