1. Producte acabatview
The GIGABYTE GA-B250M-D2V is a Micro ATX motherboard designed to support 7th and 6th Generation Intel Core processors in the LGA1151 package. It features the Intel B250 Express Chipset, providing a stable and efficient platform for personal computing. Key features include dual-channel non-ECC unbuffered DDR4 memory support, high-quality audio capacitors with LED trace path lighting, GbE LAN with cFosSpeed Internet Accelerator Software, and Smart Fan 5 for advanced cooling control.
This motherboard is built with GIGABYTE's Ultra Durable design, ensuring longevity and reliability. It offers essential connectivity and expansion options for a balanced system build.

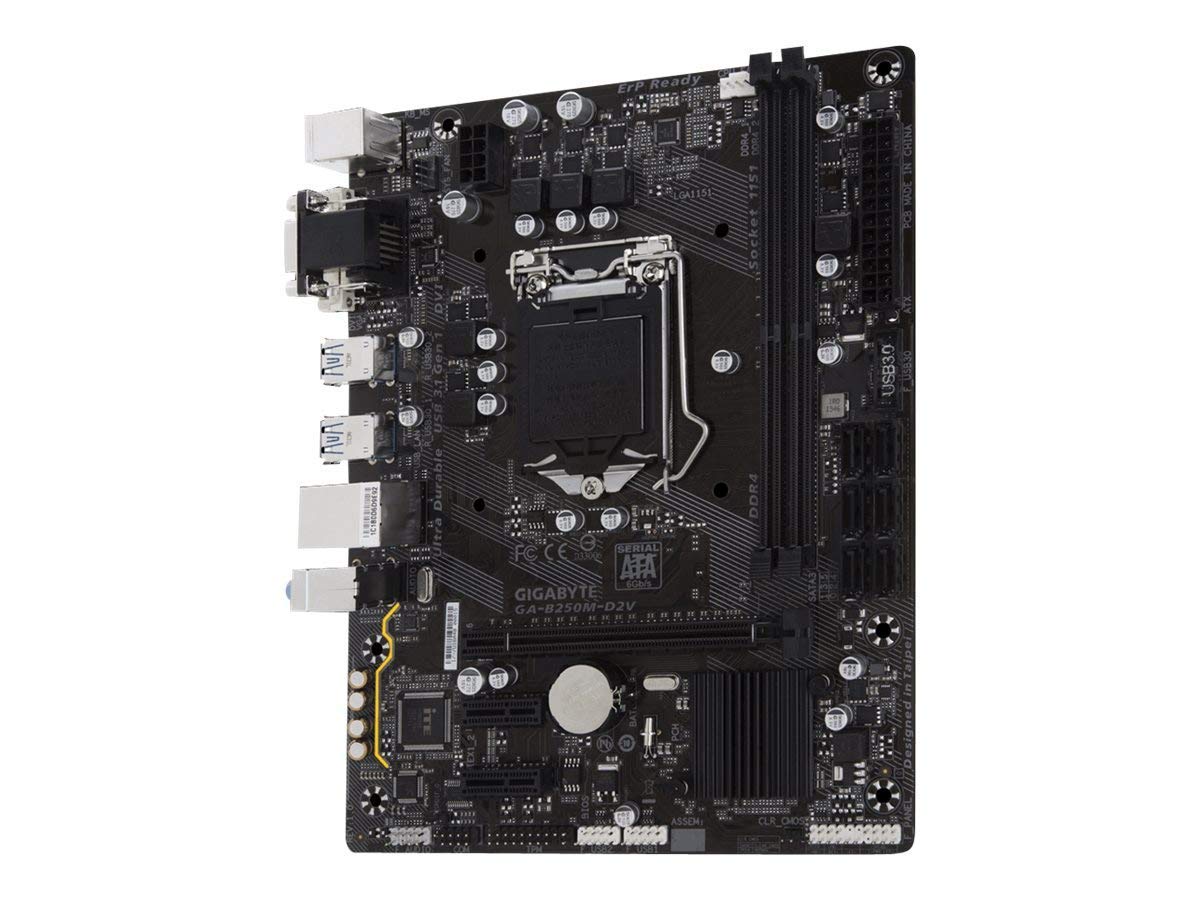

Imatge 1.1: De dalt a baix view of the GIGABYTE GA-B250M-D2V motherboard, showing the CPU socket, RAM slots, and various connectors.
2. Configuració i instal·lació
Proper installation is crucial for the stable operation of your system. It is highly recommended to have this motherboard installed by a trained professional to prevent damage and ensure correct configuration.
2.1. Llista de verificació prèvia a la instal·lació
- Ensure you have a compatible CPU (7th/6th Gen Intel Core, Pentium, Celeron LGA1151).
- Acquire compatible DDR4 RAM modules (Non-ECC Unbuffered).
- Prepare a suitable Micro ATX compatible PC case.
- Gather necessary tools: screwdriver, thermal paste, anti-static wrist strap.
2.2. Passos d'instal·lació de components
- Instal·lació de la CPU: Carefully open the CPU socket lever. Align the CPU with the socket, ensuring the gold triangle on the CPU matches the mark on the socket. Gently place the CPU into the socket without force. Close the lever to secure the CPU.
- Instal·lació del refrigerador de CPU: Apply thermal paste to the CPU (if not pre-applied on the cooler). Mount the CPU cooler according to its manufacturer's instructions. Connect the CPU fan cable to the "CPU_FAN" header on the motherboard.
- Instal·lació de la memòria RAM: Open the clips on both ends of the DDR4 memory slots. Align the notch on the RAM module with the key in the slot. Press down firmly on both ends of the RAM module until the clips snap into place. Install modules in matching slots for dual-channel performance (refer to motherboard manual for specific slot pairing).
- Muntatge de la placa base: Install standoffs in your PC case that align with the motherboard's screw holes. Carefully place the motherboard into the case, aligning the I/O shield with the case opening. Secure the motherboard with screws.
- Connexions d'alimentació: Connect the 24-pin ATX main power connector and the 8-pin (or 4-pin) ATX 12V CPU power connector from your power supply to the motherboard.
- Dispositius d'emmagatzematge: Connecteu els cables de dades SATA de les unitats d'emmagatzematge (HDD/SSD) als ports SATA de la placa base. Connecteu els cables d'alimentació SATA de la font d'alimentació a les unitats.
- Connectors del panell frontal: Connect the front panel cables (Power SW, Reset SW, HDD LED, Power LED, USB, Audio) from your case to the corresponding headers on the motherboard. Refer to the detailed diagram in the full manual for correct pin assignments.
- Targetes d'expansió: Install any graphics cards or other PCI Express expansion cards into the appropriate PCIe slots. Secure them with the case's retention mechanism and connect any necessary PCIe power cables from the power supply.
Imatge 2.1: Primer pla view of the motherboard's I/O panel and internal connectors, including USB 3.0 headers and SATA ports.
3. Instruccions de funcionament
3.1. Primera arrencada i configuració de la BIOS
After assembling your system, connect a monitor, keyboard, and mouse. Power on the system. During startup, repeatedly press the DEL key to enter the BIOS (Basic Input/Output System) setup utility. The GIGABYTE UEFI BIOS provides a graphical interface for configuration.
- Ordre d'arrencada: Configure the boot order to prioritize your operating system installation media (USB drive or DVD-ROM).
- Data i hora: Set the correct system date and time.
- Mode SATA: Ensure SATA mode is set to AHCI for optimal SSD performance, unless installing an older operating system that requires IDE mode.
- Control del ventilador: Utilize the Smart Fan 5 features within the BIOS to customize fan curves and monitor temperatures for efficient cooling.
- Guardar i sortir: After making changes, save your settings and exit the BIOS. The system will restart.
3.2. Instal·lació del sistema operatiu
Insert your operating system installation media (e.g., Windows, Linux) and follow the on-screen prompts to install the OS on your storage drive. After installation, install the necessary drivers for the motherboard components (chipset, audio, LAN, graphics) from the GIGABYTE support website or the included driver CD (if applicable).
3.3. Centre d'aplicacions GIGABYTE
The GIGABYTE APP Center provides a unified interface for various GIGABYTE utilities, including Cloud Station Utility, system monitoring tools, and BIOS update utilities. Install it from the GIGABYTE website for enhanced system management.
4. Manteniment
Un manteniment regular ajuda a garantir la longevitat i el rendiment òptim de la placa base i del sistema.
- Eliminació de pols: Periodically clean dust from inside your PC case, especially from fans, heatsinks, and vents. Use compressed air for best results. Ensure the system is powered off and unplugged before cleaning.
- Actualitzacions de la BIOS: Comproveu els GIGABYTES website for the latest BIOS updates. BIOS updates can improve system stability, compatibility, and performance. Follow the update instructions carefully to avoid system damage.
- Actualitzacions de controladors: Keep your motherboard drivers (chipset, audio, LAN) updated to ensure compatibility and optimal performance with your operating system and other hardware.
- Gestió de cables: Assegureu-vos que els cables interns estiguin ben encaminats per millorar el flux d'aire i evitar interferències.
5. Solució De Problemes
Aquesta secció ofereix solucions a problemes comuns que podeu trobar.
5.1. No Power / System Does Not Turn On
- Verify that the power supply is connected to the motherboard (24-pin ATX and 8-pin/4-pin CPU power).
- Assegureu-vos que l'interruptor de l'alimentació estigui a la posició "ON".
- Comproveu que el cable de l'interruptor d'alimentació del panell frontal estigui connectat correctament a la placa base.
- Proveu la font d'alimentació amb un altre sistema o un provador de fonts d'alimentació.
5.2. No Display / No POST (Power-On Self-Test)
- Ensure the monitor is connected to the correct video output (motherboard integrated graphics or discrete graphics card).
- Reseat the RAM modules. Try booting with only one RAM module installed.
- Reseat the graphics card (if applicable) and ensure its power cables are connected.
- Clear the CMOS by removing the CMOS battery for a few minutes or using the CLR_CMOS jumper (refer to the full manual for location).
- Check for any diagnostic LEDs or beep codes from the motherboard, which can indicate specific issues.
5.3. Operating System Issues
- If the OS fails to boot, check the boot order in BIOS.
- Ensure all storage drives are properly connected and detected in BIOS.
- Reinstall or update motherboard drivers if experiencing instability or peripheral issues.
6. Especificacions
| Característica | Especificació |
|---|---|
| Marca | GIGABYTE |
| Model | GA-B250M-D2V |
| Socket de CPU | LGA 1151 |
| Processadors compatibles | 7th/6th Generation Intel Core i7/i5/i3/Pentium/Celeron Processors |
| Chipset | Conjunt de xips Intel B250 Express |
| Tecnologia de memòria RAM | DDR4 |
| Ranures de memòria | 2 x DDR4 DIMM sockets, up to 32 GB (Dual Channel, Non-ECC Unbuffered) |
| Interfície de la targeta gràfica | PCI Express (1 x PCIe x16, 2 x PCIe x1) |
| Factor de forma | Micro ATX (24.4 cm x 19.5 cm) |
| Ports USB | Total 12 (various USB 3.0/2.0 ports) |
| Àudio | Condensadors d'àudio d'alta qualitat i protector de soroll d'àudio |
| LAN | GbE LAN with cFosSpeed Internet Accelerator Software |
| Dimensions (LxWxH) | 24.4 x 4 x 30.5 cm |
| Pes de l'article | 300 g |
7. Garantia i Suport
7.1. Informació de la garantia
All GIGABYTE motherboards are manufactured by Gigabyte Technology Co., Ltd. Taiwan. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official GIGABYTE website. Any unauthorized duplication or modification may void the warranty and attract legal jurisdiction.
7.2. Suport tècnic
Per a assistència tècnica, descàrregues de controladors, actualitzacions de la BIOS i més informació sobre el producte, visiteu el lloc web oficial de suport de GIGABYTE. website. You can typically find support resources by searching for your specific model number (GA-B250M-D2V) on their site.
Oficial de GIGABYTE Weblloc: www.gigabyte.com
