Introducció
This manual provides essential instructions for the safe and effective installation, operation, and maintenance of your Balboa Water Group PCB Leisure Bay LB501S 54341 circuit board. Please read this manual thoroughly before attempting any installation or operation to ensure proper function and to prevent damage to the unit or injury.
Configuració i instal·lació
La seguretat primer: Before beginning any installation, ensure that the main power supply to the hot tub or spa system is completely disconnected at the circuit breaker. Failure to do so can result in serious injury or electrical shock.
- Accés a la caixa de control: Locate and open the hot tub's control box where the existing circuit board is housed.
- Connexions de documents: Before disconnecting any wires, take clear photographs or make detailed diagrams of all wire connections to the old circuit board. Pay close attention to the color coding and terminal labels. This will be crucial for correct re-connection.
- Desconnecta la placa antiga: Carefully disconnect all wires and cables from the old circuit board. Remove any mounting screws or clips securing the old board.
- Instal·lar la placa nova: Position the new Balboa Water Group PCB Leisure Bay LB501S 54341 into the control box. Secure it using the appropriate mounting screws or clips. Ensure it is seated firmly and correctly.
- Reconnectar el cablejat: Using your documented photographs or diagrams, carefully reconnect all wires and cables to the corresponding terminals on the new circuit board. Double-check each connection for accuracy and tightness. Ensure no wires are pinched or loose.
- Close Control Box: Once all connections are verified, securely close the control box cover.
- Restaura l'alimentació: Restore power to the hot tub system at the main circuit breaker.
- Prova inicial: Power on the hot tub and observe its initial behavior. Check for any error codes on the control panel and verify basic functions like pump operation and heater activation.

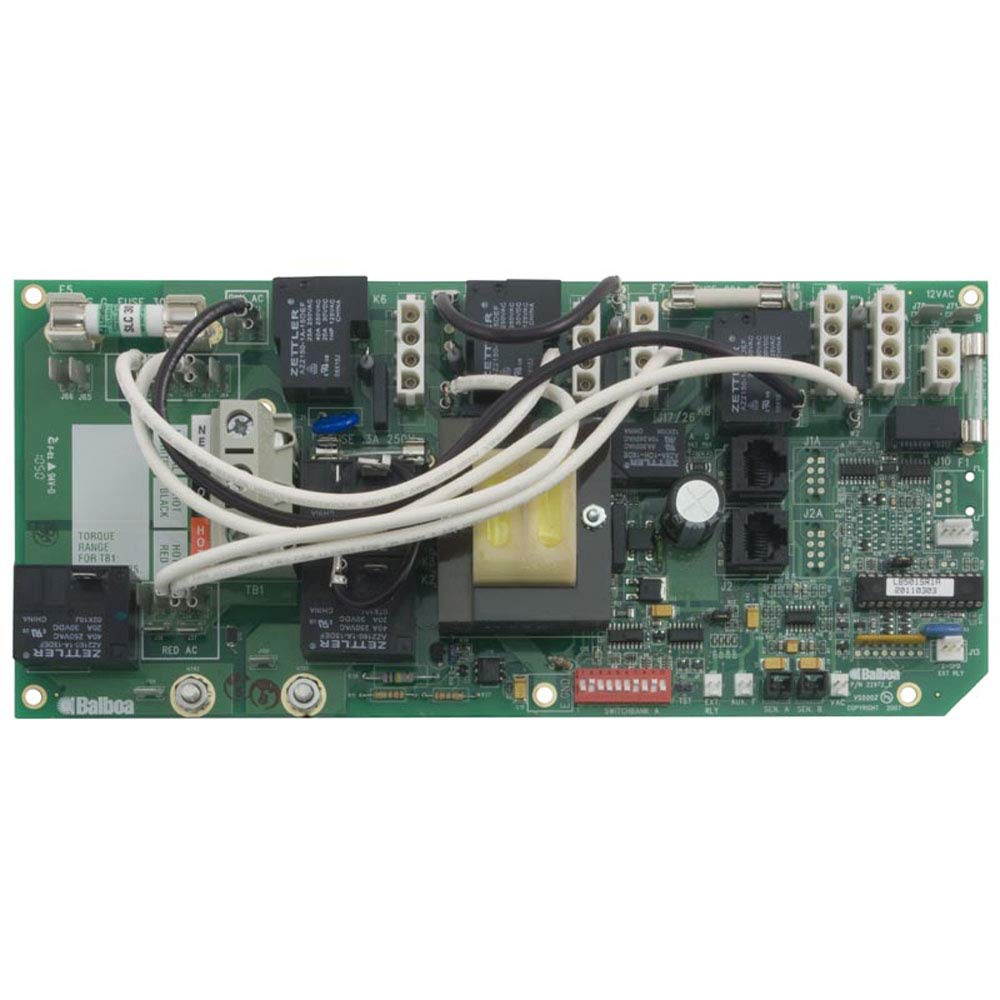

Image: Balboa Water Group PCB Leisure Bay LB501S 54341 circuit board. This image displays the Balboa Water Group PCB Leisure Bay LB501S 54341 circuit board, which is a crucial component for controlling hot tub functions.
Instruccions de funcionament
The Balboa Water Group PCB Leisure Bay LB501S 54341 serves as the central control unit for your hot tub. Specific operational procedures, such as setting temperature, activating jets, or controlling lighting, are typically performed via the hot tub's primary topside control panel. Refer to your hot tub's specific user manual for detailed instructions on operating its various features.
- Encès/apagat: The circuit board manages the power distribution. Use the hot tub's main control panel to power the system on or off.
- Control de temperatura: Adjust the desired water temperature using the up/down buttons on your hot tub's topside control panel.
- Jet Activation: Press the jet buttons on the control panel to cycle through different pump speeds or activate various jet functions.
- Control de la llum: Use the light button on the control panel to turn the hot tub lights on/off or cycle through color modes.
- Filtration Cycles: The circuit board controls the programmed filtration cycles. These are usually set automatically or can be adjusted via the topside panel.
Manteniment
Proper maintenance of the circuit board ensures longevity and reliable performance. Always disconnect power before performing any maintenance.
- Mantenir sec: Ensure the control box remains sealed and dry. Moisture is detrimental to electronic components. Regularly inspect the control box for any signs of water intrusion.
- Neteja: Periodically, with power disconnected, gently clean the interior of the control box and the surface of the circuit board using a soft, dry brush or compressed air to remove dust, debris, or insect nests. Do not use liquids or harsh chemicals.
- Inspeccionar connexions: During routine hot tub maintenance, visually inspect all wire connections to the circuit board for any signs of corrosion, looseness, or damage. Tighten any loose connections.
- Ventilació: Ensure the control box has adequate ventilation as designed by the hot tub manufacturer to prevent overheating of components.
Guia de resolució de problemes
This section addresses common issues you might encounter. For complex problems, consult a qualified technician.
| Problema | Causa possible | Solució |
|---|---|---|
| No Power to Hot Tub | Main breaker tripped, loose power connection, faulty GFCI, board issue. | Check main circuit breaker and GFCI. Ensure all power connections to the board are secure. If problem persists, consult a technician. |
| Hot Tub Functions Not Responding | Loose topside control panel cable, topside panel malfunction, board communication issue. | Verify the topside control panel cable is securely connected to the circuit board. Check for any visible damage to the cable or panel. |
| Es mostren els codis d'error | Sensor issues, heater problems, flow issues, specific component failure. | Refer to your hot tub's specific user manual for the meaning of displayed error codes and recommended troubleshooting steps. Many codes indicate issues with components connected to the board, not the board itself. |
| Pump/Heater Not Activating | Loose connection to component, faulty component, relay issue on board. | Ensure power connections to the pump/heater are secure. Test the component if possible. If connections are good and component is functional, the board may require professional inspection. |
Nota: Always disconnect power before inspecting or working on any electrical components. If you are unsure about any troubleshooting step, it is recommended to contact a qualified hot tub technician.
Especificacions
- Nom del producte: Balboa Water Group PCB Leisure Bay LB501S
- Número de model: 54341
- Fabricant: Grup d’aigües de Balboa
- Dimensions del producte: 13.4 x 10.6 x 2.3 polzades
- Pes de l'article: 2.6 lliures
- ASIN: B06VVTBWRB
- Compatibilitat: Designed for Leisure Bay hot tub systems (verify specific model compatibility).
Informació de la garantia
Warranty coverage for the Balboa Water Group PCB Leisure Bay LB501S 54341 is provided by the manufacturer, Balboa Water Group, or the original seller. Please refer to the warranty documentation included with your purchase or contact the seller directly for specific terms, conditions, and duration of the warranty. Keep your proof of purchase for warranty claims.
Atenció al client
For technical assistance, questions regarding installation, operation, or troubleshooting beyond the scope of this manual, please contact:
- Balboa Water Group: Refer to their official weblloc per obtenir informació de contacte.
- Your Original Seller: For purchase-related inquiries or specific product support, contact the retailer from whom you purchased the PCB. (e.g., Pool Supply World, if purchased via Amazon).
Quan contacteu amb el servei d'assistència, tingueu a mà el número de model del vostre producte (54341) i el comprovant de compra.
