1. Introducció
This manual provides essential information for the proper installation, operation, and maintenance of the Arctic Cat 0107-003 SEAL, O RING .093. This product is designed as a replacement part for powersports vehicles, ensuring a reliable seal in various applications. Please read this manual thoroughly before installation to ensure correct usage and optimal performance.
2. Producte acabatview
2.1. Què hi ha a la caixa
- Arctic Cat 0107-003 SEAL, O RING .093 (Quantity: 2)
2.2. Característiques clau
- Product Type: Powersports Vehicle Part
- Material: Durable Rubber construction
- Color: Gris
- Item Diameter: 0.09 Inches
- Designed for reliable sealing
2.3. Imatges del producte
Image 1: Two Arctic Cat 0107-003 O-rings, as typically packaged.

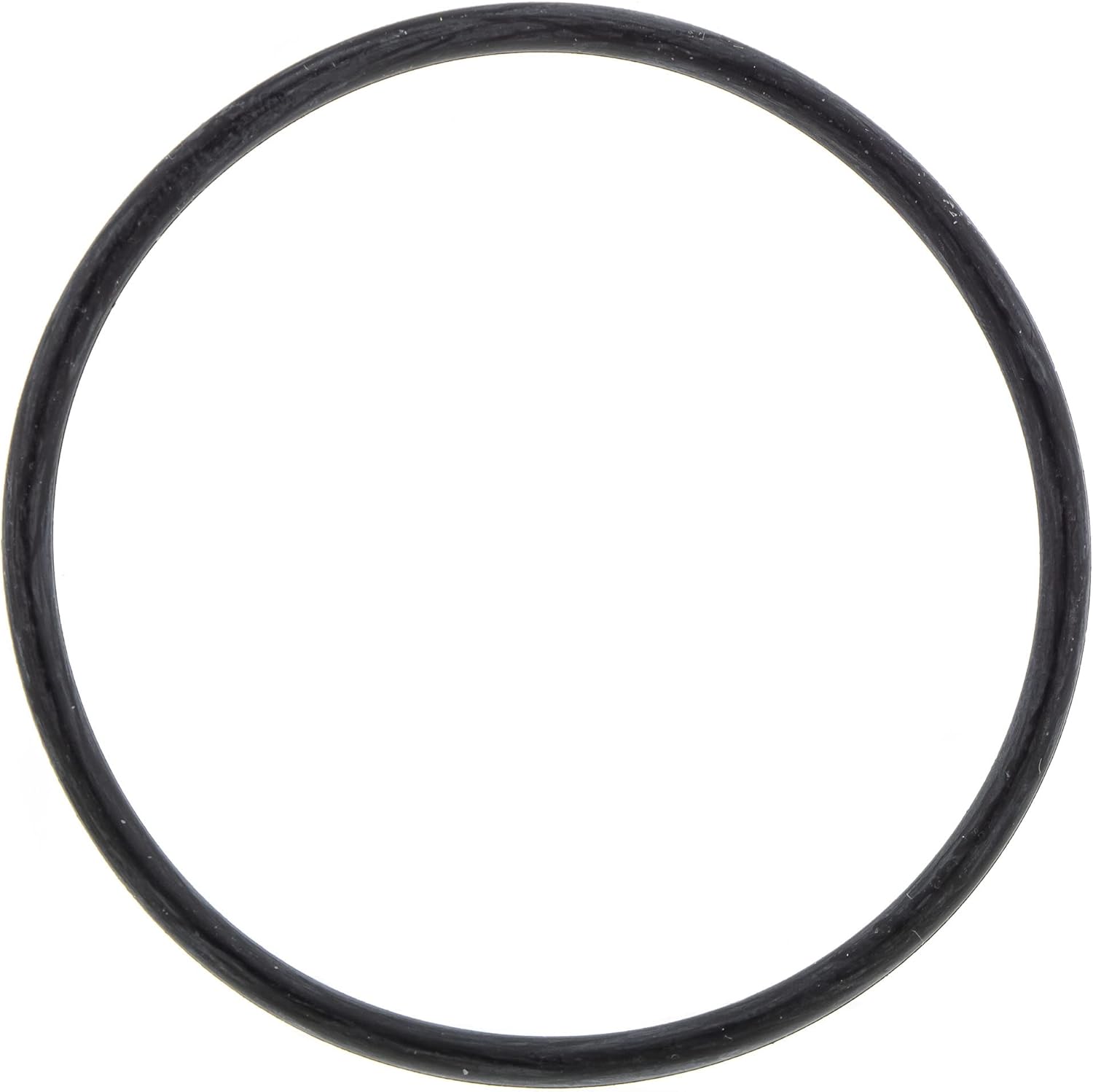

Image 2: A single Arctic Cat 0107-003 O-ring.
Imatge 3: Anglesa view of the O-ring, showing its profile.
Image 4: Alternative top view of the O-ring.
3. Configuració i instal·lació
Proper installation is crucial for the O-ring's performance and longevity. Always refer to your vehicle's specific service manual for detailed instructions regarding O-ring replacement in your application.
3.1. Preparació
- La seguretat primer: Ensure the vehicle or component is powered off and cooled down before beginning any work. Disconnect power sources if applicable.
- Neteja: Thoroughly clean the groove and mating surfaces where the O-ring will be installed. Remove any old gasket material, dirt, debris, or corrosion. A clean surface is essential for a proper seal.
- Inspecció: Inspect the groove for any nicks, burrs, or damage that could compromise the O-ring's integrity. Smooth any imperfections if possible.
- Lubricació: Lightly lubricate the O-ring with a compatible lubricant (e.g., silicone grease, engine oil, or the fluid it will be sealing) before installation. This helps prevent twisting or damage during assembly and aids in seating. Avoid petroleum-based lubricants if the O-ring is not compatible.
3.2. Passos d'instal·lació
- Carefully place the lubricated O-ring into its designated groove. Ensure it is not twisted or stretched excessively.
- Gently press the O-ring into the groove, ensuring it is fully seated and lies flat.
- Align the mating component and carefully bring it into contact with the O-ring. Avoid pinching or cutting the O-ring during assembly.
- Tighten fasteners according to the manufacturer's torque specifications, if applicable, to ensure even compression of the O-ring.
4. Principis de funcionament
The Arctic Cat 0107-003 O-ring functions by creating a seal between two mating surfaces. When compressed within its groove, the O-ring deforms to fill any irregularities, blocking the passage of fluids or gases. Its elastic properties allow it to maintain this seal under varying pressures and temperatures within its specified operating range.
Proper selection and installation ensure the O-ring maintains its sealing integrity, preventing leaks and maintaining system pressure.
5. Manteniment
O-rings are wear items and should be inspected periodically, especially during routine maintenance of the component they seal. While O-rings themselves require minimal maintenance, their environment and application dictate their lifespan.
5.1. Inspecció
- Check for signs of wear, cracking, hardening, or softening.
- Look for any nicks, cuts, or abrasions on the O-ring surface.
- Observe if the O-ring has lost its elasticity or has become flattened.
- If any damage or degradation is observed, replace the O-ring immediately.
5.2. Substitució
It is generally recommended to replace O-rings whenever the sealed component is disassembled, as they are inexpensive and critical for preventing leaks. Always use genuine Arctic Cat replacement parts or equivalent specifications.
6. Solució De Problemes
La majoria dels problemes relacionats amb les juntes tòriques es manifesten com a fuites. Aquí teniu algunes causes i solucions comunes:
| Problema | Causa possible | Solució |
|---|---|---|
| Leakage after installation |
|
|
| Premature O-ring failure (cracking, hardening) |
|
|
If troubleshooting steps do not resolve the issue, consult a qualified technician or contact Arctic Cat customer support.
7. Especificacions
| Atribut | Detall |
|---|---|
| Marca | Gat àrtic |
| Número de model | 0107-003 |
| Nom de la part | SEAL, O RING .093 |
| Material | Cautxú |
| Color | Gris |
| Diàmetre de l'element | 0.09 polzades |
| Pes de l'article | 1.6 unces |
| Quantitat de paquet | 1 (Note: Product is sold as a 2-pack, but package quantity refers to individual unit in some contexts) |
| País d'origen | Estats Units |
| UPC | 886224167329 |
8. Garantia i Suport
For information regarding warranty coverage for the Arctic Cat 0107-003 SEAL, O RING .093, please refer to the original purchase documentation or contact Arctic Cat directly. Warranty terms may vary based on region and retailer.
For technical support or further assistance, please visit the official Arctic Cat website or contact their customer service department. Always provide your product model number (0107-003) when seeking support.
Oficial d'Arctic Cat Weblloc: www.arcticcat.com
