1. Introducció
The Streamlight ProTac HL-X 88064 is a high-performance, multi-fuel tactical flashlight designed for professional and everyday carry use. It delivers 1000 lumens of bright light and offers versatile power options, accepting either two CR123A lithium batteries or Streamlight's SL-B26 Li-Ion USB rechargeable battery pack. Its durable construction and user-selectable programs make it a reliable lighting tool for various situations.
Image: The Streamlight ProTac HL-X 88064 tactical flashlight, showcasing its robust design and pocket clip.
2. Configuració
2.1 Instal·lació de la bateria
The ProTac HL-X is a multi-fuel flashlight, compatible with two CR123A lithium batteries (included) or one Streamlight SL-B26 Li-Ion USB rechargeable battery pack (sold separately).
- Desenrosqueu la tapa posterior de la llanterna girant-la en sentit antihorari.
- Insert the batteries with the positive (+) end facing towards the head of the flashlight. For CR123A batteries, ensure both are inserted correctly. For the SL-B26 pack, insert it with the positive (+) end towards the head.
- Torneu a enroscar la tapa de la cua en sentit horari fins que estigui ben ajustada.
Image: Illustration showing the Streamlight ProTac HL-X with options for SL-B26 rechargeable battery pack or two CR123A lithium batteries.
2.2 Attaching the Pocket Clip and Holster
The flashlight comes with a removable pocket clip and a durable holster for convenient carrying.
- Clip de butxaca: The clip is pre-installed and can be repositioned or removed by sliding it off the flashlight body. Ensure it is securely seated in the groove if repositioning.
- Funda: Insert the flashlight into the included nylon holster. The holster features a belt loop for secure attachment to belts or MOLLE systems.
Imatge: Lateral view of the Streamlight ProTac HL-X, highlighting the integrated pocket clip for easy carry.

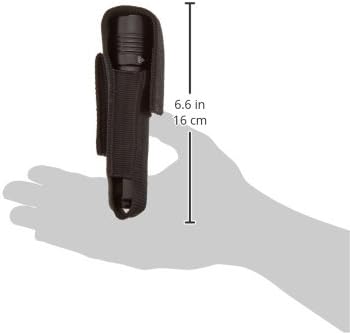

Image: The included holster for the Streamlight ProTac HL-X, showing its compact size and design for secure flashlight storage.
3. Instruccions de funcionament
3.1 Tail Cap Switch Functions
The ProTac HL-X features a tactical tail cap switch for controlling the light output.
- Momentània activada: Lightly press the tail cap switch. The light will remain on as long as the switch is held. Release to turn off.
- Encès constant: Fully press the tail cap switch until it clicks. Press again to turn off.
3.2 User-Selectable Programs (TEN-TAP® Programming)
The ProTac HL-X offers three user-selectable programs to customize the sequence of light modes. To change programs, rapidly tap the switch 9 times (within 0.4 seconds per tap) and hold it down on the 10th tap. The light will flash to indicate the program change. Release the switch to select the new program.
- Program 1 (Factory Default): High > Strobe > Low
- Programa 2: High Only
- Programa 3: Baix > Mitjà > Alt
Each tap cycles to the next mode in the sequence. For example, in Program 1, a quick tap will go from High to Strobe, another quick tap to Low, and another back to High.
Image: Table detailing the High, Medium, Low, and Strobe modes, including lumens, run time (for CR123A and SL-B26), beam distance, and candela.
Image: A person using the Streamlight ProTac HL-X flashlight to illuminate a dark area, demonstrating its practical application.
4. Manteniment
4.1 Neteja
- Wipe the flashlight body with a damp drap per eliminar la brutícia i la brutícia.
- Clean the lens with a soft, lint-free cloth. Avoid abrasive materials that could scratch the lens.
- Periodically clean and lubricate the O-rings and threads with silicone grease to maintain water resistance.
4.2 Cura de la bateria
- Always use high-quality CR123A lithium batteries. Do not mix old and new batteries, or different brands.
- If using the SL-B26 rechargeable battery pack, follow its specific charging instructions.
- Remove batteries from the flashlight if it will not be used for an extended period to prevent leakage.
5. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s’encén. |
|
|
| La llum és tènue o parpelleja. |
|
|
| Entrada d'aigua. |
|
|
If problems persist, contact Streamlight customer support or refer to the warranty information.
6. Especificacions
| Característica | Detall |
|---|---|
| Número de model | 88064 |
| Sortida lluminosa (alta) | 1000 lúmens |
| Font d'alimentació | 2 x CR123A Lithium Batteries (included) or 1 x Streamlight SL-B26 Li-Ion USB Rechargeable Battery Pack (sold separately) |
| Material | 6000 Series Machined Aluminum with Type II Military Spec Anodizing |
| Dimensions (L x A x A) | 5.43 "P x 1" W x 1.44" H |
| Pes | 6.2 unces (amb piles) |
| Resistència a l'aigua | IP68 Rated; Dust-tight and waterproof to 2 meters |
| Característiques especials | Multi-Fuel, TEN-TAP® Programming, Removable Pocket Clip |
| Components inclosos | ProTac HL-X Flashlight, CR123A Batteries, Holster, User Guide |
7. Informació de la garantia
The Streamlight ProTac HL-X 88064 is covered by a Garantia limitada de per vida. This warranty covers defects in material and workmanship for the life of the product, excluding batteries, bulbs, abuse, and normal wear and tear. For full details and to make a warranty claim, please refer to the official Streamlight weblloc o poseu-vos en contacte amb el seu servei d'atenció al client.
8. Atenció al client
For technical assistance, replacement parts, or further inquiries regarding your Streamlight ProTac HL-X 88064 flashlight, please visit the official Streamlight weblloc web o poseu-vos en contacte amb el seu departament d'atenció al client.
Official Streamlight Weblloc: www.streamlight.com
També podeu trobar recursos addicionals i informació sobre el producte a Streamlight Amazon Store.
