1. Introducció
Thank you for choosing the Hyundai HY6000 Gasoline Generator. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your generator. Please read this manual thoroughly before operating the unit and keep it for future reference.
The Hyundai HY6000 is a robust 4-stroke OHV air-cooled gasoline generator designed for reliable power generation. It features a compact engine, easy installation, low maintenance, and a low fuel consumption rate. Key features include a digital LED display, overload protection, low oil alarm with automatic engine shutdown, and AVR voltage regulation for stable performance.
3. Configuració i preparació
3.1 Desembalatge i inspecció
Carefully remove the generator from its packaging. Inspect for any damage that may have occurred during shipping. If any damage is found, contact your dealer immediately.
3.2 Col·locació
Place the generator on a firm, level surface. Ensure there is adequate clearance around the unit for proper ventilation and to prevent heat buildup. Keep it at least 1 meter (3 feet) away from buildings or other equipment.
3.3 Afegir oli de motor
The generator is shipped without engine oil. Before first use, add the recommended engine oil (e.g., SAE 10W-30) to the crankcase. Refer to the oil fill cap or dipstick for the correct level. Do not overfill.

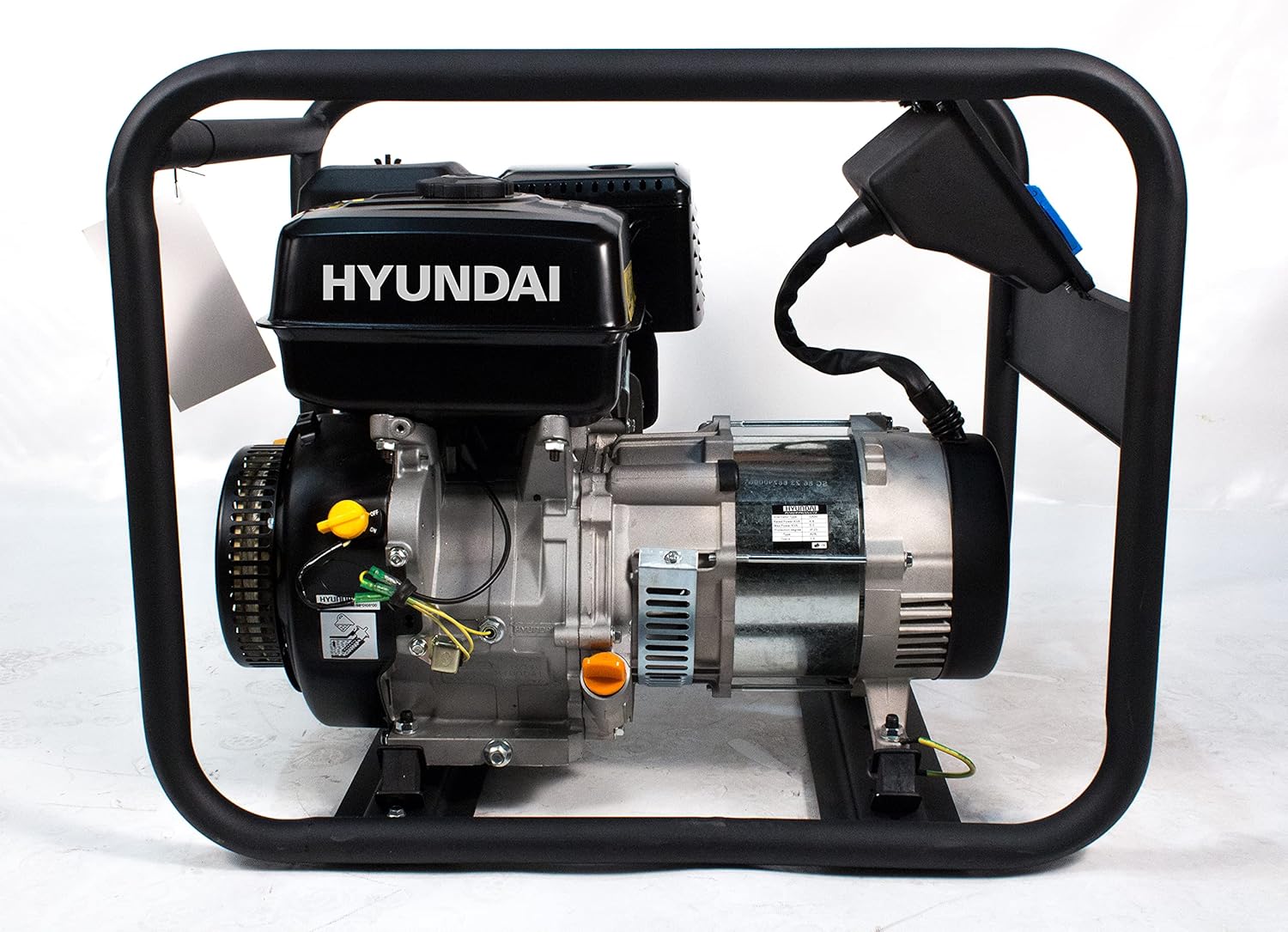

Figura 1: lateral view of the generator engine. The oil fill cap is typically located on the side of the engine block, often yellow or black, and may have a dipstick attached for checking oil level.
3.4 Afegir combustible
Use fresh, unleaded gasoline with an octane rating of 87 or higher. Fill the fuel tank carefully, avoiding spills. Do not fill above the red indicator or the bottom of the filler neck. Securely close the fuel cap after filling.
- Always refuel in a well-ventilated outdoor area.
- Assegureu-vos que el motor estigui apagat i fred abans de reomplir de combustible.
- Do not smoke or use open flames near the generator.
3.5 Connexió a terra del generador
For safety, the generator must be properly grounded. Connect a heavy-gauge copper wire from the generator's grounding terminal to an earth ground rod or other approved grounding source. Consult local electrical codes for specific requirements.
5. Manteniment
El manteniment regular és crucial per a la longevitat i el funcionament fiable del generador. Assegureu-vos sempre que el motor estigui apagat i fred abans de realitzar qualsevol manteniment.
5.1 Programa de manteniment
| Item | Cada ús | Cada 25 hores / mensualment | Cada 100 hores / 6 mesos | Cada 300 hores / Anualment |
|---|
| Comproveu el nivell d'oli del motor | ✓ | | | |
| Filtre d'aire net | | ✓ | | |
| Canviar l'oli del motor | | (First 20 hrs) | ✓ | |
| Comproveu la bugia | | | ✓ | |
| Netegeu el filtre de combustible | | | | ✓ |
5.2 Canvi d'oli del motor
Drain the old oil while the engine is warm. Remove the oil drain plug and allow all oil to drain into a suitable container. Replace the drain plug and refill with the recommended amount and type of new engine oil.
5.3 Neteja del filtre d'aire
Remove the air filter cover and take out the foam filter element. Wash it in warm, soapy water, rinse thoroughly, and allow it to dry completely. Lightly oil the foam element with engine oil, squeeze out excess, and reinstall.
5.4 Inspecció de la bugia
Remove the spark plug and inspect its condition. Clean any carbon deposits with a wire brush. Check the gap with a feeler gauge and adjust if necessary. Replace if the electrode is worn or damaged.
5.5 Emmagatzematge
For long-term storage, drain the fuel tank and carburetor, or add a fuel stabilizer. Change the engine oil. Clean the generator thoroughly. Store in a clean, dry, well-ventilated area.
8. Garantia i Suport
Information regarding warranty coverage and customer support is typically provided with your purchase documentation or can be found on the official Hyundai Power Products weblloc web. Si us plau, conserveu el comprovant de compra per a reclamacions de garantia.
For technical assistance, spare parts, or service inquiries, please contact your authorized Hyundai dealer or the manufacturer's customer service department.
