Honeywell L6006C1018/U Aquastat Controller User Manual

1. Introducció

The Honeywell L6006C1018/U Aquastat Controller is a high-limit or low-limit immersion-type controller designed for use in hydronic heating systems. It provides reliable temperature control and safety cut-off functions, ensuring efficient and safe operation of boilers and other water heating equipment. This manual provides essential information for the proper installation, operation, and maintenance of your Aquastat Controller.

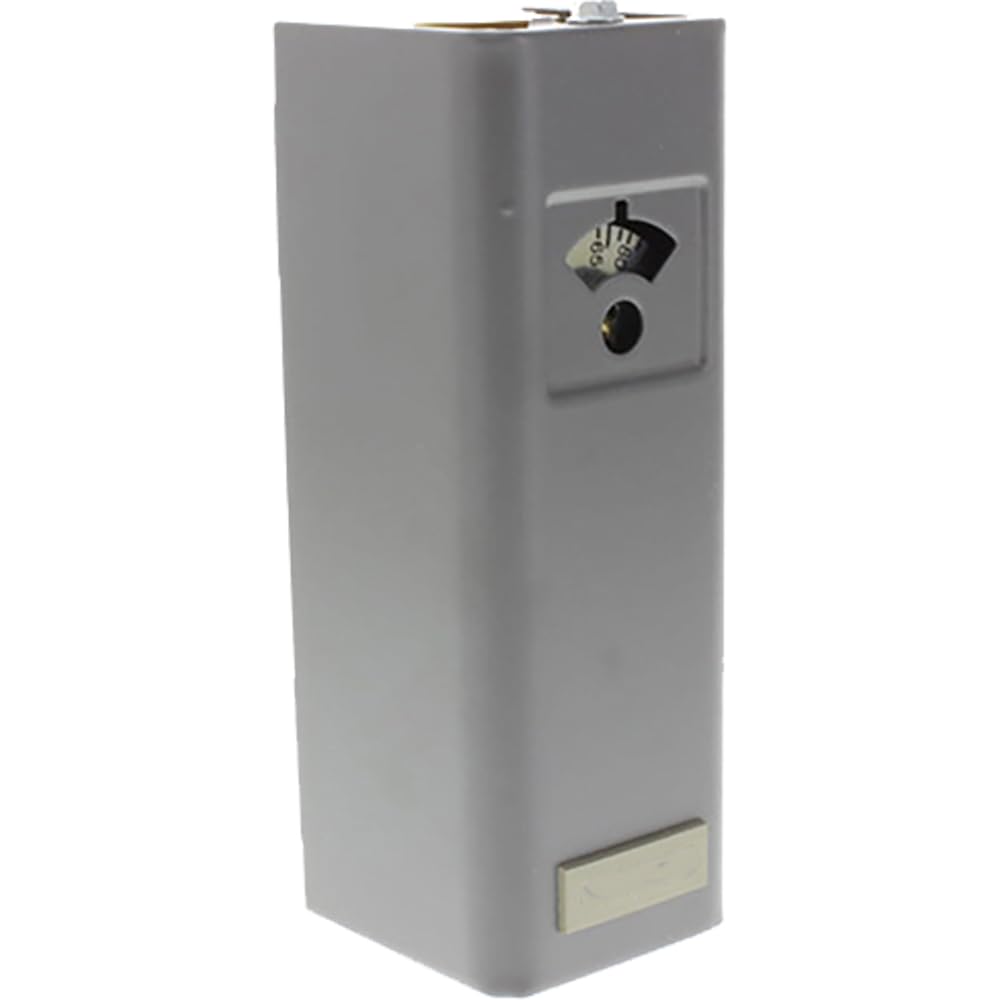

Figure 1: Honeywell L6006C1018/U Aquastat Controller. This image shows the main unit of the Aquastat Controller, typically featuring its robust metal casing and connection points.

2. Informació de seguretat

Read and understand all instructions before installing or operating this product. Failure to follow these instructions could result in property damage, serious injury, or death.

• Risc elèctric: Disconnect power supply before wiring or servicing to prevent electrical shock or equipment damage.
• Personal qualificat: La instal·lació i el manteniment han de ser realitzats per un tècnic qualificat i experimentat.
• Codis locals: Tot el cablejat ha de complir els codis i les ordenances elèctriques locals.
• Límits de temperatura: Do not exceed the specified temperature and pressure ratings of the device.
• Muntatge adequat: Ensure the controller is securely mounted to prevent vibration or accidental dislodgement.

3. Configuració i instal·lació

Proper installation is crucial for the accurate and safe operation of the Aquastat Controller.

3.1 Comprovacions prèvies a la instal·lació

• Verify that the Aquastat model L6006C1018/U is suitable for your application.
• Ensure all necessary tools and materials are available (e.g., screwdriver, wire strippers, conduit, wiring).
• Confirm that the power supply matches the controller's requirements.

3.2 Muntatge

1. Select a suitable location on the boiler or piping where the immersion well can accurately sense water temperature.
2. Install the immersion well (if not already present) into the system, ensuring a watertight seal.
3. Insert the sensing bulb of the Aquastat into the immersion well. Ensure full insertion for accurate readings.
4. Secure the Aquastat housing to the immersion well or a nearby surface using appropriate mounting hardware.

3.3 Cablejat

Refer to the wiring diagram provided inside the controller's cover for specific connections. General steps include:

1. Turn off all power to the heating system at the main circuit breaker.
2. Open the Aquastat's cover.
3. Connect the power supply wires to the designated terminals (typically L1 and L2).
4. Connect the control wires to the appropriate terminals for the burner, circulator, or other controlled devices, as per your system's requirements.
5. Assegureu-vos que totes les connexions estiguin estretes i segures.
6. Close the Aquastat cover.

4. Instruccions de funcionament

The L6006C1018/U Aquastat Controller is designed for straightforward operation.

4.1 Engegada inicial

1. After completing installation and wiring, restore power to the heating system.
2. The controller will begin sensing the water temperature.

4.2 Configuració de la temperatura

• The L6006C1018/U typically features an adjustable dial or set screw for temperature setting.
• Carefully adjust the setpoint to the desired water temperature for your system. Consult your boiler or system manual for recommended temperature settings.
• The differential (the temperature drop before the controller reactivates) may also be adjustable on some models. Refer to the internal diagram for adjustment points.

4.3 Finalització de l'operacióview

When the water temperature falls below the setpoint minus the differential, the controller will activate the connected heating device (e.g., burner). When the water temperature reaches the setpoint, the controller will deactivate the heating device. This cycle maintains the water temperature within the desired range.

5. Manteniment

The Honeywell Aquastat Controller is designed for long-term, reliable operation with minimal maintenance. However, periodic checks are recommended.

• Inspecció anual: Have a qualified technician inspect the controller and its wiring annually as part of your heating system's routine maintenance.
• Neteja: Ensure the controller's exterior is free from dust and debris. Do not use harsh chemicals for cleaning.
• Integritat del cablejat: During inspections, check for any signs of loose or corroded wiring connections.
• Pou d'immersió: Ensure the sensing bulb is fully seated in the immersion well and that the well is free of scale or sediment that could impede heat transfer.

6. Solució De Problemes

Before attempting any troubleshooting, ensure power is disconnected to prevent electrical shock.

Si els problemes persisteixen després d'intentar aquestes solucions, poseu-vos en contacte amb un tècnic de servei qualificat.

7. Especificacions

• Número de model: L6006C1018/U
• Marca: Honeywell
• Material: Metall
• Acabat exterior: Acer inoxidable
• Tipus de connexió d'entrada: Brida
• Tipus de connexió de presa: Brida
• Nombre de ports: 2
• Mida de la connexió de sortida: 3 polzades
• Especificació complerta: ASME B16.34, UL

8. Garantia i Suport

Honeywell products are manufactured to the highest standards and are backed by a limited warranty. For specific warranty details, please refer to the documentation included with your product or visit the official Honeywell website. For technical support, service, or replacement parts, please contact Honeywell customer service or a certified Honeywell dealer.

Recursos en línia: For additional information, product updates, and FAQs, visit the official Honeywell weblloc: www.honeywell.com
