1. Introducció
Producte acabatview
This manual provides instructions for the installation, operation, and maintenance of the GREENLUX 5-6 Inch Recessed LED Retrofit Downlight Kit, Model DL5612DIM128030K. This LED downlight is designed to replace traditional incandescent or halogen bulbs in existing 5-6 inch recessed fixtures, offering energy efficiency and long-lasting illumination.
Característiques clau
- Eficient energètic: Consumeix 12 watts, l'equivalent a una bombeta incandescent de 100 watts.
- Alt Brillantor: Delivers 1000 lumens of light output.
- Temperatura de color: 3000K (Warm White) for a comfortable ambiance.
- Regulable: Compatible with most standard dimmers, dimmable down to 5%.
- Llarga vida útil: Rated for up to 50,000 hours of operation.
- Ús versàtil: Suitable for indoor and outdoor dry and damp ubicacions.
- Encès instantani: Provides full light output immediately with no warm-up time.
2. Informació de seguretat
Si us plau, llegiu i enteneu totes les instruccions abans de començar la instal·lació. Si no seguiu aquestes instruccions, podeu patir descàrregues elèctriques, incendis o altres perills que podrien causar lesions personals o danys materials.
- ADVERTIMENT: Risc de descàrrega elèctrica. Desconnecteu l'alimentació al fusible o al disjuntor abans d'instal·lar o fer el servei.
- Aquest producte s'ha d'instal·lar d'acord amb el codi d'instal·lació aplicable per una persona familiaritzada amb la construcció i el funcionament del producte i els perills que comporta.
- Assegureu-vos el subministrament voltage és 120 V AC.
- Do not use with dimmers not specifically designed for LED products. Consult a qualified electrician if unsure.
- Do not attempt to alter or modify the product.
- Apte per al seu ús en damp locations. Not intended for direct exposure to water.
3. Contingut del paquet
Verifiqueu que tots els components siguin presents abans de la instal·lació:
- 1 x GREENLUX 5-6 Inch Recessed LED Retrofit Downlight Kit (Model DL5612DIM128030K)

Image: The product packaging for the GREENLUX 5-6 Inch Recessed LED Retrofit Downlight Kit. The box highlights key features such as 12W power, 100W replacement, 1000 lumens, 3000K warm white color, dimmable function, and a 5-year warranty.
4. Configuració i instal·lació
Abans de començar
- Desconnecteu l'alimentació a l'interruptor o a la caixa de fusibles per evitar descàrregues elèctriques.
- Ensure the existing recessed housing is compatible with a 5-6 inch retrofit kit.
- Traieu la bombeta i l'embellidor existents de la carcassa encastada.
Passos d'instal·lació
- Connecteu l'adaptador: Screw the E26 adapter (provided with the downlight) into the existing socket of your recessed housing.
- Secure Electrical Connection: Connect the orange quick connector from the downlight to the E26 adapter. Ensure a secure connection.
- Inserir a la carcassa: Gently push the downlight into the recessed housing. The spring clips on the sides of the downlight will secure it in place. Ensure the downlight sits flush with the ceiling.
- Restaura l'alimentació: Un cop instal·lat el downlight de manera segura, restableix l'alimentació a l'interruptor.

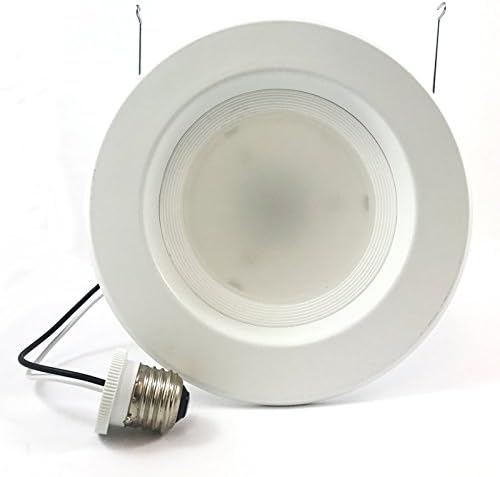

Image: The GREENLUX LED retrofit downlight shown with its E26 screw-in adapter, ready for connection to a standard light socket.

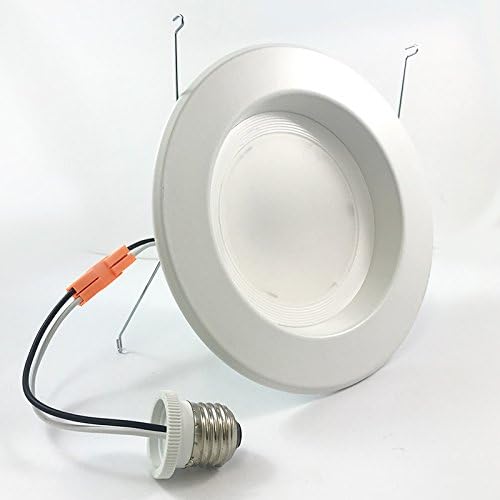

Imatge: Un costat view of the GREENLUX LED retrofit downlight, illustrating the connection point between the downlight's wiring and the E26 adapter.

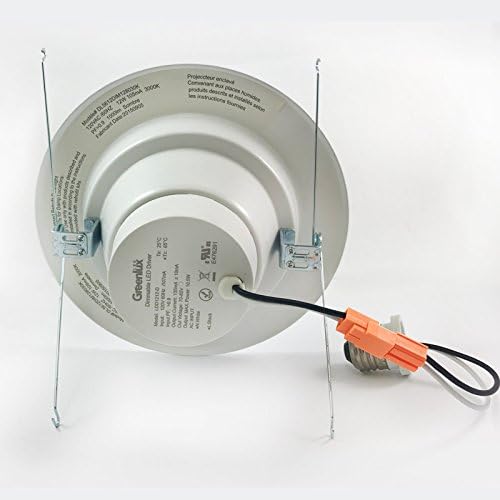

Imatge: La part posterior view of the GREENLUX LED retrofit downlight, highlighting the spring clips used for securing the fixture within a recessed housing. The driver information is also visible.
5. Instruccions de funcionament
After successful installation, the GREENLUX LED Retrofit Downlight operates like any standard light fixture. Use your wall switch to turn the light on or off. If connected to a compatible dimmer switch, you can adjust the brightness level as desired.
6. Manteniment
The GREENLUX LED Retrofit Downlight requires minimal maintenance due to its long lifespan and durable construction.
- Neteja: Ensure power is off before cleaning. Wipe the surface of the downlight with a soft, dry, or slightly damp tela. No utilitzeu netejadors abrasius ni dissolvents.
- Sense substitució de bombeta: This is an integrated LED fixture; the LED light source is not designed to be replaced.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s’encén. | Sense font d'alimentació. Connexió fluixa. Interruptor defectuós. | Comproveu l'interruptor/fusible. Ensure all connections are secure (power off first). Test the switch with another device. |
| La llum parpelleja o s'atenua de manera incorrecta. | Interruptor regulador d'intensitat incompatible. Cablejat solt. | Assegureu-vos que el regulador d'intensitat sigui compatible amb LED. Comproveu les connexions del cablejat (primer apagueu l'alimentació). |
| La llum no és prou brillant. | Ajust del regulador d'intensitat massa baix. | Ajusteu el regulador d'intensitat a la brillantor màxima. |
8. Especificacions
| Característica | Especificació |
|---|---|
| Número de model | DL5612DIM128030K |
| Entrada Voltage | 120 V AC |
| Wattage | 12 watts |
| Equivalent incandescent | 100 watts |
| Flux lluminós (brillantor) | 1000 lúmens |
| Temperatura de color | 3000K (blanc càlid) |
| Índex de reproducció del color (CRI) | >80 |
| Regulabilitat | Regulable fins a un 5% |
| Vida útil nominal | 50,000 hores |
| Fixture Size Compatibility | 5-6 inch recessed cans |
| Ús interior/exterior | Interior, Exterior (Damp Ubicacions) |
| Material | Copper (housing/trim) |
| Pes de l'article | 16 unces (1 lliura) |
| Dimensions (Overall Diameter) | 7.57 polzades |
| Dimensions (Visible Diameter) | 5.5 polzades |
| Dimensions (profunditat) | 3.42 polzades |

Image: The GREENLUX LED retrofit downlight with indicated measurements for its overall diameter (7.57 inches) and the visible light-emitting surface diameter (5.5 inches).

Imatge: Un professional lateralfile of the GREENLUX LED retrofit downlight, showing its depth measurement of 3.42 inches from the front surface to the back.
9. Garantia i Suport
This GREENLUX LED Retrofit Downlight Kit is backed by a manufacturer's warranty. For specific warranty details, claims, or technical support, please refer to the contact information provided on the product packaging or visit the official GREENLUX weblloc.
Fabricant: GreenLux
UPC: 628398000824
Número de peça: G8000824
