Alpine i209-WRA 9-inch Receiver User Manual

1. Introducció

This manual provides essential information for the installation, operation, and maintenance of your Alpine i209-WRA 9-inch Restyle Dash System. Engineered specifically for 2011-2018 Jeep Wrangler JK models, this mech-less AM/FM/Bluetooth system features a 9-inch WVGA capacitive touchscreen and a custom dash bezel. The i209-WRA is designed with a weatherproof touch screen and bezel, rated at IP53, offering protection against dust and fresh water spray. It supports both Apple CarPlay and Android Auto for seamless smartphone integration.

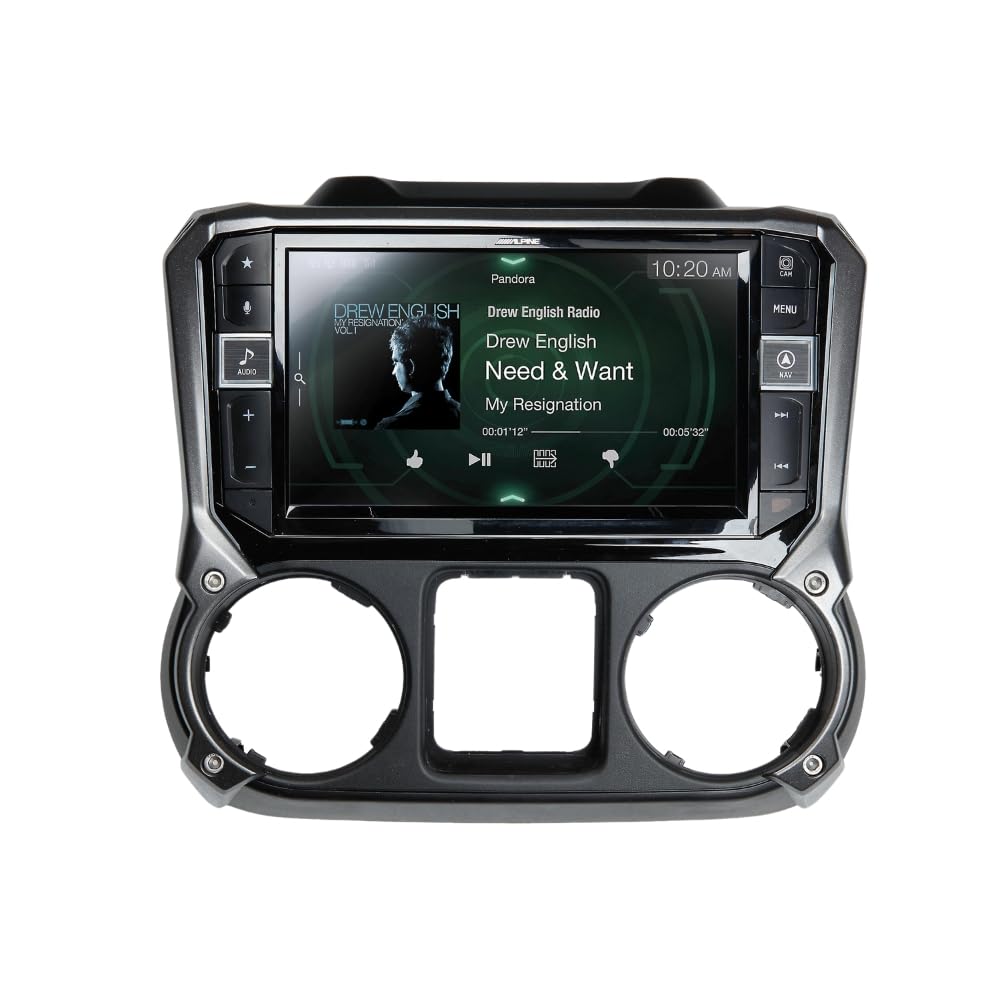

Image 1.1: The Alpine i209-WRA unit seamlessly integrated into a Jeep Wrangler JK dashboard, showcasing its large display and user interface.

2. Informació de seguretat

Read all instructions carefully before installation and operation. Failure to follow these guidelines may result in personal injury or damage to the product or vehicle.

• Instal·lació professional recomanada: Due to the complexity of vehicle electronics and the need for dash modification, professional installation is highly recommended.
• Compatibilitat de vehicles: This unit is designed for 2011-2018 Jeep Wrangler JK models. Ensure compatibility before attempting installation.
• Connexió d'alimentació: Connect the unit only to a 12V DC negative ground electrical system. Incorrect wiring can cause fire or malfunction.
• Seguretat de conducció: Do not operate features that distract you from driving. Always keep your eyes on the road and obey all traffic laws.
• Resistència a la intempèrie: The unit is IP53 rated for dust and water spray. Avoid direct high-pressure water jets or submersion.

3. Què hi ha a la caixa

Verify that all components listed below are present before beginning installation.

• i209 Display Unit
• i209 Source Unit
• Cable d'extensió USB
• AUX/Pre-out Harness
• Antena GPS
• Direct Camera Adapter
• Cable de pantalla
• Display Power Harness
• Anti-Vibration Foam
• Cargols (12)
• Source Unit HDMI Bracket
• G-KTX-i209-WRA Installation Kit Parts (i209-WRA Radio Display Bezel)
• Key Harness
• Suports de muntatge laterals
• Micròfon
• GPS Antenna Bracket
• Display Mounting Brackets
• iDatalink Maestro Box Parts (Maestro Flashing Cable)
• Adaptador d'antena
• iDatalink Maestro Module
• Arnès principal
• Satellite Radio Antenna Adapter
• OEM USB Adapter

Image 3.1: All included wiring harnesses, adapters, and the iDatalink Maestro module for the Alpine i209-WRA system.

4. Configuració i instal·lació

The installation of the Alpine i209-WRA system involves replacing the factory radio and dash components. This process requires careful attention to detail and may involve modifying the vehicle's dashboard. It is strongly recommended that installation be performed by a qualified professional.

4.1. Passos previs a la instal·lació

1. Desconnecta la bateria: Desconnecteu sempre el terminal negatiu de la bateria del vehicle abans de començar qualsevol treball elèctric.
2. Eliminar components de fàbrica: Carefully remove the factory radio, dash bezel, and any associated wiring.
3. Dash Modification: The installation may require cutting or modifying the factory dash structure to accommodate the larger 9-inch display and new bezel. Refer to the detailed installation guide provided with the product for specific instructions.

Image 4.1: The internal structure of the Alpine i209-WRA dash bezel, ready for display unit integration.

4.2. Wiring and Module Connection

1. iDatalink Maestro Module: Connect the iDatalink Maestro module according to the provided instructions. This module retains factory features such as steering wheel controls and vehicle information display. Ensure the module is flashed with the correct firmware for your vehicle.
2. Connexions de l'arnès: Connect the main harness, AUX/Pre-out harness, display power harness, and other specific adapters (GPS antenna, camera adapter, satellite radio adapter) to the i209 Source Unit and Display Unit.
3. USB and HDMI: Route the USB extension cable and HDMI cable (if applicable) to desired locations for easy access.

Image 4.2: The Alpine i209-WRA dash bezel and mounting hardware.

4.3. Muntatge de la unitat

1. Assemble Display and Bezel: Secure the i209 Display Unit into the custom dash bezel using the provided screws and mounting brackets.
2. Install into Dash: Carefully install the assembled unit into the vehicle's dashboard, ensuring all connections are secure and no wires are pinched.
3. Torneu a connectar la bateria: Once all components are securely installed and wired, reconnect the vehicle's negative battery terminal.

5. Instruccions de funcionament

The Alpine i209-WRA offers a user-friendly interface with advanced features. Familiarize yourself with the main functions for optimal use.

5.1. Engegada/Apagada i Controls Bàsics

• Potència: The unit powers on automatically with the vehicle's ignition. To manually turn off or on, press and hold the power button (if available on the bezel).
• Volum: Adjust volume using the physical buttons on the bezel or the steering wheel controls (if retained via iDatalink Maestro).
• Pantalla d'inici: Press the 'Home' or 'Menu' button on the bezel to return to the main menu.

5.2. Apple CarPlay

Connect your iPhone (iPhone 5 or later) via an Apple Lightning cable to enable Apple CarPlay. CarPlay allows you to make calls, send messages, get directions, and play music using Siri voice control or the touchscreen.

• Connexió: Plug your iPhone into the designated USB port. The CarPlay interface will automatically launch.
• Siri Voice Control: Press the 'Voice' button on the unit or steering wheel to activate Siri.
• Navegació: Use Apple Maps or other compatible navigation apps for directions.

5.3. Android Auto

Connect your Android phone (running Android 5.0 Lollipop or higher with the Android Auto app installed) via a USB cable and Bluetooth connection to use Android Auto. This feature provides a simplified interface for navigation, communication, and music.

• Connexió: Connect your Android phone via USB and ensure Bluetooth is paired. The Android Auto interface will appear.
• Comandaments de veu: Use the 'Voice' button to activate Google Assistant for hands-free control.
• Navegació: Utilize Google Maps or Waze for turn-by-turn directions.

5.4. Bluetooth Audio and Hands-Free Calling

The i209-WRA includes built-in Bluetooth for wireless audio streaming and hands-free calling.

• Maridatge: Go to the Bluetooth settings on the unit and your smartphone to pair devices.
• Transmissió d'àudio: Stream music from your phone directly to the unit.
• Trucades mans lliures: Make and receive calls using the unit's microphone and speakers.

5.5. Radio (AM/FM/HD Radio/SiriusXM)

Access various radio sources through the unit's interface.

• AM / FM: Tune to your favorite local stations. The built-in HD Radio tuner provides enhanced sound quality where available.
• SiriusXM: The unit is SiriusXM compatible. A separate SiriusXM Connect Vehicle Tuner and subscription are required for satellite radio access.

5.6. Camera Integration

The unit supports direct camera input. Connect compatible cameras (e.g., rearview, front, side) to enhance visibility and safety.

6. Manteniment

Proper care ensures the longevity and optimal performance of your Alpine i209-WRA receiver.

• Neteja de pantalla: Feu servir un drap suau i sense borrissol per netejar suaument la pantalla tàctil. Per a taques difícils, fregueu lleugeramentampNetegeu el drap amb aigua o un netejador de pantalles. Eviteu productes químics agressius o materials abrasius.
• Neteja de la unitat: Wipe the unit and bezel with a soft, dry cloth. Do not use excessive moisture.
• Protecció meteorològica: While the unit is IP53 rated, prolonged exposure to extreme weather conditions (e.g., heavy rain, direct sunlight) should be minimized when possible to prevent wear and tear.
• Actualitzacions de programari: Periodically check the Alpine weblloc web per a actualitzacions de firmware per assegurar-vos que la unitat tingui les darreres funcions i correccions d'errors.

7. Solució De Problemes

If you encounter issues with your Alpine i209-WRA, refer to the following common problems and solutions.

• Sense energia:
  • Check vehicle's battery connection.
  • Verify all power harnesses are securely connected.
  • Revisa els fusibles del vehicle.
• Sense so:
  • Assegureu-vos que el volum no estigui silenciat ni al mínim.
  • Comproveu les connexions dels cables de l'altaveu.
  • Verifica la selecció de la font d'àudio.
• CarPlay/Android Auto no s'inicia:
  • Ensure your smartphone is compatible and has the latest OS updates.
  • Use a high-quality USB cable.
  • For Android Auto, confirm Bluetooth is paired and the Android Auto app is installed.
  • Try restarting your phone and the unit.
• Pantalla tàctil que no respon:
  • Perform a soft reset (refer to the full product manual for instructions).
  • Assegureu-vos que la pantalla estigui neta i lliure de residus.
• Els comandaments del volant no funcionen:
  • Verify the iDatalink Maestro module is correctly installed and flashed.
  • Check connections to the iDatalink module.

For persistent issues, contact Alpine customer support or consult a professional installer.

8. Especificacions

9. Garantia i Suport

Alpine Electronics USA provides a limited warranty for this product. For specific warranty terms, registration, and support, please refer to the warranty card included with your product or visit the official Alpine website. For technical assistance or service inquiries, contact Alpine customer support directly.

Atenció al client d'Alpine: Refer to your product documentation or the Alpine weblloc web per obtenir la informació de contacte més actualitzada.
