Introducció
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Briggs & Stratton S2000P Electric Pressure Washer. Please read this manual thoroughly before operating the unit and retain it for future reference.
Informació important de seguretat
ADVERTIMENT: Si no seguiu aquestes instruccions, podreu provocar lesions greus o danys materials.
- Always wear appropriate eye protection (safety glasses) and hearing protection when operating the pressure washer.
- Do not direct the spray at people, pets, electrical devices, or the unit itself. High-pressure spray can cause severe injury.
- Assegureu-vos que totes les connexions estiguin ben fixades abans d'engegar la unitat.
- Feu funcionar la rentadora a pressió sobre una superfície estable i anivellada.
- Mantingueu la zona d'operació lliure de vianants i obstacles.
- Do not operate the unit if the power cord or high-pressure hose is damaged.
- Desconnecteu sempre l'alimentació abans de realitzar qualsevol manteniment o neteja.
- Utilitzeu només detergents recomanats per a rentadores a pressió.
- This unit is equipped with a Ground Fault Circuit Interrupter (GFCI) for your safety. If the GFCI trips, reset it. If it continues to trip, do not use the unit and have it serviced by qualified personnel.
Muntatge i muntatge
Your Briggs & Stratton S2000P Electric Pressure Washer is designed for quick and easy setup. Follow these steps to prepare your unit for operation.
Desembalatge i inspecció inicial
- Traieu amb cura tots els components de l'embalatge.
- Inspect the unit for any signs of damage. If damaged, do not operate and contact customer service.
- Assegureu-vos que tots els components enumerats siguin presents.
Muntatge del mànec
The pressure washer features a convenient foldaway design for easy storage. To set up for use, extend the handle into the upright position and secure it according to the instructions provided in the product's quick start guide.
Figure 1: Briggs & Stratton S2000P Electric Pressure Washer in its upright, ready-to-use position.

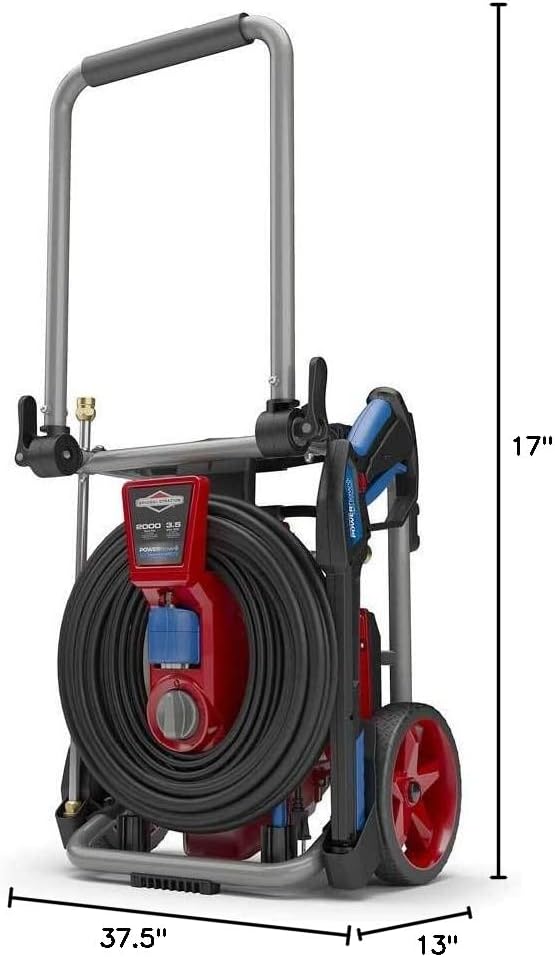

Figure 2: The compact dimensions of the pressure washer, showing its height of 17 inches, length of 37.5 inches, and width of 13 inches.
Connexió al subministrament d'aigua
- Connect a garden hose (not included) to the water inlet on the pressure washer. Ensure the connection is tight to prevent leaks.
- Connect the high-pressure hose to the outlet on the unit and to the spray gun.
- Obriu completament el subministrament d'aigua.
- Premeu el gallet de la pistola polvoritzadora per purgar l'aire del sistema fins que surti un raig constant d'aigua.
Potència de connexió
Plug the power cord into a grounded 120V AC outlet. The unit features a GFCI plug for safety.
Instruccions de funcionament
Nozzle Selection (7-in-1 Nozzle)
Your pressure washer is equipped with a versatile 7-in-1 nozzle, allowing you to easily switch between different spray patterns and pressures for various cleaning tasks. Rotate the nozzle to select the desired setting.
- Alta pressió: For tough dirt and grime on durable surfaces.
- Flux alt: For rinsing large areas or reaching high windows.
- Altres patrons: Various fan and jet patterns for different applications.
Figure 3: The 7-in-1 nozzle attached to the spray gun, ready for selection.
Ús de detergent
The integrated detergent tank allows for easy application of cleaning solutions.
- Fill the detergent tank with a pressure washer-safe cleaning solution.
- Select the soap/detergent setting on the 7-in-1 nozzle.
- Apply detergent to the cleaning surface. Allow it to soak for a few minutes (refer to detergent instructions).
- Switch the nozzle to a high-pressure setting and rinse the surface thoroughly.
Figure 4: The integrated detergent tank, located on the side of the pressure washer, ready for filling.
POWERflow+ Technology
This technology provides the flexibility to choose between high pressure for tough cleaning and high water flow for faster rinsing or reaching higher areas. Adjust the nozzle to optimize performance for your specific task.
Vídeo 1: Una animacióview of the Briggs & Stratton S2000P Electric Pressure Washer, demonstrating its POWERflow+ Technology, durable brushless motor, 7-in-1 nozzle, tough welded steel frame, and convenient foldaway design for easy storage.
Manteniment
Un manteniment regular garanteix un rendiment òptim i allarga la vida útil de la teva rentadora a pressió.
Després de cada ús
- Turn off the water supply and disconnect the power.
- Premeu el gallet de la pistola polvoritzadora per alliberar la pressió restant.
- Desconnecteu la mànega de jardí i la mànega d'alta pressió.
- Drain any remaining water from the unit and hoses.
- Clean the nozzle and filter screen.
- Netegeu la unitat amb l'anunciamp tela.
Emmagatzematge
Store the pressure washer in a dry, frost-free area. The foldaway design allows for compact storage.
Figure 5: The pressure washer folded for compact storage, demonstrating its space-saving design.
Resolució de problemes
If you encounter issues with your pressure washer, refer to the common problems and solutions below.
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no comença | Sense subministrament d'alimentació; GFCI disparat; Interruptor apagat | Check power connection; Reset GFCI; Turn power switch ON. |
| Baixa pressió | Subministrament d'aigua insuficient; Broquet obstruït; Aire a la bomba; Mànega doblegada | Ensure full water flow; Clean nozzle; Purge air from system; Straighten hose. |
| Pressió pulsatòria | Aire a la bomba; Restricció del subministrament d'aigua; Broquet obstruït | Purge air from system; Check water inlet filter; Clean nozzle. |
| Fuites d'aigua | Connexions soltes; juntes tòriques danyades | Estrenyeu totes les connexions; Substituïu les juntes tòriques danyades. |
If problems persist after attempting these solutions, contact Briggs & Stratton customer support.
Especificacions
| Característica | Detall |
|---|---|
| Número de model | 020667 |
| Marca | Briggs & Stratton |
| Pressió màxima (PSI) | 2000 PSI MÀXIM |
| Caudal màxim (GPM) | GPN 3.5 |
| Font d'alimentació | Elèctric amb cable |
| Longitud de la mànega | 300 polzades (25 peus) |
| Dimensions del producte (L x A x A) | 37.5" x 13" x 17" |
| Pes de l'article | 43.25 lliures |
| Tipus de broquet | Broquet 7 en 1 |
| Detergent System | Integrated Detergent Tank |
Garantia i Suport
For detailed warranty information and customer support, please refer to the warranty card included with your product or visit the official Briggs & Stratton website. You can also contact their customer service for assistance with parts, service, or technical questions.
